433MHz 1-Channel RF Wireless Remote Control Switch & Receiver
- MORE FLEXIBILITY: This system adopts non-directional wireless encoding technology, allowing independent control without mutual interference, and can be flexibly configured in quantity and in operating modes.
- WIDELY APPLICATION: Be used in industrial control and security fields, such as light, motor, remote controller, wireless security alarm, wireless door alarm, wireless controller, etc.
- EXCELLENT PERFORMANCE: The power relay with 10A switching capacity provides an excellent switching performance.
- Convenient to operate and easy to use
- This remote uses high performance MCU to ensure stable performance, and low-power circuit makes the service life longer
- Stable performance and low-power consumption, long service life
- The wireless signal can pass through walls, floors and doors
- Applied for garage door, roller shutter door or windows, remote control door lock, etc.
- Operating Voltage: 12VDC
- Receiving Range: 164ft (Open space)
- Operating Mode: Momentary/Toggle/Latched
- RF Frequency: 433.92MHz
- DC Encoding Type: Learning code
- RF Channel: One
- Transmitter can be paired: 40

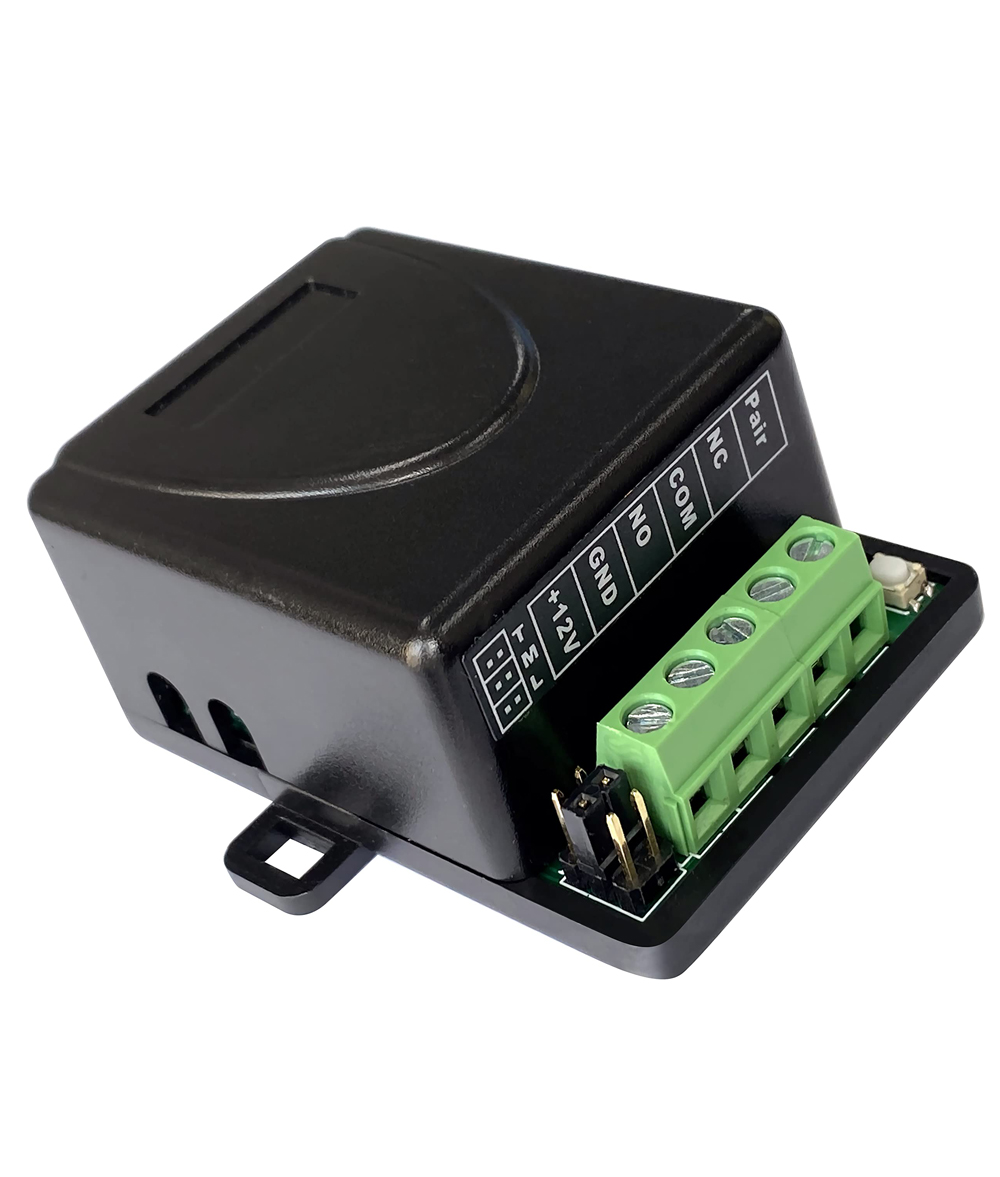

- Output Terminals: NO/NC/COM
- Connectors: 5 screw Terminal
- Case Construction: ABS Plastic
- Powered by: 2pcs CR2016/3V batteries (Included)
- Operating Current: 8mA
- Service Life of the Battery: 50000 cycles tested
- Transmitting Frequency: 433.92MHz (Only compatible with the RF remote controls of UHPPOTE)
- Buttons: 2
- Emission Distance: 20-50m / 65-160ft (Open area)
- Dimension (LxWxH): approx. 58x33x12mm / 2-9/32″ x 1-19/64″ x 15/32″
- Encoding Type: Fixed code
- Color: Black
- Case Material: ABS Plastic
- Momentary: Press and hold A for ON, release A for OFF
- Toggle: Press A for ON, press A again for OFF
- Latched: Press A for ON, press B for OFF
- Press the pair button for 8 seconds until the green light turns off, indicating the unpairing is successful.
Pairing Transmitter and Receiver:
- Press the pair button once, the LED light flashes green, then press the button on the transmitter, the LED light flashes green three times to indicate the pairing is successful.
- 1 x Receiver
- 1 x Transmitter
- 1 x English Manual
