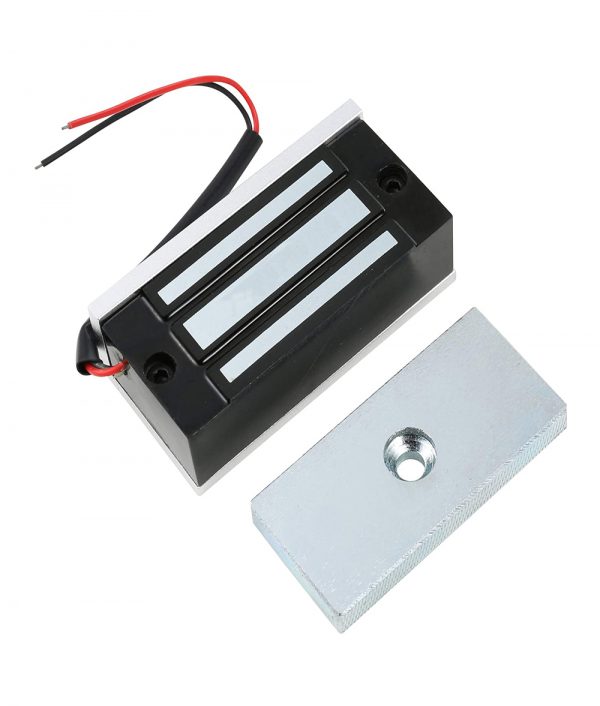

60kg Holding Force Mini Electric Magnetic Lock 12V Fail Safe for Door Acces Control System


This fail safe (NC) mode electric magnetic lock has a holding force of 130lb, suitable for small doors, such as wooden doors drawers, cabinets and etc. It has built-in voltage spike suppressor and is anti-residual magnesium designed, for high safety. MOV provides reverse current protection.

SKU: UT0531-60 Categories: ,

60kg Holding Force Mini Electric Magnetic Lock 12V Fail Safe for Door Acces Control System



  • Fail Safe – locked while supplied with power
  • Safety function : Built-in voltage spike suppressor
  • MOV Provides Reverse Current Protection
  • Anti-residual magnesium designed
  • Collinear Load Test 60kg,130pounds
  • Suitable For: Small door, such as wooden Door, drawer, Cabinet


  • Operating Mode: NC (locked while supplied with power), fail safe mode
  • Holding Force: 60KG/130Lbs
  • Voltage: DC12V
  • Current: 100mA
  • Surface Temp: <20℃ / 68℉
  • Operating Temp: -10℃~+55℃(14℉-131℉)
  • Humidity: 0~90%(non-condensing)

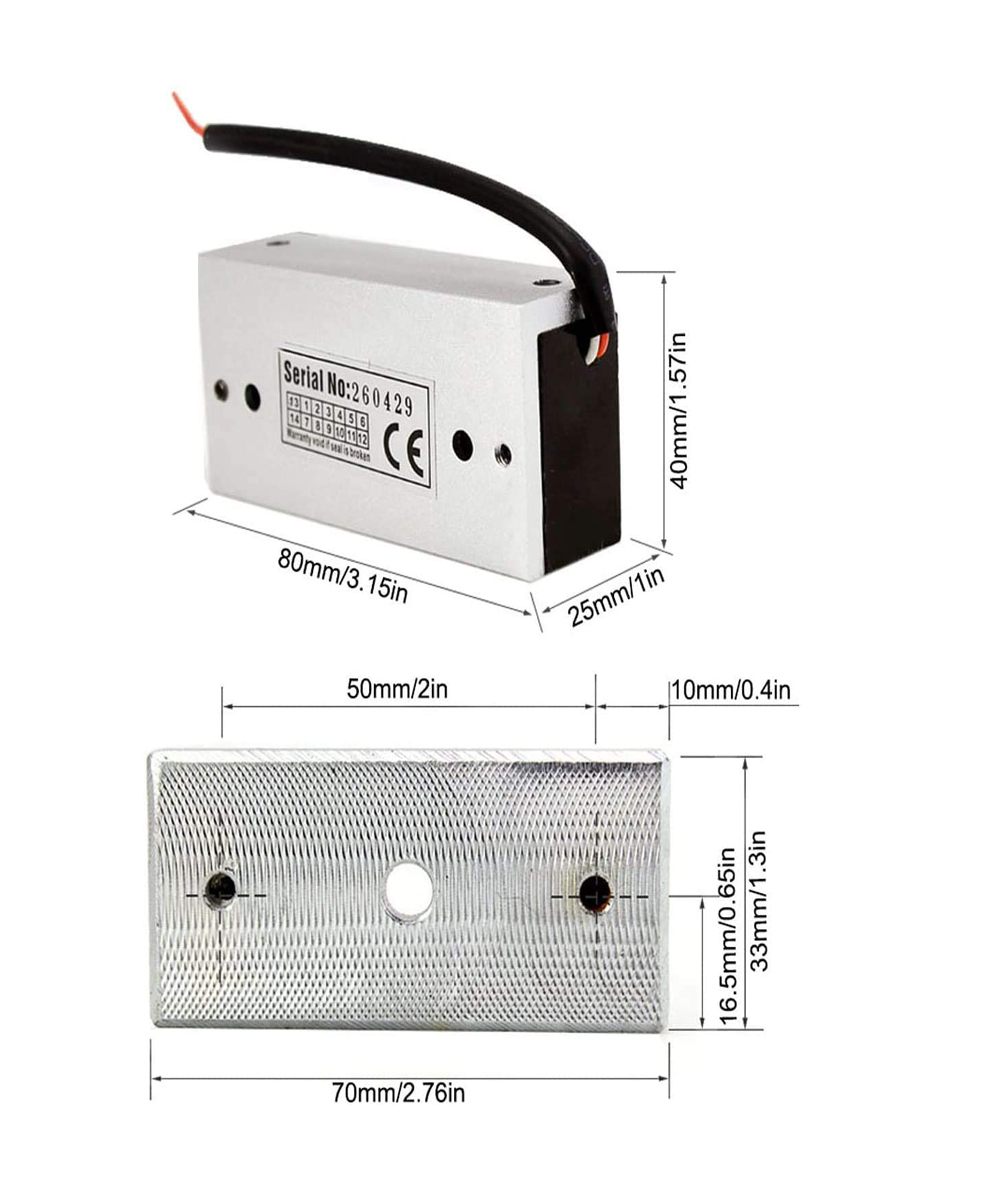

  • Electromagnet Dimensions: Approx. 3.15Lx1.44Wx0.95H(inches) / 80Lx36.5Wx24.1H(mm)
  • Armature Dimensions: 2.95Lx1.26Wx0.39H(inches) / 75Lx32Wx10H(mm)
  • Cover Finish: Anodized aluminum
  • Lock Finish: Zinc
  • Armature Plate Finish: Zinc
  • Net weight: 500g / 1.1lb


UT0531 60 7UT0531 60 11


UT0531 60 9

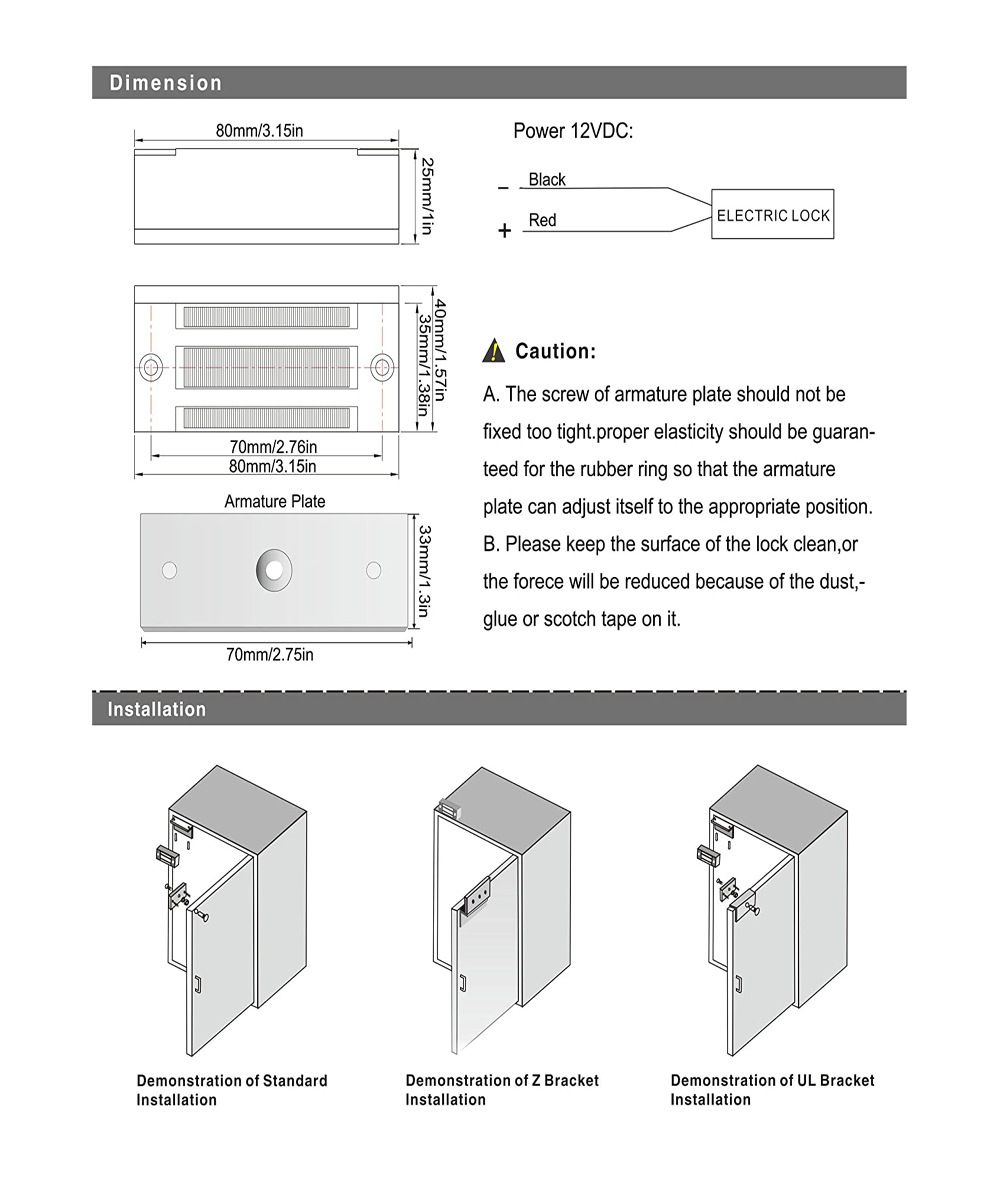

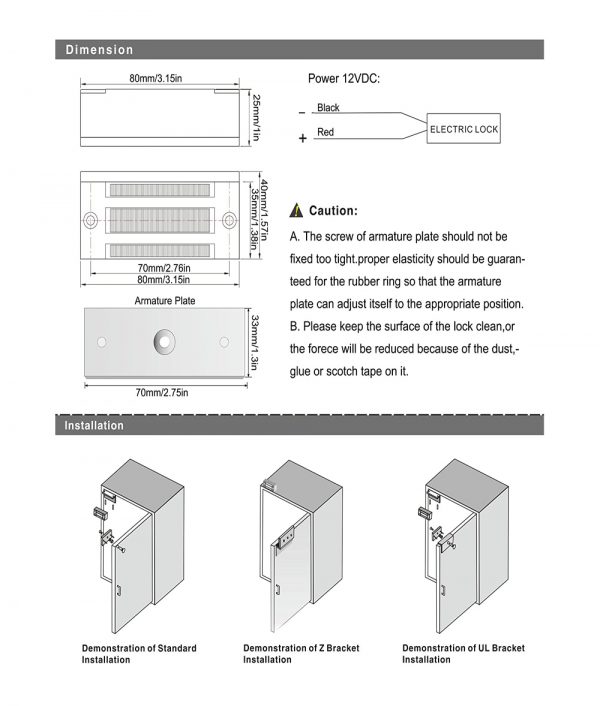

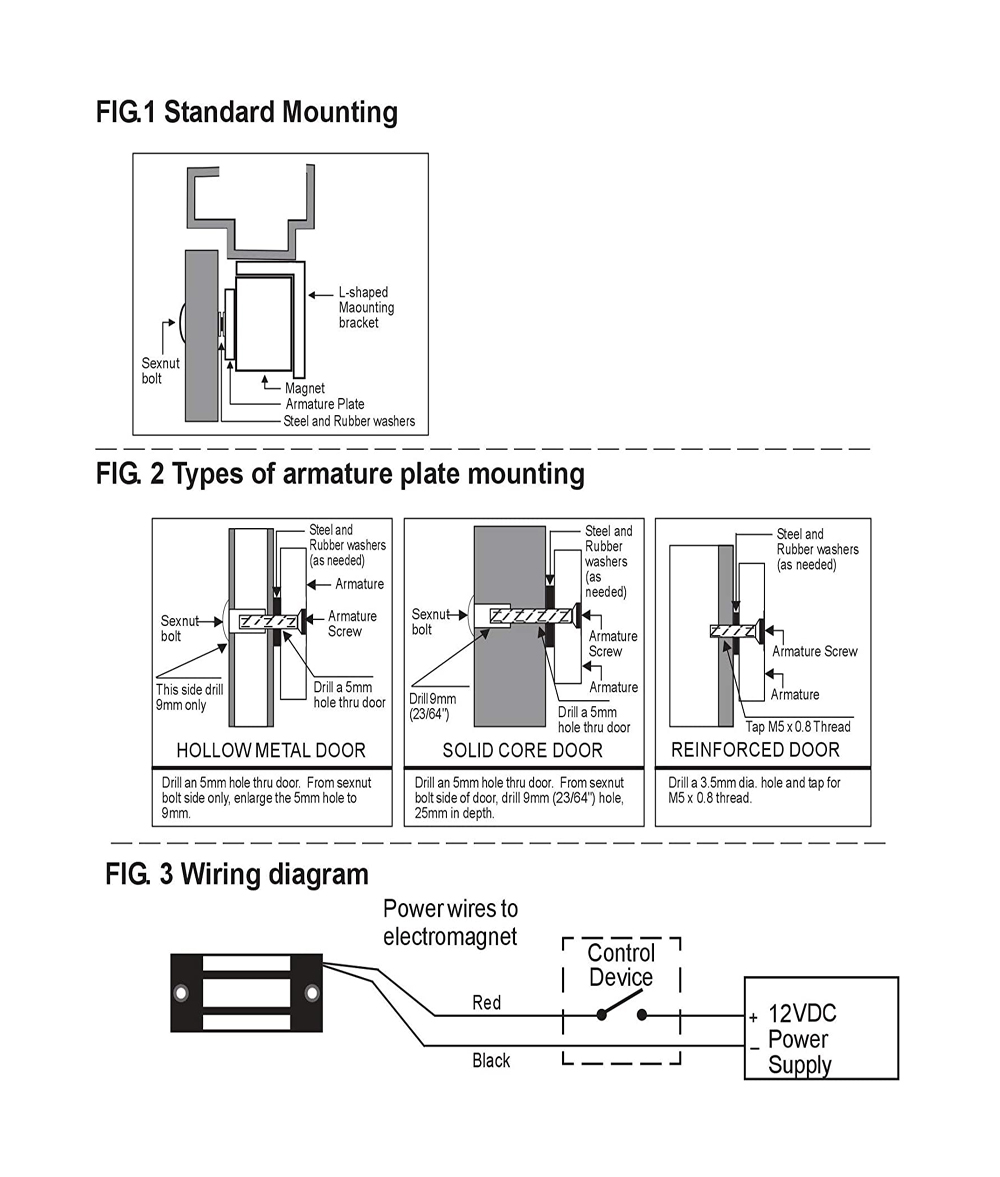

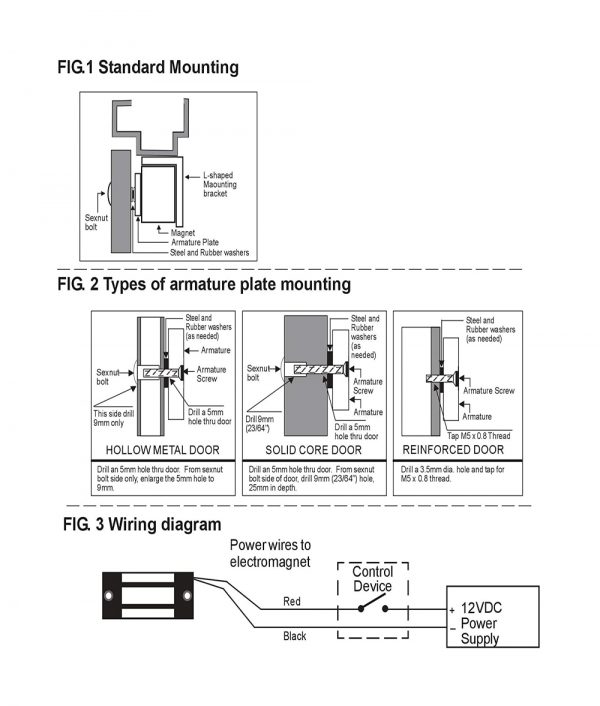

  • A. The screw of armature plate should not be fixed too tight. Proper elasticity should be guraranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
  • B. Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.

How This Lock Work:

UT0531 60 10

  • When power is applied to the electromagnetic lock, it turn on the unit’s powerful built-in electromagnet. This electromagnet is attracted to the steel armature plate which is mounted on a door, holding the door fast against unauthorized entry. When power to the magnetic lock is turned off, the electromagnet releases the armature plate, allowing the door to open.


  • 1 x Electric magnetic lock
  • 1 x User manual
  • 1 x Installation Kit

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.5 kg
