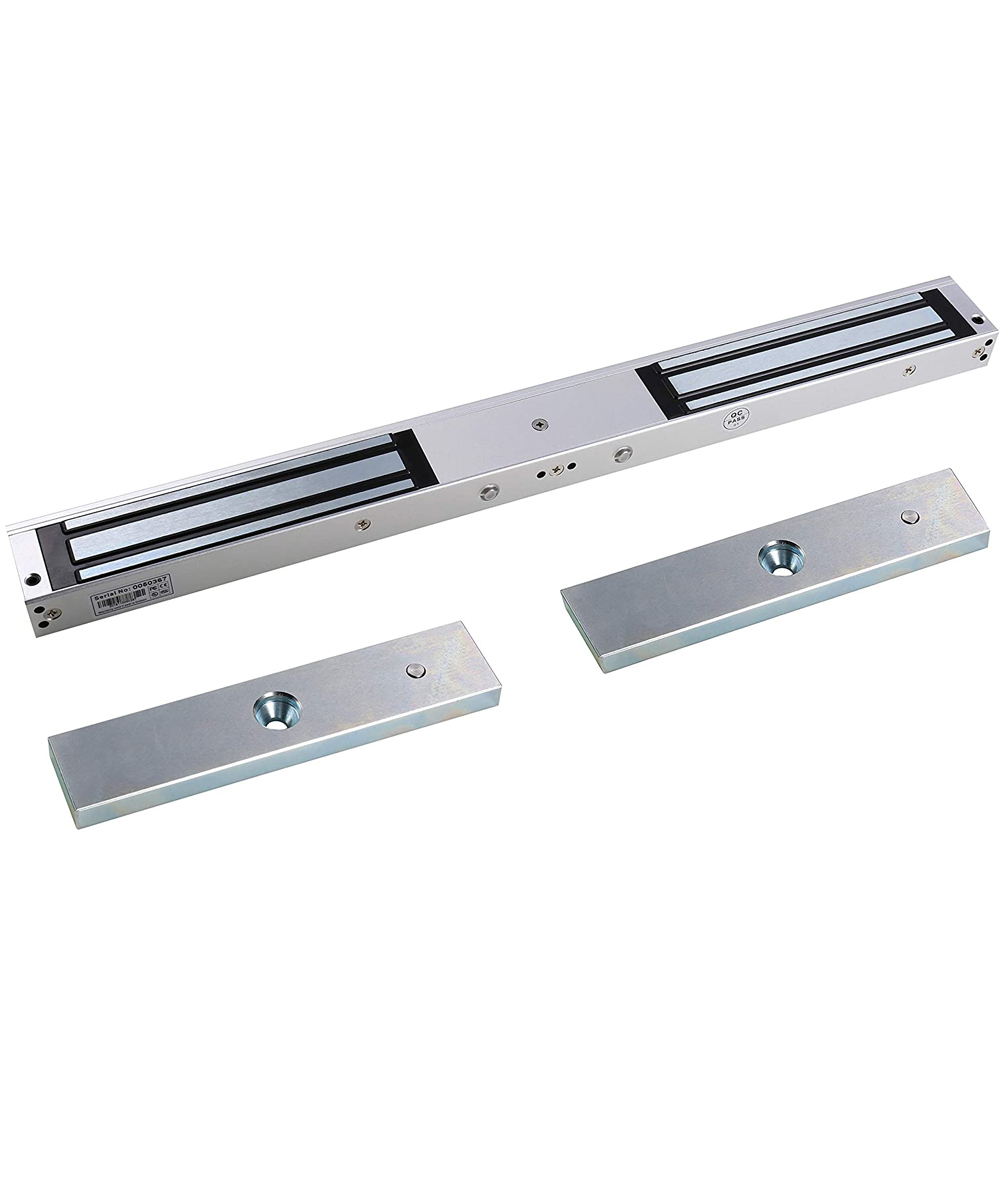

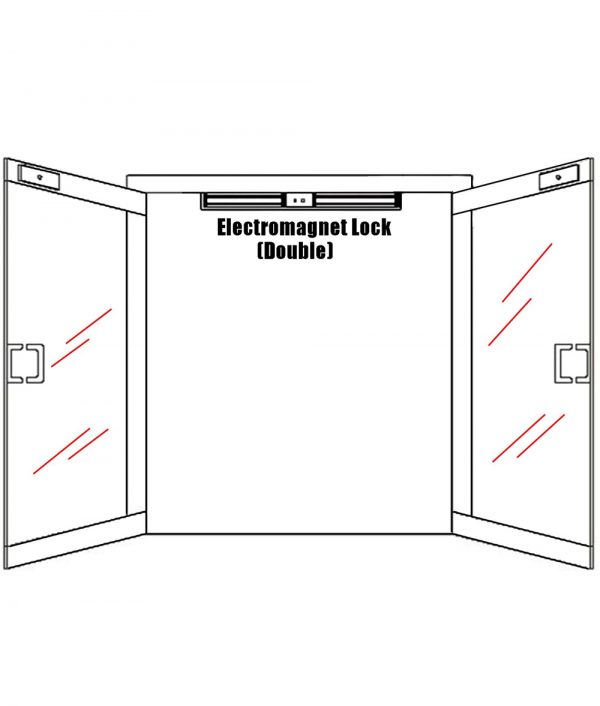

Electric magnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Double Door
- NC mode – (locked while supplied with power), fail safe mode
- Complete mounting hardware for typical installations
- Dual Voltage 12 or 24 VDC (Optional)

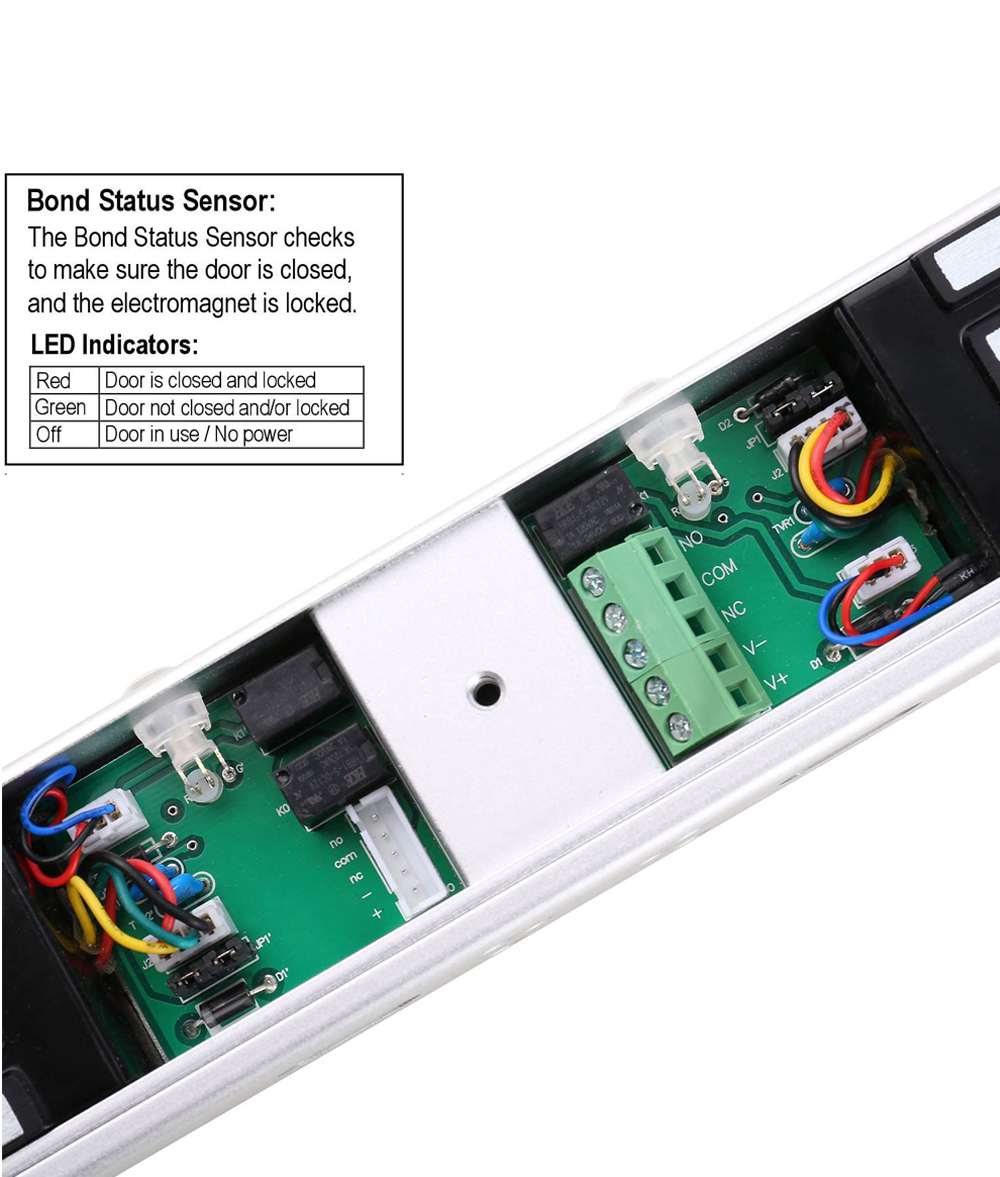

- Built-in dual-colored status LED and bond sensor to show locking status of each door
- The Standard Voltage is 12VDC when Finished
- LED Indicates the door Status
- MOV Provides Reverse Current Protection
- Anti-Residual Magnetism Designed
- High Strength Material,Anodized Aluminum Housing
- Design without Mechanical Failure
- Increase the holding Force, Dual Insulative Housing
- Size: 500Lx48.5Wx25H(mm) / 19-11/16Lx1-29/32Wx63/64H(in)
- Armature Plate Dimension: 180Lx38Wx11H(mm) / 7-3/32Lx1-1/2Wx7/16H(in)
- Holding Force: 280kgx2 / 600Lbsx2
- Input Voltage: 12 or 24VDC
- Current Draw: 12V/500mAx2 or 24V/250mAx2
- Suitable: Wooden door, Glass door, Metal door, Fireproof door
- Surface Temp: Less thand +20℃ / 68℉
- Operating Temp: -10℃~+55℃(14℉~131℉)
- Humidity: 0~90%(non-condensing)
- Cover Finish: Anodized aluminum
- Lock Finish: Zinc
- Armature Plate Finish: Zinc
- LED: Red shows locked ;Green shows unlocked

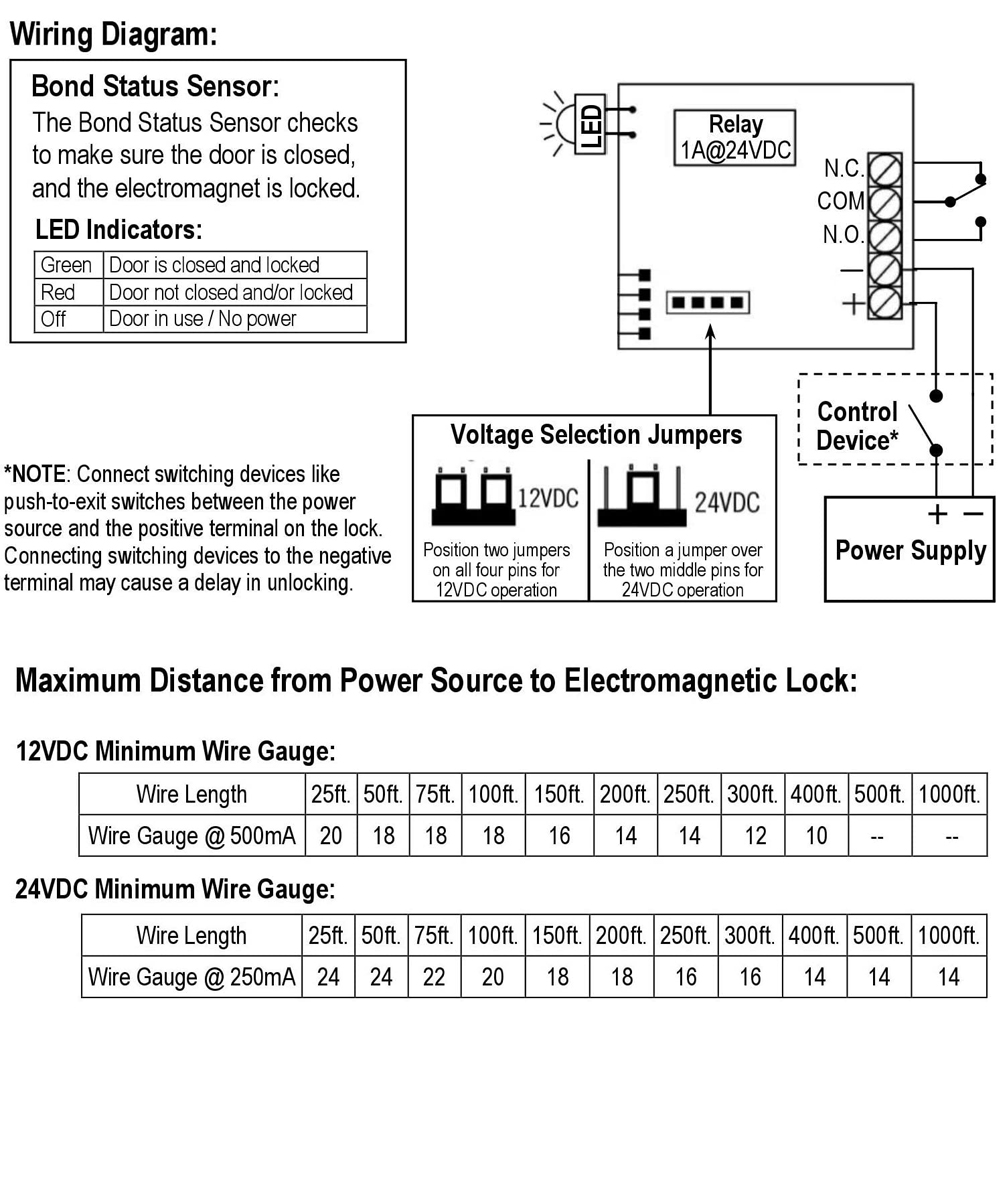

- Signal Output: Lock signal(NO/NC/COM)
- Weight: 4.2KG / 9.26lb
- Armature Plate installed too tight will lead to result the lock weak foce, recommend loosen the Armature Plate screws a little in this case.
- The screw of armature plate should not be fixed too tight. Proper elasticity should be guraranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
- Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.
- 1 x Electric Magnetic Lock
- 1 x User Manual
- 1 x Installation Kit
