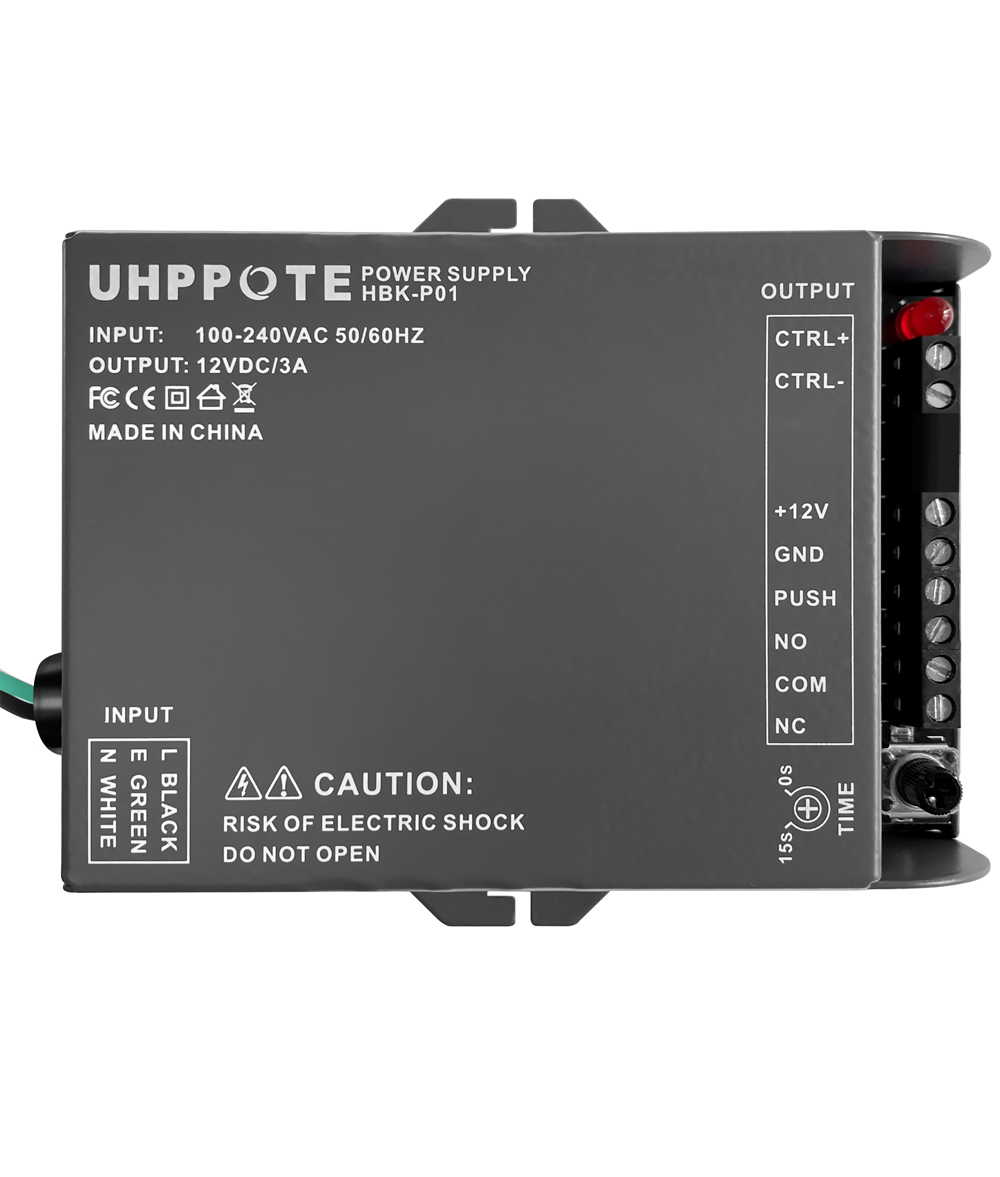

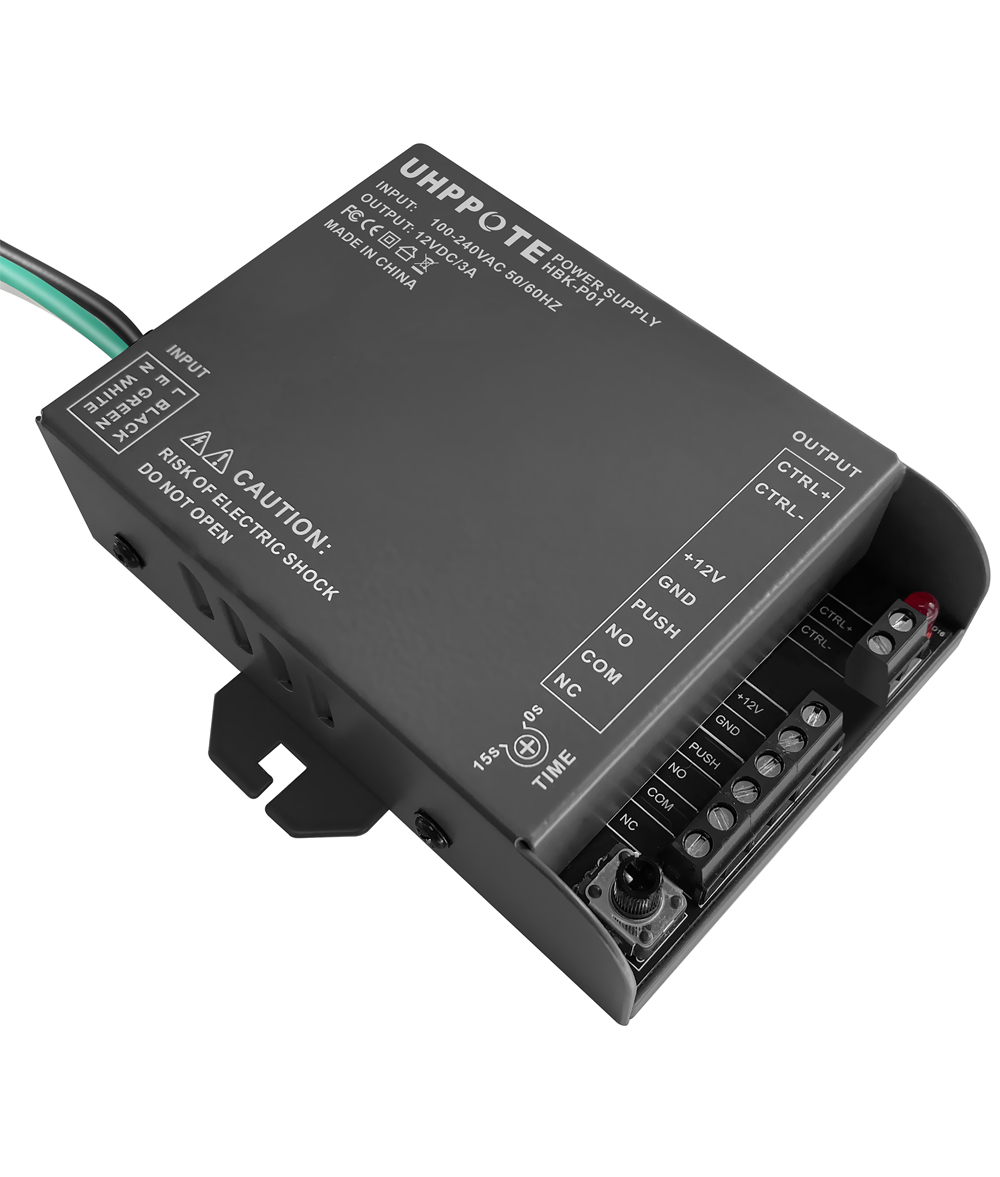

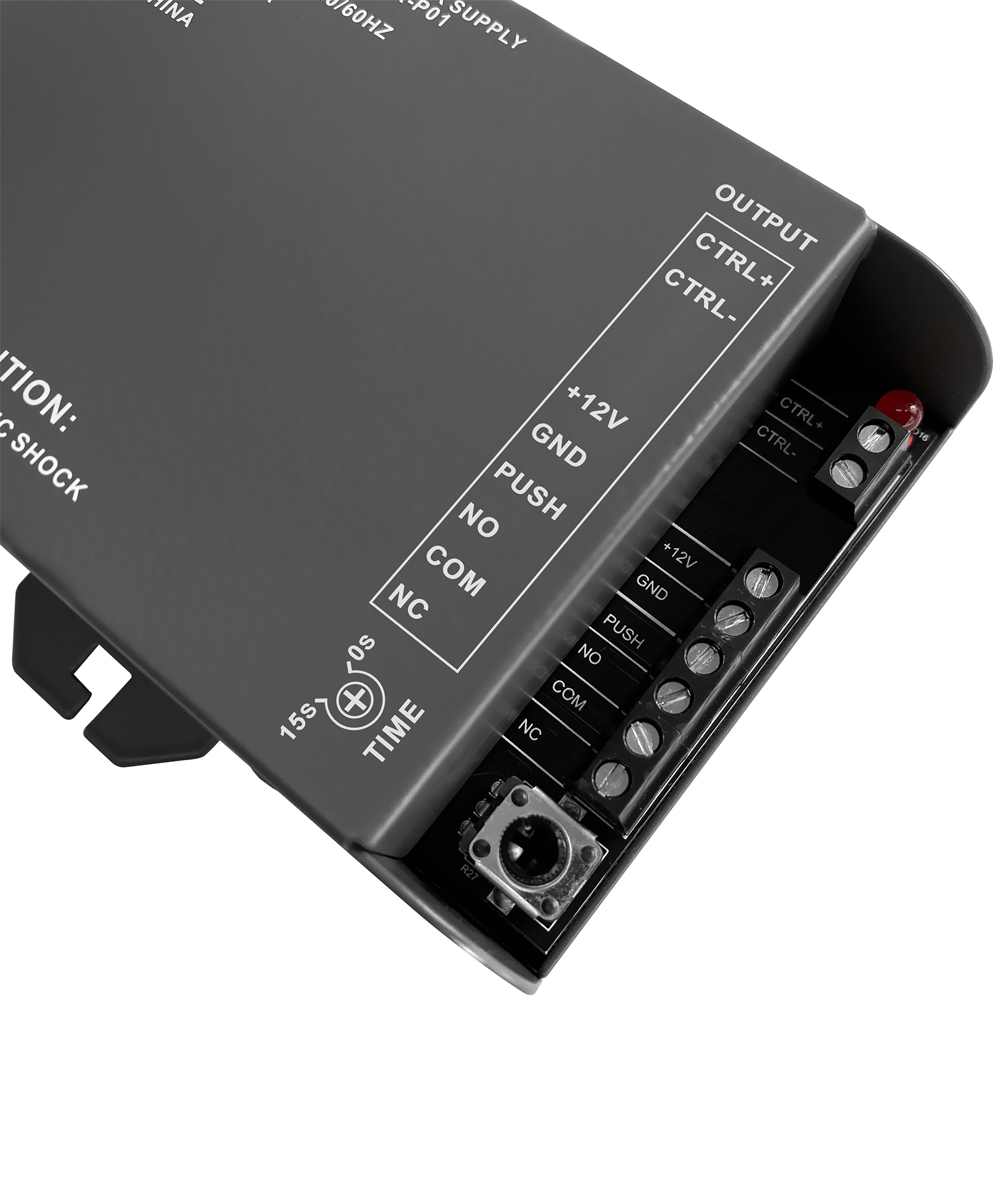

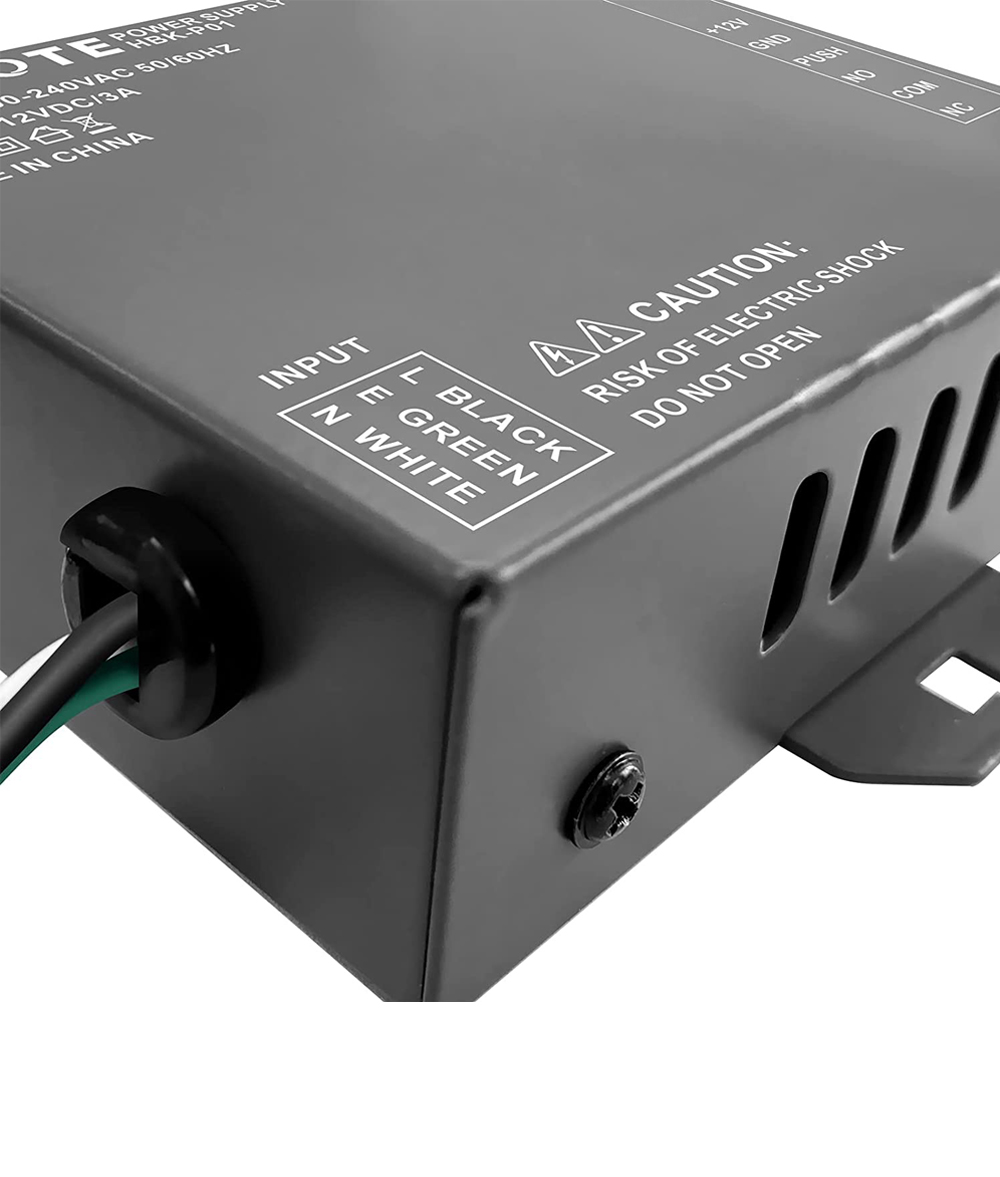

Door Access Control Power Supply 12V for Electric Lock Intercom Camera (Input:110-240VAC to Output:12VDC)

$30.30

  • Worldwide voltage input 110 – 240VAC.
  • HBK-P01 switching power supply is specially used for access control system and Intercom Camera.
  • With working current of 3A, it can provide electric lock and access controller with 12VDC steady output voltage.
  • This device adopts rotary timmer potentiometer which have excellent performance makes the delay time more accurate.
  • Remarks: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.

Door Access Control Power Supply 12V for Electric Lock Intercom Camera (Input:110-240VAC to Output:12VDC)



Introduction

  • This switching power supply is specially used for access control system and can be protected automatically when there is short circuit, over voltage or over current. It is of strong practicality, simple interface and steady performance.
  • With working current of 3A, it can provide electric lock and access controller with 12VDC steady output voltage.

Features

  • Indoor use only.
  • Low noise design with ripple as low as 85mVp-p.
  • Compatible with electric lock, access controller, exit push button and intercom camera.
  • Can reduce the load of access controller and save wiring to reduce the hidden trouble.
  • Based on relay control circuit, lock time can be adjusted from 0 to 15 seconds.
  • Automatic protection function for dangerous situations, such as, overload, over voltage and short circuit.
  • Protection mechanism: Power will be disconnected temporarily or the fuse will be insured automatically.
  • A short circuit (flow) protection: When the output circuit is short-circuited, it will be automatically disconnected and will automatically return to normal state when troubleshooting.
  • Support external 12V backup battery. Backup Battery Type: 12V storage battery. Recommend 12V 7AH battery.

Specifications

  • Input Voltage: 100-240VAC
  • Input Frequency: 50-60Hz
  • Output Voltage: 12VDC
  • Output Curremt: 3A
  • Efficiency (Typ.): 90%
  • Time Delay: 0-15s
  • Enclosure Material: Aluminum alloy
  • Enclosure Finish: Spray
  • Enclosure Color: Gray
  • Operating Temperature: -4 to +140℉ [-20 to +60°C]
  • Operating Humidity: 10%-90%RH
  • Product Weight:7.3oz [207g]
  • Silicone Wire Length: 8″
  • Enclosure Dimension: 4-29/64″ x 3-5/64″ x 1-17/64″ [113x78x32mm]

Package list:

  • HBK-P01 Power Supply x 1
  • User Manual x 1
  • Plastic Anchors x 2
  • #7×1″ Self-Tapping Screw x 2

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.33 kg
Dimensions 11.94 × 9.4 × 3.81 cm
