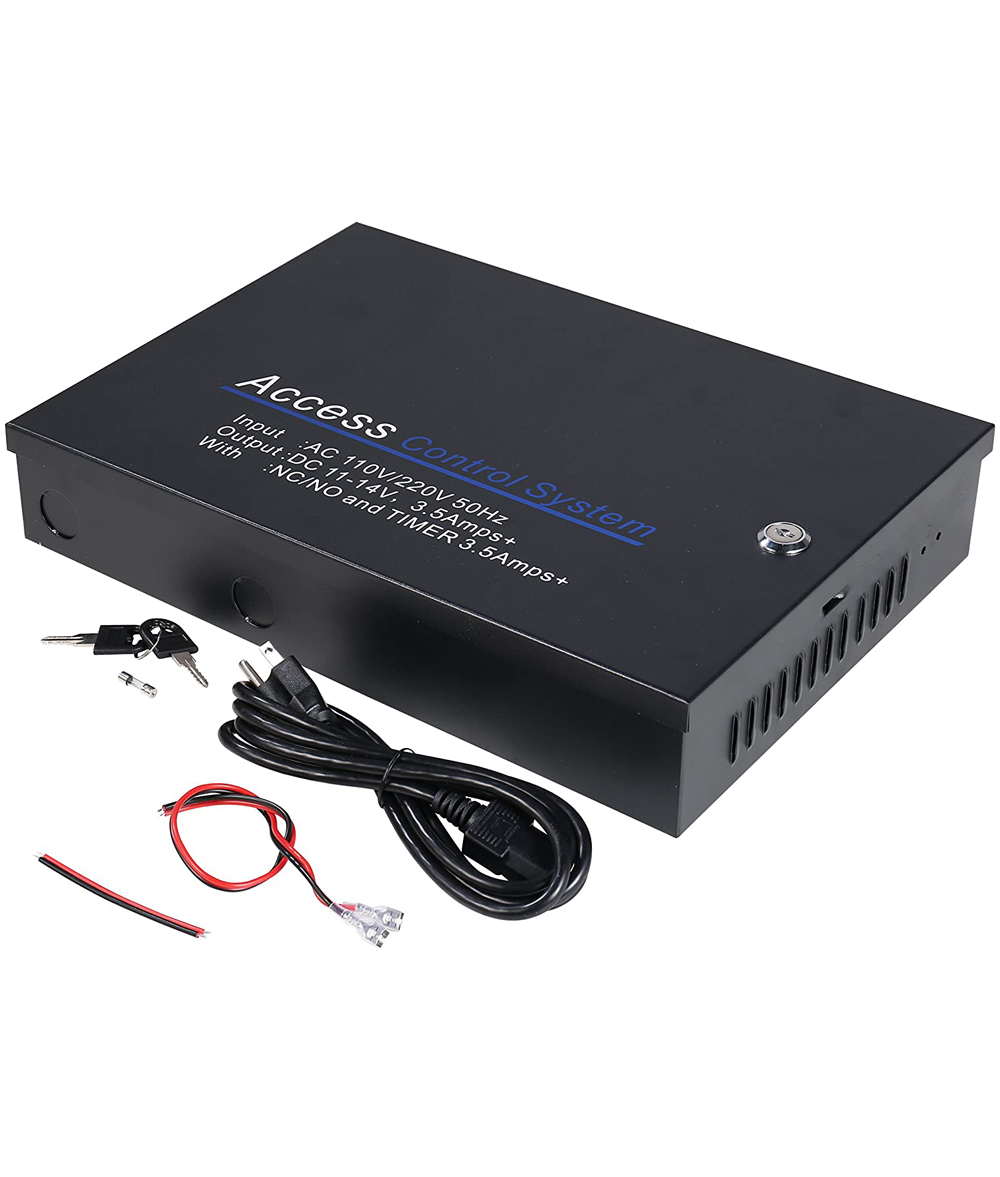

Input AC220V Output DC12V 3.5A Metal Power Supply Box for Door Access Control Board

Input AC220V Output DC12V 3.5A Metal Power Supply Box for Door Access Control Board

Features:

• Setting NC/NO output, can control different electric locks,reduce the load of access controller.
• Setting automatic protection function, built-in fuse.
• The power box cab be spit and buckle wear,suitable for installation where space is small.
• Automatic protection function,unexpected situations such as when the power supply short-circuit occurs,the power may be temporarily disconnected or the fuse auto insurance line of.

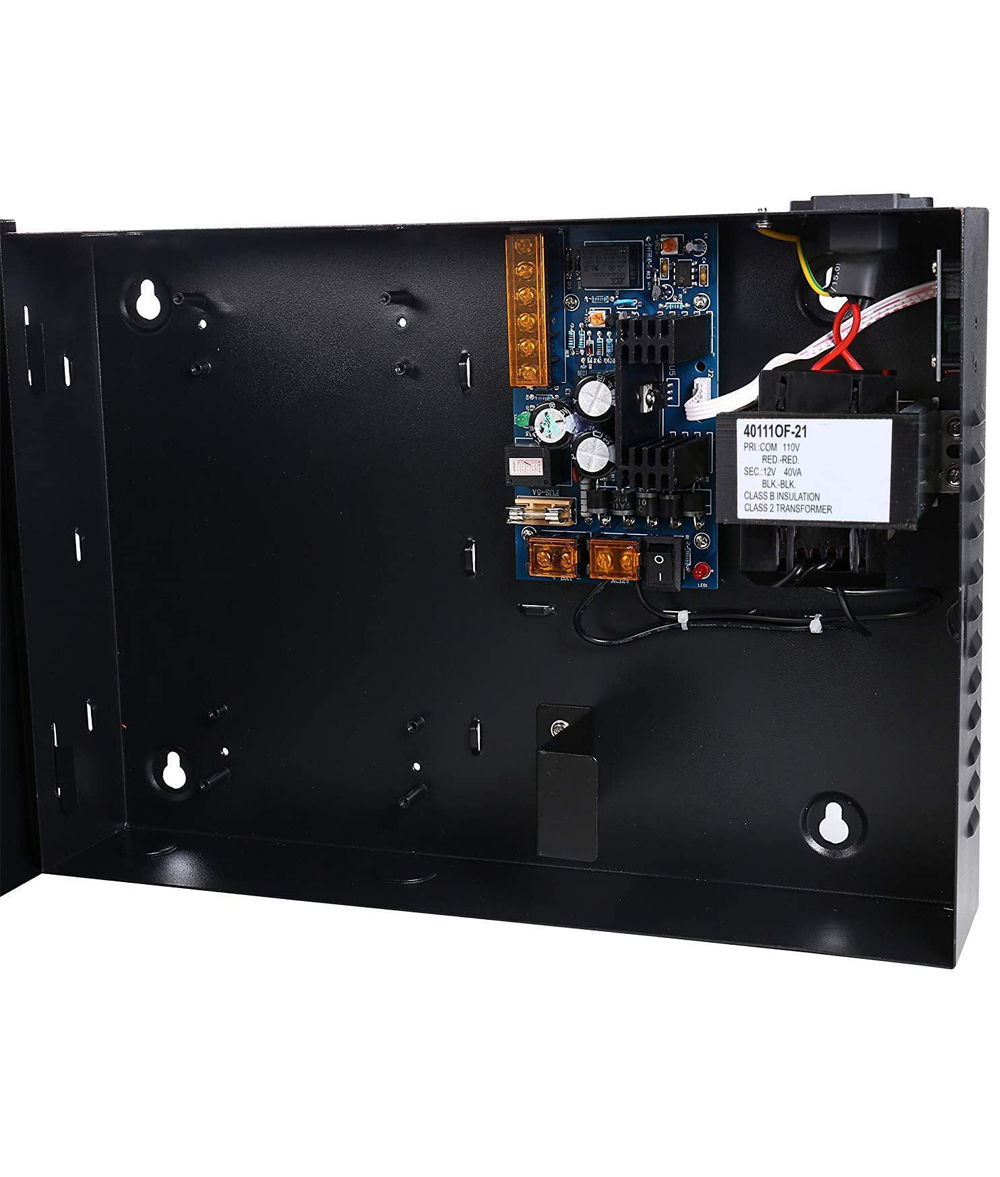

• The power box reserve enough space inside for easy wiring and plug terminals.
• Heave duty metal case with space for access controller.
• With charge and discharge function, can add a 7AH 12V lead-acid battery for power failure (Battery not included), can meet the needs of an electric mortise lock, a card reader and a controller to work 35 hours after power failure.
• Lock delay time: 1-10S.

Specifications:

• Power: 40W
• Input: AC110V/60Hz
• Output: DC11V-14V/3.5A
• External battery specifications: 7AH 12V lead-acid battery (Battery not included)
• Battery depletion protection voltage: 9V
• Dimensions(LxWxH) : 371x259x78mm / 14-39/64” x 10-13/64” x 3-5/64”
• Product Weight: 3.3kg / 7.3lb

Package:
