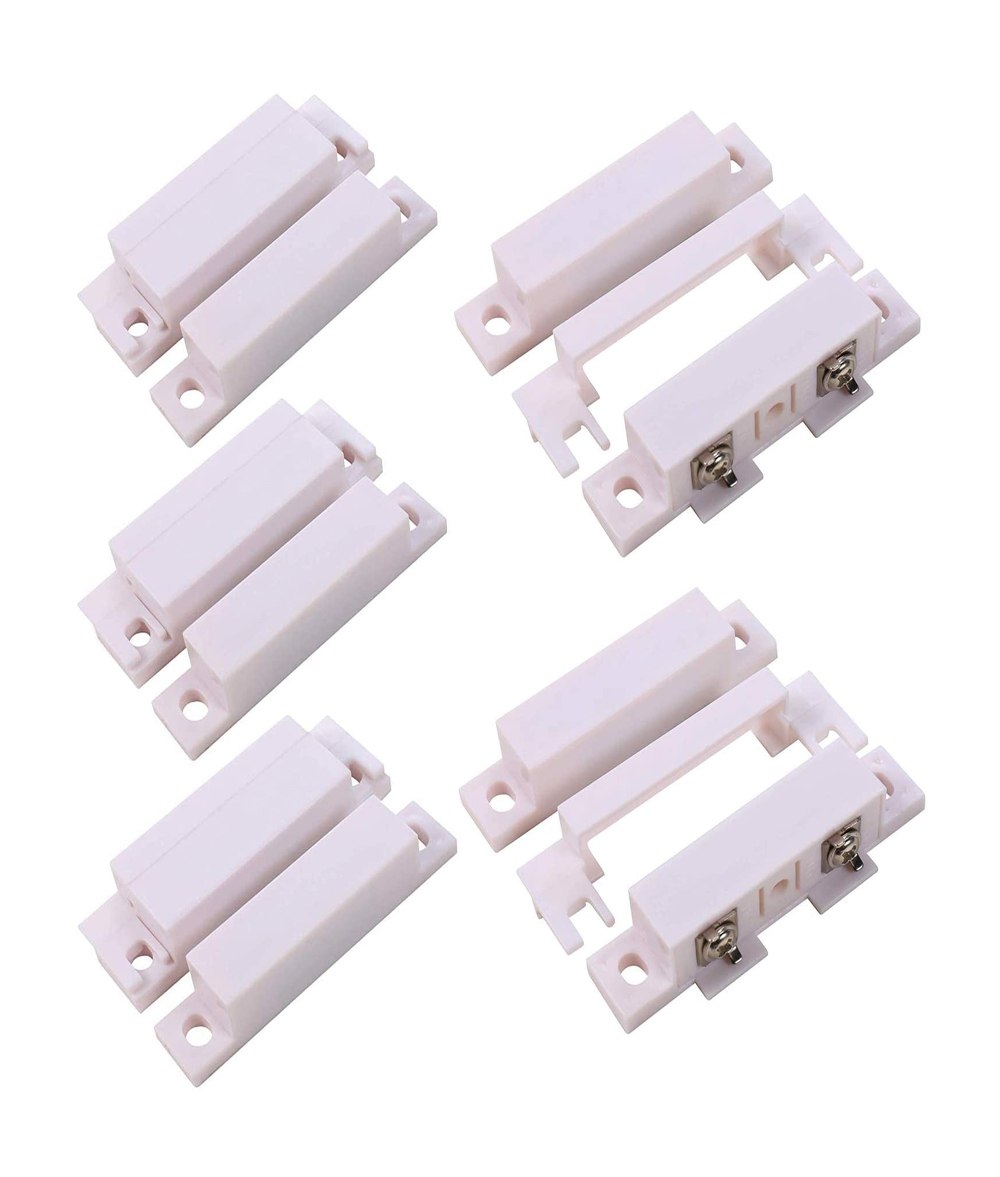

NC Magnetic Window Door Contact Open Alarm Sensor Screw-Terminal Surface Mount Using Side tabs (Pack of 5)
- Contact reed switch is SPST, deactivated rhodium on gold under-plating, which results in a long life
- The switch is an electrical switch operated by an applied magnetic field
- Designed for use with alarm systems.
- Great for use in family and factory wooden windor, door, etc.
- NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
- Switch Type: NC (Normal colsed type)
- Size: 64x19x13mm
- Sensing Distances: 15~25mm
- 10W/100V/0.5A in MAX
- Housing Material: ABS plastic
- Terminals: Screw-type
- Mounting Tabs: Yes
- Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
- Operating Temperature: -15º~+160º F (-25º~70º C)
- Switch Cycles: 50 Million (0.1mA@5VDC)
- Color: White
- 5 x Door Contact
