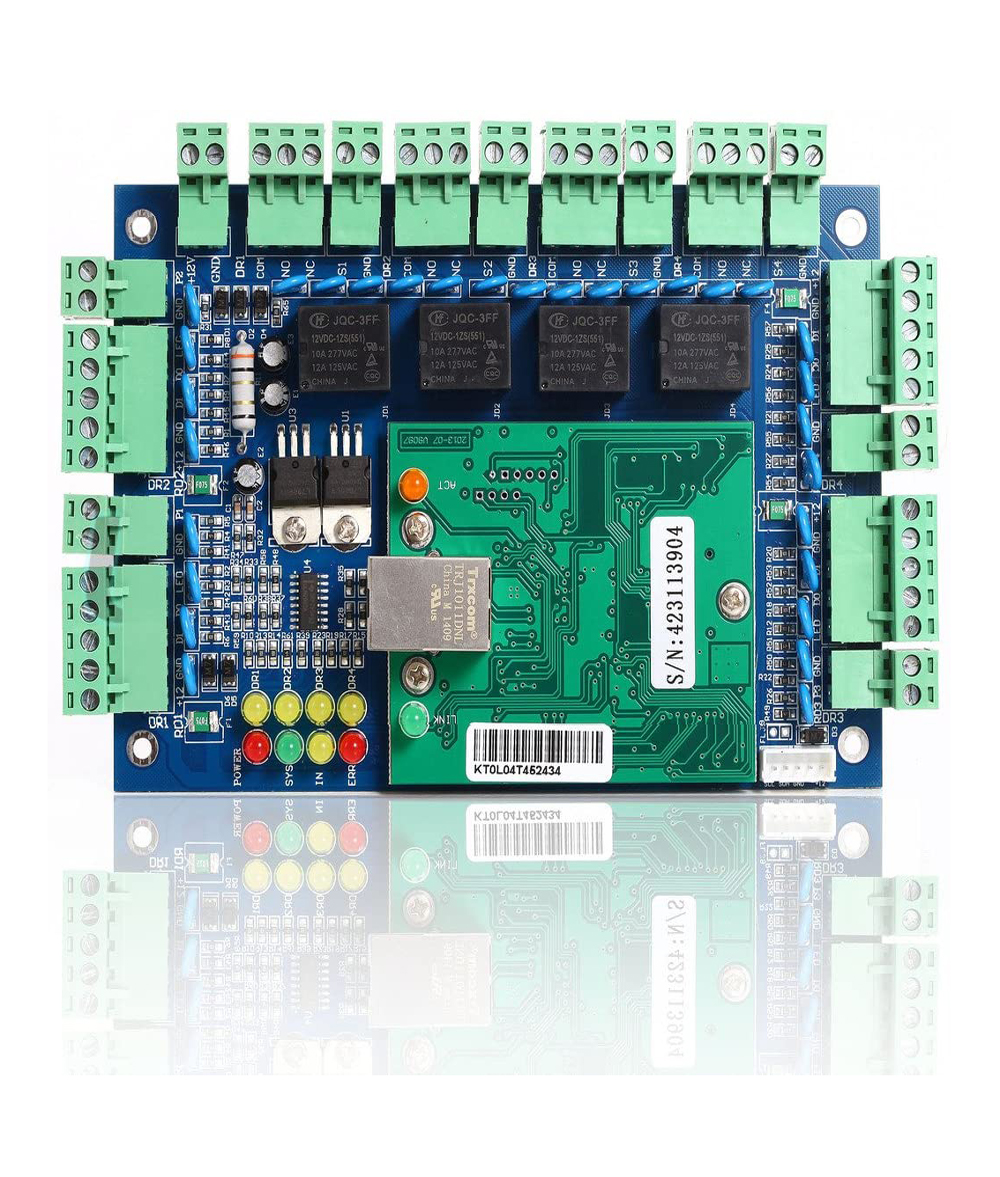

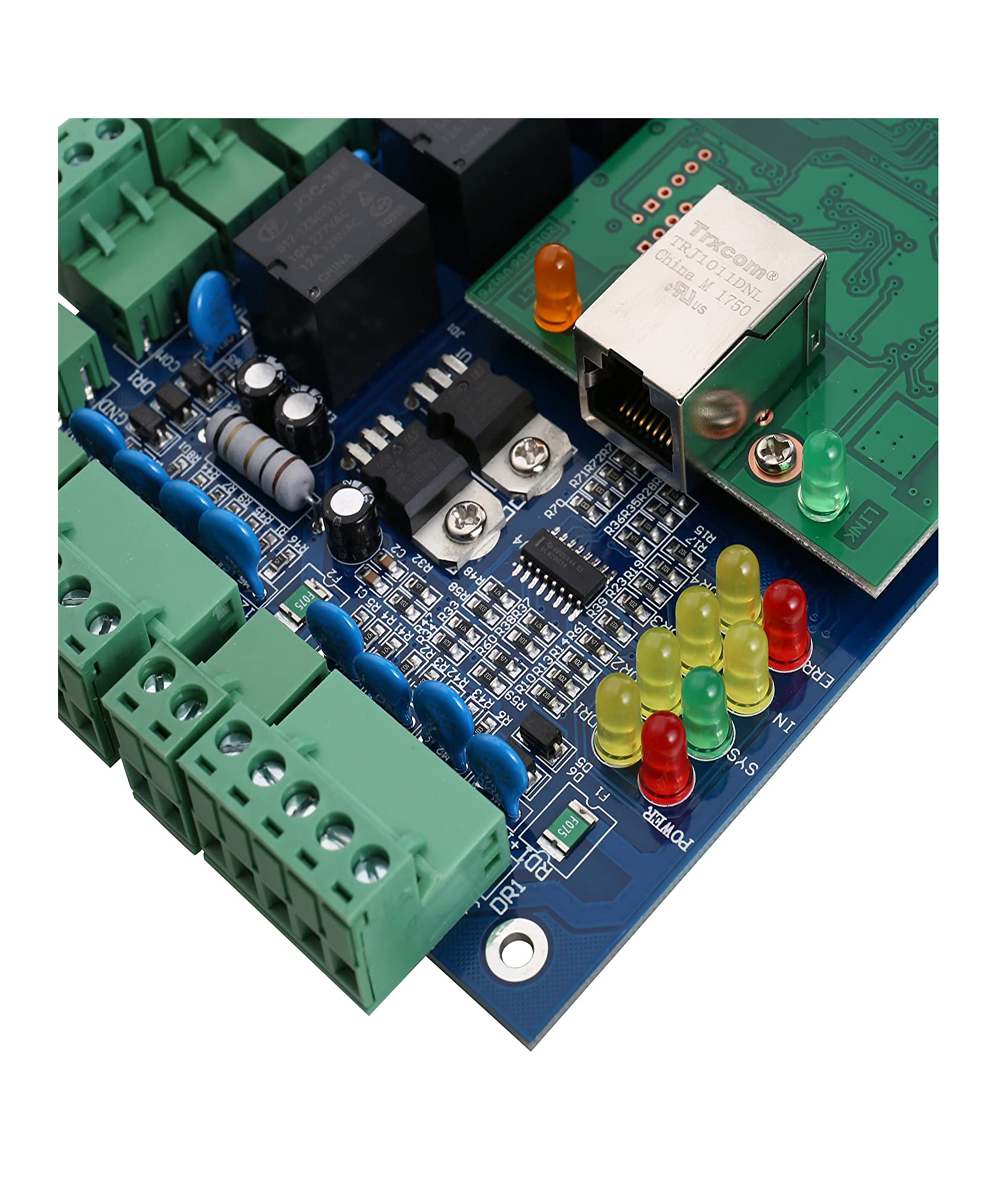

Professional Wiegand 26-40 Bit TCP IP Network Access Control Board with Software For 4 Door 4 Reader

$99.00

  • Support 4 Door 4 Reader (Get in by swiping card, get out door by button)
  • Control of memory up to 20,000 user / Up to 100,000 event buffers
  • Network communication via TCP/IP

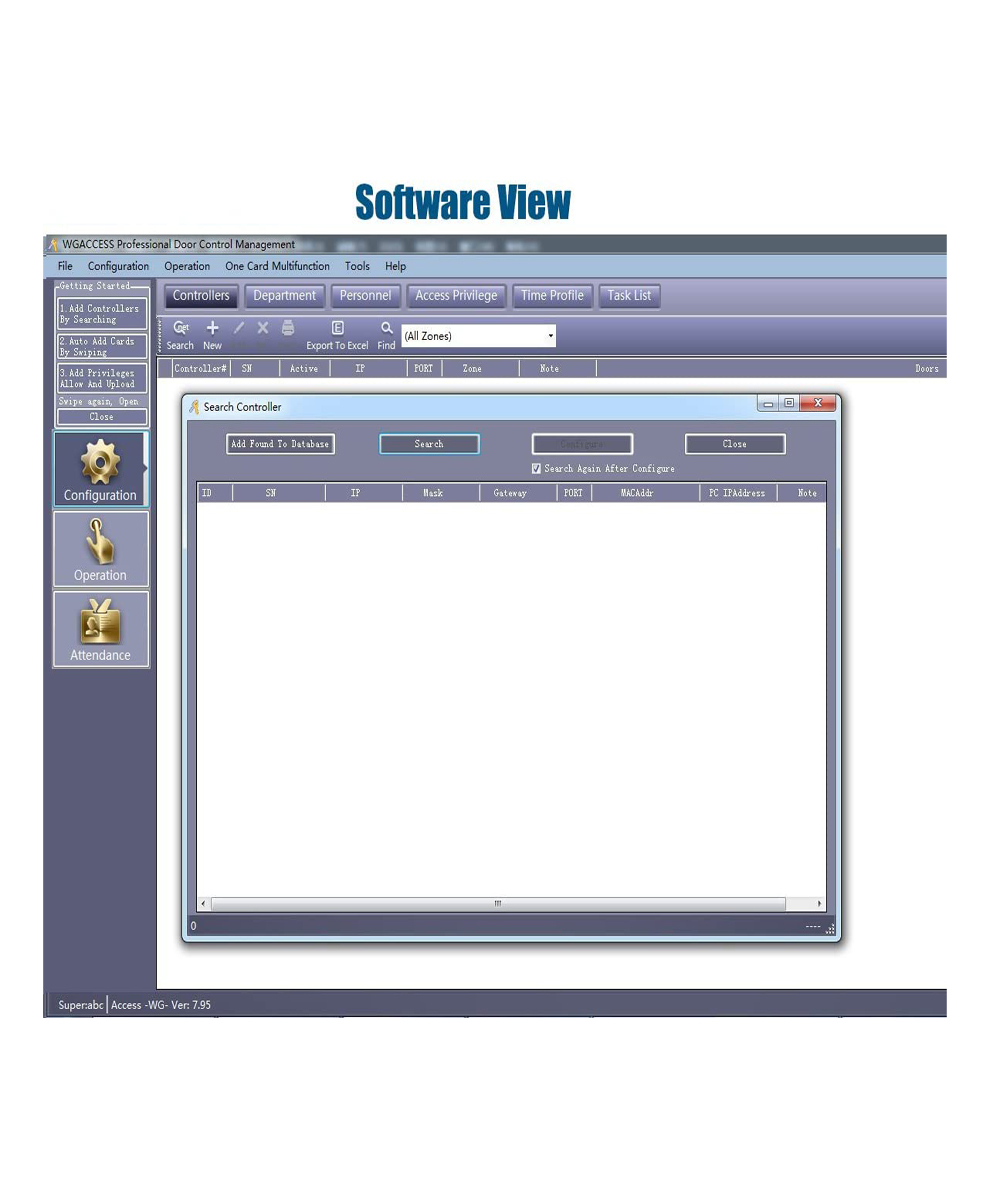

  • Software Supportable Database: Access and SQL
  • Input Format of Reader: Wiegand 26-40 bit (All 125KHz or 13.56MHz card reader with compatible protocol)
SKU: UT0311-L04 Categories: ,

Professional Wiegand 26-40 Bit TCP IP Network Access Control Board with Software For 4 Door 4 Reader



Specifications:

  • Dimension: approx. 6.3(W)x4.17(H)in / 160(W)x106(H)mm
  • Communication: TCP/IP
  • Software Supportable Database: Access and SQL
  • Power Supply Input: DC12V
  • Power Consumption of Circuit Board: Less than 100mA
  • Input Format of Reader: Wiegand 26-40 bit (All 125KHz or 13.56MHz card reader with compatible protocol)
  • Quantity of Readers: 4 units
  • Door Controlled: 4 door (Get in by swiping card, get out door by button)
  • Door Opening Time Extending: Setting: 1~600 seconds (adjustable)
  • Max Quantity of Controller: Unlimited (Remark: N denotes q’ty of computer serial port or q’ty of 485hub port, support 256pcs ports)
  • Quantity of Users: 20,000 users
  • Quantity of Event Buffers (offline): 100,000 event buffers
  • Max Distance from Reader to Controller: 100m/328ft (suggestion distance 80m/262ft)
  • Collocations: PCB board,case,power,power line,erial port communication line,software,manual,certificate,key(2pcs),carton
  • Alarm for Long Time Door Open, Unlawful Entry, Intimidate
  • Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
  • Compulsive open and close door at long time: Yes
  • Open door in remote distance: Yes
  • Inter block: Yes
  • Anti pass back and tail: Yes
  • Multi card open door: Yes
  • Open long time at specified time: Yes
  • Urgency locking: Yes
  • First card unlocking: Yes
  • Unlock based on internal and external validation: Yes
  • Keypad (Card and password, supper password): Yes

Conventional functions:

  • Offline operation
  • Real time supervision
  • Photo display when valid card
  • Mass storage
  • Flexible user privilege setup
  • Remote unlocking
  • Multi-user supervision
  • Quick setting
  • Convenience checking and query.
  • Revisable and printable report form
  • Report can be exported to excel file
  • Multi ways access
  • Alarm for long time opening
  • Alarm for invalid card swiping
  • Alarm for unlawful entry
  • Unlocking at definite time
  • e-map

Professional functions:

  • Interface locking
  • Intimidation alarm
  • Integrated fire control
  • Anti passback and anti tail
  • Interlocking
  • Multi-card unlocking
  • Emergency double locking
  • Indoor population checking
  • Unlocking based on internal and external validation

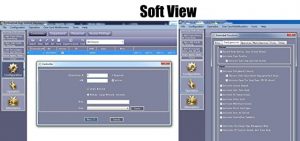

Easy of Management:

UT0311 L04 10

  • All access devices support a mixed installation. With the support and attendance software, on-line patrol function Support multi-user multi-mashing management and monitoring in real-time.

More Details:

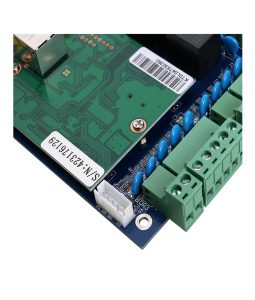

Support Expansion Board:

UT0311 L04 9

  • Please search the expansion board in our store

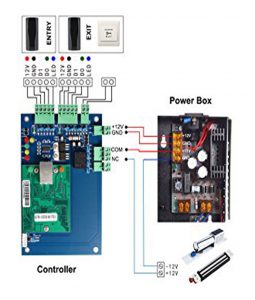

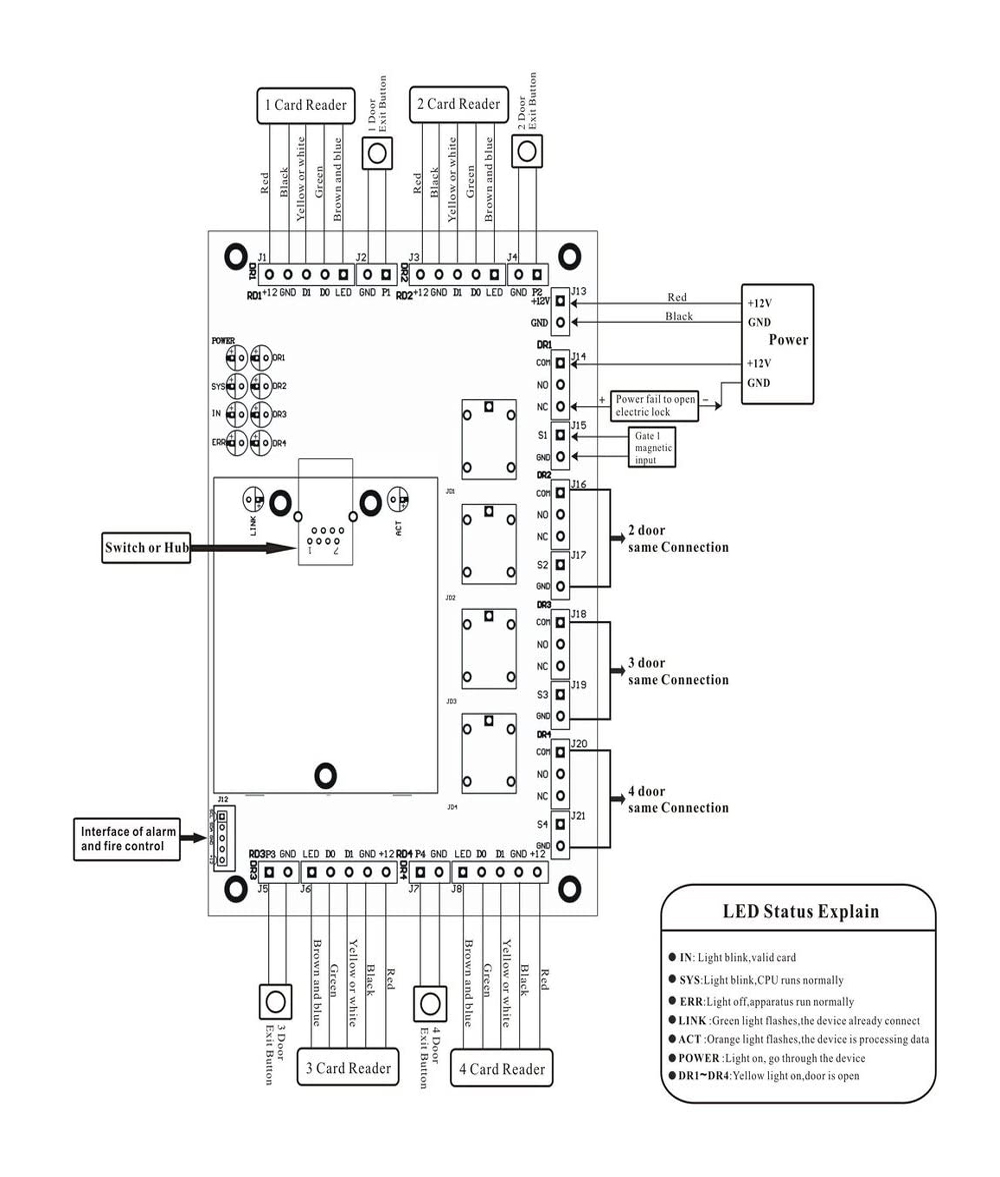

Wiring Diagram:

UT0311 L04 13

  • This demo for fail safe lock. Need connect to NO port of controller if the lock is fail secure.

Demo Video:

Packages:

  • 1 x Access Control Board
  • 1 x English Manual
  • Tips: The software is not compatible with MAC computers, only with Windows PC
