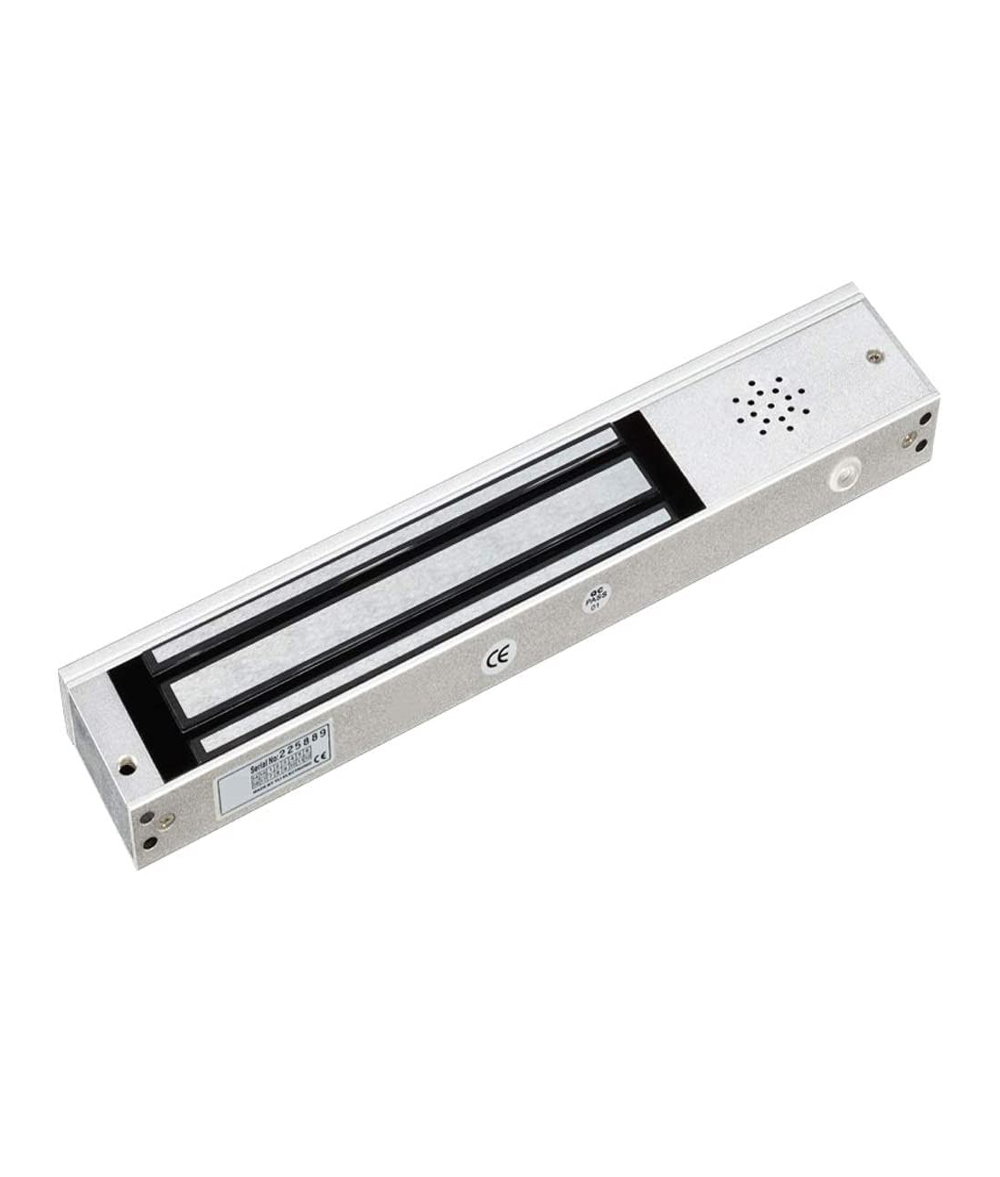

Electric Magnetic Lock Single Door 280KG 600lbs Holding Force Built-in Buzzer

$151.30

This 600 lb Holding Force NC mode electric magnetic lock with buzzer is suitable for wooden door,metal door, glass door and fireproof door. It is anti-residual magnetism designed and has MOV, providing reverse current protection. Great choice for access control kit.

SKU: UT-YM-280BZ Categories: ,

Electric Magnetic Lock Single Door 280KG 600lbs Holding Force Built-in Buzzer



Features:

  • Collinear Load Test 280kg,600pounds
  • Dual Voltage 12 or 24 VDC (optional).
  • The Standard Voltage is 12VDC when Finished.
  • MOV Provides Reverse Current Protection.
  • Anti-Residual Magnetism Designed.
  • High Strength Material,Anodized Aluminum Housing.
  • Design without Mechanical Failure.
  • Increase the holding Force,Dual Insulative Housing.
  • CE Certificate by European Union,MA Certificate by China Public Security Office.
  • NC mode – (locked while supplied with power), fail safe mode
  • When set up 0-20 as door close time, if the door doesn’t close after 20 seconds,it will alarm till the door close.
  • Single door electric lock with buzzer and suitable for wooden door,metal door, glass door and fireproof door
  • LED Indicates the Door Status: Red indicates the door is unlock;Green indicates the door is lock

Specifications:

UT YM 280BZ 3

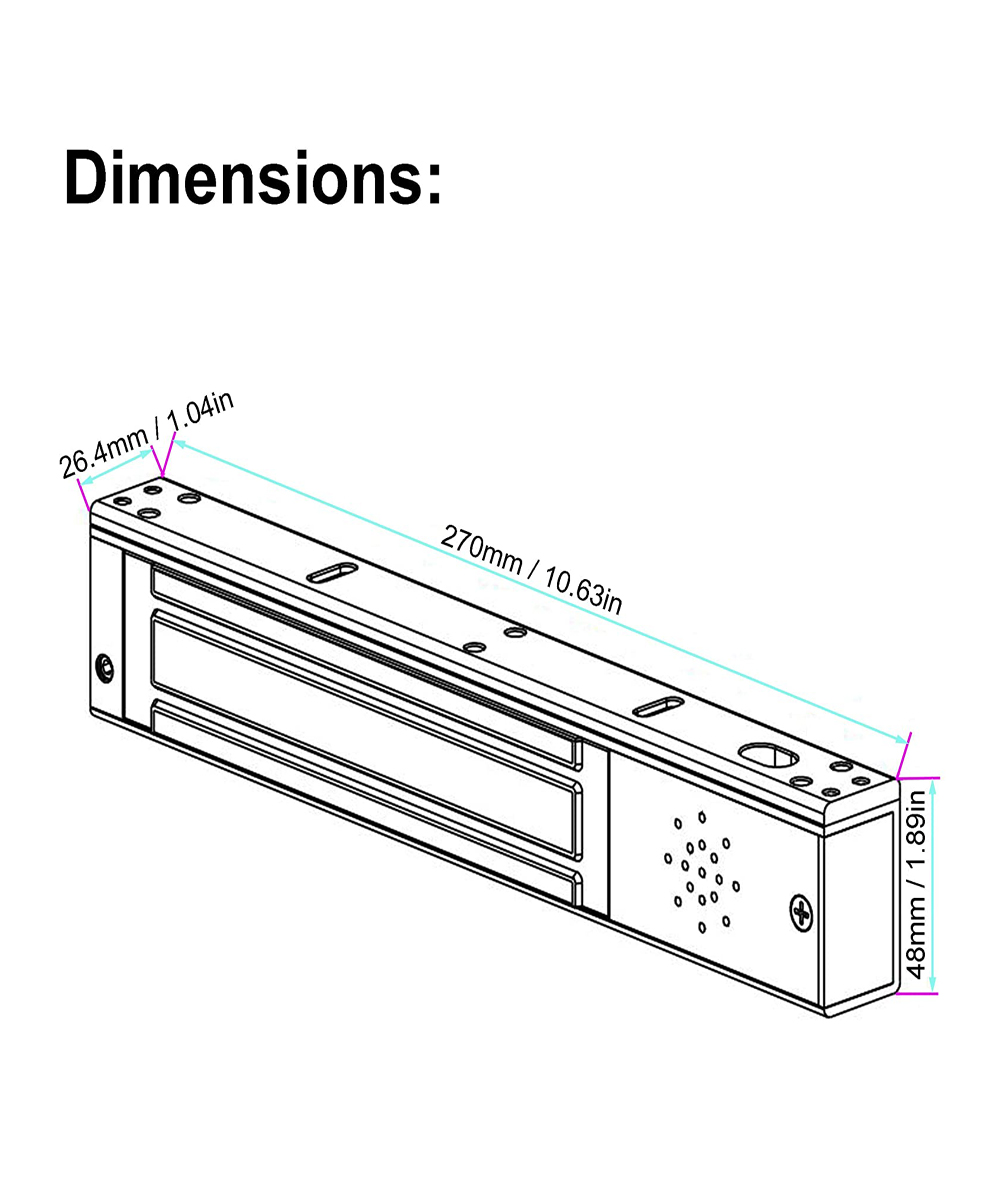

  • Size(LxWxH): 270×48.8×26.4mm / 10.63×1.82×1.04in
  • Armature Plate Dimension(LxWxH): 180×38.8x13mm / 7.09×1.53×0.51in
  • Holding Force: 280kg(600Lbs)
  • Input Voltage: 12 or 24VDC
  • Current: 12V/540mA or 24V/270mA
  • Suitable: Wooden door , Glass door ,Metal door , Fireproof door

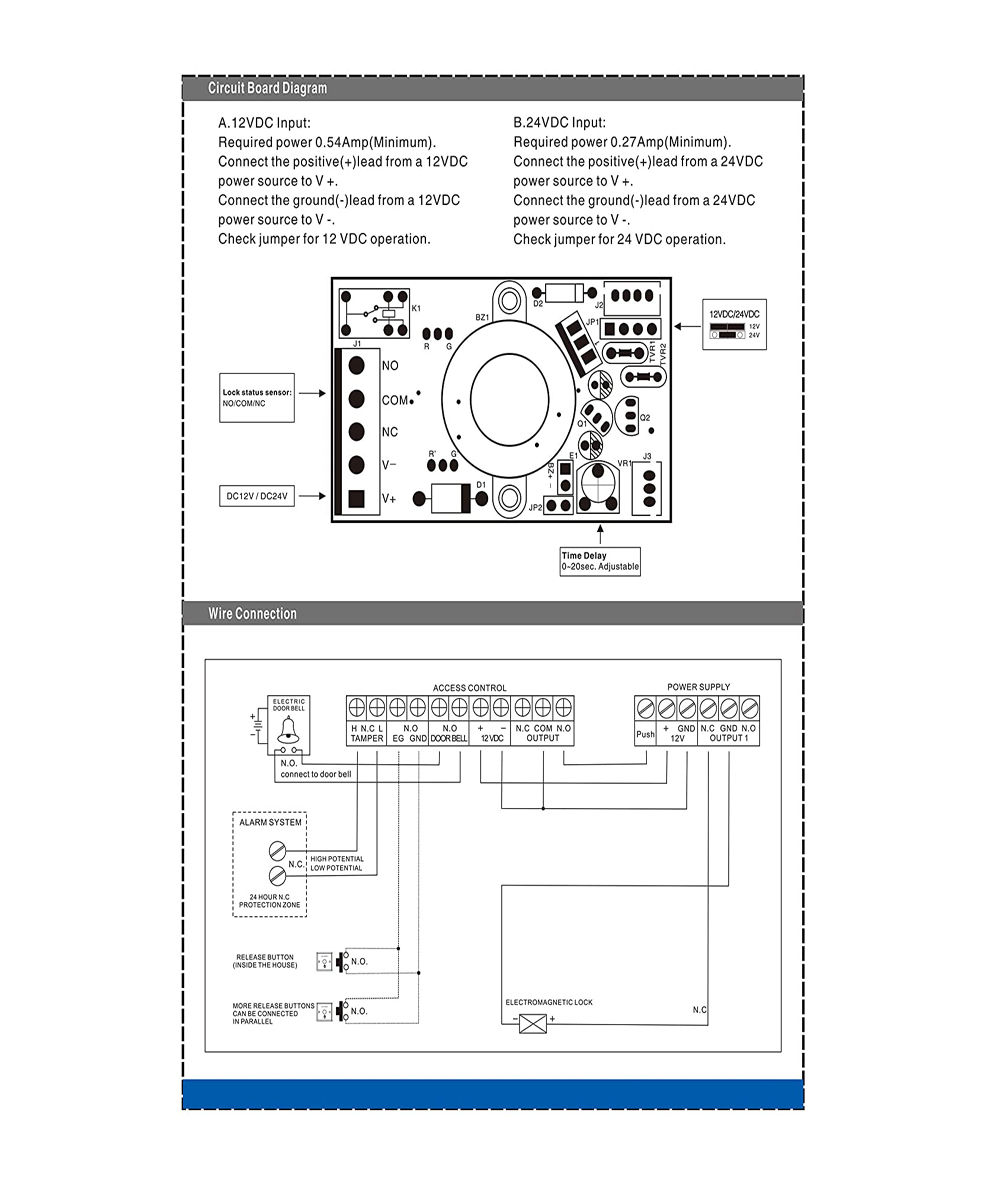

  • Signal Output: Lock signal NO/NC/COM
  • Buzzer: 0-20sec.adjustable
  • LED: Green shows locked ;Red shows unlocked
  • Cover Finish: Anodized aluminum
  • Weight: 2.1KG / 4.63lbs

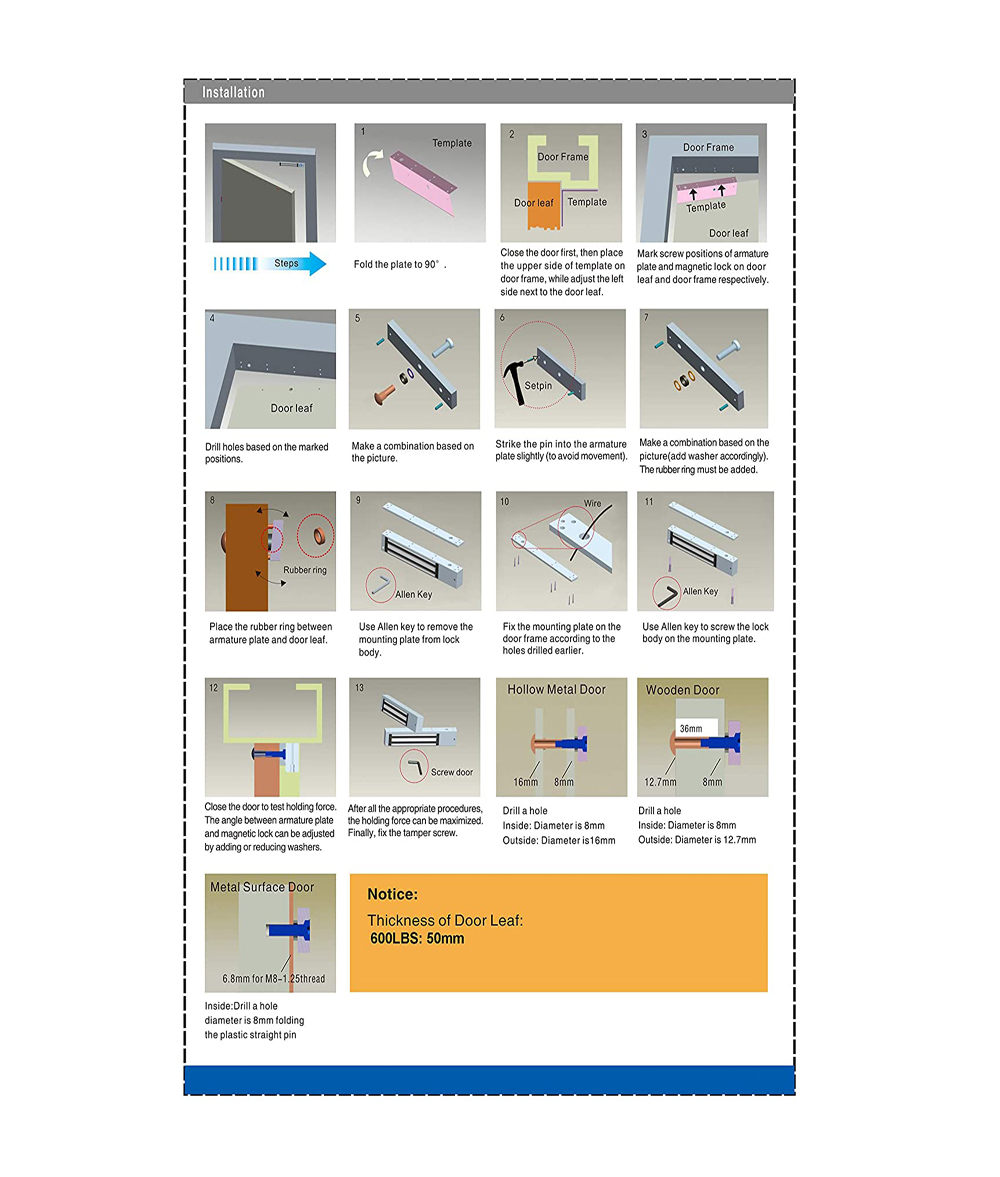

Cautions:

  • A.Please don’t fix the screw(screw of armature plate) tightly, let the rubber ring maintain proper elasticity.
  • B.Please check the jumper position, to know voltage is 12VDC or 24VDC
  • C.Please keep the surface of the lock clean, or force will be reduced because of dust, glue or scotch tape on it.

Package:

  • 1 x Electric Magnetic Lock

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.
