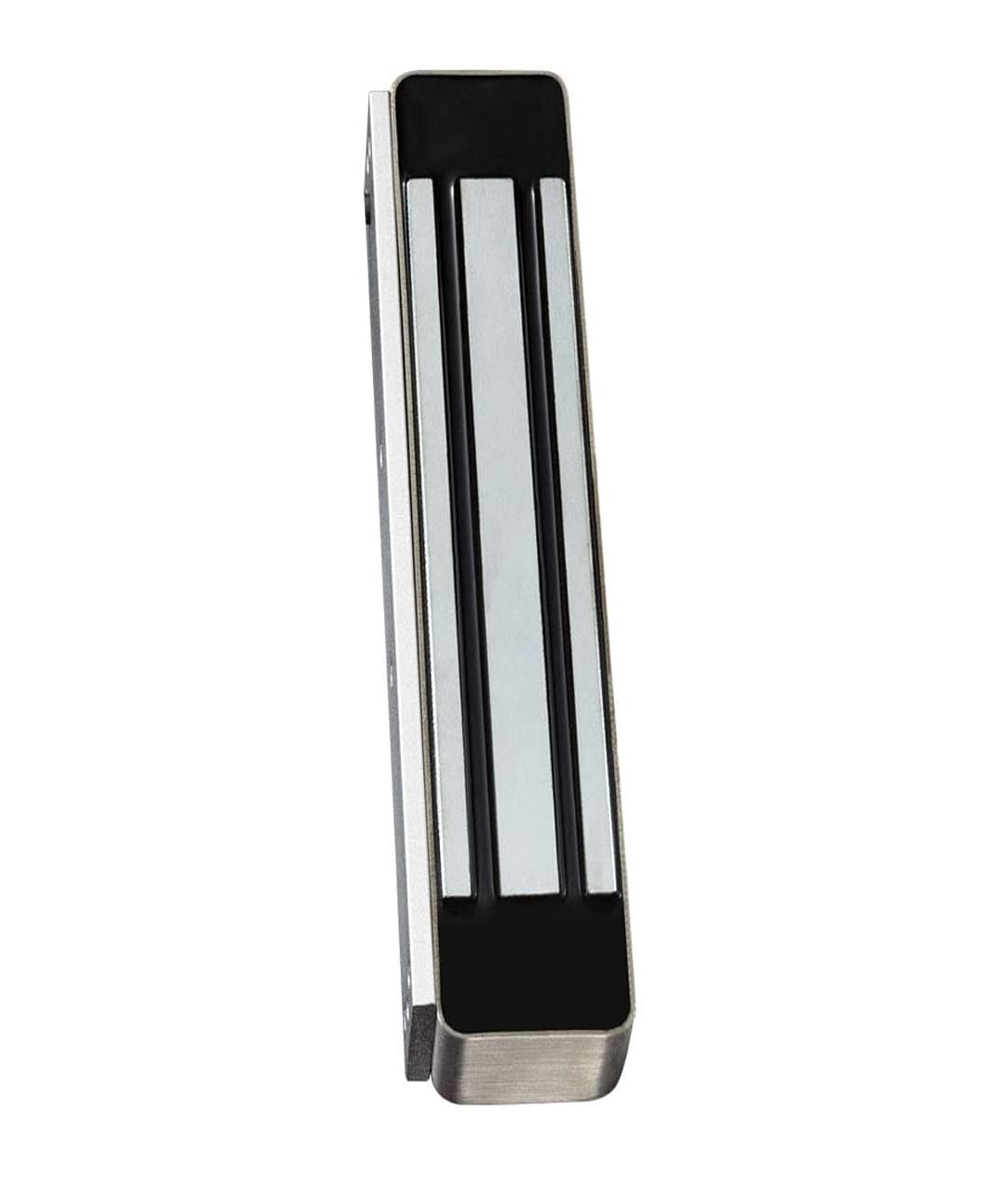

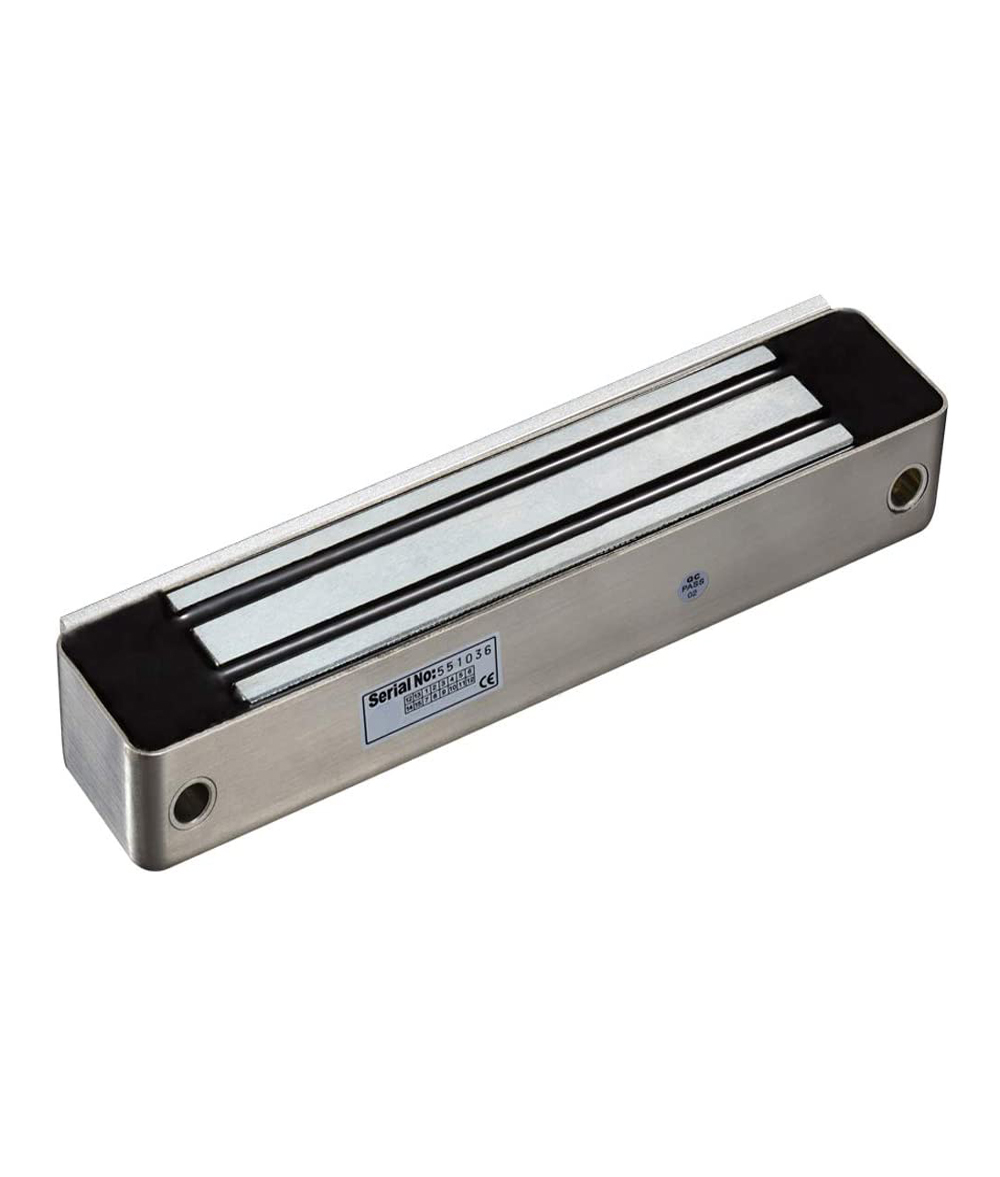

Waterproof Single Door Electric Magnetic Lock 180kg 350lbs with NO/COM Output

$72.00

This 350 lb single door electric magnetic lock with NO/COM out put and mortise mount is for glass door, wooden door, small size door, easy to install. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.

SKU: UT-YM-180W-S Categories: ,

Waterproof Single Door Electric Magnetic Lock 180kg 350lbs with NO/COM Output



Features:

  • Collinear Load Test 180kg,350pounds
  • Dual Voltage 12 or 24 VDC(optional).
  • Single door electric lock with mortise mount is for glass door, wooden door, small size door, easy to install.
  • Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.
  • CE Certificate by European Union,MA Certificate by China Public Security Office.
  • The Standard Voltage is 12VDC when Finished.
  • MOV Provides Reverse Current Protection.
  • High Strength Material,Anodized Aluminum Housing.
  • Design without Mechanical Failure.
  • Increase the holding Force,Dual Insulative Housing.

Specifications:

UT YM 180W S 3

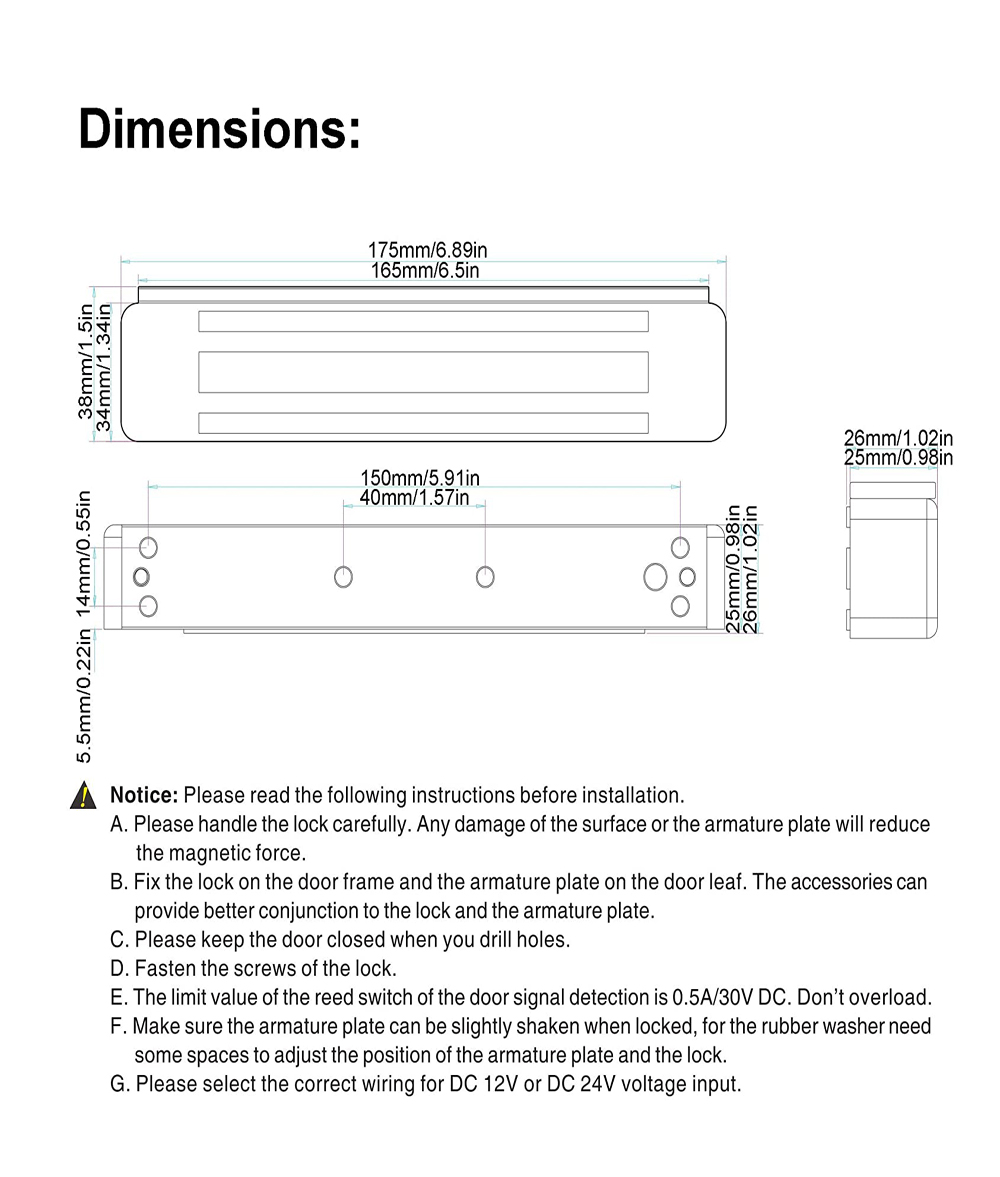

  • Size: 175Lx38Wx26H(mm)
  • Holding Force: 180kg(350Lbs)
  • Input Voltage: 12 or 24VDC
  • Current: 12V/400mA or 24V/200mA

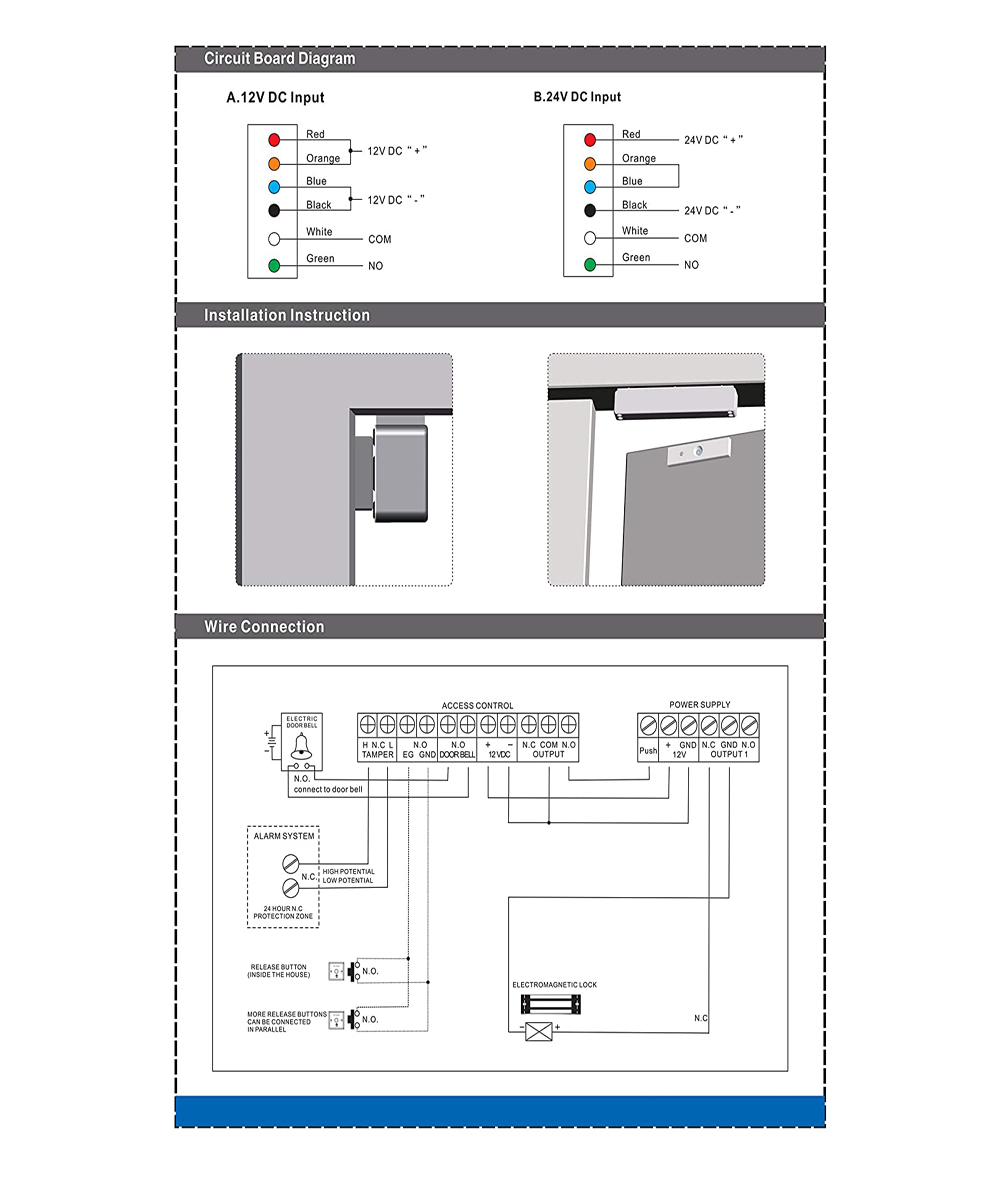

  • Signal Output: Lock Signal NO/COM
  • Suitable: Wooden door , Glass door ,Metal door , Fireproof door
  • Surface Temp: ≤+20℃
  • Operating Temp: -10~+55℃(14-131F)
  • Humidity: 0~90%(non-condensing)
  • Cover Finish: Anodized aluminum
  • Lock Finish: Zinc
  • Armature Plate Finish: Zinc
  • Waterproof Level: IP-68
  • Weight: 1.2kg

Package:

  • 1 x Electric Magnetic Lock
