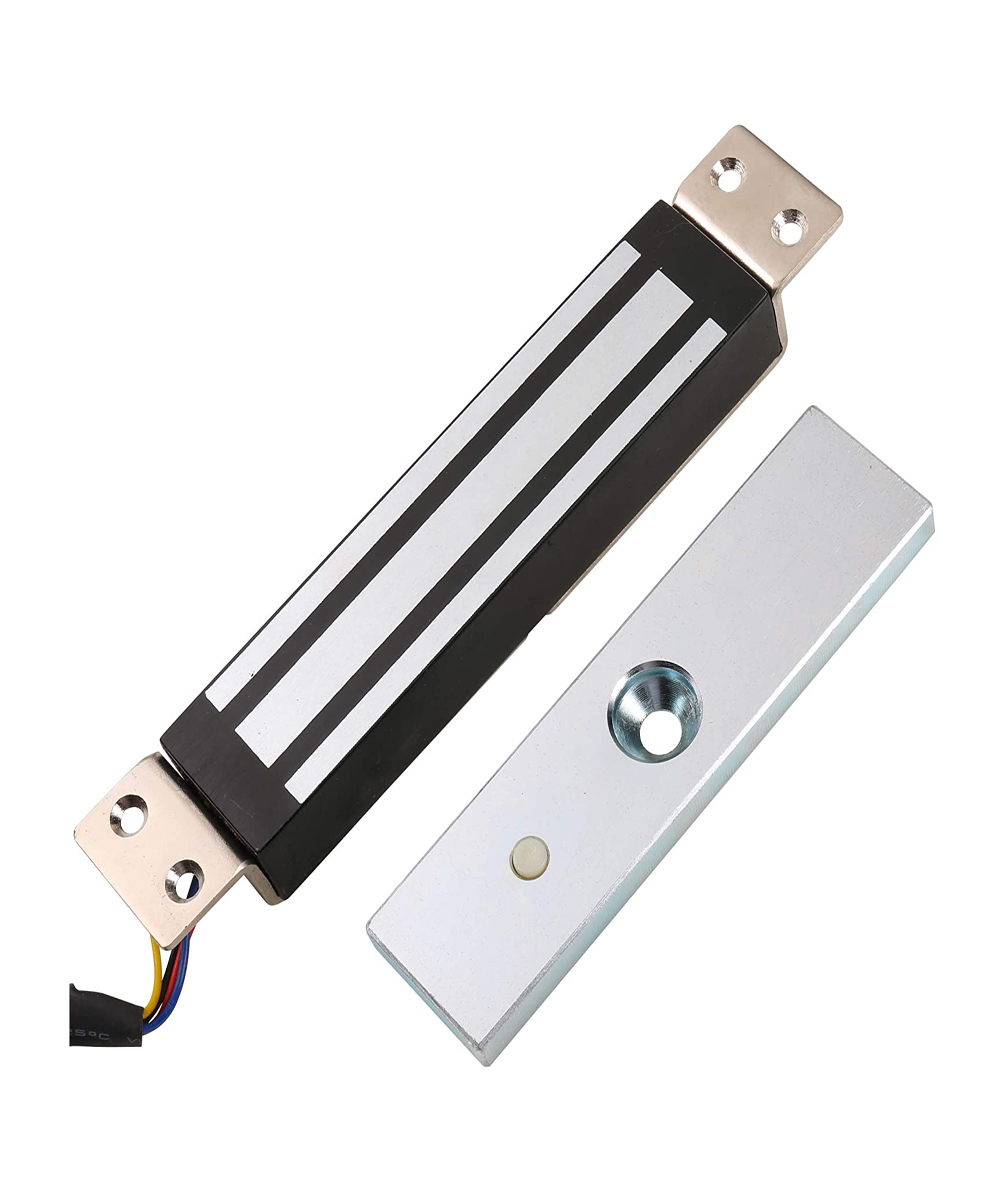

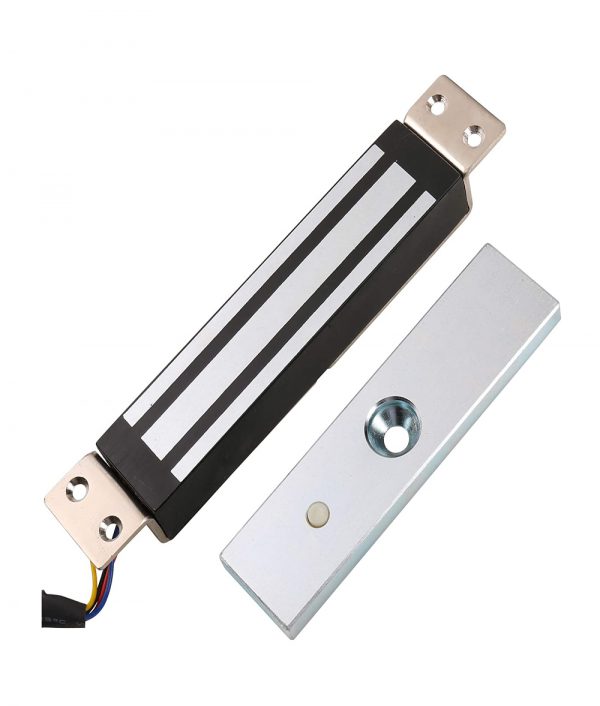

Mortise Mount Electric Magnetic Lock 180KG 350Lbs Holding Force for Door Access Control System

Mortise Mount Electric Magnetic Lock 180KG 350Lbs Holding Force for Door Access Control System

Features:

• Collinear Load Test 180kg,350pounds.
• Dual Voltage 12 or 24 VDC(optional).The Standard Voltage is 12VDC when Finished.
• MOV Provides Reverse Current Protection.
• Single door electric lock with mortise mount is for glass door, wooden door, small size door with a holding force of 350lbs.
• The material is aluminum. Anti-residual magnetism is its selling point and makes electric lock more durable.
• Anti-Residual Magnetism Designed.
• High Strength Material,Anodized Aluminum Housing.
• Design without Mechanical Failure.
• Increase the holding Force,Dual Insulative Housing.
• CE Certificate by European Union,MA Certificate by China Public Security Office.

Specifications:

• Size: 190×31.5×22.5mm / 7.48×1.24×0.89in
• Armature Plate Dimension: 130x33x9.3Hmm / 5.12×1.3×0.37
• Holding Force: 180kg(350Lbs)
• Input Voltage: 12 or 24VDC
• Current: 12V/300mA or 24V/150mA
• Suitable: Wooden door , Glass door ,Metal door , Fireproof door
• Surface Temp: ≤+20℃
• Operating Temp: -10~+55℃(14-131F)
• Humidity: 0~90%(non-condensing)
• Cover Finish: Anodized aluminum
• Lock Finish: Zinc
• Armature Plate Finish: Zinc
• Weight 1.2kg

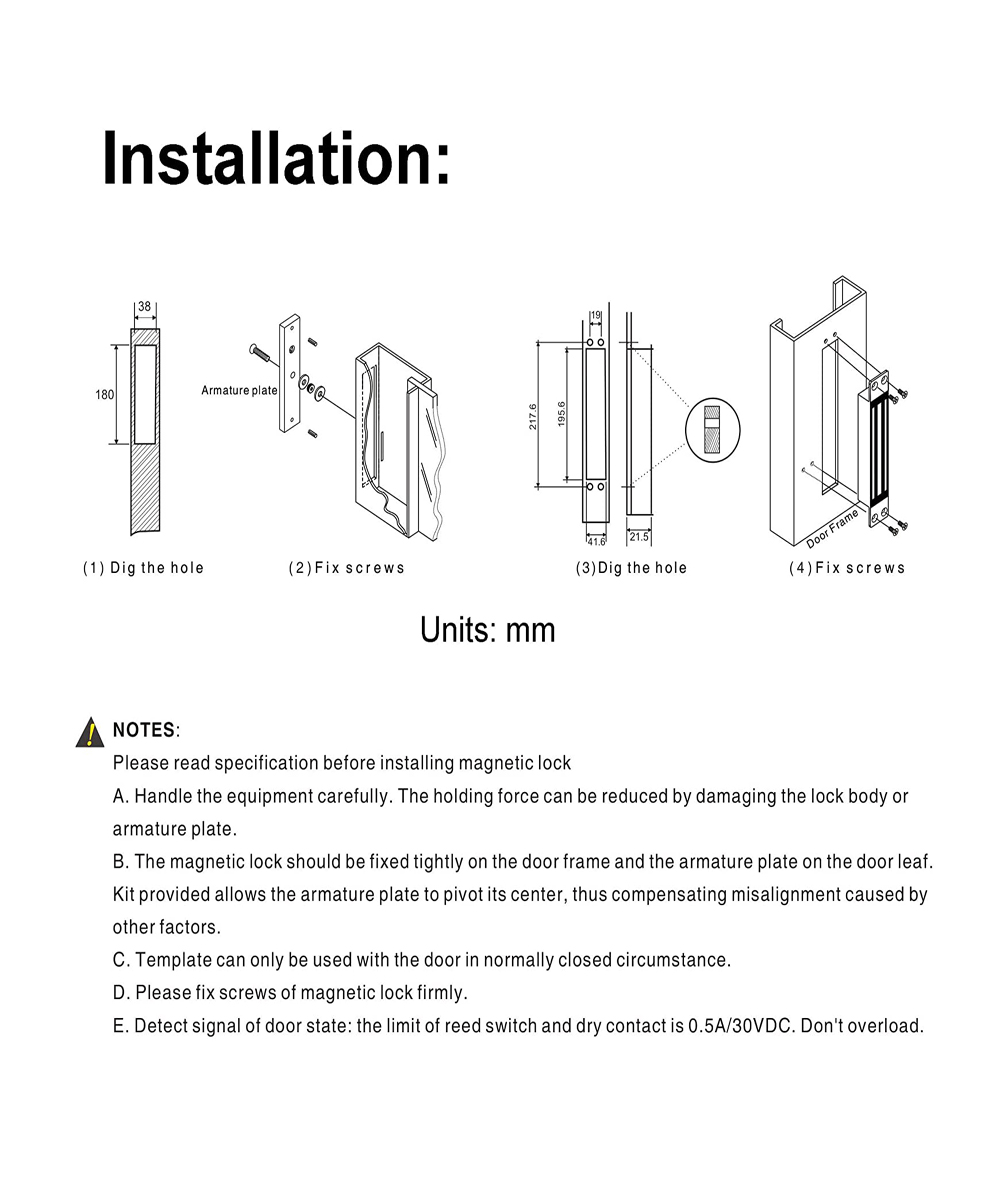

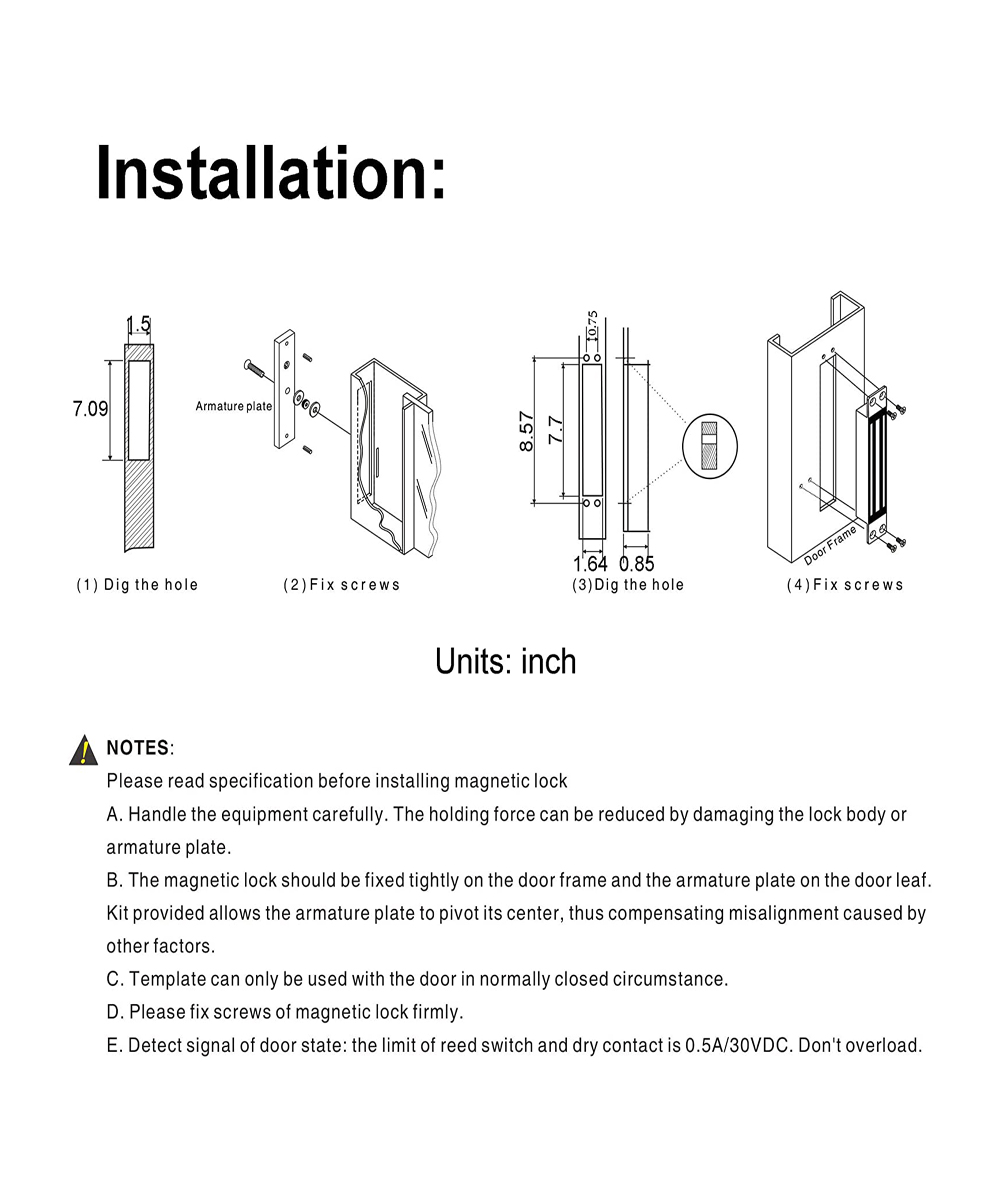

Installation:

Caution:

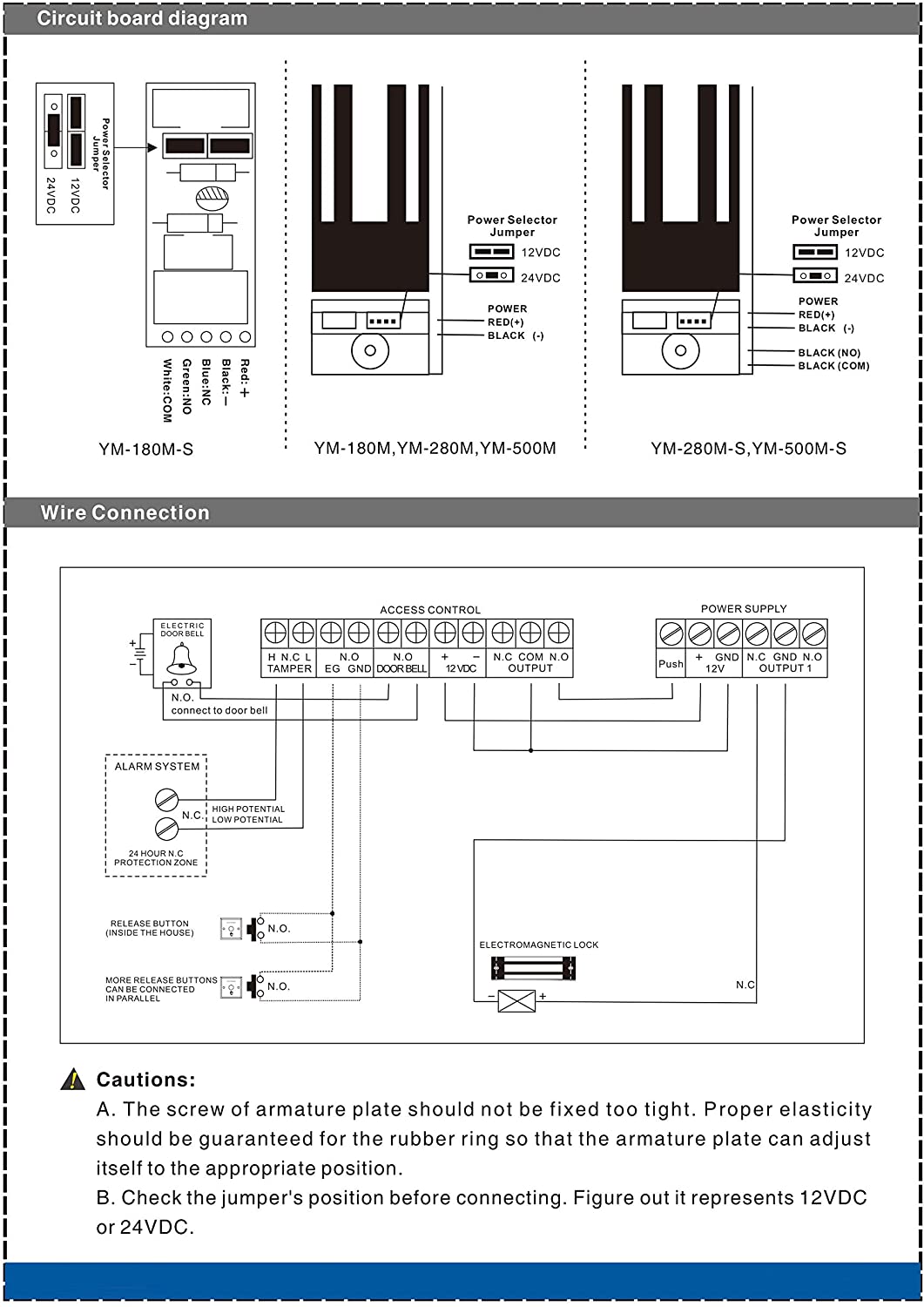

• The screw of armature plate should not be fixed too tight. Proper elasticity should be guraranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
• Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.

Package:

• 1 x Mortise Mount Magnetic Lock
