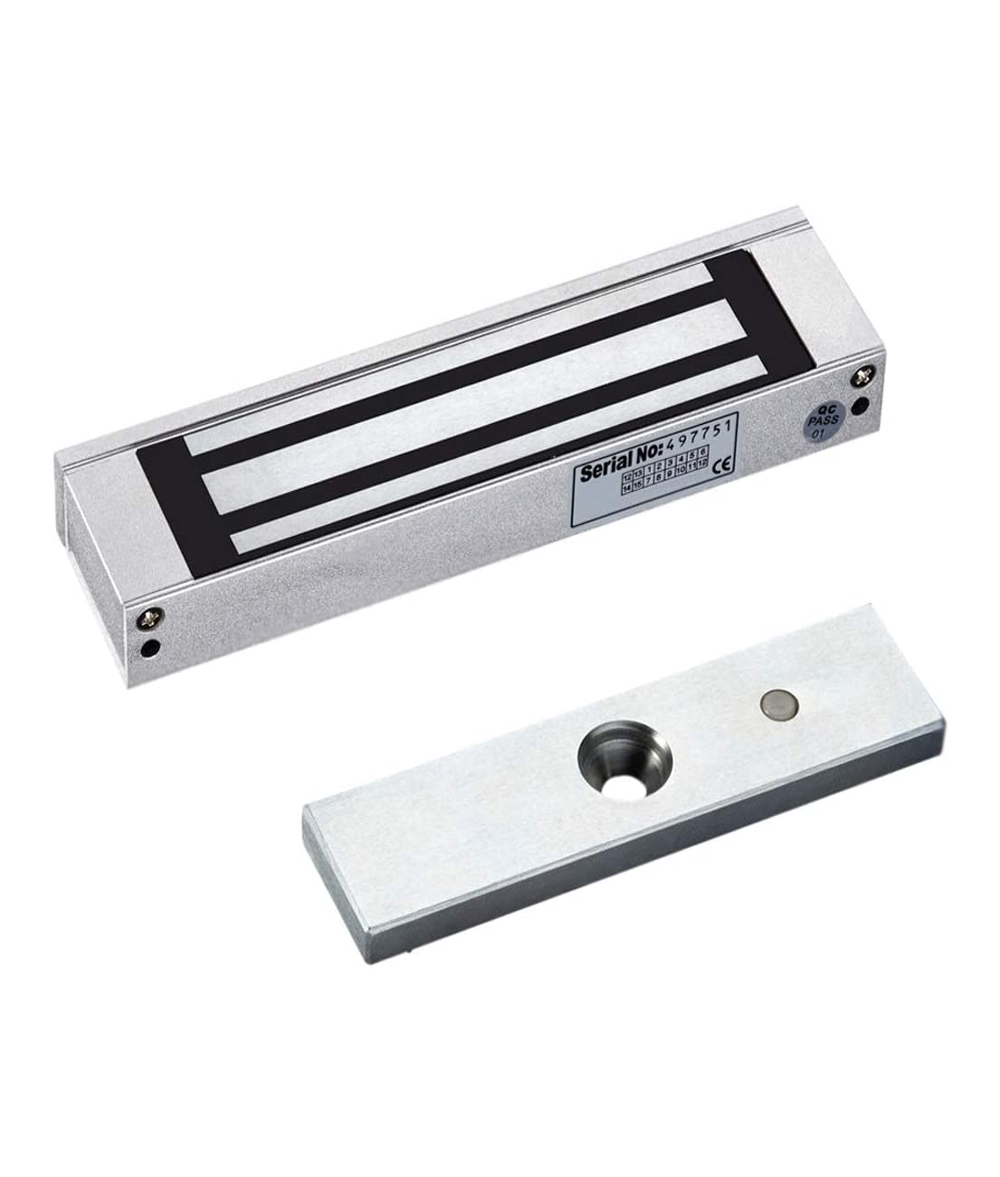

Single Door Electric Magnetic Lock 180kg 350lbs for Glass Wooden Small Size Doors


This single door electric lock with a holding force of 350lbs is for glass door, wooden door, small size door, easy to install. It is anti-residual magnetism designed and has MOV, providing reverse current protection. Great choice for access conrol system.

SKU: UT-YM-180 Categories: ,

Single Door Electric Magnetic Lock 180kg 350lbs for Glass Wooden Small Size Doors



  • Collinear Load Test 180kg,350pounds.
  • 350lbs Single door magnetic lock is for glass door, wooden door, small size door. easy installation.
  • Special anti-residual magnetism designed makes the access control.
  • Dual Voltage 12 or 24 VDC(optional). The Standad Voltage is 12VDC when Finished.
  • MOV Provides Reverse Current Protection
  • Anti-Residual Magneism Designed.
  • High Strength Material,Anodized Aluminum Housing.
  • Design with no Mechanical Bolt.
  • Increase the holding Force,Dual Insulative Hosing.
  • CE Certificate by European Union,MA Certificate by China Public Security Office.


UT YM 180 2

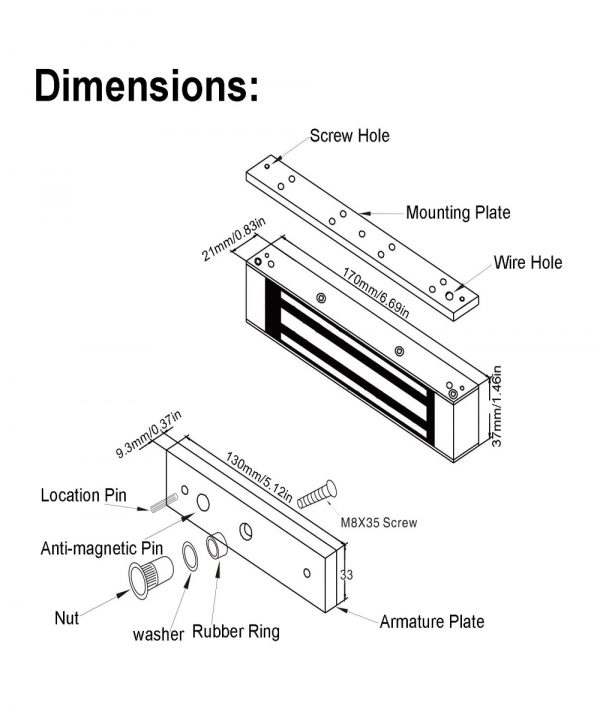

  • Size: 170Lx41.4Wx20.5H(mm)
  • Armature Plate Dimension: 130Lx33Wx9.3H(mm)
  • Holding Force: 180kg(350Lbs)
  • Input Voltage: 12/24VDC+10%
  • Current: 12V/300mA or 24V/150mA
  • LED: Red shows locked ;Green shows unlocked
  • Signal Output: Lock signal (NO/NC/COM)
  • Suitable: Wooden door , Glass door ,Metal door , Fireproof door
  • Surface Temp: ≤+20℃
  • Operating Temp: -10~+55℃(14-131F)
  • Humidity: 0~90%(non-condensing)
  • Cover Finish: Anodized aluminum
  • Lock Finish: Zinc
  • Armature Plate Finish: Zinc
  • Weight: 970g

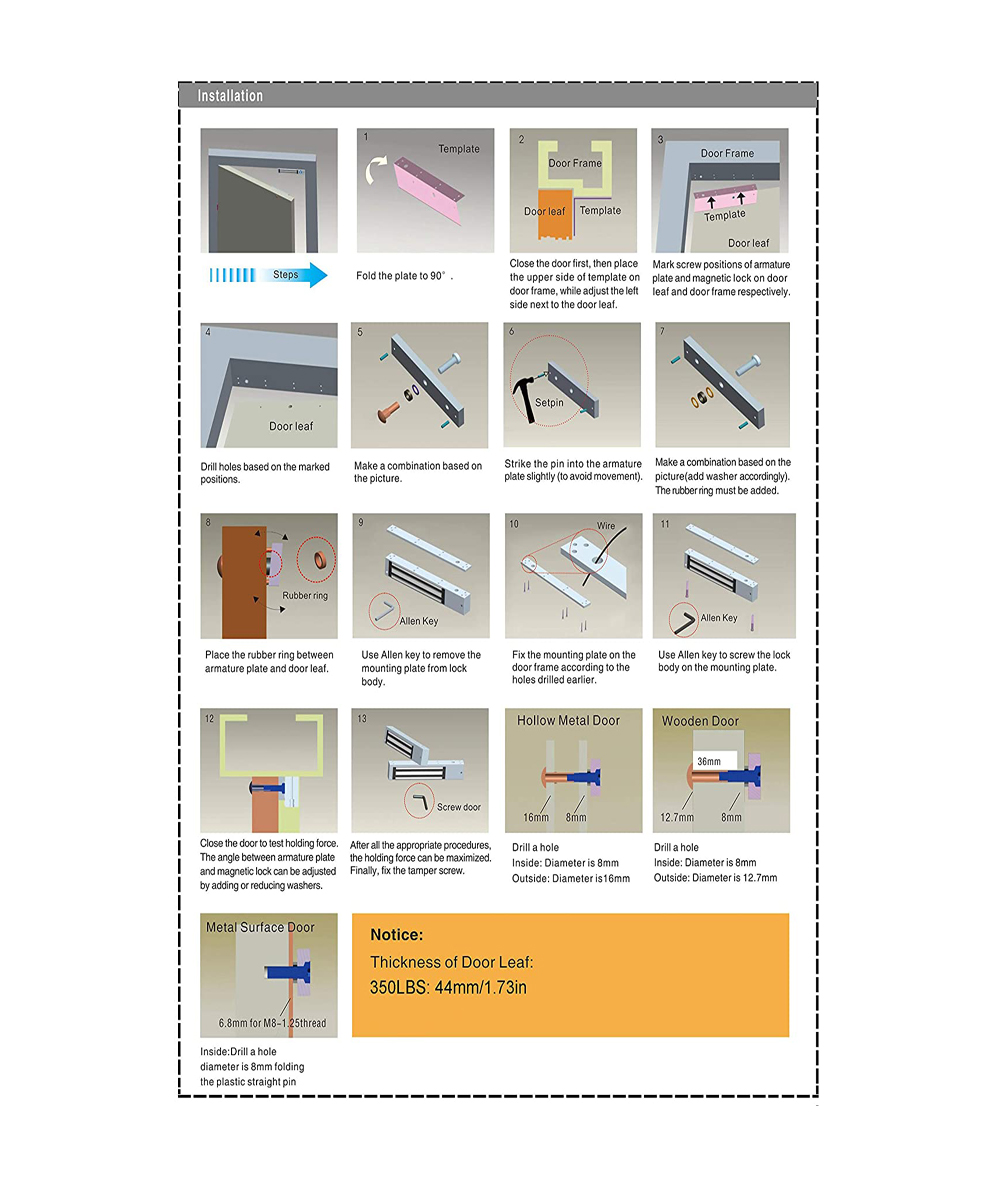

  • A. The screw of armature plate should not be fixed too tight. Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position

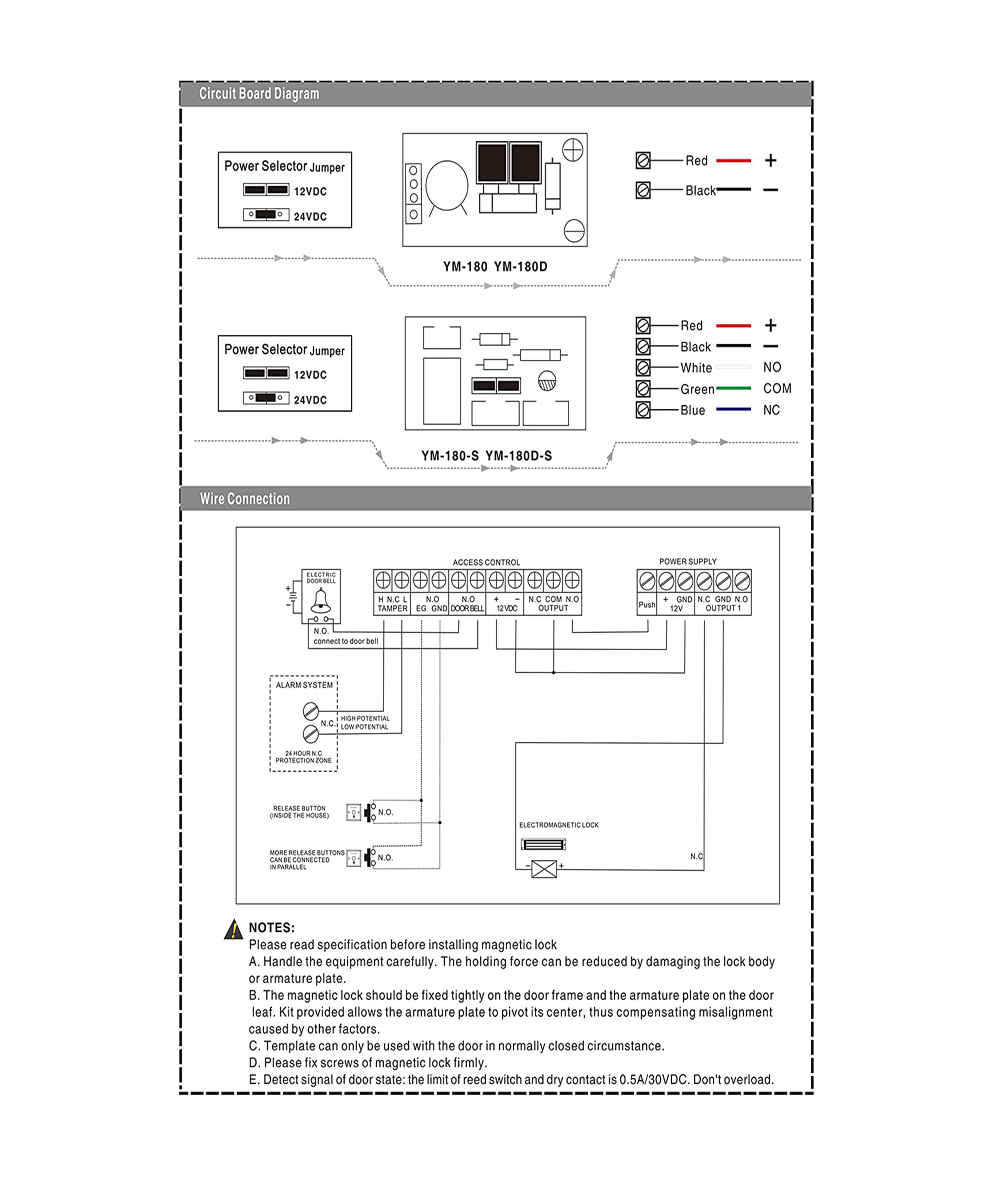

  • B. Check the jumper’s position before connecting. Figure out it represents 12VDC or 24VDC


  • 1 x Electric Magnetic Lock
