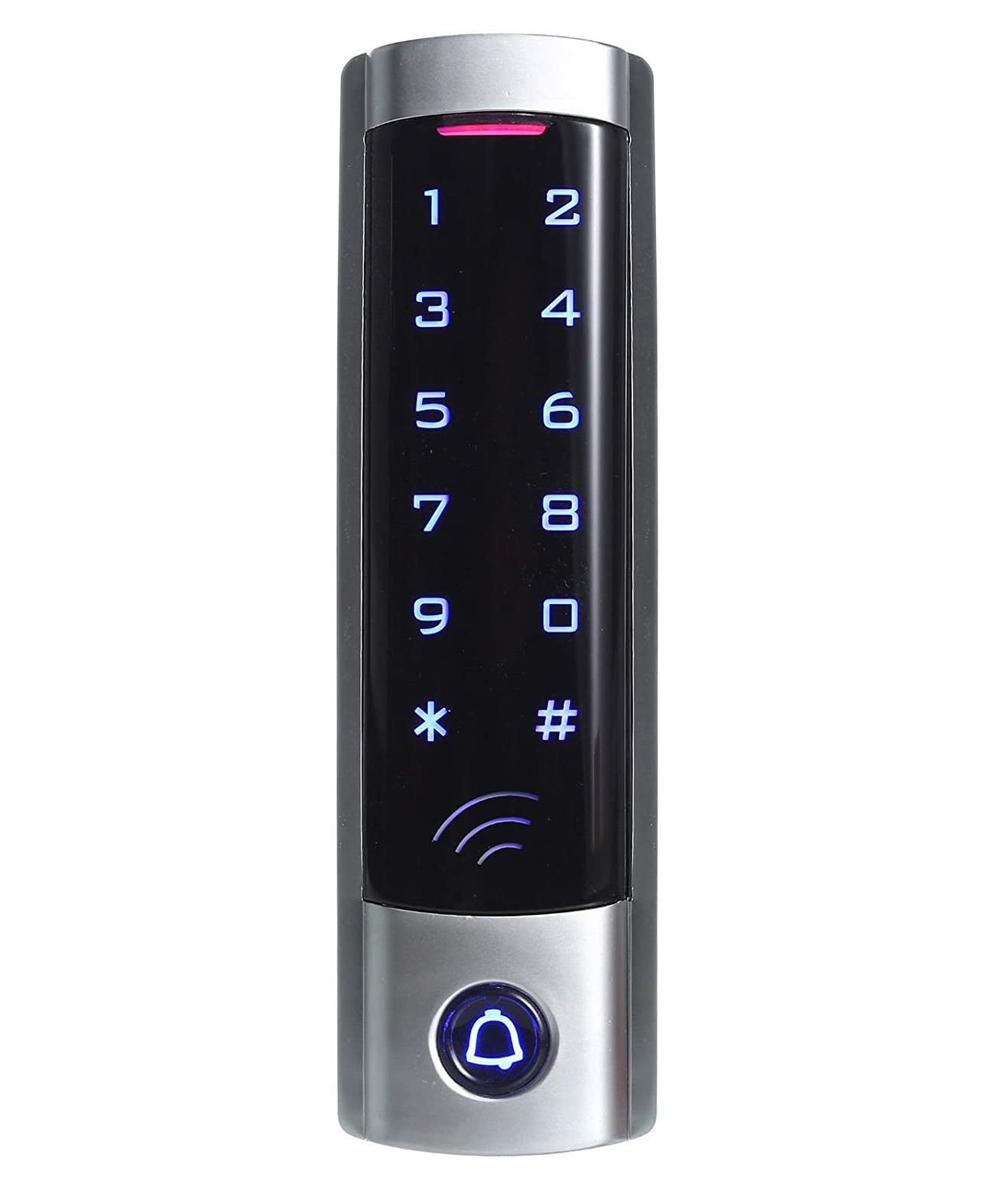

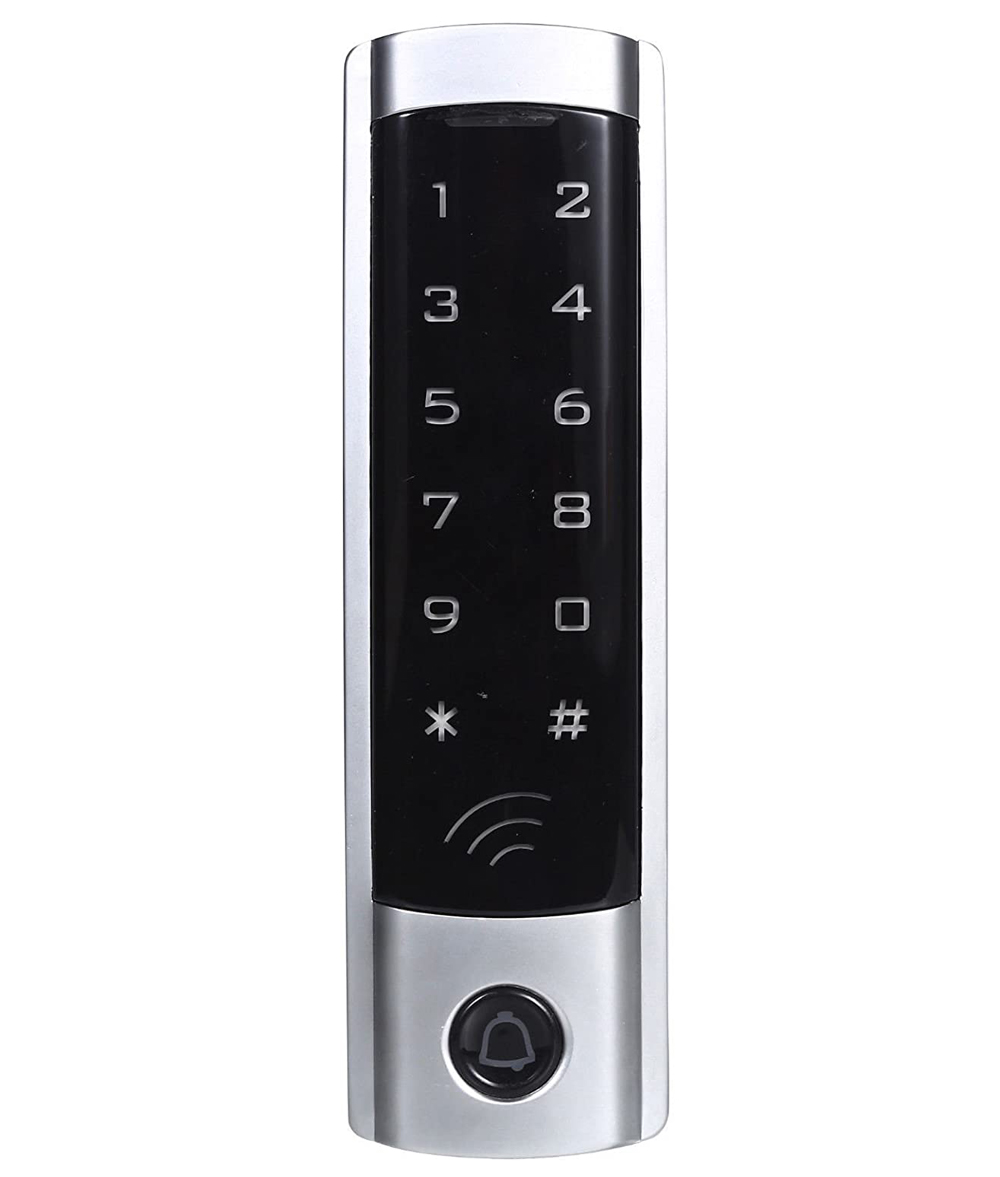

Touch Access Control Keypad with Wiegand 26-bit Interface Support 2000 Users for 125khz RFID Card

Touch Access Control Keypad with Wiegand 26-bit Interface Support 2000 Users for 125khz RFID Card

Features:

• Strong Zinc Alloy Electroplated anti-vandal case
• Full programming from the keypad
• 2000 users, supports Card, PIN, Card+PIN
• Can be used as a standalone keypad
• Backlight keys
• Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller
• Adjustable Door Output time, Alarm time, Door Open time
• Very low power consumption (30mA)
• Fast operating speed, <20ms with 2000 users
• Lock output current short circuit protection
• Easy to install and program
• Built in light dependent resistor (LDR) for anti tamper
• Built in buzzer
• Red, Yellow and Green LEDs display the working status
• Support four digits worked as stand-alone keypad
• This keypad can’t be compatible with UHF card and encrypted card, for example, the card of following brands: HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell, etc.

Specifications:

• Operating Voltage: 12VDC
• User Capacity: 2000
• Card Reading Distance: 3-6cm / 1.2-2.4in
• Frequency: 125KHZ
• Active Current: <60mA
• Idle Current: 25±5mA
• Lock Output Load: Max 3A
• Alarm Output Load: Max 20A
• Operating Temperature: -45℃~60℃ / -49℉~140℉
• Operating Humidity: 10%~90% RH
• Adjustable Door Relay Time: 0-99 seconds
• Adjustable Alarm Time: 0-3 minutes
• Wiegand Interface: Wiegand 26 bit
• Wiring Connections: Electric Lock, Exit Button, External Alarm

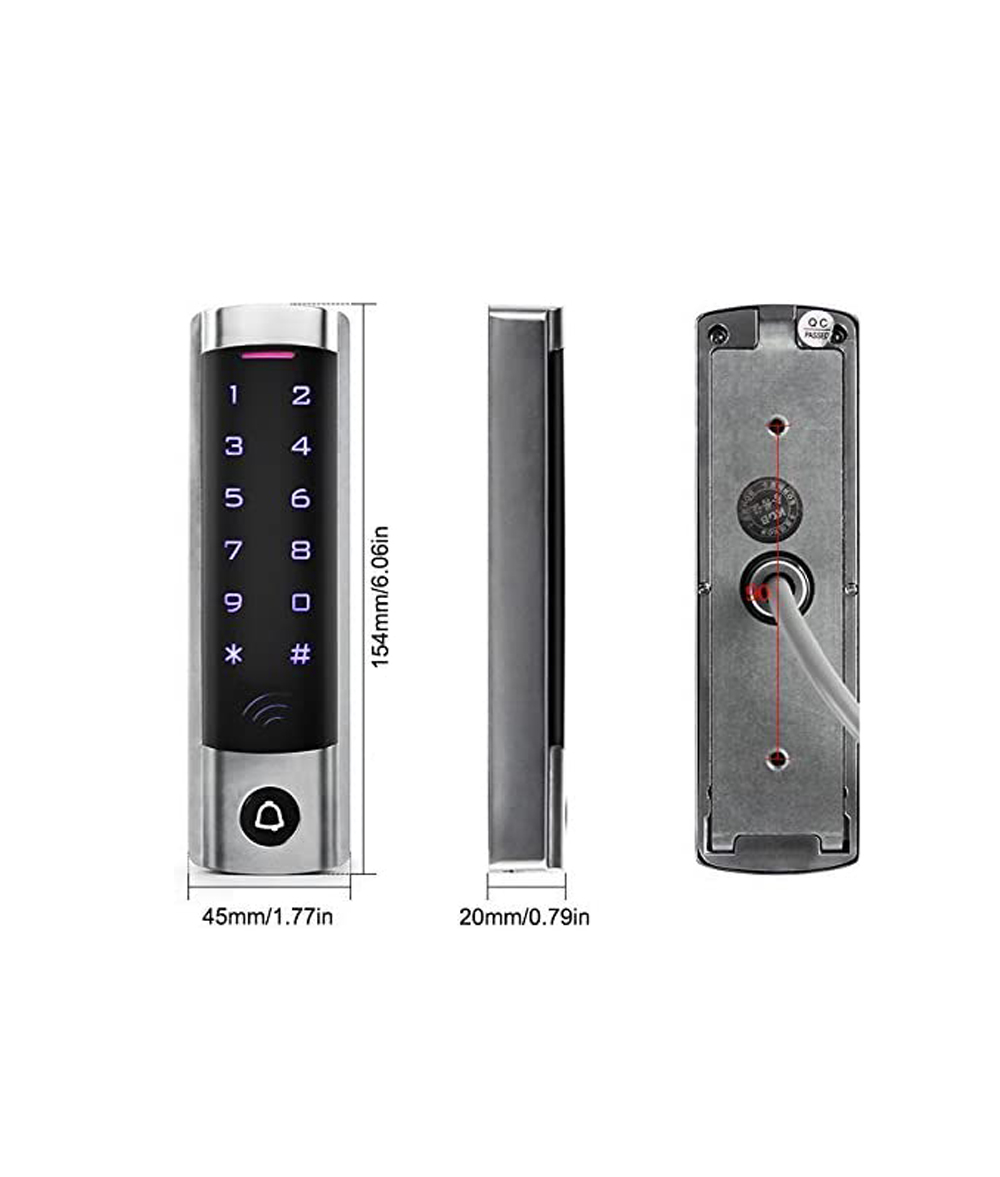

• Product Size: 154x45x20mm / 6.06×1.8×0.8in
• Package weight: 330g / 0.73lb

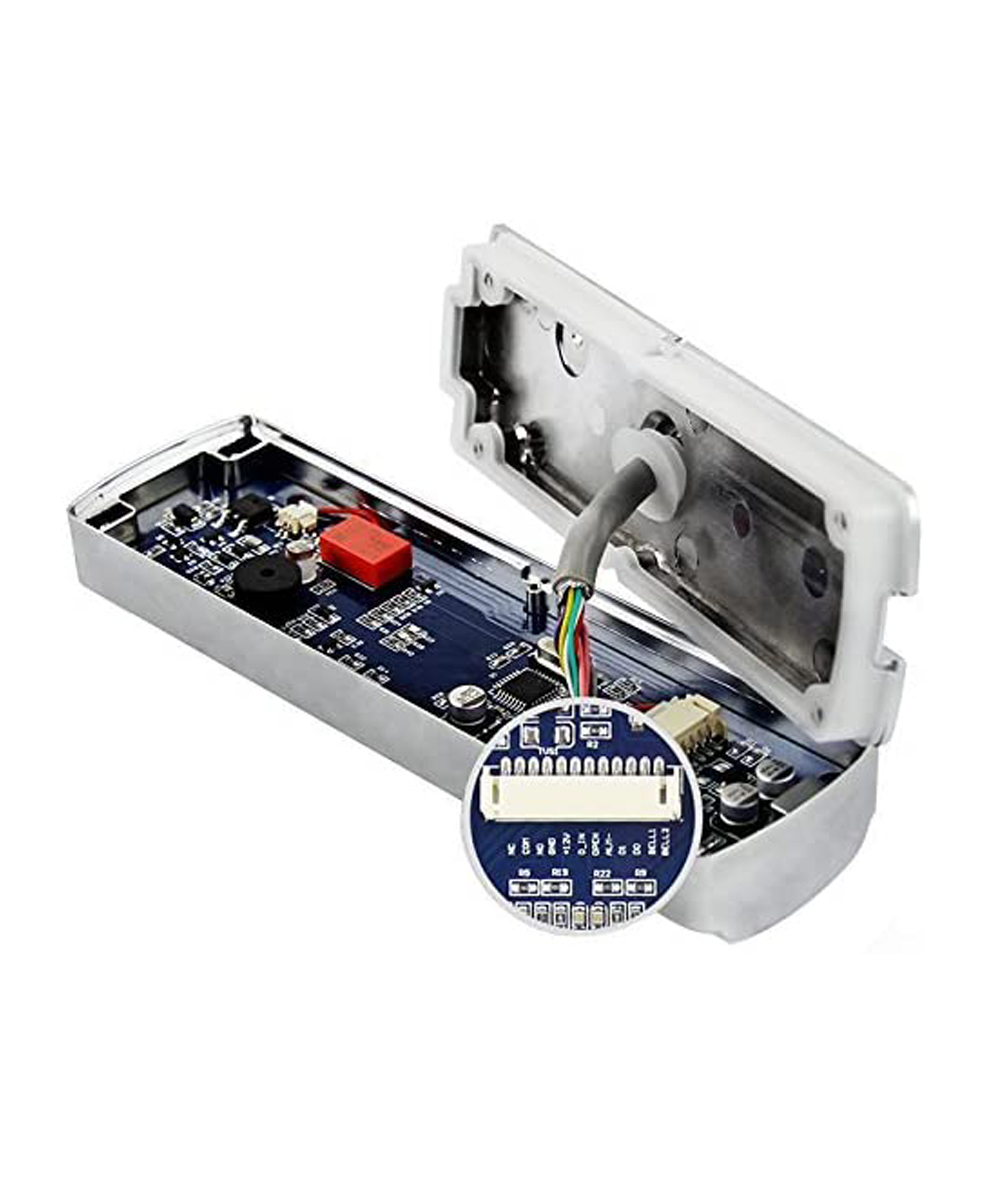

Installation:

• Remove the back cover from the keypad using the supplied special screw driver
• Drill 2 holes on the wall for the Self tapping screws and 1 hole for the cable
• Put the supplied rubber bungs into the 2 holes
• Fix the back cover firmly on the wall with 2 Self tapping screws
• Thread the cable through the cable hole
• Attach the keypad to the back cover

Package:

• 1 x Access Control Keypad
• 1 x Installation Kit
• 1 x User Manual
