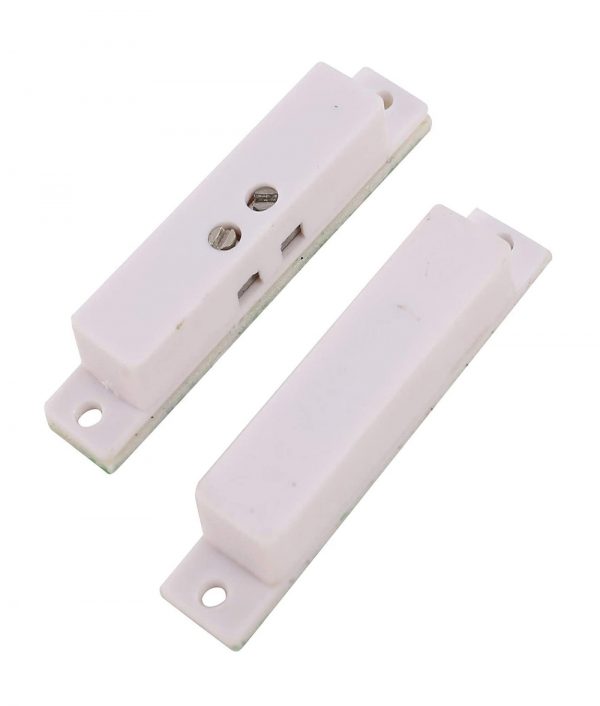

NC Type Wired Screw-Terminal Surface-Mount Magnetic Door Contact for Window Door Security (Pack of 20)

$35.90

This NC type wired screw-terminal surface-mount magnetic door contact works with any access control or burglar alarm system available, great for use in family and factory window, door, etc. Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and longer life.

SKU: UT-RZ-40NC-20Pack Categories: ,

NC Type Wired Screw-Terminal Surface-Mount Magnetic Door Contact for Window Door Security (Pack of 20)



Features:

  • Switch Type: NC (Normal closed type)
  • NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
  • This Contact Works with Any Access Control or Burglar Alarm System Available
  • This contact can’t connect directly to power, it works with your alarm system provide a switch signal. Working current under 12V
  • Great for use in family and factory window, door. etc.
  • Miniature surface-mount magnetic contacts
  • Gold-plated screw terminals for longer life and reliability
  • Tape to cover screw terminals included
  • Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and longer life
  • Mounting screws and double-sided tape included

Specifications:

UT RZ 40NC 20Pack 2

  • Mounting Tabs: Yes / removable
  • Material – Case: High-impact ABS plastic
  • Contacts: Iridium-plating
  • Switch Dimensions: 2″x3/8″x1/4″ (51x10x7 mm)
  • Magnet Dimensions: 2″x3/8″x1/4″ (51x10x7 mm)
  • Dry Contact Output: NC (Normal closed)
  • Contact Rating: 10W/100VDC/0.5A in MAX
  • Operating Temperature: -15°~160°F (-25°~70°C)
  • Switch Cycles: 50 Million (0.1mA@5VDC)
  • Magnet Type: Rare-earth neodymium
  • Color: White
  • Housing Material: Plastic
  • Cable material: 1007UL #24AWG
  • Product: 9g / 0.32oz

Package:

  • 20 x Wired contacts
