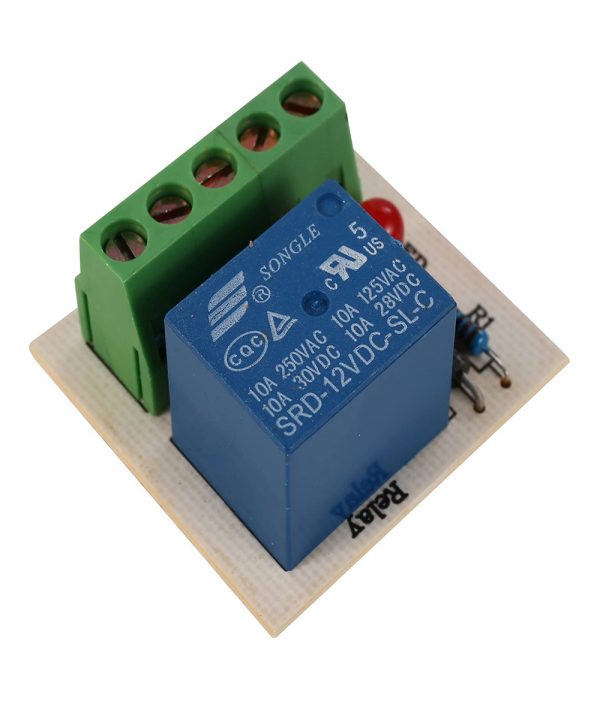

12VDC Access Control Externally Connected Extended Relay Singal Module Conversion

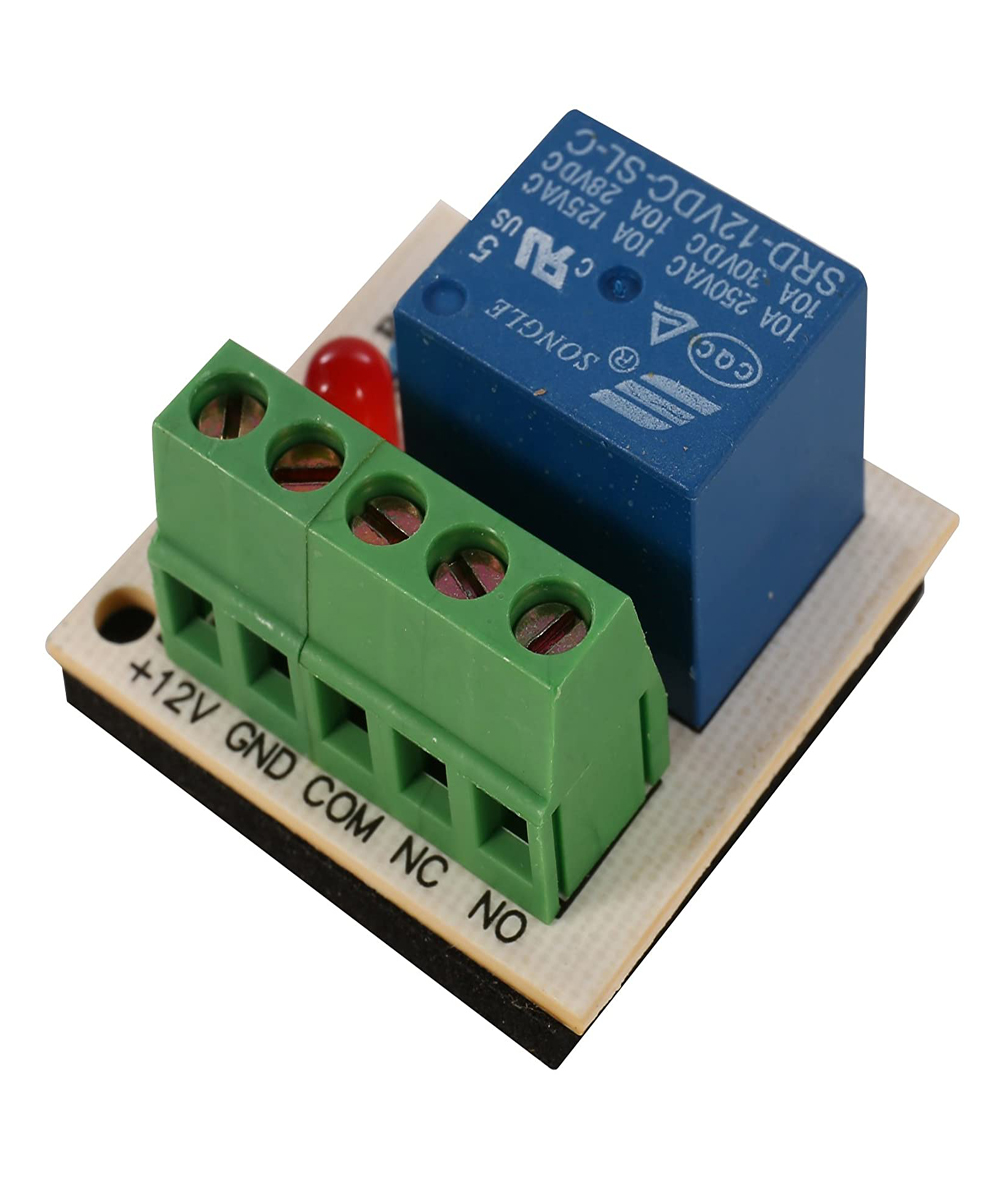

- The Extended relay module offers 3 contacts: NO,NC,COM to make both of the electric lock and power supply connection easier and convenient
- Dimensions: 39Lx24Wx20H(mm) / 1.54Lx0.94Wx0.79H(in)
- Material: High quality elements with superb design
- Max. overload: 10A/250VAC, 10A/30VDC
- Suitable for door: Fail-safe electric locks with signal output
- Output Capability: Applied to double-door interlocking
- Operating temp: -20℃~+70℃ / -4℉~158℉
- Weight: 0.02kg / 0.04lb
- 1 x Externally-connected module
