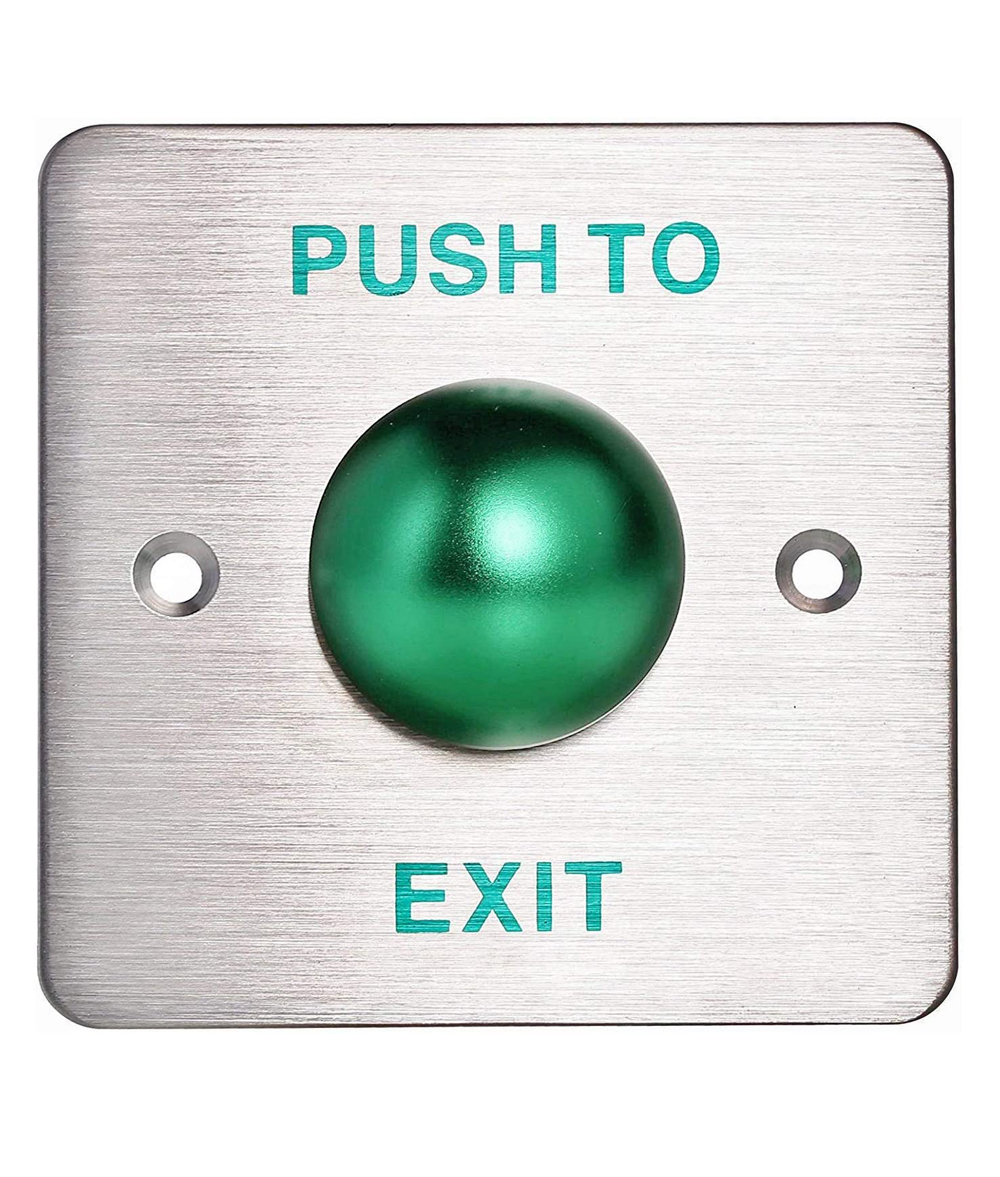

NO/NC/COM Security Stainless Steel Panel Door Press to Exit Button Switch

$25.00

  • Design with no Mechanical Bolt
  • Stainless Steel Panel with Elegant Style
  • Two Contact Output,Suitable for all kinds of Locks
  • 500000 Cycles tests
SKU: UT-PBK-818B Categories: ,

NO/NC/COM Security Stainless Steel Panel Door Press to Exit Button Switch



Features:

  • Design with no Mechanical Bolt
  • Stainless Steel Panel with Elegant Style
  • Two Contact Output,Suitable for all kinds of Locks
  • 500000 Cycles tests
  • Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large,small and medium-sized enterprises, department stores and residences.

Specifications:

  • Dimensions: 88Lx88Wx54H(mm) / 3.46Lx3.46Wx2.13H(in)
  • Standard structure: Stainless steel panel, metal Button
  • Current rating: 3A@36VDC Max
  • Output contact: NO/NC/COM
  • Mechanical life: 500000 tested
  • Suitable for door: All kinds of doors
  • Operating temp: -10℃~55℃(14℉-131℉)
  • Operating humidity: 0-95% (relative humidity)
  • Panel Material: Stainless steel panel,wire drawing finished
  • Back box finish: Zinc alloy polished and chroming
  • Weight: 0.2kg / 0.44lb

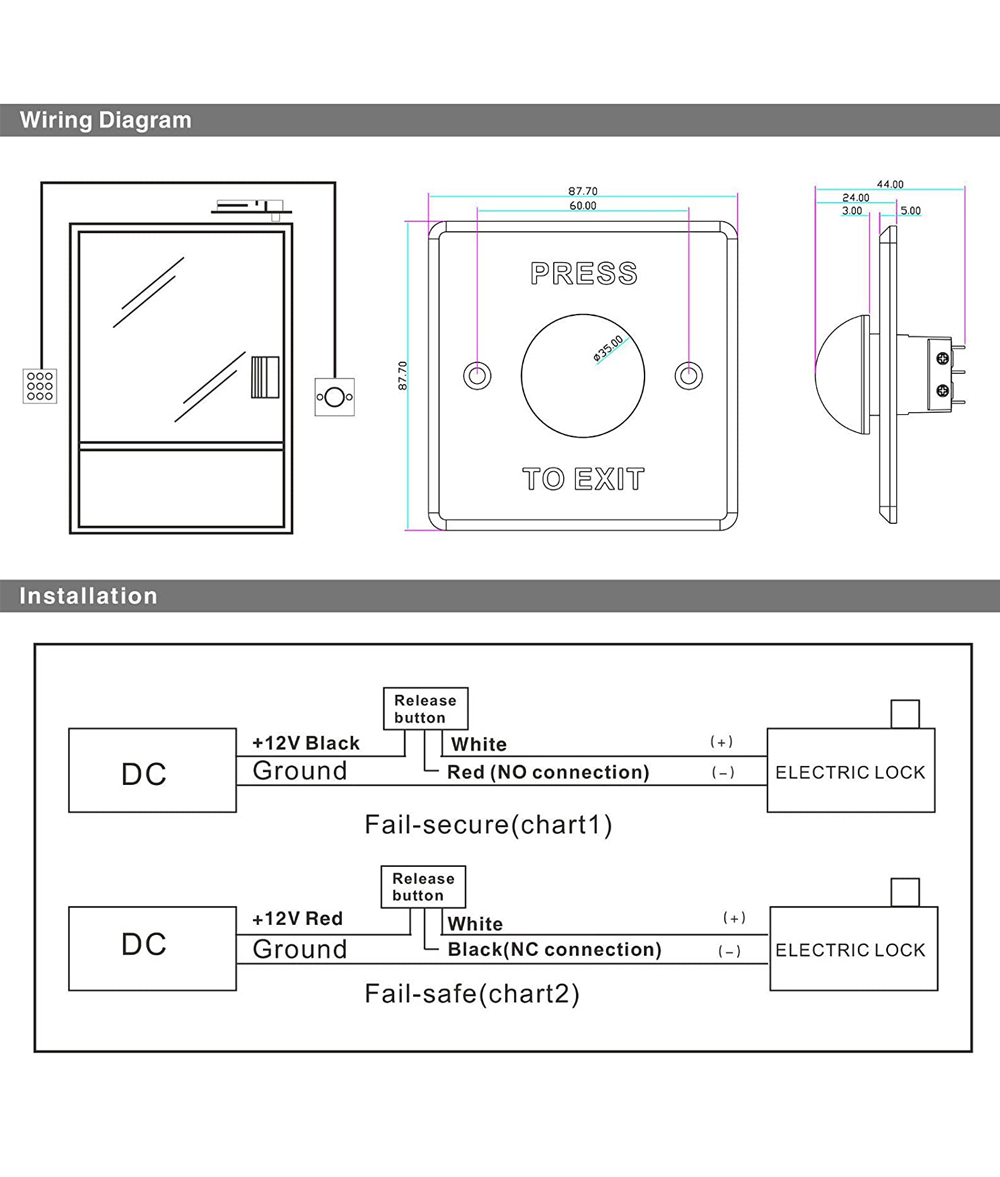

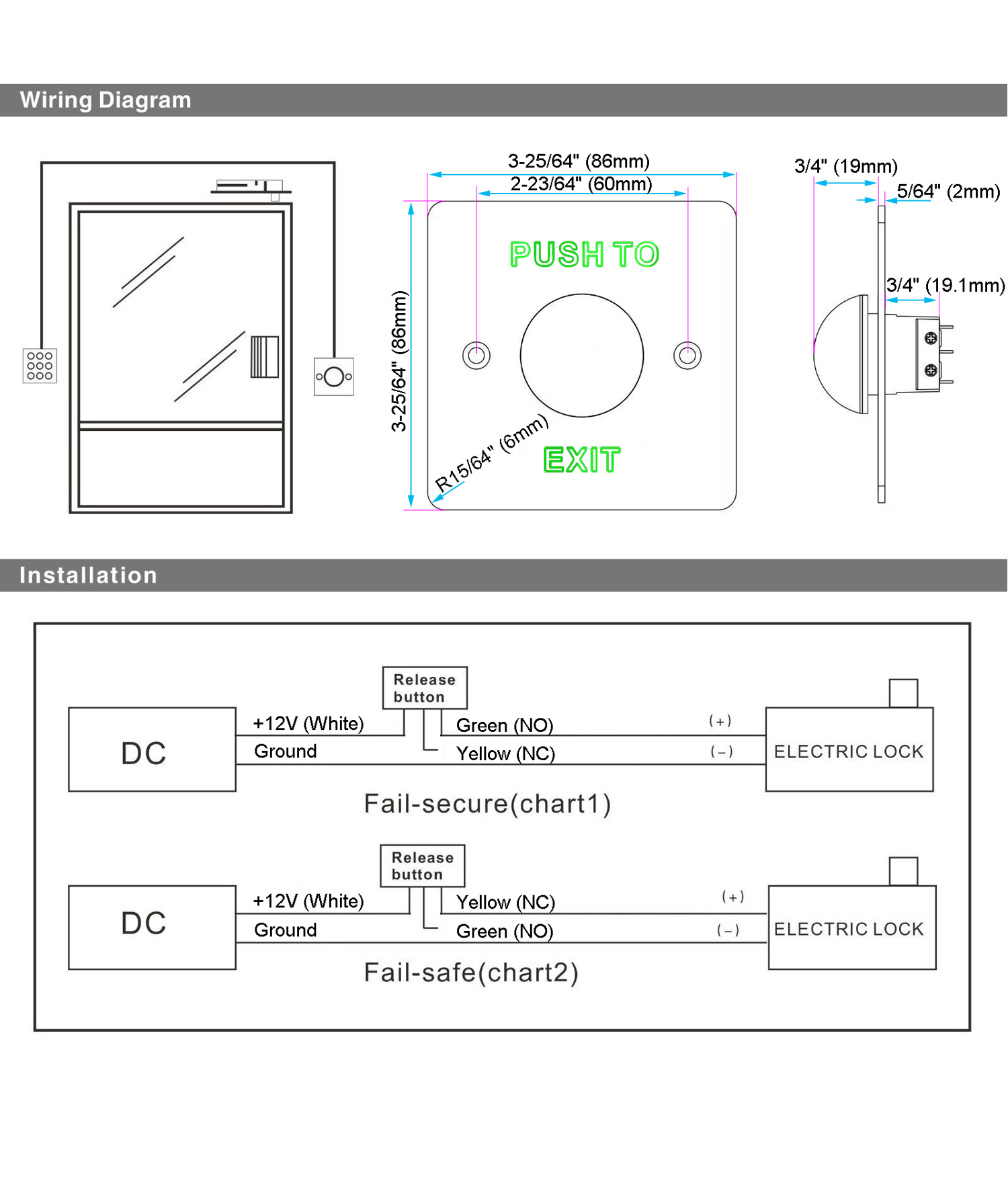

Installation:

Package:

  • 1 x Exit Button

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.2 kg
Dimensions 8.8 × 8.8 × 5.4 cm
