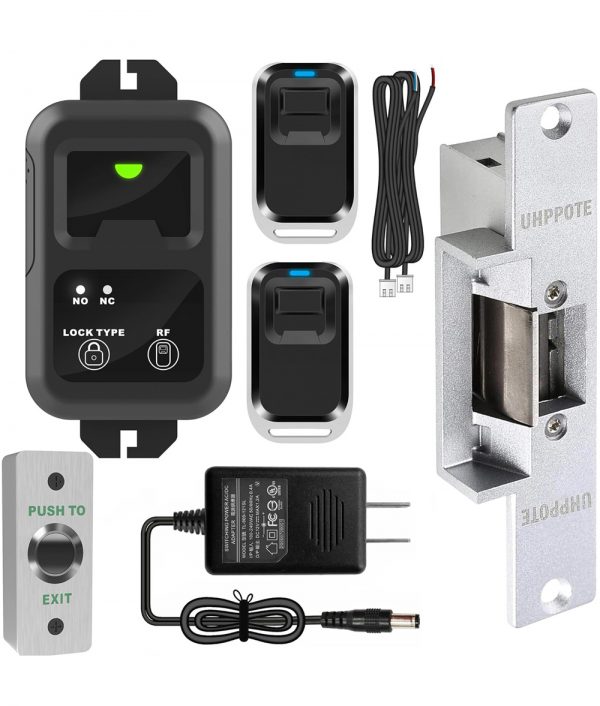

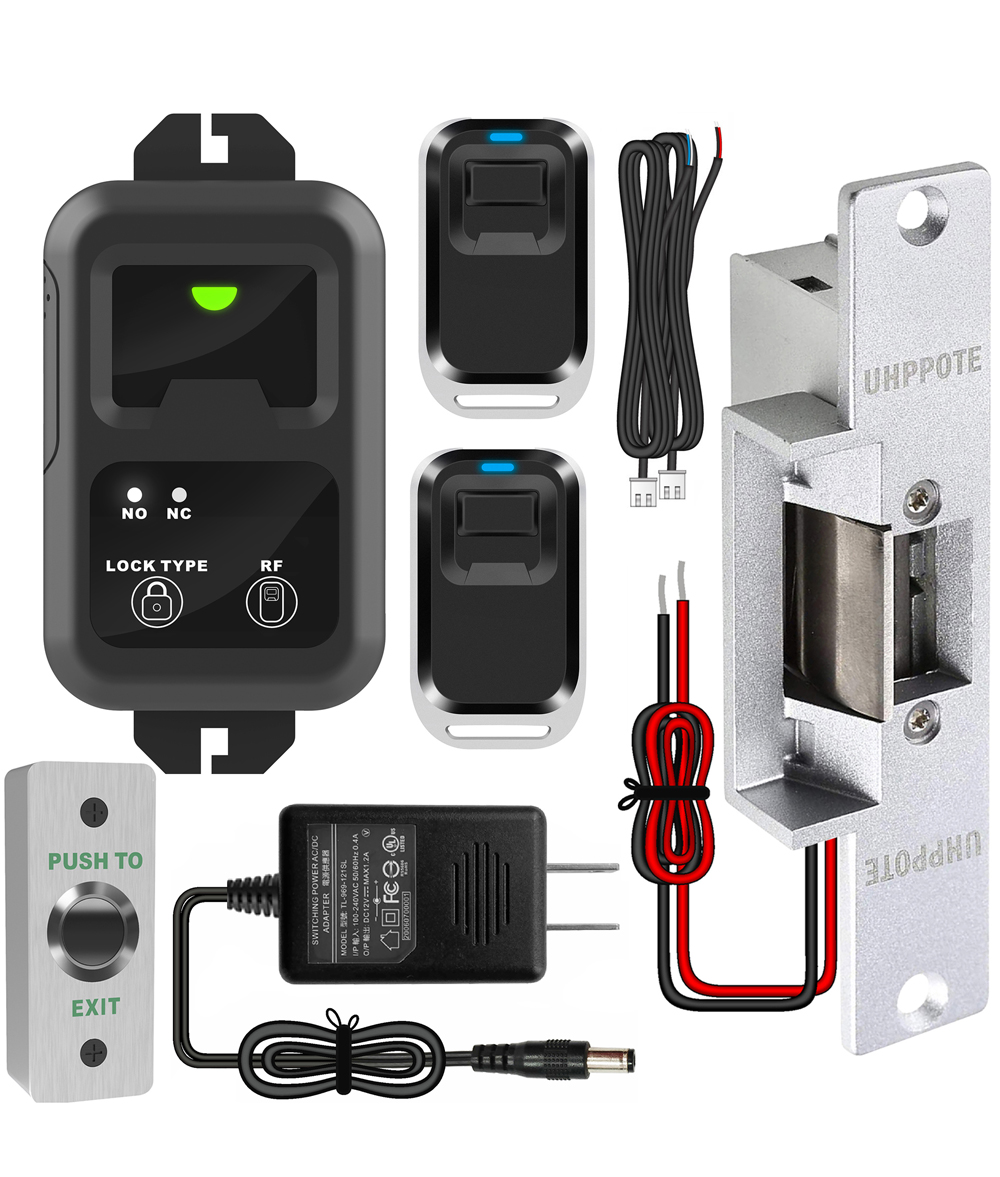

Door Access Control Kit with Fail Safe Electric Strike Lock Remote Control

$63.99

  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits.
  • The remote communicates with the receiver, which can program up to 40 remotes, and it has a range of 164ft.
  • An exit button is included in this strike lock system kit, and you could exit from indoors easily by pushing it once.
  • 0/5/10 seconds locking delay time adjustable, default is 5 seconds.
SKU: UT-KIT-130NC-814A Category:

Door Access Control Kit with Fail Safe Electric Strike Lock Remote Control



Describe:
  • The main feature of this kit is that it allows you to open the door simply by pressing the wireless RF remote instead of moving to the door physically when someone visits. The remote communicates with the RF receiver which can programed up to 40 transmitters, and it has a range of 164ft.
  • The function of the receiver is that when the power is on, the lock of your kit is locked and when you press the remote once the lock will unlock temporarily to open the door.
  • An exit button is included in this electric strike lock system kit, and you could exit from indoors easily by pushing it once.
  • 0/5/10 seconds locking delay time adjustable, default is 5 seconds.
Remote Control Receiver:

UT KIT 280KG 814A 3

  • Voltage: 12VDC
  • Frequency: 433MHz
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 40
  • DC Encoding Type: Learning code
  • Working Range: 160ft in open aera, 15%-30% in reality
  • Adjustable Locking Delay: 0/5/10sec
  • Working Mode: Momentary/Toggle
Remote Transmitter:

UT KIT 280KG 814A 4

  • Working voltage: 6VDC (Built-in button battery)
  • Operating Current: 8mA
  • Powerd by: 2pcs CR2016/3V batteries (Included)
  • Service Life of the Battery: 50000 cycles tested
  • Transmitting Frequency: 433MHZ
  • Key: 1 Key
  • Case material: Plastic
Electric Strike Lock:

UT KIT 130NC 814A 3

  • Input Voltage: 12VDC
  • Current: 200mA
  • Holding Force: 500kg / 1100Lbs
  •  Fail safe, NC mode (Opened when power is removed)
  • Suitable For: Wooden Door, Metal Door, PVC Door
  • Strike lock need work with mechanical lock. Mechanical lock need buy separately
  • With two contacts and no polarity requirement. (The lock will have polarity when a diode added.)
  • Size (LxWxH): 150×39.5×34(mm) / 5-29/32″ x 1-9/16″ x 1-11/32″
  • Function: Built-out MOV
  • Net Weight: 0.29kg / 0.64lb
Push to Exit Button:

UT KIT 280KG 814A 8

  • Dimensions (LxWxH): 90x35x26.5(mm) / 3-35/64″ x 1-3/8″ x1.0 1-3/64″
  • Standard Structure: Stainless steel Panel, Steel Button
  • Mechanical Life: 500000 tested
  • Current Rating: 3A@36VDC Max
  • Output Contact: NO/COM
  • Operating Temp: 10~+55℃(14-131F)
  • Operating Humidity: 0-95% (relative humidity)
  • Panel Material: Stainless steel Panel, Wire Drawing Finished
  • Suitable for hollow door
Power Adapter:

UT KIT 280KG 814A 9

  • Type: 12V 1A Power Supply Wall Charger
  • Input: AC100V-240V 50/60Hz
  • Max Output: DC12V / 1A (1000mA)
  • AC Cord length: 4 feet / 1.2 meter
  • Wire Type: 22AWG
  • Output transformer adapter : 5.5X2.1mm (Inside diameter 2.1mm, Outside diameter 5.5mm)
  • Net weight: 66g
  • Certificate: FCC
Package:
  • 1 x Electric Strike Lock
  • 1 x Remote Receiver
  • 2 x Remote Transmitters
  • 1 x Push to Exit Button
  • 1 x Power Adapter
  • 1 x Buzzer
  • 1 x English Manual
