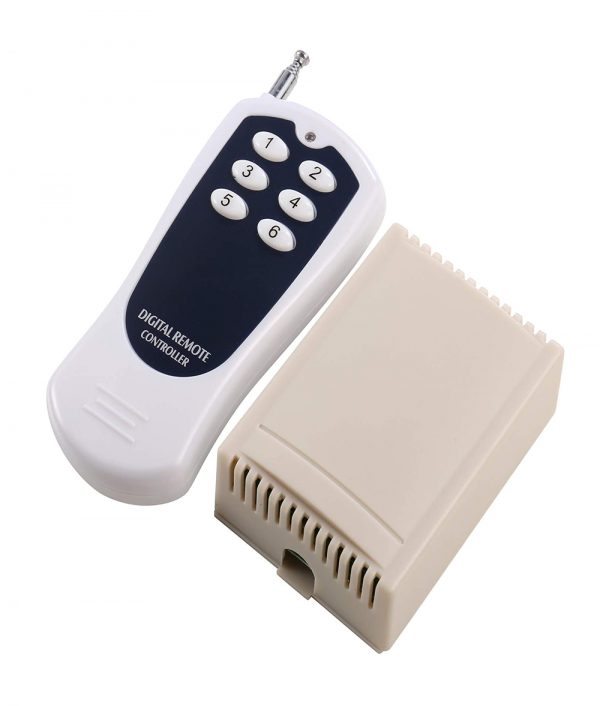

433mhz 12VDC 6 Channel Wireless Remote Control Switch Transmitter and Receiver

433mhz 12VDC 6 Channel Wireless Remote Control Switch Transmitter and Receiver



Features:

• Six channels of output, the output can be independent, but also jog and interlocked
• Suitable for lights, electrically operated doors, windows, curtains, etc.
• Learning type can be paired with more than one control
• Adopting larger capacity relay, can control electrical equipment of more than 1000W
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.

Specifications:

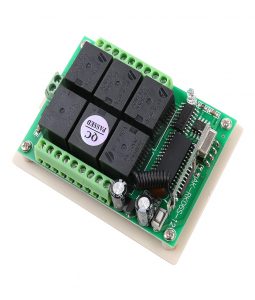

Receiver:

• Model No.: AK-RK06S-12
• Channel: 6CH
• Radio Frequency: 433MHZ
• Operating Voltage: DC12V
• Coding Type: Learning code
• Maximum Working Current: 10A
• Output Mode: Without voltage output (also called Contact output)
• Step-down approach: resistance-capacitance (RC)

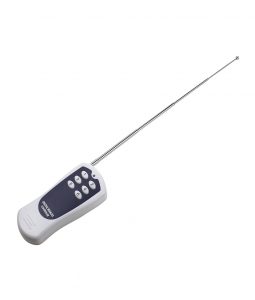

Transmitter:

• Buttons: 6 Buttons
• Working Voltage: DC12V
• Remote Control Distance: 150m/492ft
• Encode: Fixed code by soldering and learning code

Instructions:

Operating Mode:

• Momentary: Single relay will stay on only as long as corresponding remote key is pressed.
• Toggle: Press corresponding key for on, press same key again for off, each relay independently.
• Latched: For each relay: press corresponding key for on (all others off).

Program Mode in:

• After cleared previous mode, the LED turns on when press the programming key, press “1” button on the transmitter, the LED turns off, the transmitter with receiver has been paired successfully. The working mode is “Momentary”.
• After cleared previous mode, the LED turns on when press the programming key, press “2” button on the transmitter, the LED turns off, the transmitter with receiver has been paired successfully. The working mode is “Toggle”.
• After cleared previous mode, the LED turns on when press the programming key, press “3” button on the transmitter, the LED turns off, the transmitter with receiver has been paired successfully. The working mode is “Latched”.

Clear Code:

• Long press the programming key for 8 seconds until the indicator light turns off, indicating clear code is successful.

Package:

• 1 x Receiver
• 1 x Transmitter
• 1 x Battery for transmitter
