Silent Safe Intelligent Motor Electric Lock W/Signal Self-Closing Lockable

$79.00

  • The length of the lock tongue>20mm,meet GA/T73-94 5.1.6B standard
  • Can be compatible with building system of entrance guard system, etc
  • Automatically detects the door status, automatic processing to open close the door
  • Can be installed on the left door, right door, interior door, outside the door and other doors
  • Working current: 25mA
SKU: UT-ABK-703B-S Categories: ,

Silent Safe Intelligent Motor Electric Lock W/Signal Self-Closing Lockable



Features:

  • Working current: 25mA
  • The length of the lock tongue>20mm,meet GA/T73-94 5.1.6B standard
  • Can be compatible with building system of entrance guard system, etc
  • Automatically detects the door status, automatic processing to open close the door
  • Can be installed on the left door, right door, interior door, outside the door and other doors
  • Mistakenly lock or unlock after no entry, the door automatically locked in around 9 seconds
  • Voltage DC12V-DC18V, start current <350mA, standby current <25mA, unlock time 1S
  • Working temperature range -20℃~60℃ / -4℉~140℉
  • Long life (more than 500,000), on / off, high sensitivity about ON/OFF, low power consumption

Specifications:

UT ABK 703B S 3

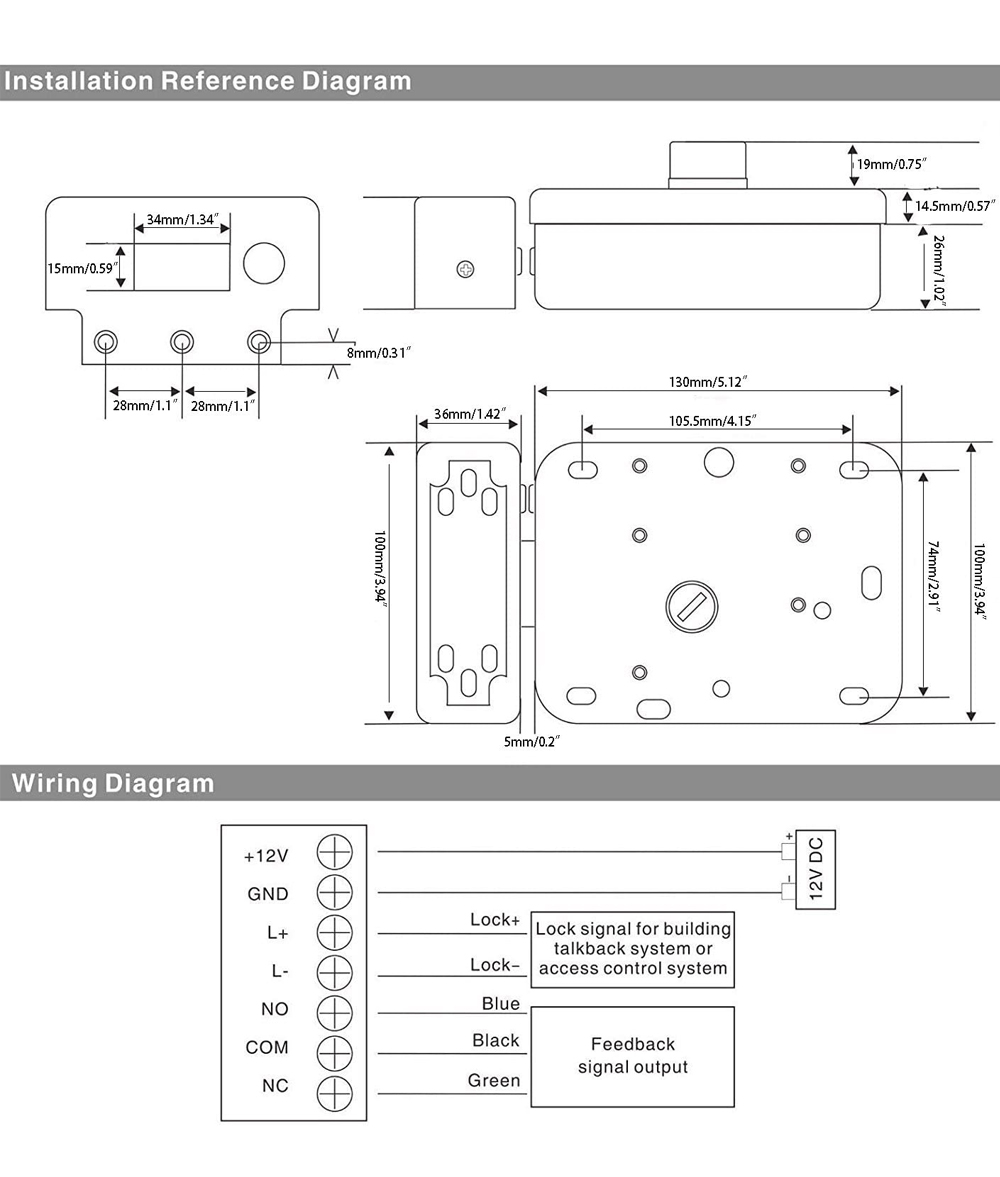

  • Lock Size: 130Lx100Wx61.25D(mm) / 5.12Lx3.94Wx2.41H(in)
  • Fail Safe: Locked when energized
  • Power supply: DC12V±10%
  • Starting current: 350mA, Working current: 25mA
  • Temperature: -20℃~+50℃ / -4℉~122℉
  • Lock tongue length: 20mm / 0.79in
  • Material: stainless steel, surface drawing
  • Scope of application: widely used in intelligent community, factory, warehouse, base station, and building intercom, intelligent access control system supporting the use of
  • Weight: 1.5Kg / 3.3lb

Note:

  • The electric lock is not fire locks, absolutely not allowed to be installed on the fire escape door, or peril.
  • Installation of electric lock is not allowed to fire welding, as a result of failure caused by fire welding power locks, the Company should be no warranty.

Package:

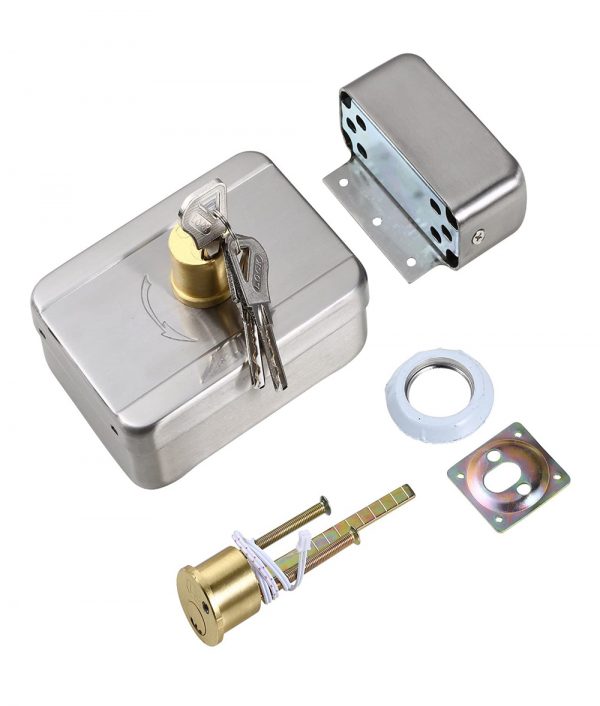

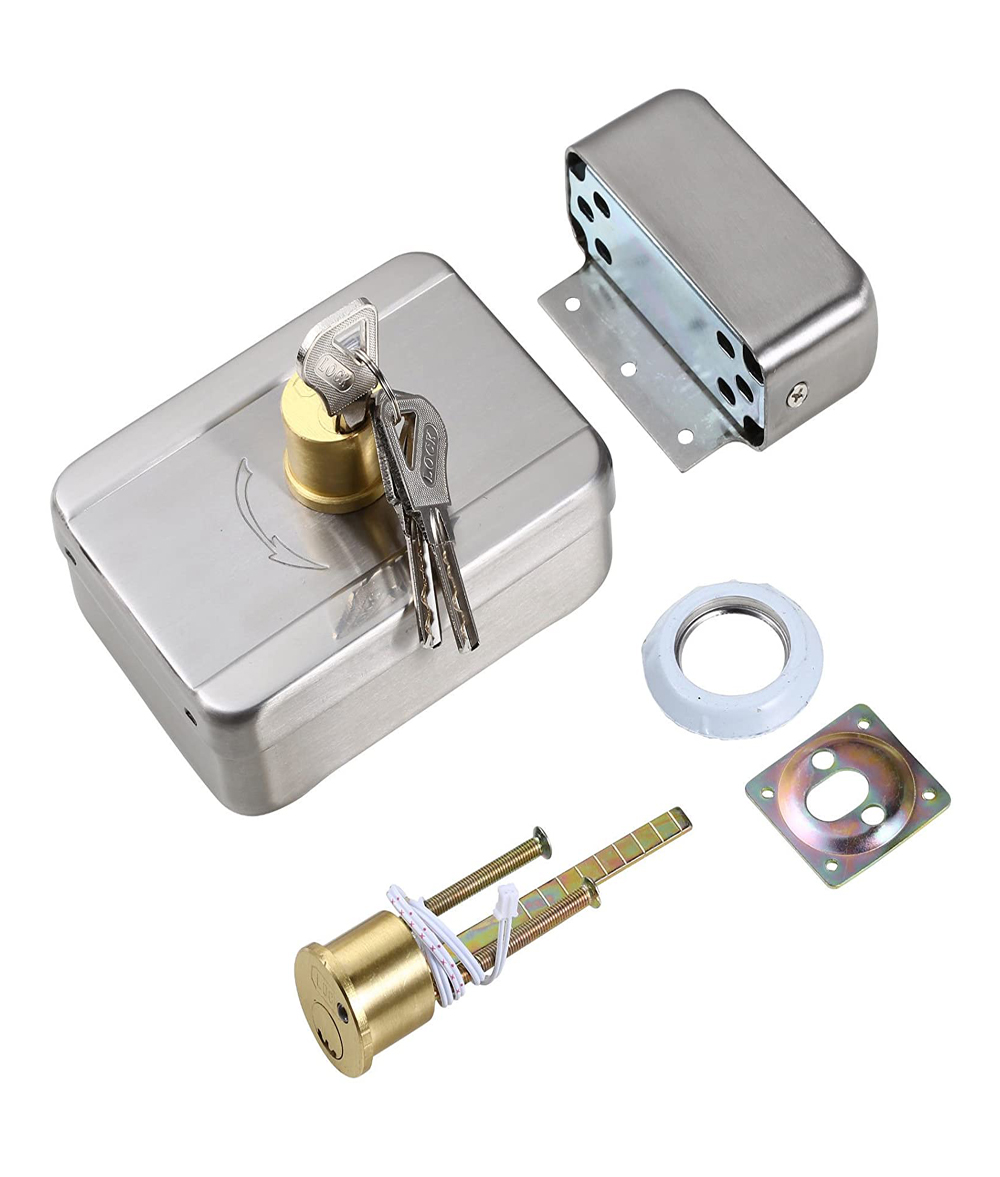

  • 1 x Intelligent electric lock

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.



Weight 1.5 kg
Dimensions 13 × 10 × 6.13 cm
