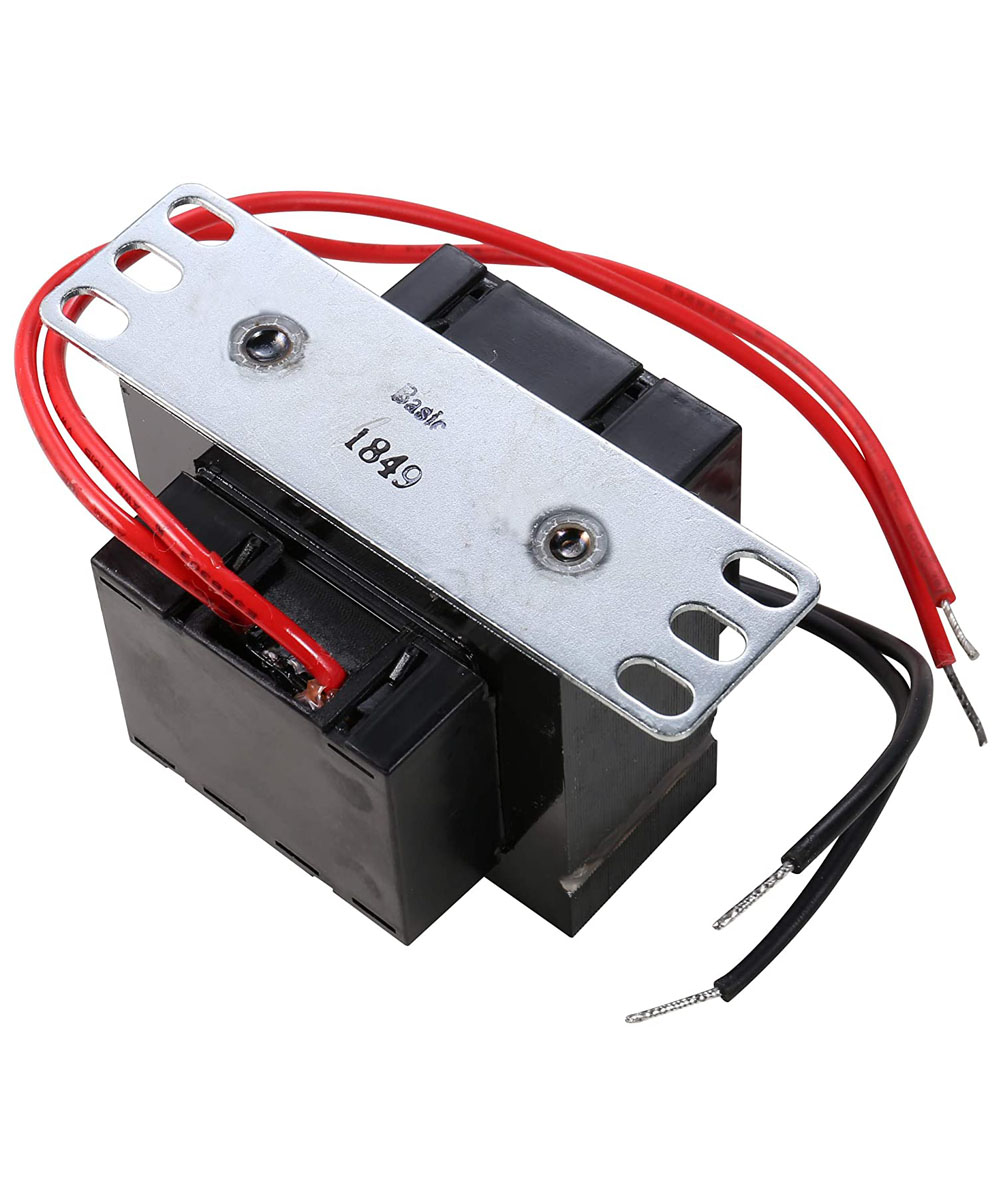

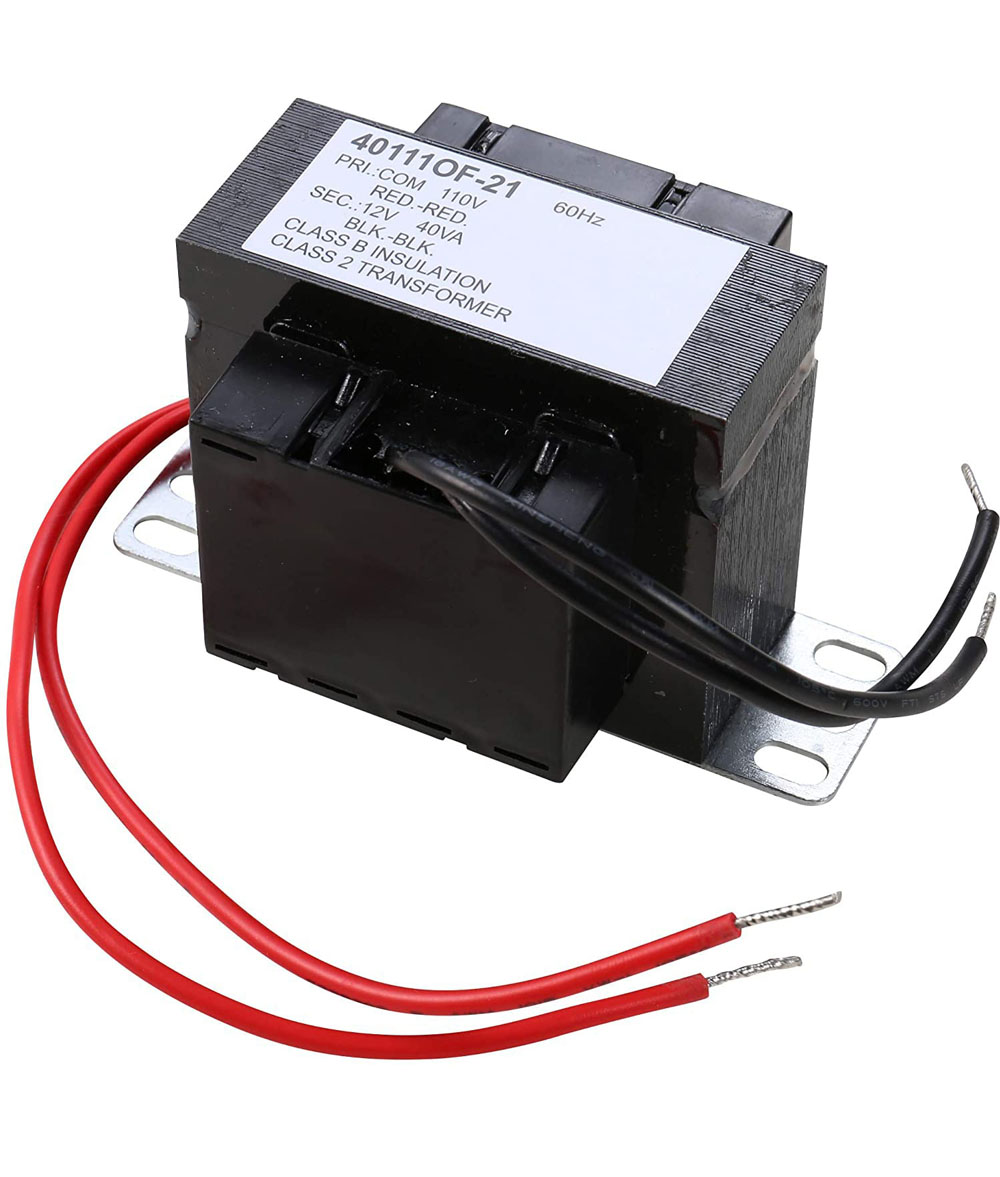

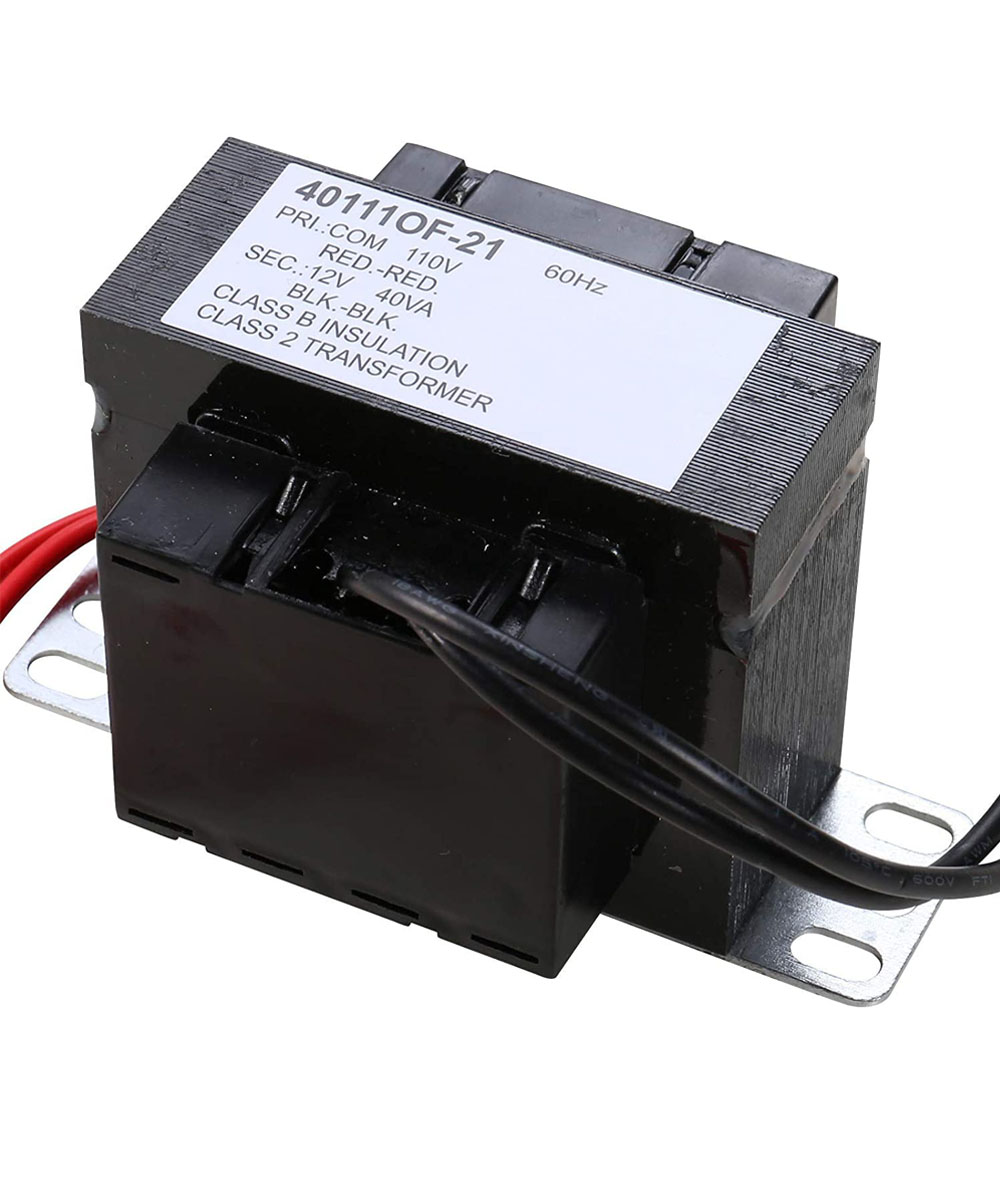

Class 2 Transformer Foot Mount 40VA Rating 110VAC Input 12VAC Output
Features:
- SAFE USE: This 12 volt transformer offers reliable performance
- Mounting Configuration: 2 Foot
- 110 Volt Primary – 12 Volt Secondary – 40VA
- PRI.: 18AWG Length 230mm in color “red & red”; SEC: 18AWG length 120mm in color “black & black”.

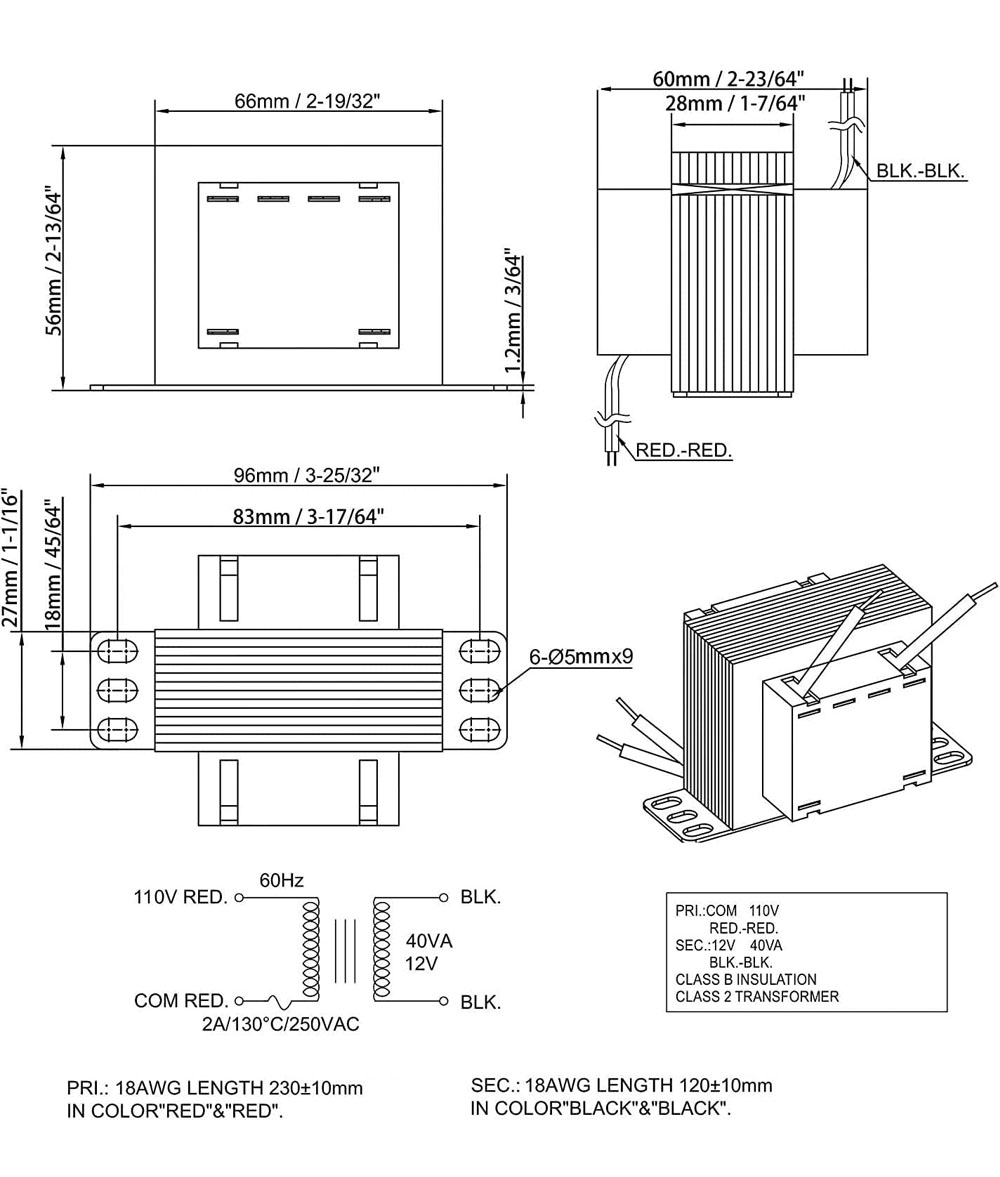

- Universal Replacement for Most Foot Mounted Furnace Transformers. The two foot mounting holes are spaced 3-17/64” on center.
Specifications:
- 110 Volt Primary – 12 Volt Secondary – 40VA
- PRI.:18AWG Length 230mm in color “red & red”
- SEC: 18AWG length 120mm in color “black & black”
- Protective Device: None, Enclosure Style
- Mounting Configuration: 2 Foot
- Input Voltage: 110VAC / 60Hz
- Output Voltage: 12VAC
- VA Rating: 40VA
- Over Current Protection: Inherently Limited
- Operating Temperature: -40 to 140° F
- MTBF: 100,000 Hours @ 77°F
- Construction: Split-Bobbin
- Net Weight: 870g / 1.9lb
Package:
- 1 x Transformer (Wire nuts not included)
