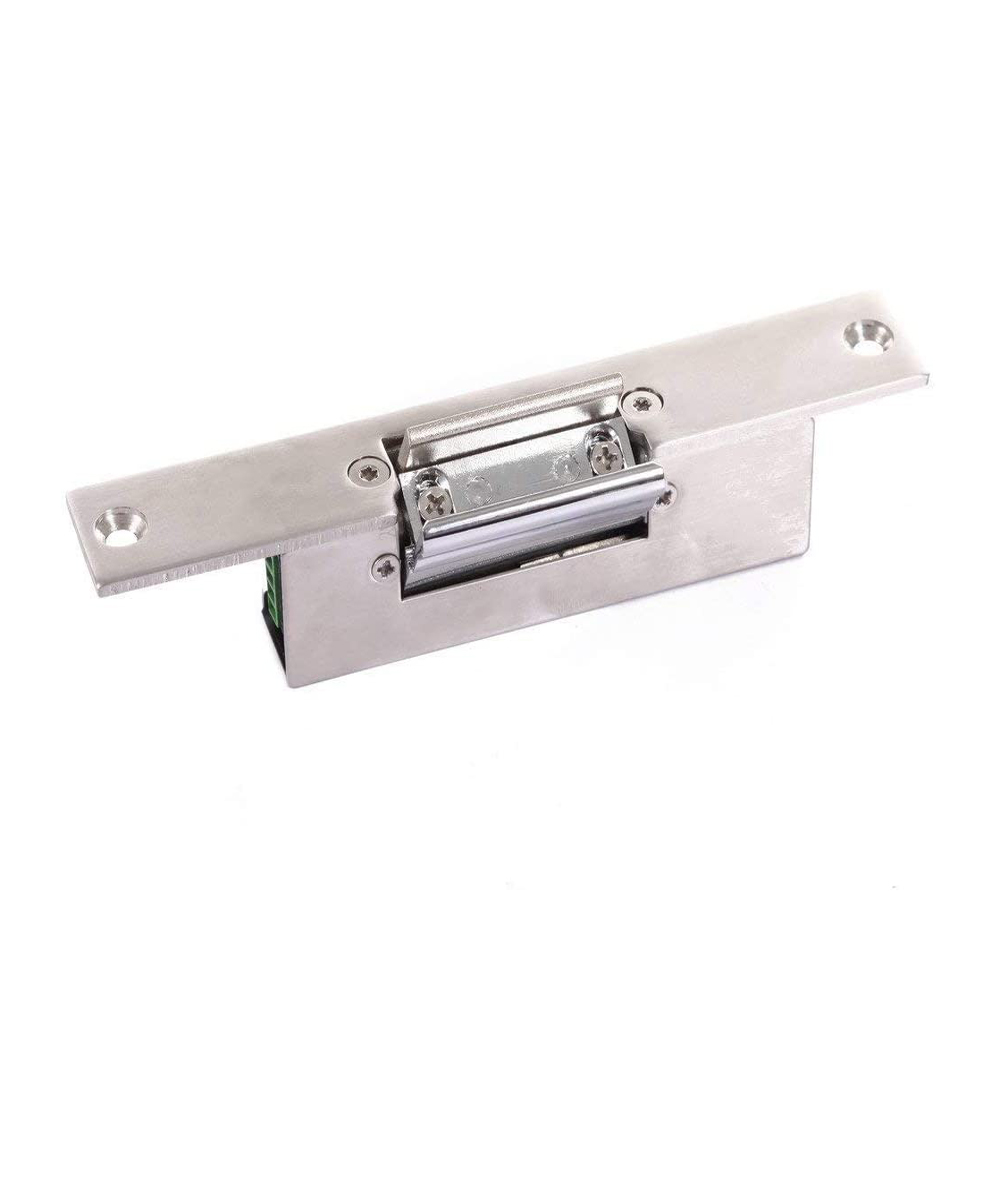

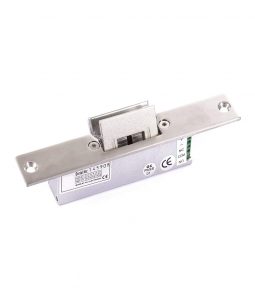

12V Electric Strike Lock Fail-Safe with Lock Status Output NO/NC/COM for Glass Door Without Frame

$59.90

This Fail Safe(NC) mode electric strike lock is designed for the glass door without frame.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door. High-Temperature Painted,Duable and Beatiful Artical.

SKU: UT-133NC-S Categories: ,

12V Electric Strike Lock Fail-Safe with Lock Status Output NO/NC/COM for Glass Door Without Frame



Features:

  • Designed for the glass door without frame.The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.
  • Holding Force: 500kg / 1100lb
  • Voltage: 12VDC/200ma
  • Lock Status Output: NO/NC/COM
  • Fail safe – Unlocked when power is removed
  • Material: Aluminum, Stainless Steel Bolt
  • Testing to 1000000 cycles
  • High-Temperature Painted,Duable and Beatiful Artical
  • Suitable For: Glass Door
  • CE Certificate by European Union, MA Certificate by China Public Security office

Specifications:

UT 133NC S 2

  • Voltage: DC12V
  • Current: 200mA
  • Holding Force: 500kg / 1102lb

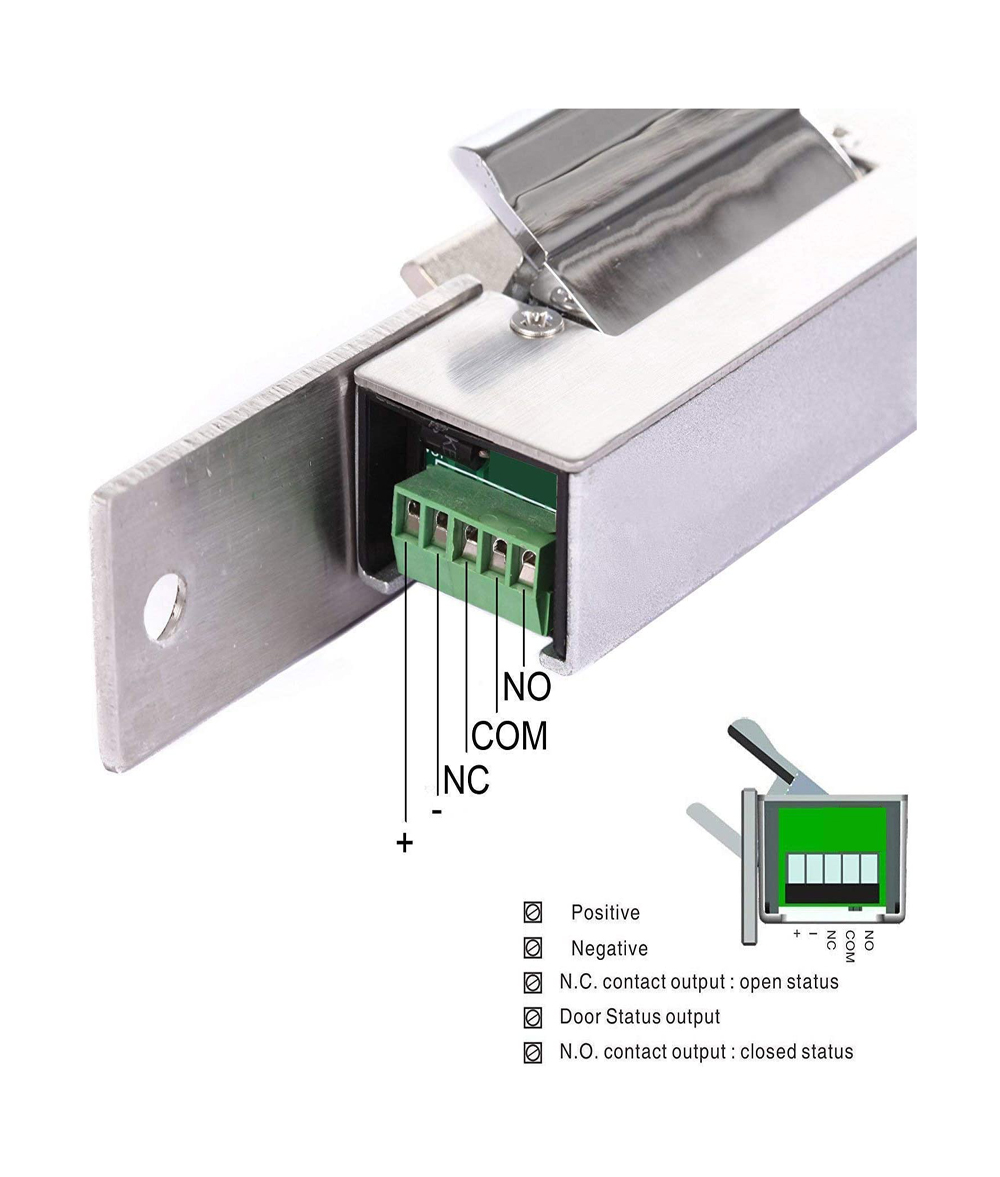

  • Lock Status Output: NO/NC/COM
  • Operating Humidity: 0~90%(non-condensing)
  • Faceplate material: 304 stainless steel force structure
  • Lock material: Zinc alloy (baking varnish by high temperature)
  • Function : Built-out MOV
  • Glass Thickness: 12-15mm / 0.47-0.59in
  • Opening Mode: 90 Degree Swinging Door

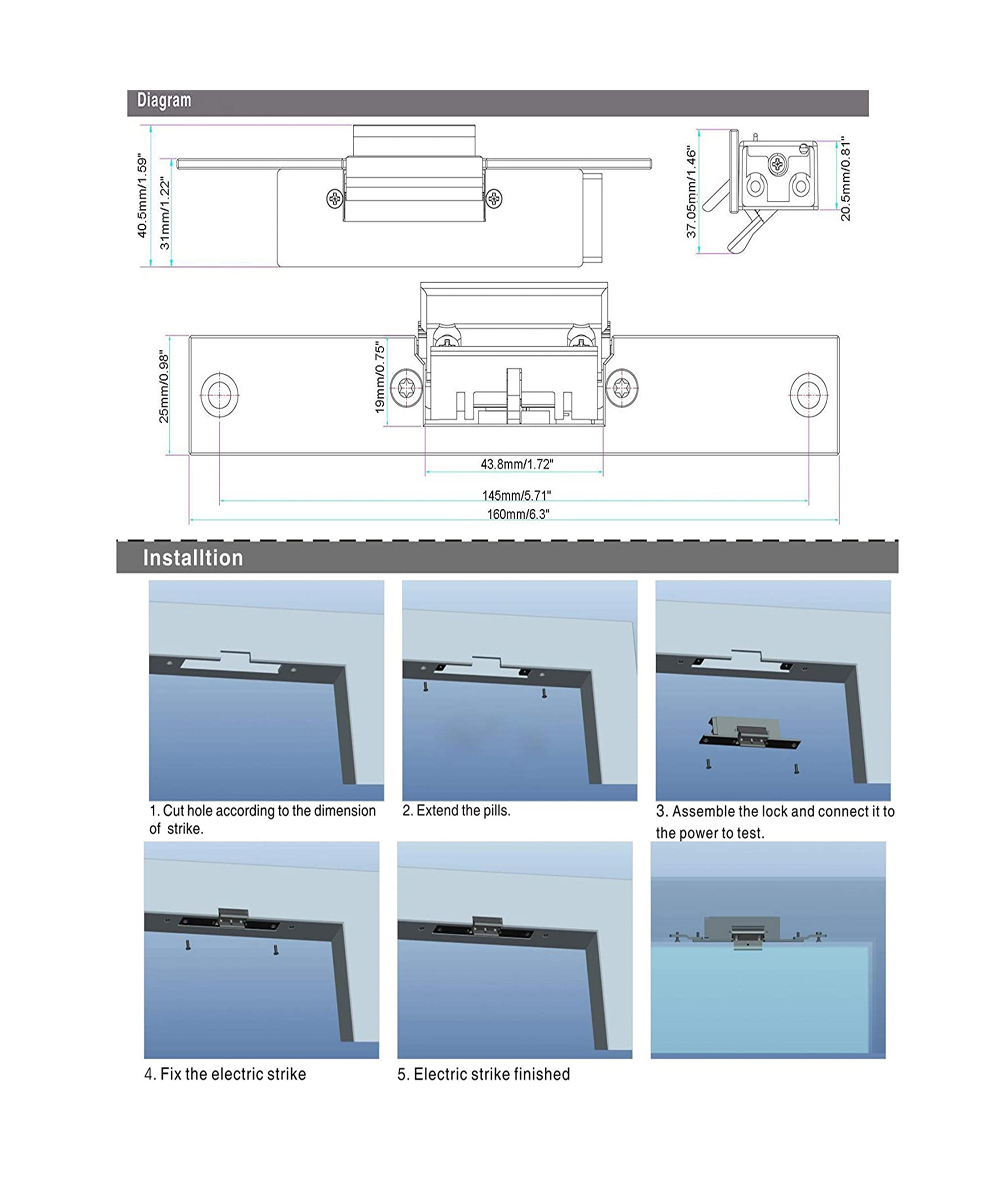

  • Dimension: 160Lx25Wx31H(mm) / 6.3Lx0.98Wx1.22H(in)
  • Weight: 0.4kg / 0.88lb

Package:

  • 1 x Electric Lock (NC Mode)
  • 1 x English Manual
