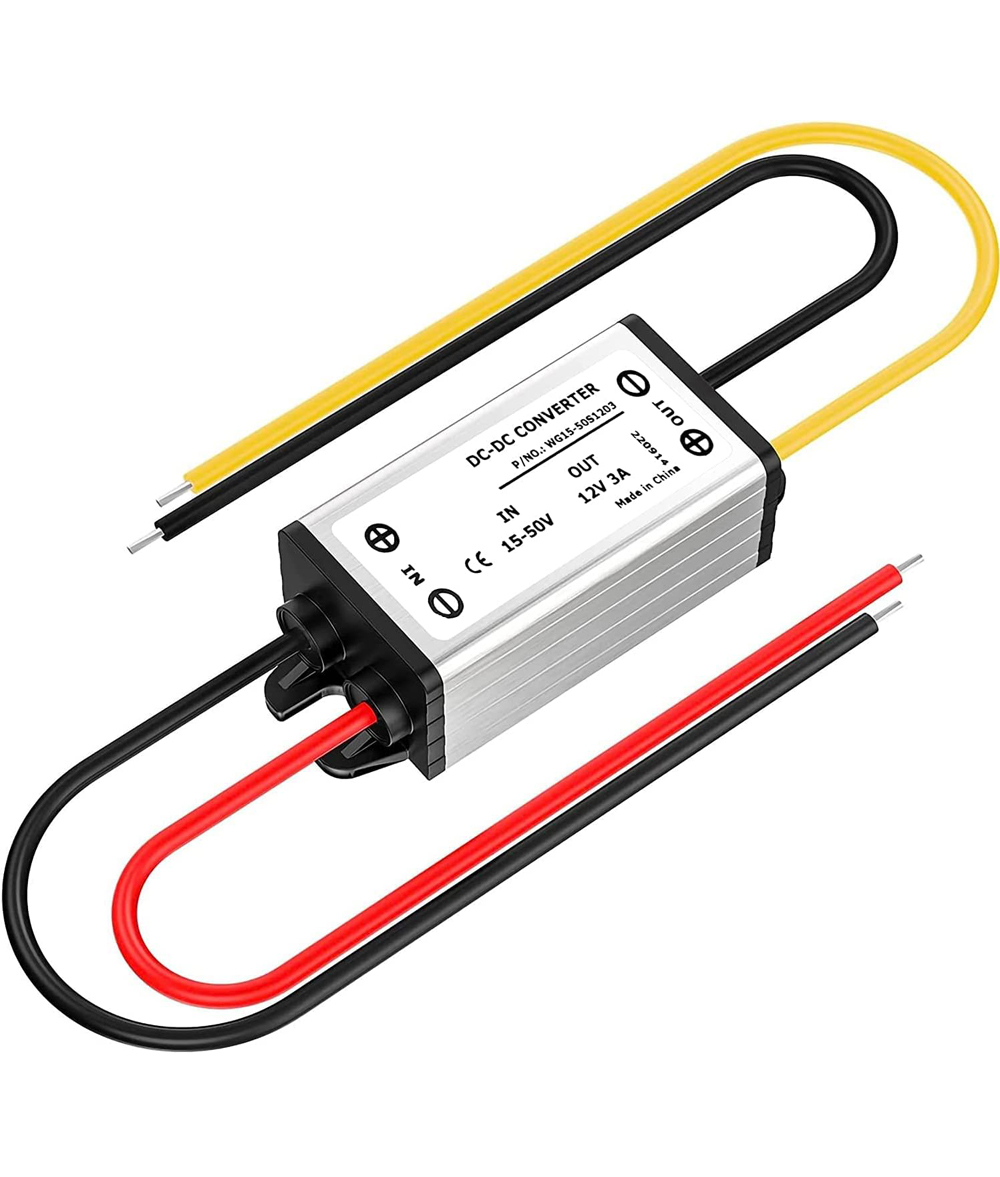

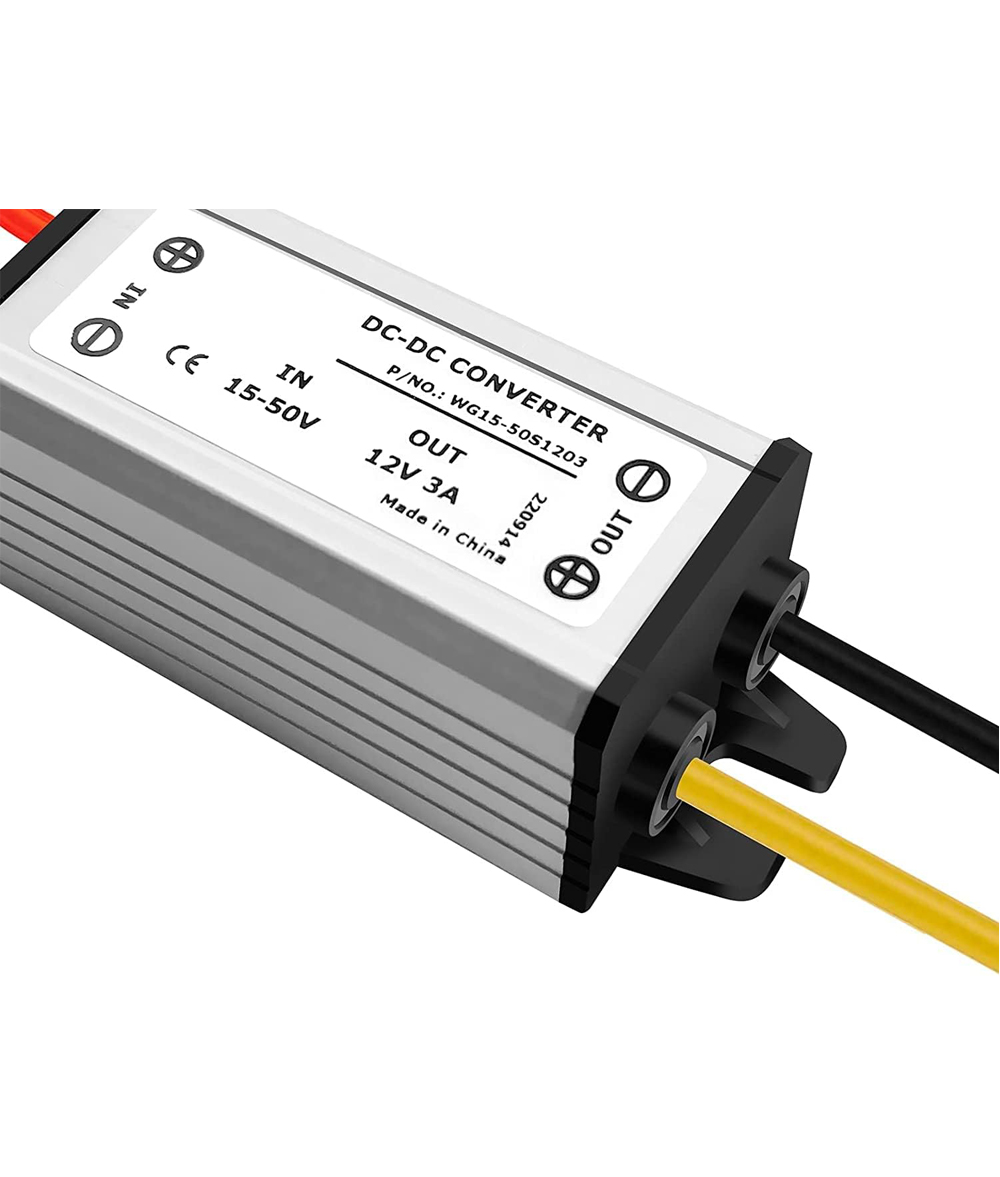

Step Down DC Converter Voltage Reducer Regulator DC15-50V to DC12V 3A

Step Down DC Converter Voltage Reducer Regulator DC15-50V to DC12V 3A

Features

• It reduces DC voltage ranging from 15V to 50V down to 12V 3A.
• Imported heat-conductive silicone potting, waterproof, dustproof and shockproof.
• Aluminum alloy housing, small size, easy installation.
• With over-current protection, under-voltage protection, over-temperature protection and short-circuit protection, safe to use.
• Wide voltage input, up to 91% conversion efficiency.
• Up to 100000 hours service life.
• Widely used for vehicles, security systems, motor, speaker, GPS, LED car display screen, photo-voltaic power, industrial equipment, etc.

Specifications

• Input Rated Voltage: 24V/36VDC
• Input Voltage Range: 15VDC to 50VDC
• Output Voltage: 12VDC
• Output Current: 3A
• Output Power: 36W
• Conversion Efficiency: Max. 91%
• Voltage Regulation: ＜1%
• Load Regulation: ＜2%
• Ripple & Noise: 22mVp-p
• No-load Loss: 1mA
• Input Wiring: 22AWG (Red: Positive, Black: Negative)
• Output Wiring: 22AWG (Yellow: Positive, Black: Negative)
• Working Temperature: -40℉~176℉ (-40℃~80℃)

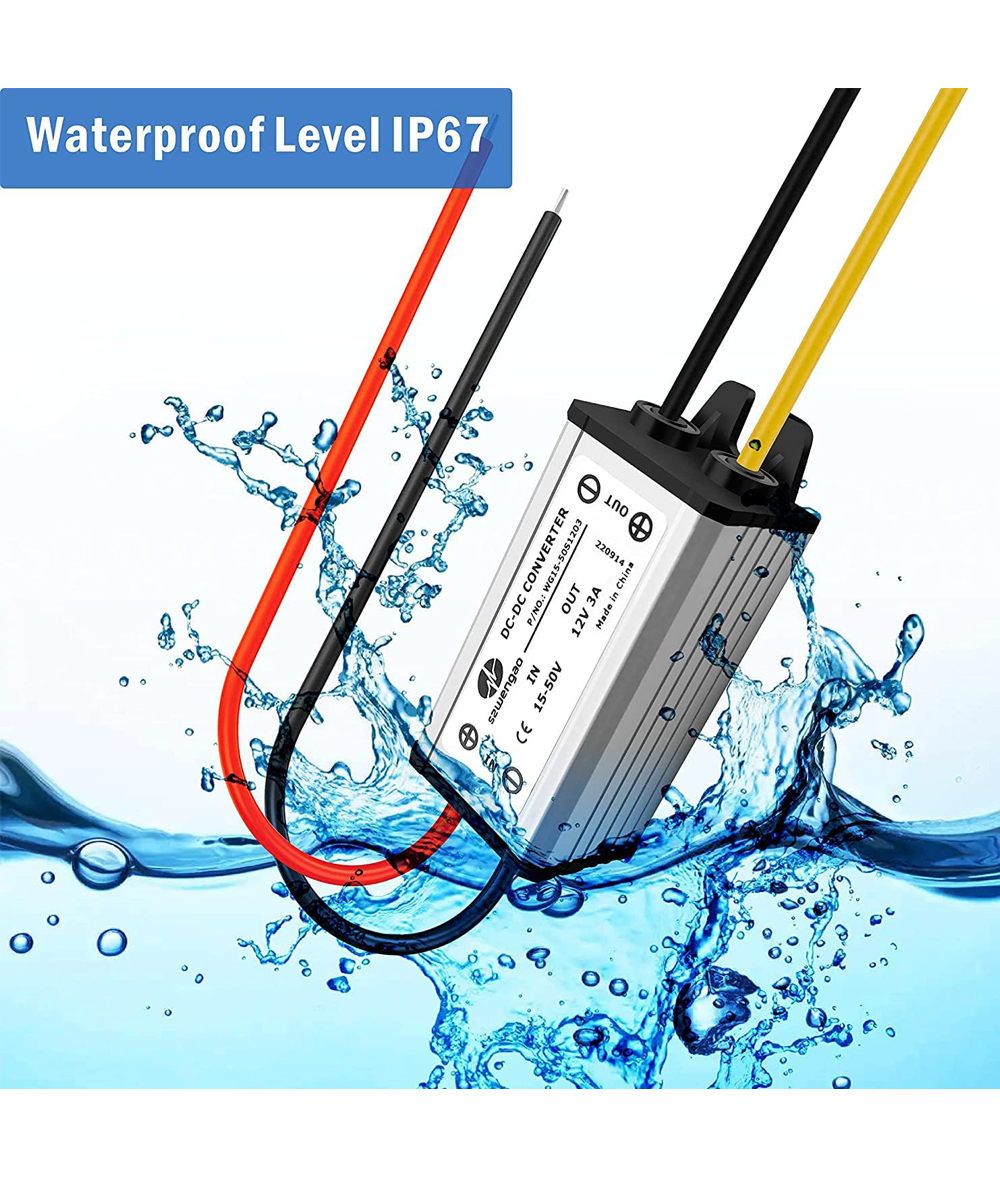

• Waterproof Level: IP67
• Dimensions: 2-9/16″x63/64″x25/32″ (65x25x20mm)
