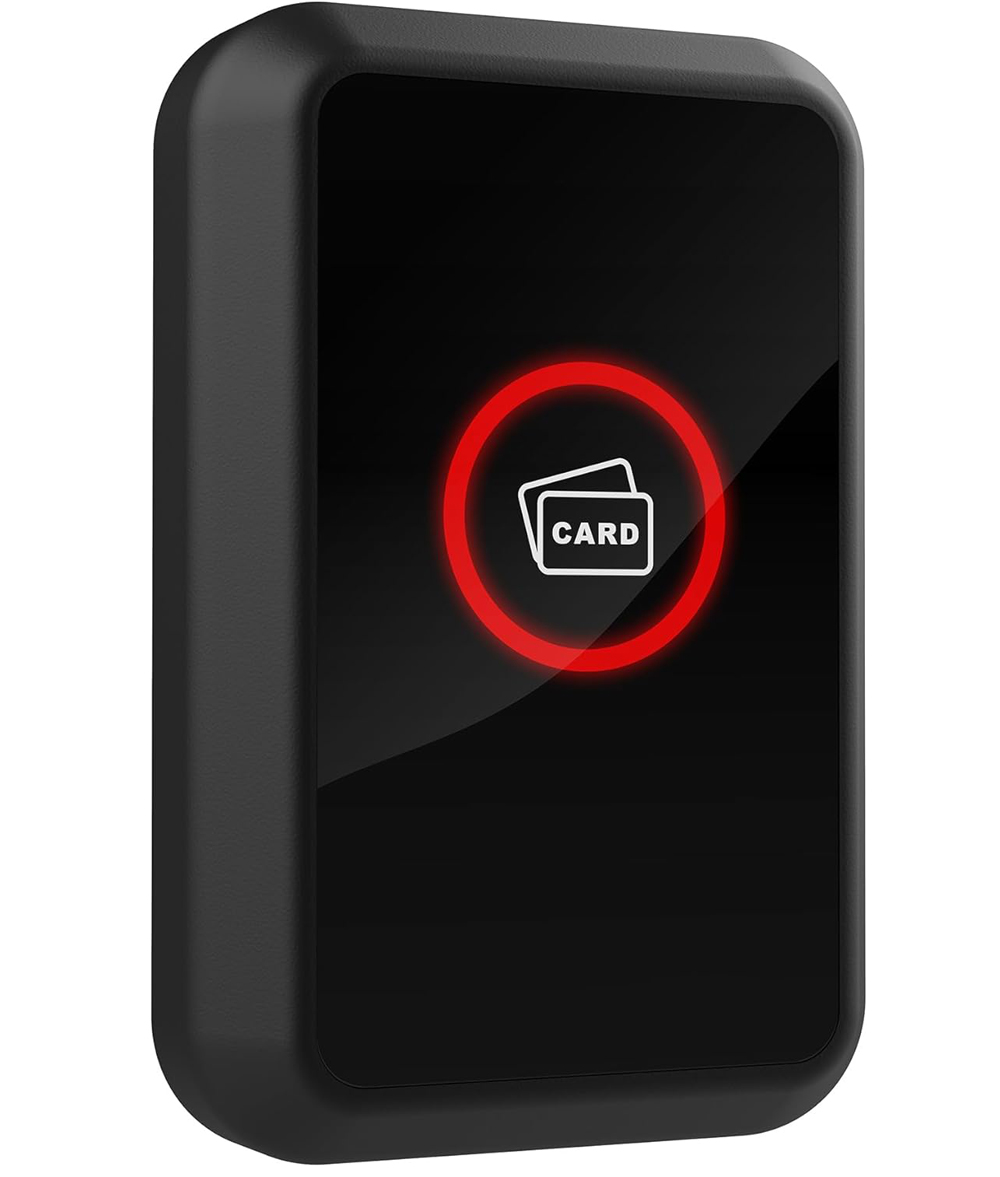

Proximity 13.56MHz IC Card Reader Wiegand 26 bit or Wiegand 34 bit for Door Access Control System

Proximity 13.56MHz IC Card Reader Wiegand 26 bit or Wiegand 34 bit for Door Access Control System

Features:

• The maximum reading distance is 6cm.
• Waterproof, conforms to IP66.
• It is useful for safety door system, easy to connect and use.
• Ultra-low power consumption, the standby current is less than 50mA.
• Support wiegand 26bits or wiegand 34bits output format.
• Fast response speed, the door opening time is less than 0.3s.
• This device uses high performance MCU to ensure stable performance, and low-power circuit makes the service life longer.
• Widely used in factories, houses, residential quarters, offices, mechanical and electrical control equipment and so on.
• The RFID card reader can’t work-alone and it needs to work with Wiegand protocol access controller, such as access control panel, fingerprint device or master controller.

Specifications:

• Working Voltage: 12VDC
• Static Current: ≤50mA
• Card Type: ISO14443A IC

• Transmit Frequency: 13.56MHz

• Working Temperature: -22°F to +140°F

• Working Humidity: 10%-90%RH
• Waterproof Rating: IP66
• Enclosure Material: ABS Plastic
• Panel Material: PC
• Enclosure Size: 4-23/64″x2-53/64″x7/8″ [110.8×71.8×22.2mm]
• Communication Distance: Less than 328ft
• Lead Cable Length: 9-27/32″ [25cm]
• Status Indication: Bi-color LED + Buzzer
• Wiegand Output: Wiegand 26 bit or Wiegand 34 bit (Selectable)

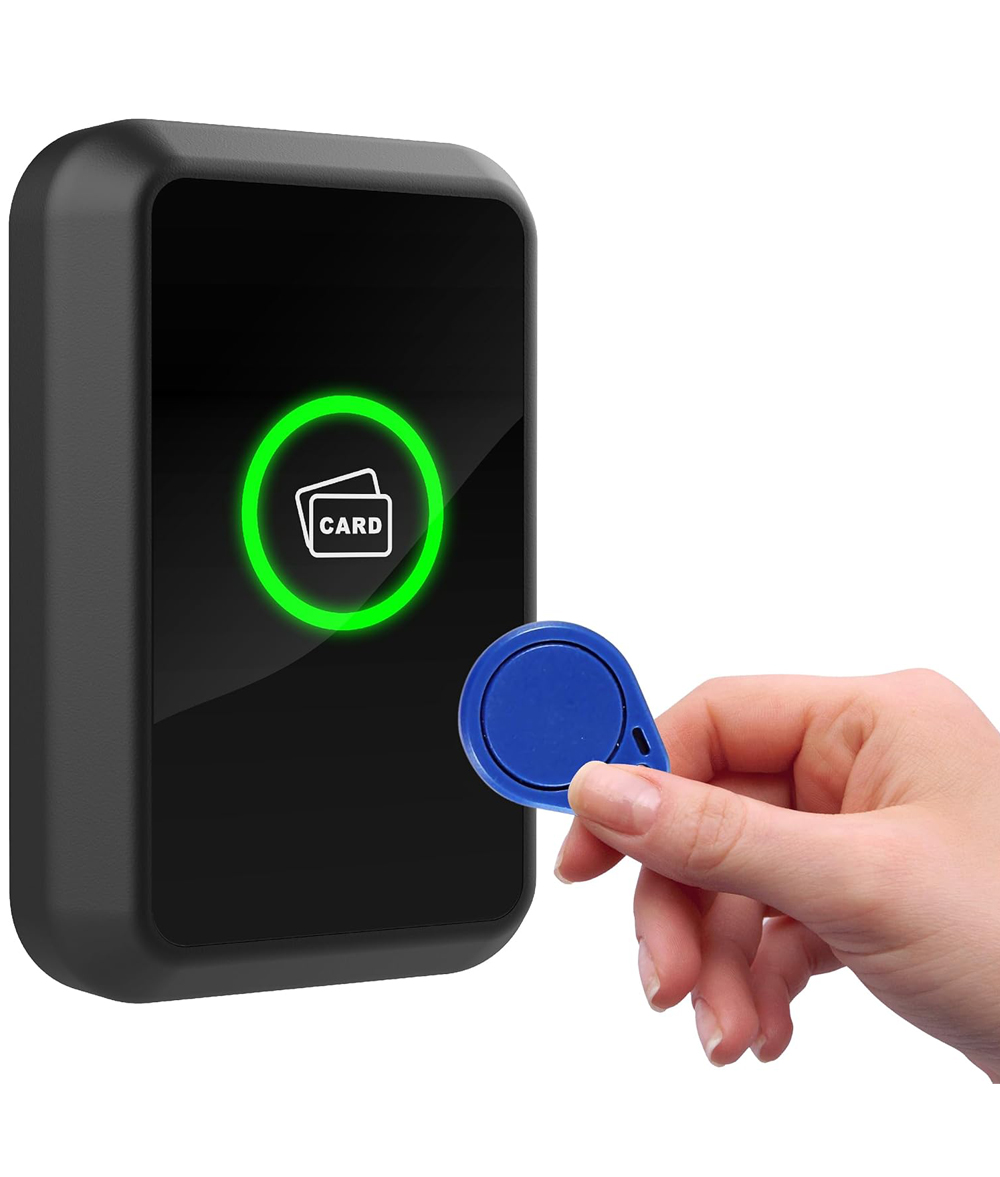

• LED Status Indication: Red means standby, Green means activated

Note:

• Please notice that our wiegand reader can’t be compatible with some encrypted cards, such as HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc.

Package:

• 1 x Card Reader
• 1 x User Manual
