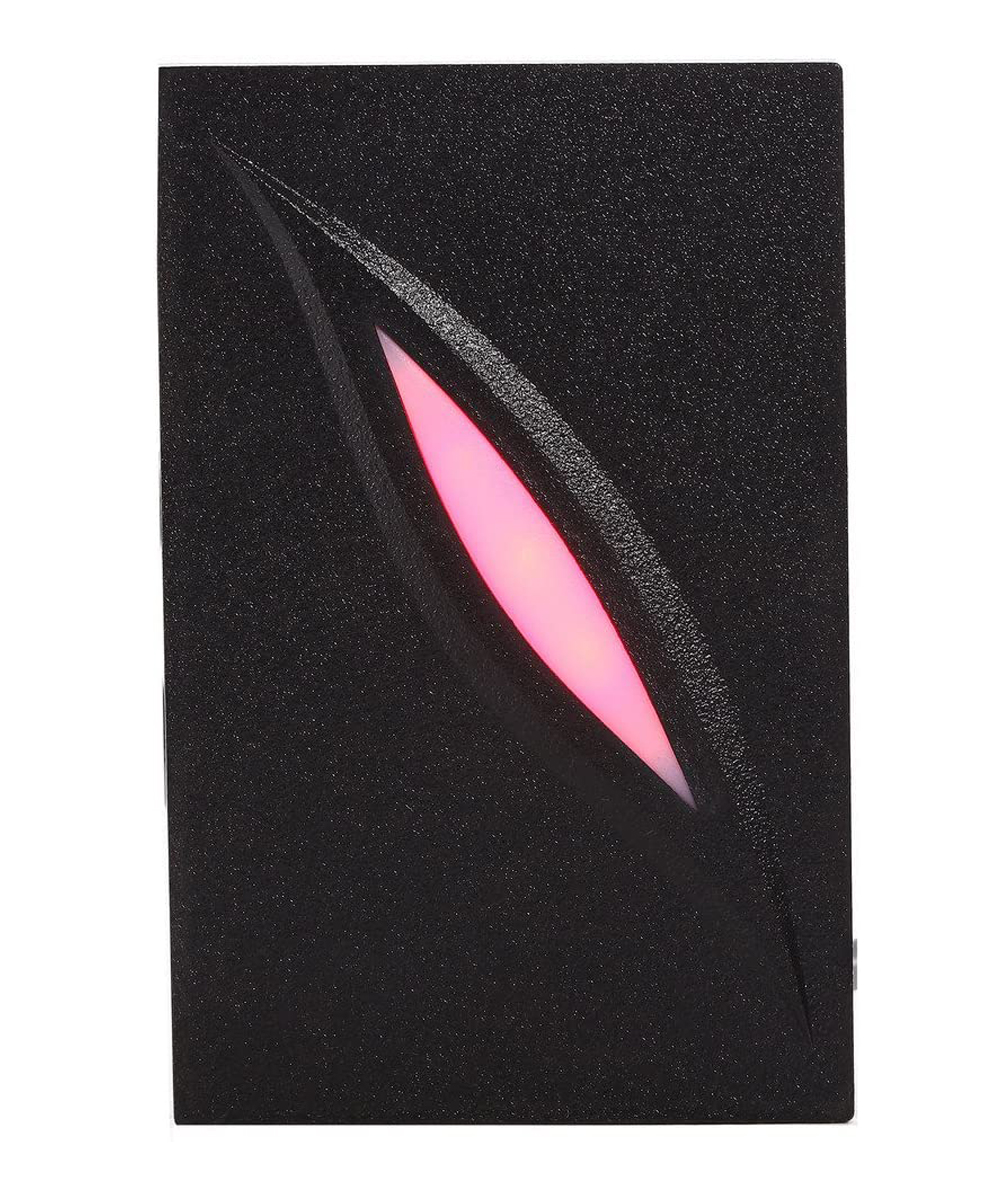

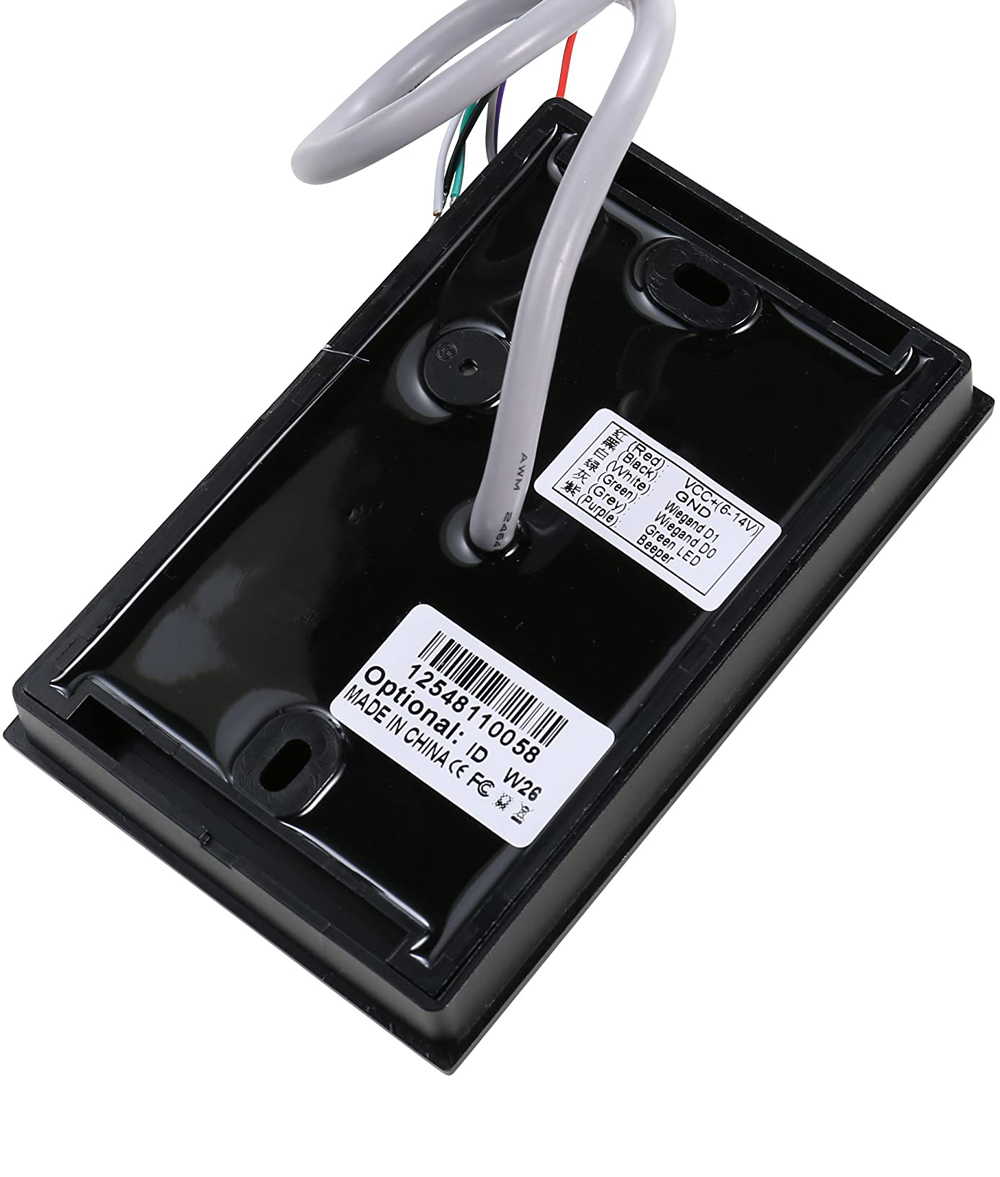

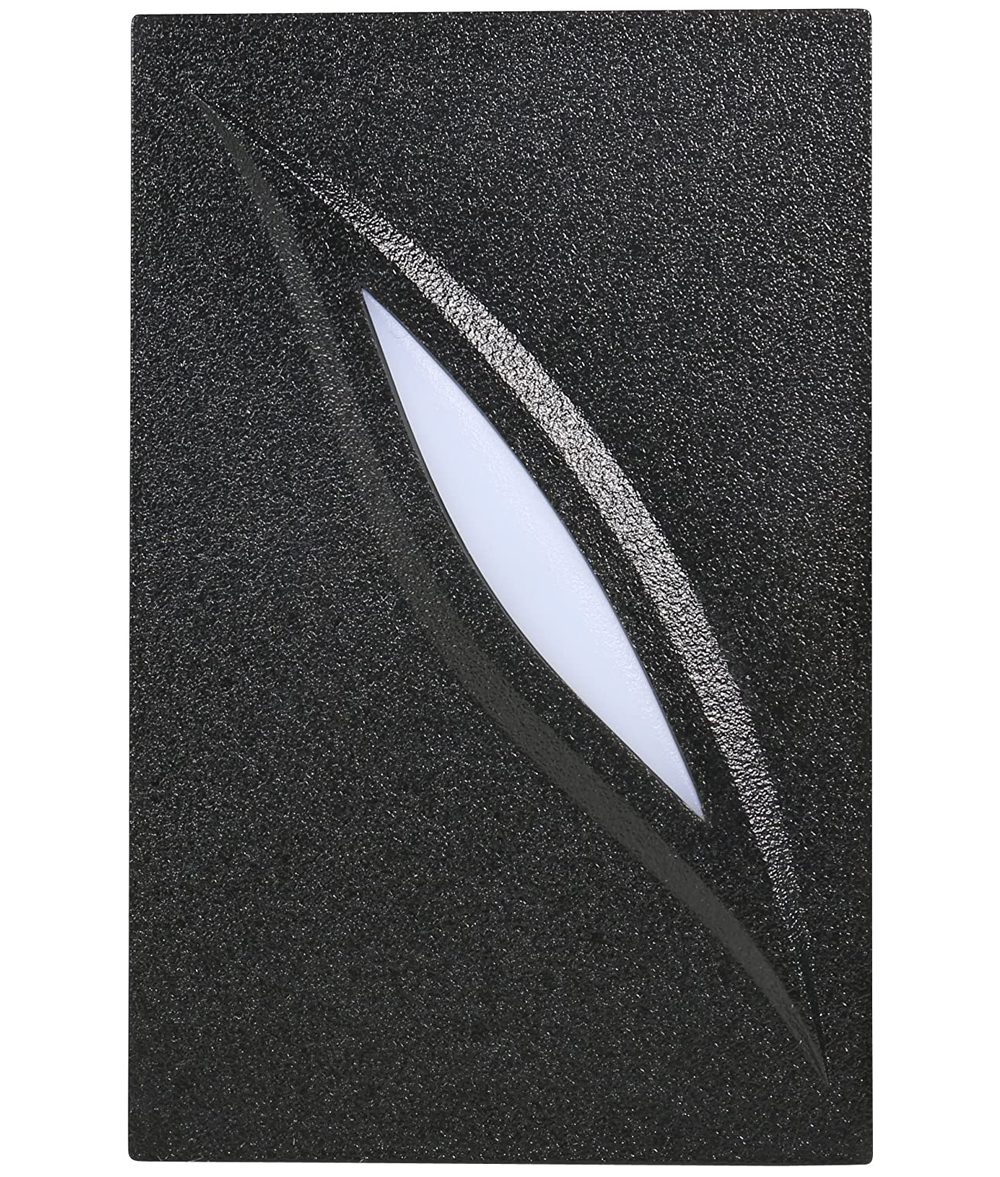

13.56MHz Wiegand 34 bit RFIC IC Card Reader For Access Control Board

13.56MHz Wiegand 34 bit RFIC IC Card Reader For Access Control Board

Specifications:

• Type: Wiegand 34-Bit
• Card Type: IC Card (Can’t support encrypted cards, such as HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell, etc)
• Frequency: 13.56MHz
• Response Speed: Less than 0.2 second
• Proximity Time Distance: Less than 0.5 seconds
• Reading range: 3~15cm / 1.18-5.91in
• Dimension: 115x74x16mm / 4.53×2.91×0.63in
• Input Voltage: DC9-16V; Max.70mA
• Communication distance: Less than 100m/328ft
• This card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint device or master controller and it can’t work alone.

Package:

• 1 x Wiegand 34-bit Reader (As it is a reader, the manual is not included.)
