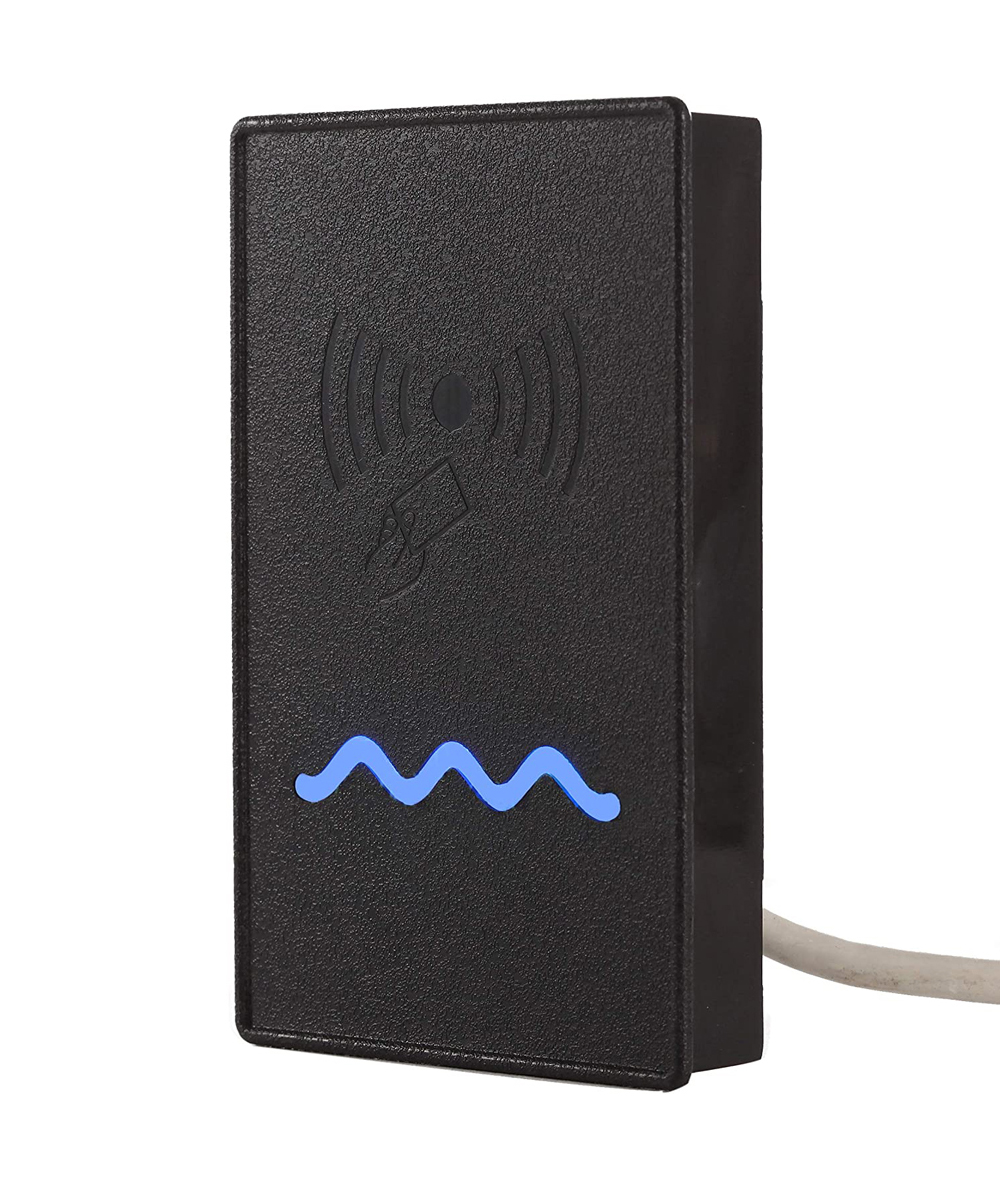

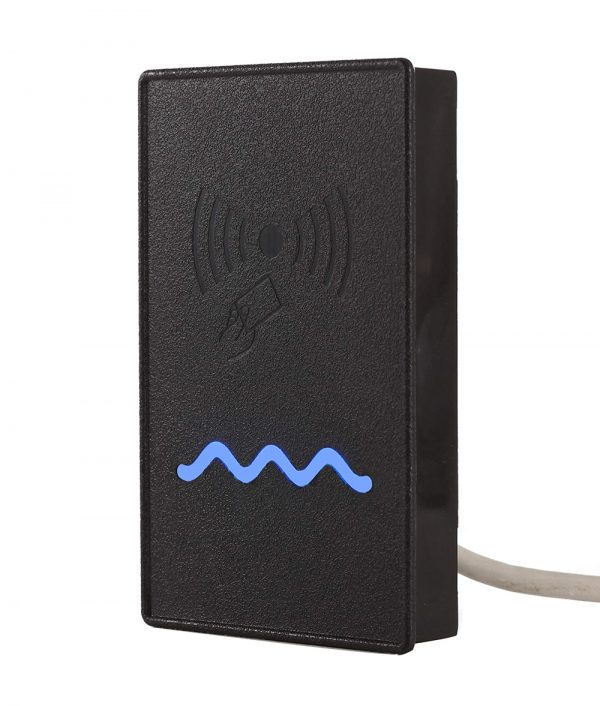

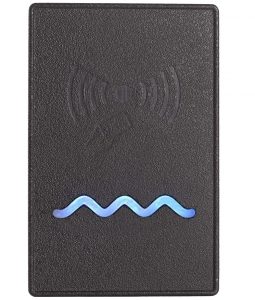

Weatherproof 125KHz RFID ID Card Proximity Door Access Control Card Reader Wiegand 26

Weatherproof 125KHz RFID ID Card Proximity Door Access Control Card Reader Wiegand 26

Features:

• This RFID card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint device or master controller and it can’t work alone.

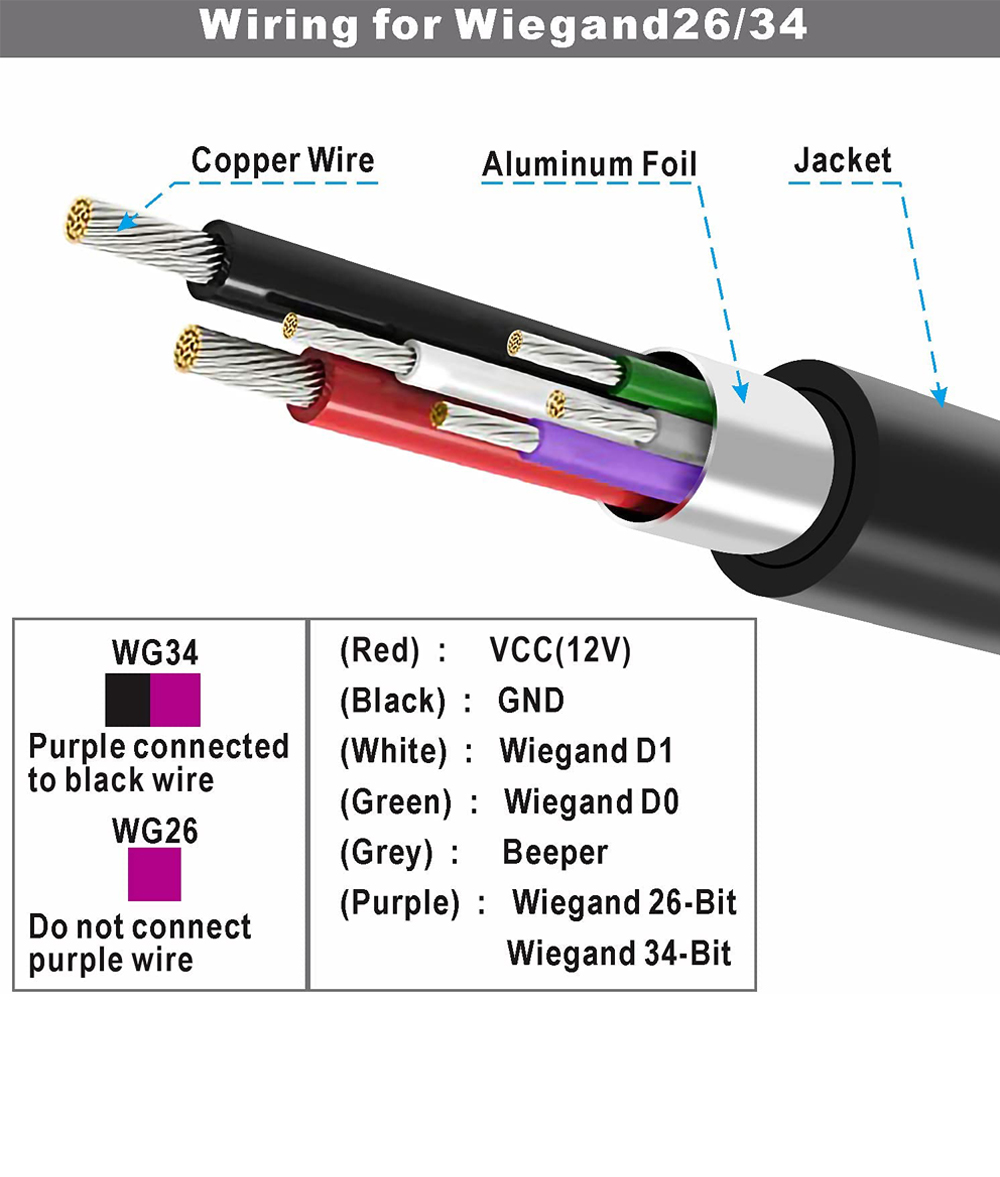

• Wiegand 26/34 output for connect to a controller
• Supports EM4100 ID or compatible card
• Less than 0.2 second Response Speed
• Less than 0.5 seconds Proximity Time Distance
• Built-in Antenna
• Built-in LED (Double Color LED)
• Built-in Loud Speaker (Buzzer)
• Real Time Data Transfer

Specifications:

• Type: Wiegand 26-Bit
• Frequency: 125Khz
• Card Type: EM-ID Card (Can’t support HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc)
• Response Speed: Less than 0.2 second
• Proximity Time Distance: Less than 0.5 seconds
• Reading range: 3~15cm / 1.2-2.9in
• Dimension: 115x74x16mm / 4.53″x2.91″x0.63″
• Intput Voltage: DC9-16V; Max.70mA
• Communication distance: Less than 100m/328ft

Note:

• Please notice that our wiegand reader can’t be compatible with some encrypted cards, such as HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc.
• This RFID card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint device or master controller and it can’t work alone.

Package:

• 1 x Wiegand Reader
• Tip: As the RFID reader controlled by access control board, please refer to the manual of access control board for operate it.
