Weatherproof Proximity RFID ID Card Reader 125KHz Wiegand 26 Bit

Weatherproof Proximity RFID ID Card Reader 125KHz Wiegand 26 Bit

Features:

• This RFID card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint device or master controller and it can’t work alone.
• Wiegand 26 bit output for connect to a controller
• Supports EM 4100 ID or compatible card
• Less than 0.2 second Response Speed
• Less than 0.5 seconds Proximity Time Distance
• Built-in Antenna

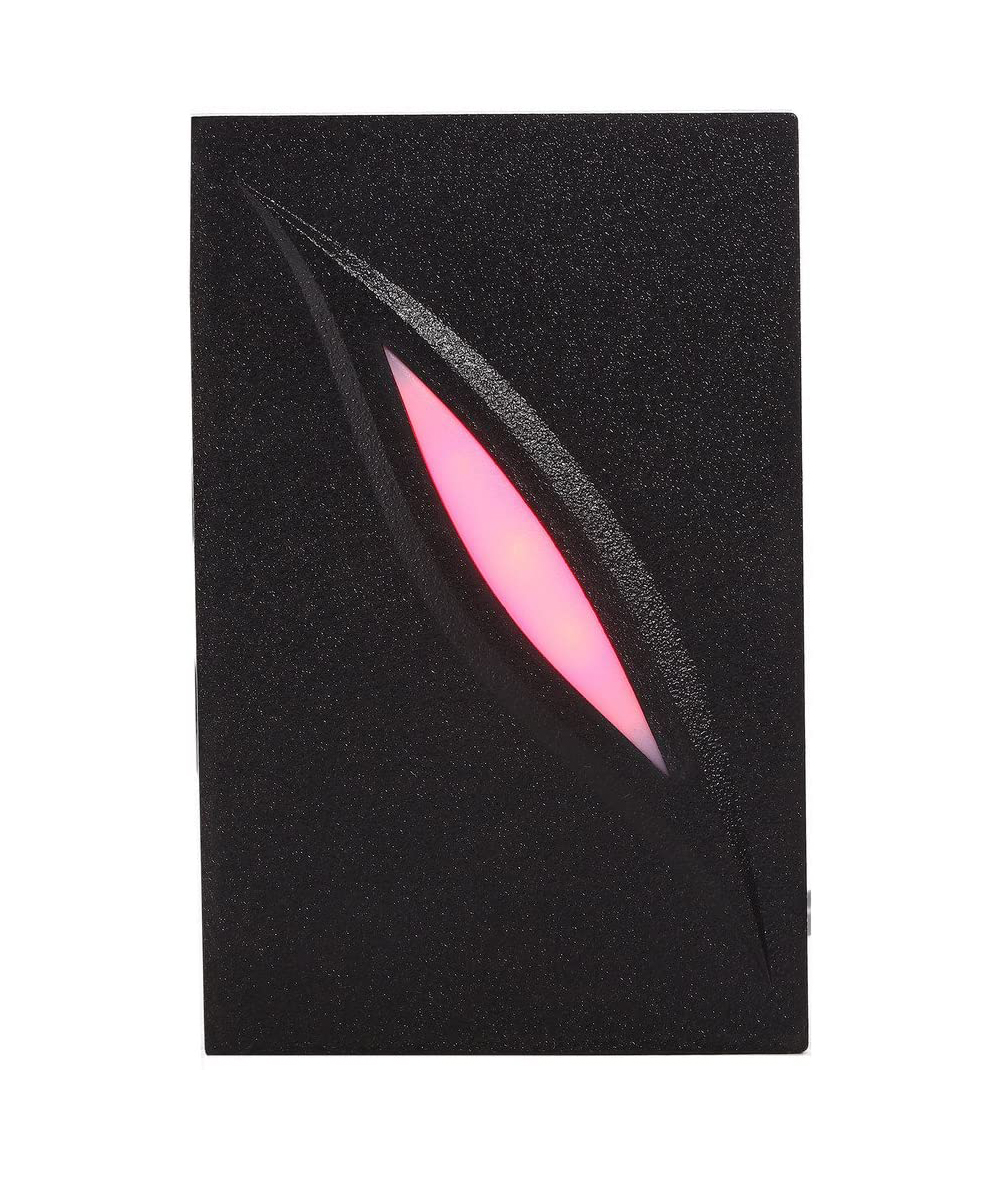

• Built-in LED (Double Color LED)
• Built-in Loud Speaker (Buzzer)
• Real Time Data Transfer
• Card Type: Stand EM-ID card (Can’t support HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell,etc)

Specifications:

• Frequency: 125Khz
• Card Type: EM-ID Card (Can’t support some encrypted cards, such as HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc.)
• Response Speed: Less than 0.2 second
• Proximity Time Distance: Less than 0.5 seconds
• Reading range: 3-15cm
• Dimension: 115x74x16mm
• Input Voltage: DC9-16V; Max.70mA
• Communication distance: Less than 100m

Attention:

• Please notice that our wiegand reader can’t be compatible with some encrypted cards, such as HID, Indala,Cobra, APCiK, Paradox, Radio, Honeywell,etc.
• Can’t work alone, need work with access control panel. (Please search ASIN: B00UX02JWE to get the access control panel)

Package:

• 1 x RFID Card Reader
• Tip: As the RFID reader controlled by access control board, please refer to the manual of access control board for operate it.
