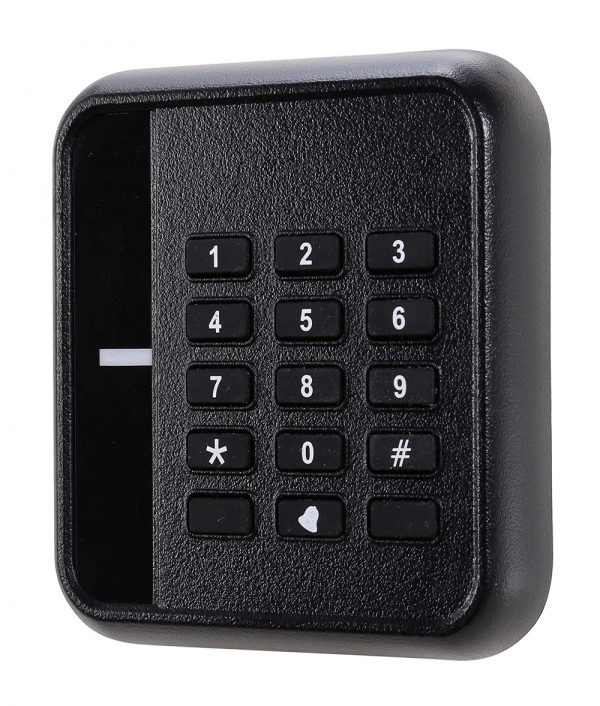

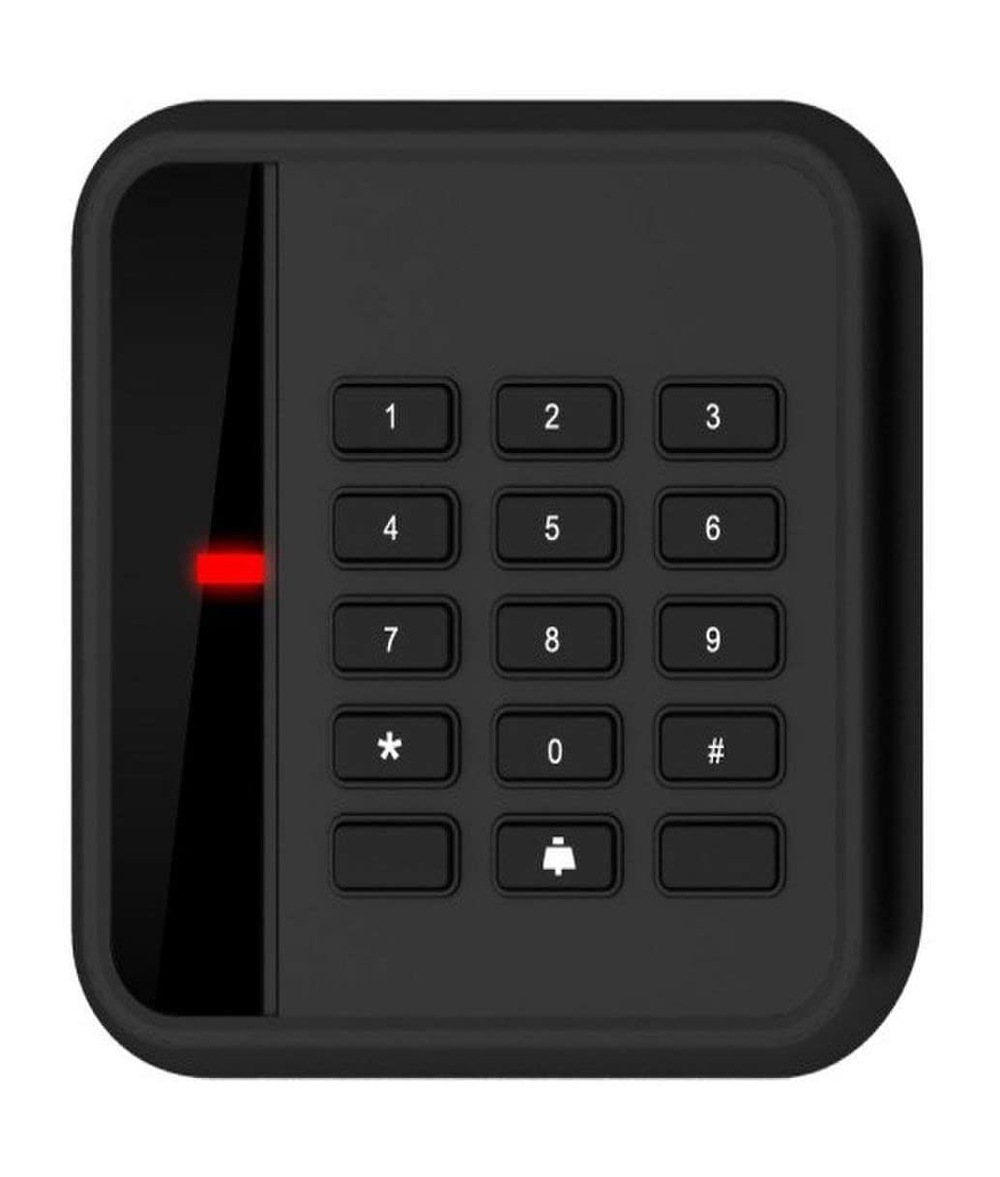

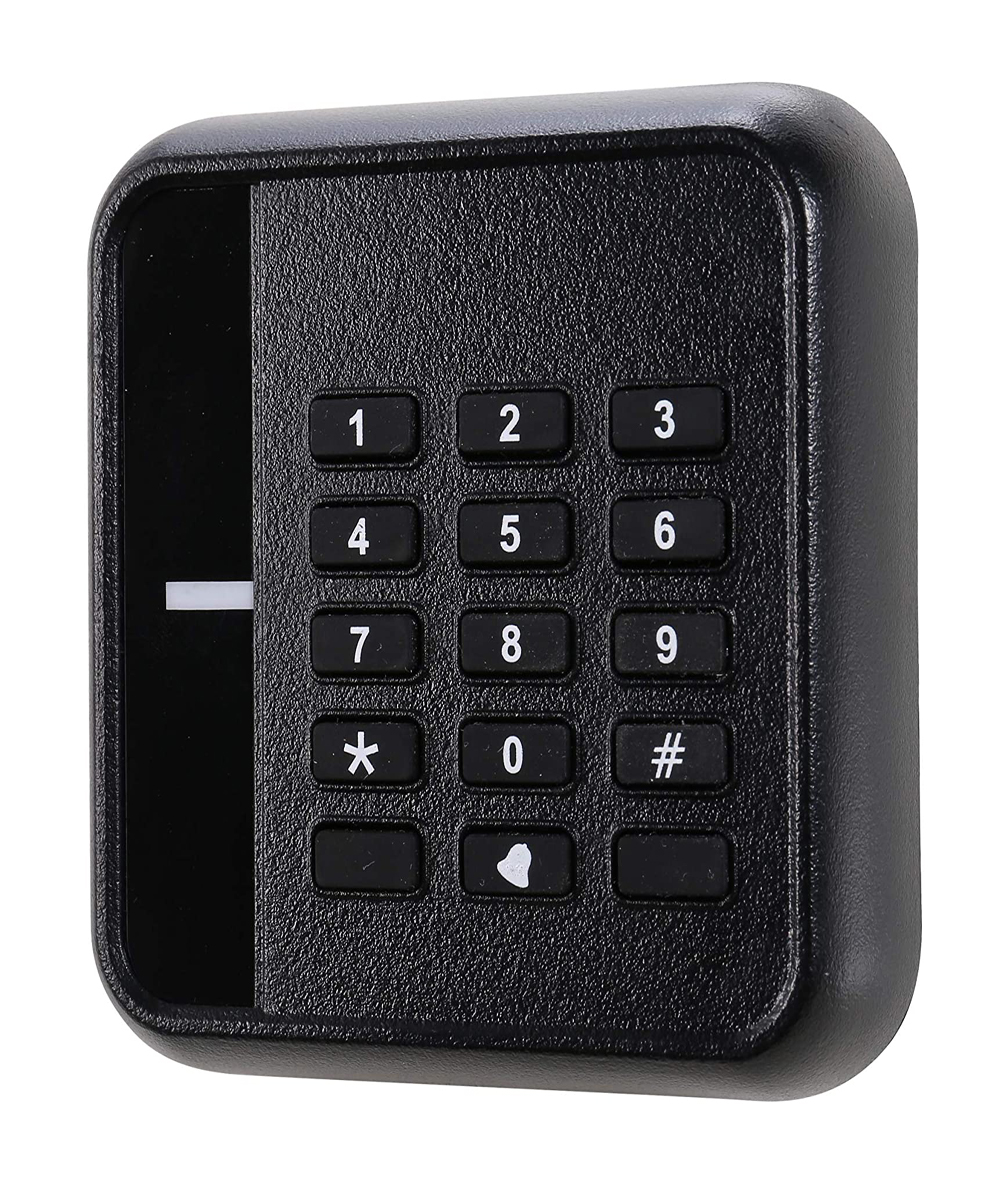

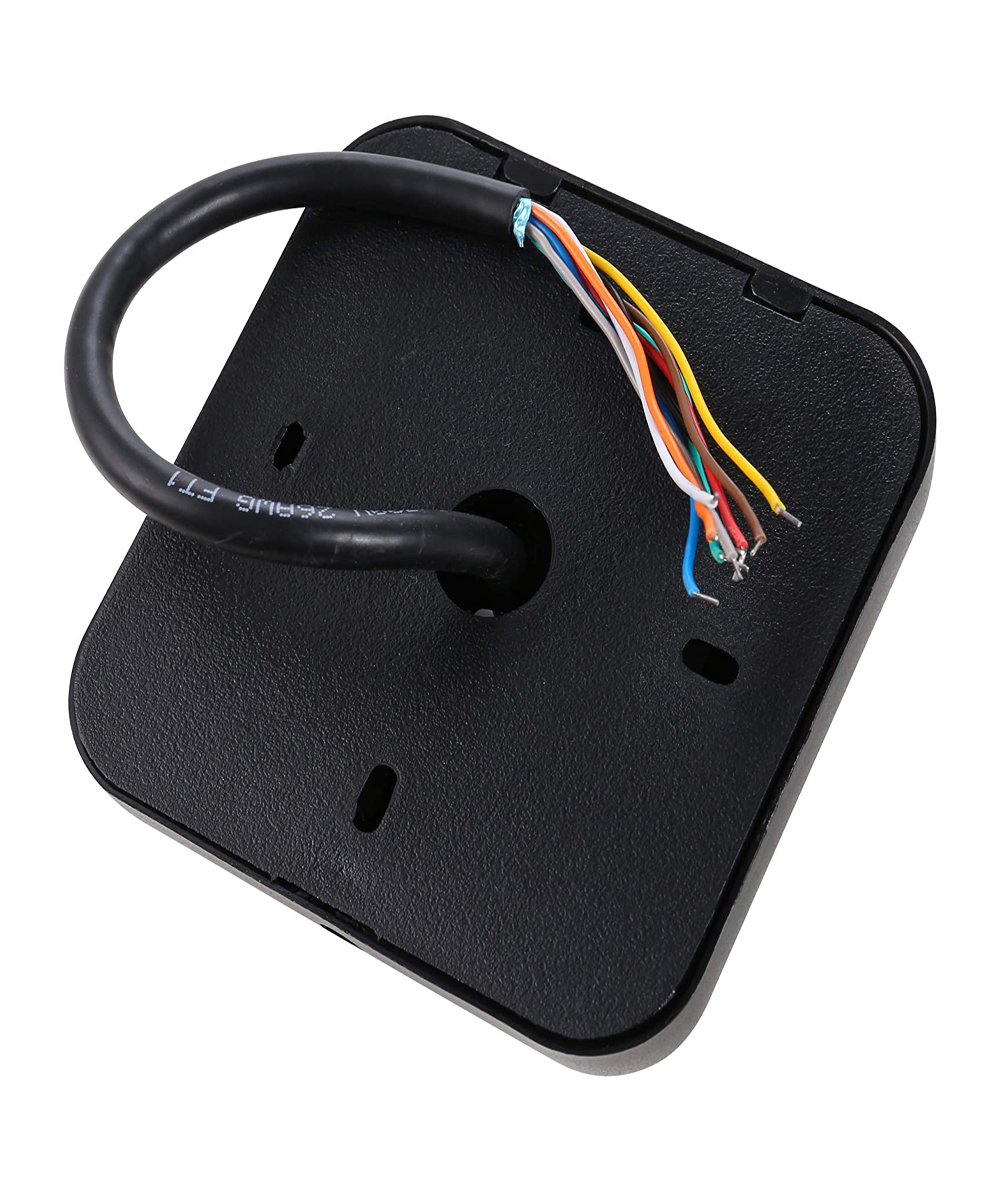

125khz ID Card Wiegand 26 Bit Card Reader for Access Control

Specifications:

• Type: Wiegand 26/34 Bit
• Frequency: 125Khz
• Input Voltage: 12VDC
• Response Speed: Less than 0.2 second
• Proximity Time Distance: Less than 0.5 seconds
• Card Type: EM-ID Card (Can’t support HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell, etc)
• Reading range: 3~15cm / 1.18-5.91in
• Dimension: 86x86x20mm / 3.39×3.39×0.79in
• Input Voltage: DC 9-16V; Max. 70mA
• Communication distance: Less than 100m/328ft

Note:

• Please notice that our wiegand 26 reader can’t be compatible with some encrypted cards, such as HID, Cobra, APCiK etc
• This RFID card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint device or master controller and it can’t work alone.

Package:

• 1 x Wiegand 26 bit Reader
