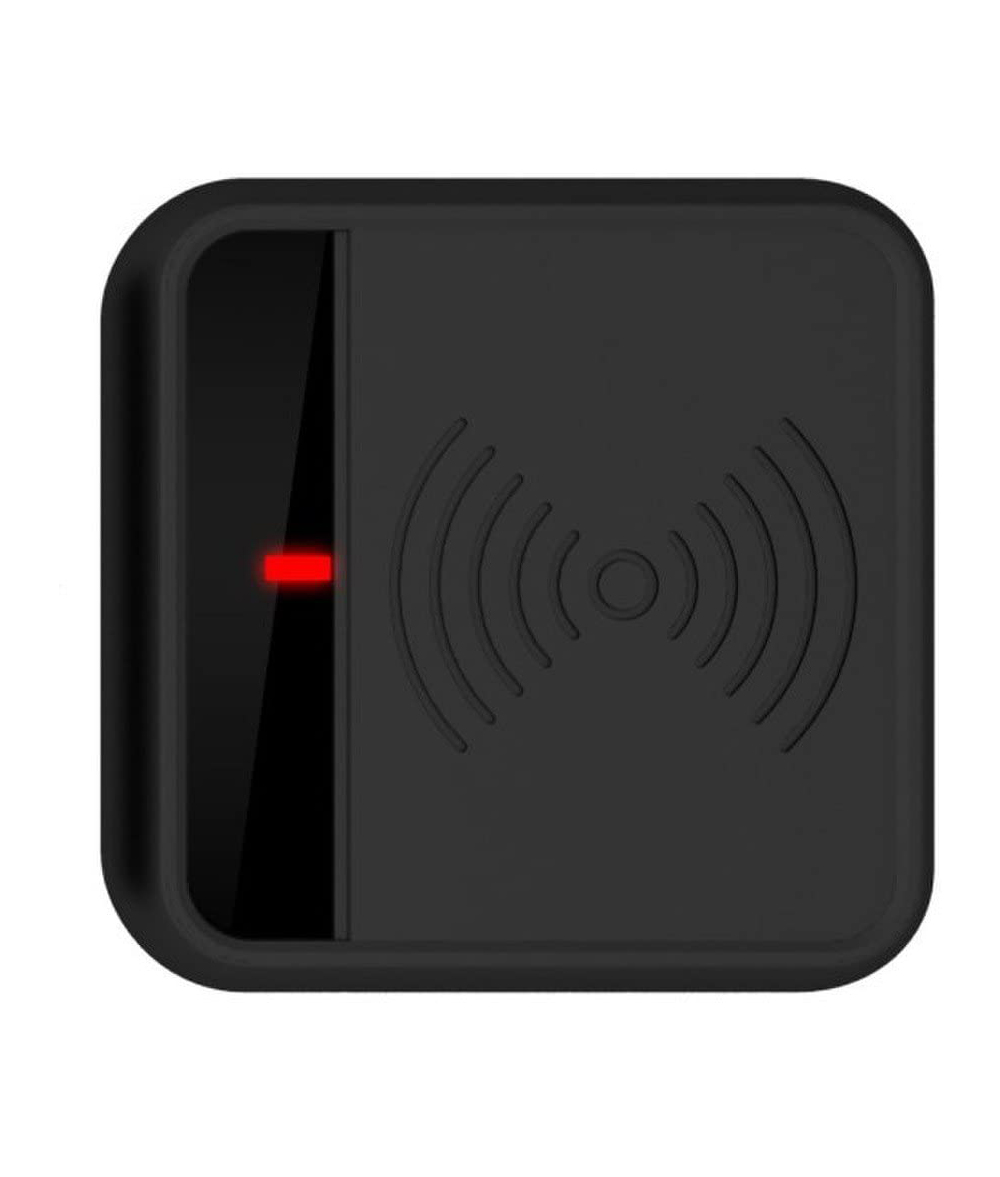

125KHz EM ID Wiegand bit 26 RFID Card Reader for Door Access Control

125KHz EM ID Wiegand bit 26 RFID Card Reader for Door Access Control

Specifications:

• Type: Wiegand 26-Bit
• Frequency: 125Khz
• Response Speed: Less than 0.2 second
• Proximity Time Distance: Less than 0.5 seconds
• Card Type: EM4-ID Card (Can’t support HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell, etc)
• Reading range: 3~15cm / 1.18-5.91in
• Dimension: 86x86x20mm / 3.39×3.39×0.79in
• Input Voltage: DC 9-16V; Max. 70mA
• Communication distance: Less than 100m/328ft

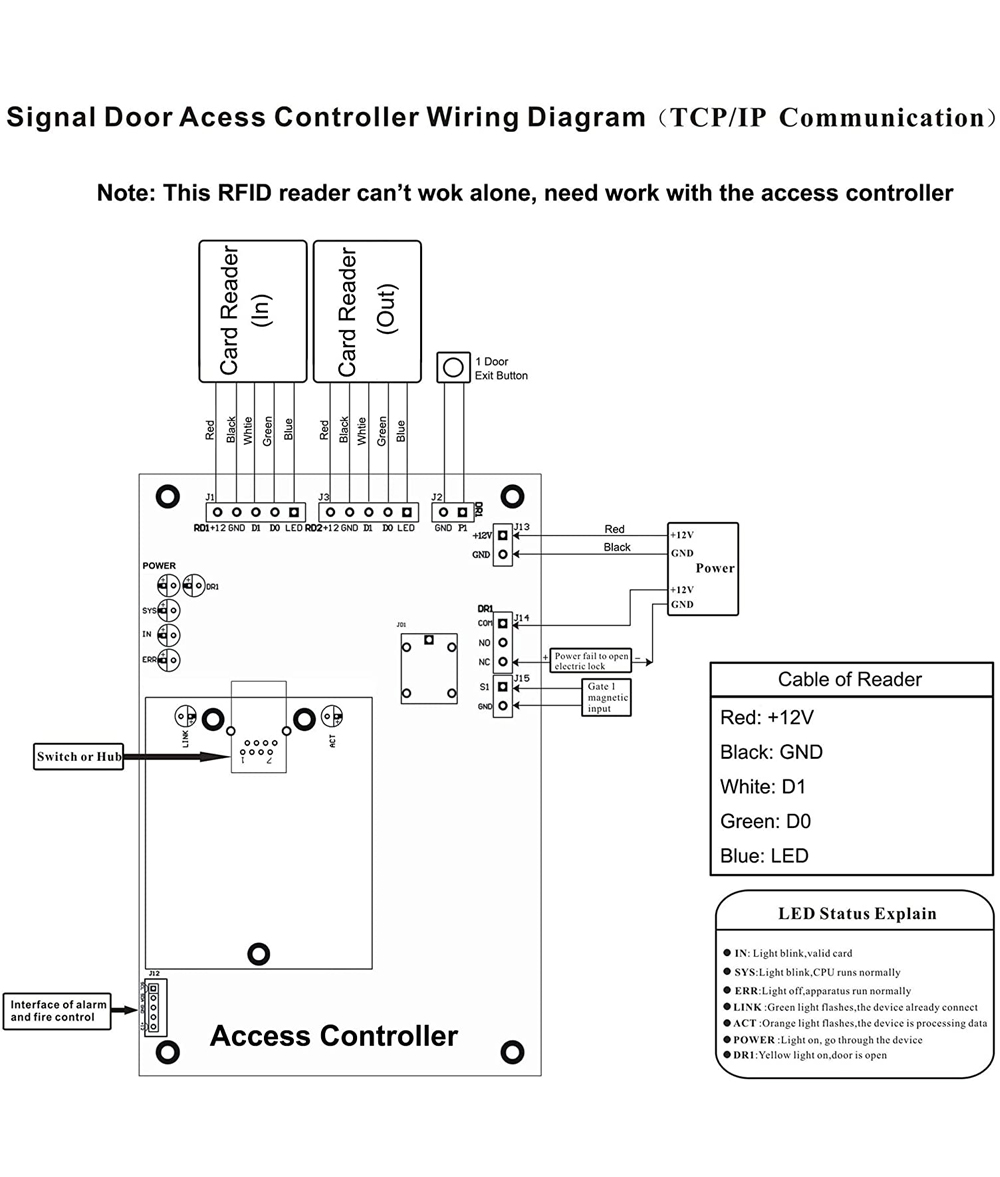

• This RFID card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint devcie or master controller and it can’t work alone.

Note:

• Please notice that our wiegand 26 reader can’t be compatible with some encrypted cards, such as HID, Cobra, APCiK etc
• Can’t work alone, needs to work with access control panel.

Package:

• 1 x Wiegand 26 bit RFID ID Card Reader (As it is a reader, the manual is not included.)
