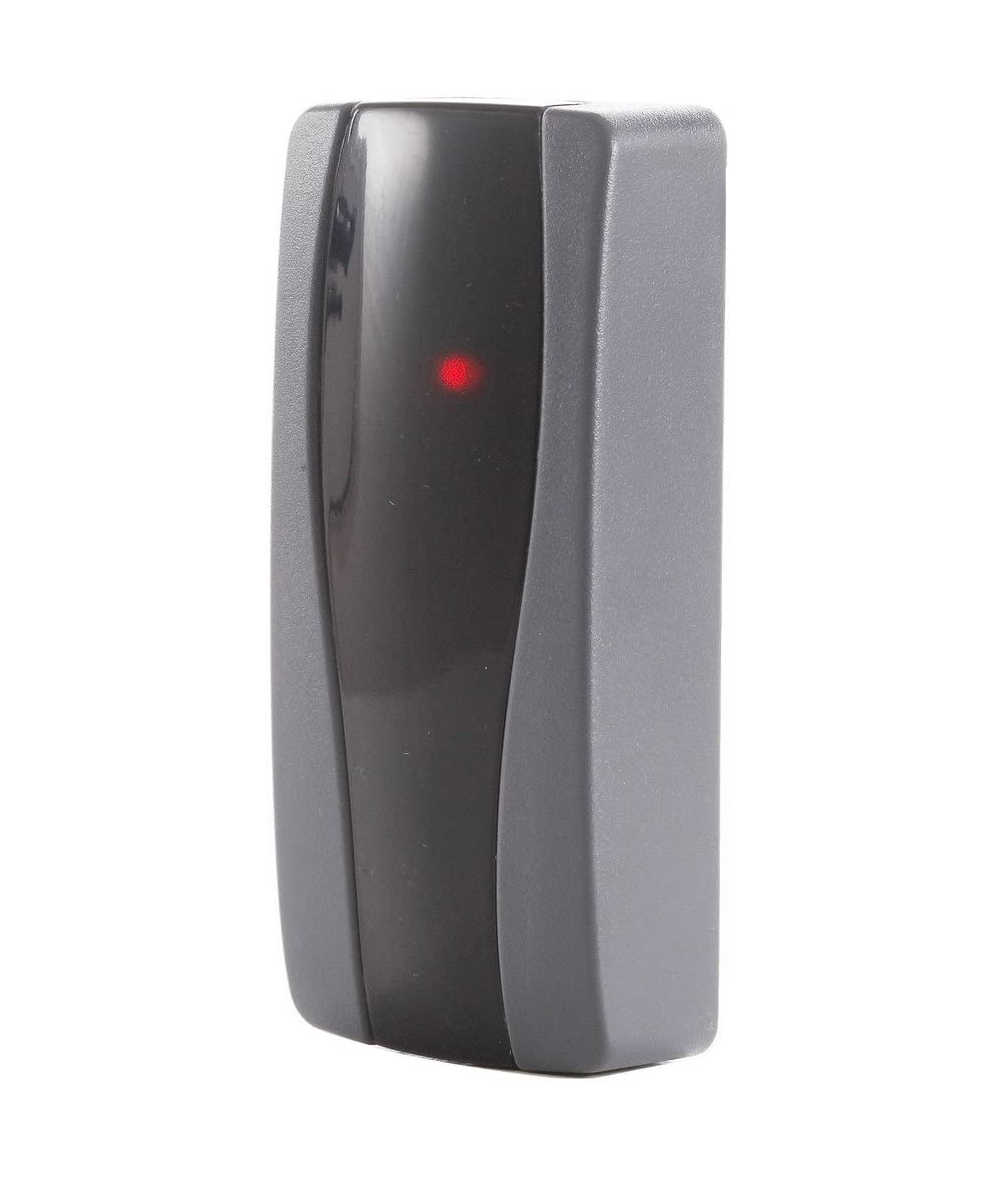

Wiegand 26-Bit EM Door Access Control RFID 125KHz ID Proximity Card Reader

Wiegand 26-Bit EM Door Access Control RFID 125KHz ID Proximity Card Reader

Features:

• Type: Wiegand 26/34 Bit
• This RFID card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint device or master controller and it can’t work alone.
• Wiegand 26/34 bit output for connect to a controller
• Supports 125khz ID card
• Card Type: EM-ID Card (Can’t support HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell,etc)
• Less than 0.2 second Response Speed
• Less than 0.5 seconds Proximity Time Distance
• Built-in Antenna
• Built-in LED (Double Color LED)
• Built-in Loud Speaker (Buzzer)
• Real Time Data Transfer
• Waterproof IP65

Specifications:

• Frequency: 125Khz
• Card Type: EM-ID Card (Can’t support HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell,etc)

• Response Speed: Less than 0.2 second
• Proximity Time Distance: Less than 0.5 seconds
• Reading range: 3~15cm / 1.2″~5.9″

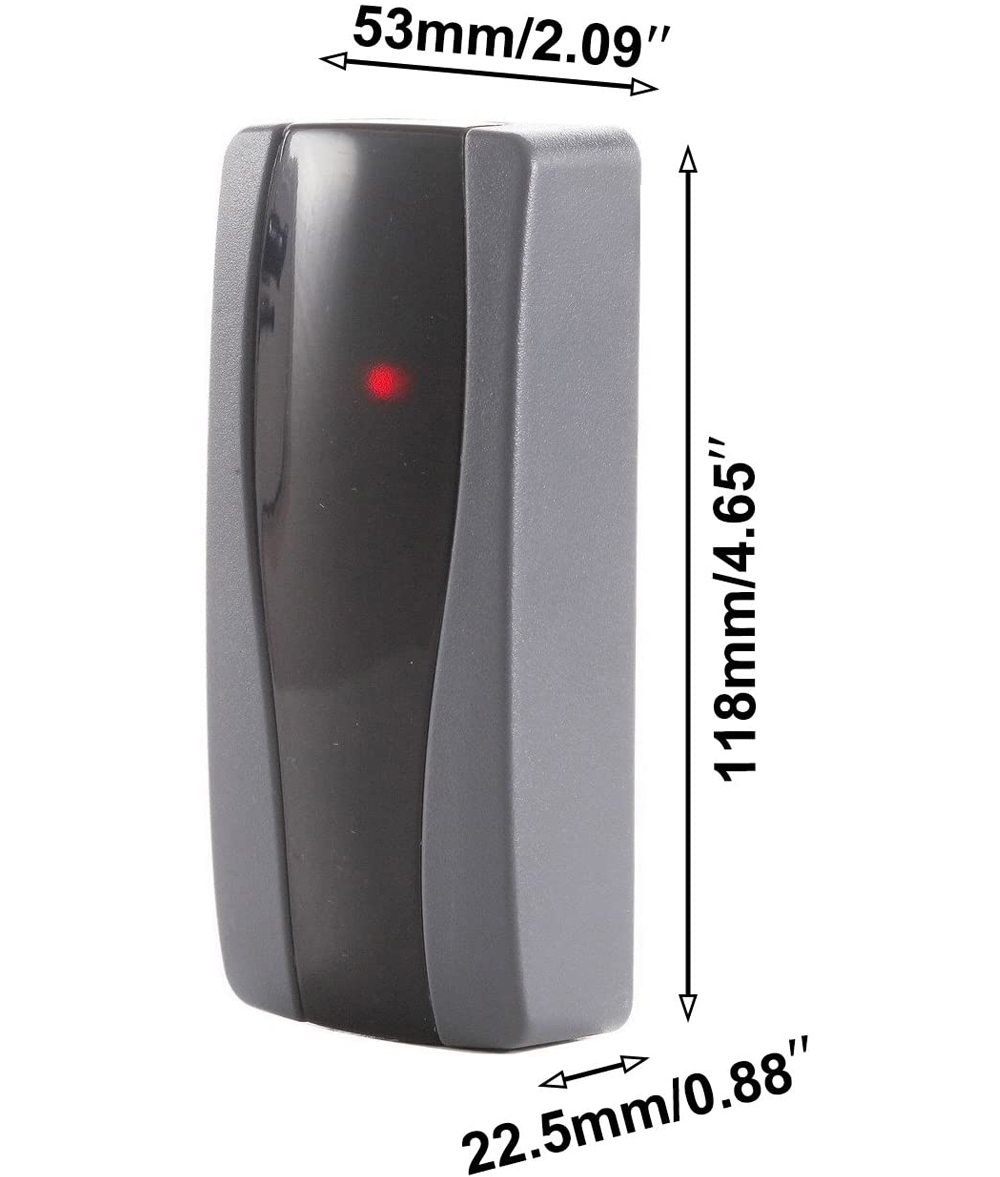

• Dimension: 118mmx53mmx22.5mm / 4.65″x2.09″x0.89″
• Input Voltage: DC 9-15V; Max. 70mA

Note:

• Please notice that our wiegand 26 reader can’t be compatible with some encrypted cards, such as HID, Indala, Cobra, APCiK, Paradox, Radio, Honeywell,etc.
• Can’t work alone, need work with access control panel.

Package:

• 1 x RFID Card Reader
• Tip: As the RFID reader controlled by access control board, please refer to the manual of access control board for operate it.
