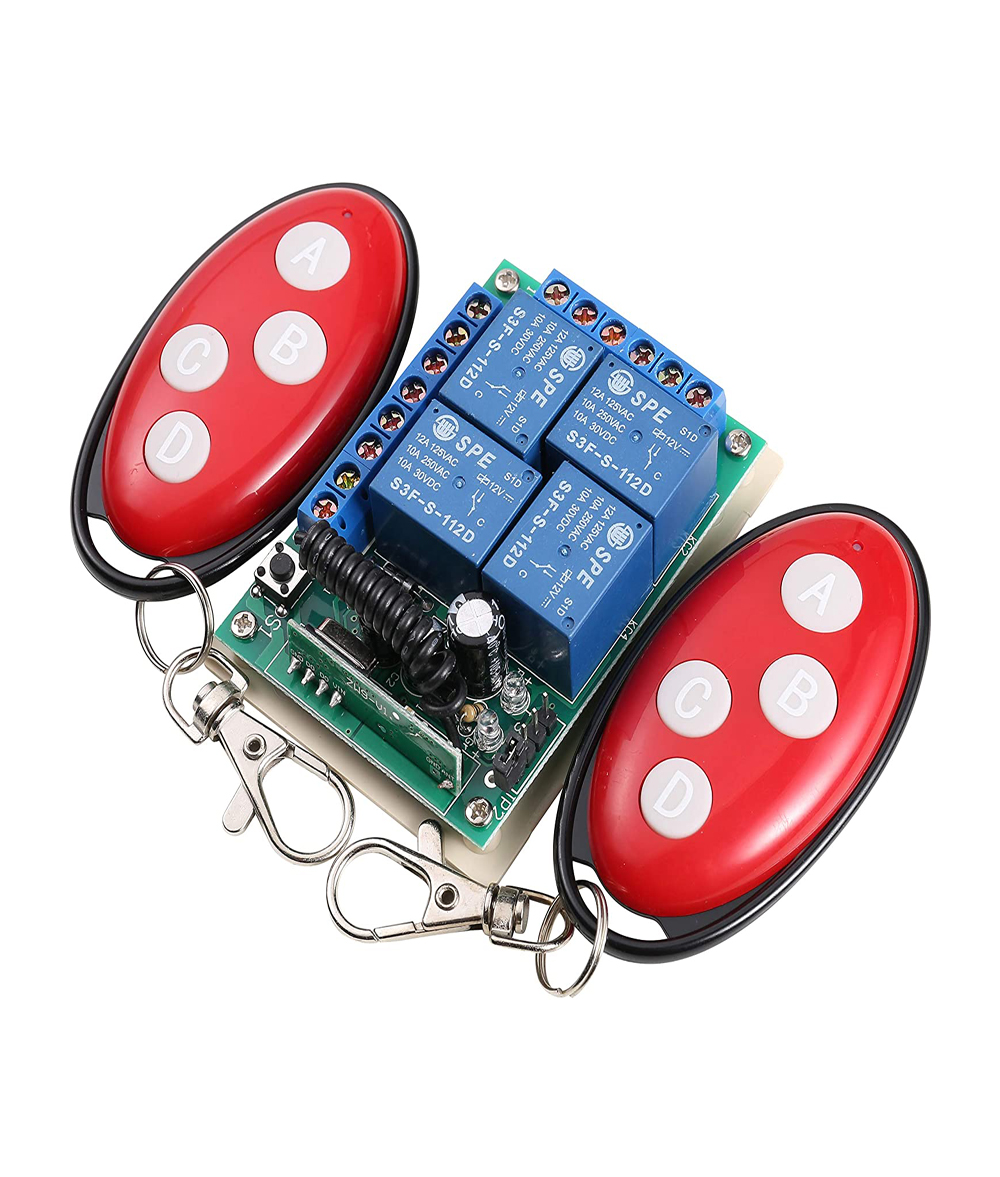

Wireless 433Mhz 4 Channel RF Remote Control Switch Receiver with Two Transmitters

Wireless 433Mhz 4 Channel RF Remote Control Switch Receiver with Two Transmitters



Features:

• The wireless signal can pass through walls, floors and doors, strong penetration.
• Stable and reliable performance, high receive sensitivity and confidentiality, large storage capacity and low energy consumption.
• The internal circuit design adopts the SMD process and the acoustic surface resonator is used for frequency stabilization. The optional coding chip adopts SC2260/1527, and the power supply is powered by the built-in CR2016 two-cell battery.
• Generally used in remote control of radio equipment, such as energy-saving lighting, home security systems, industrial or home remote control.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance.

Specifications:

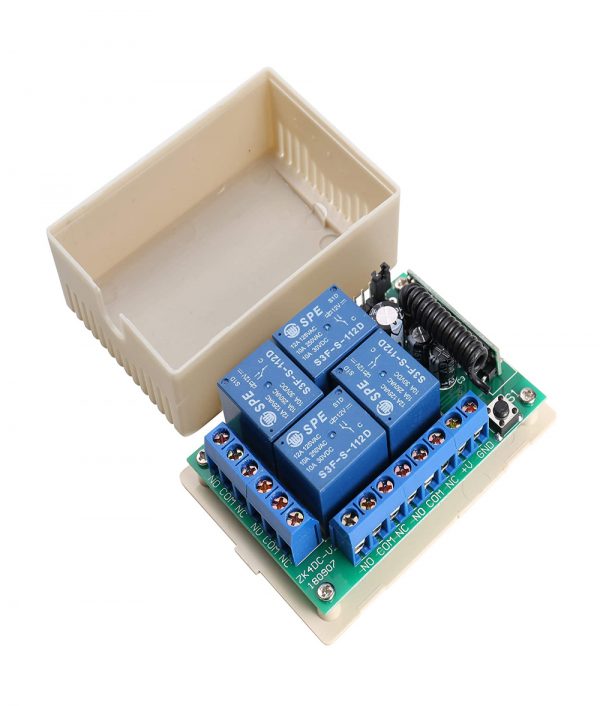

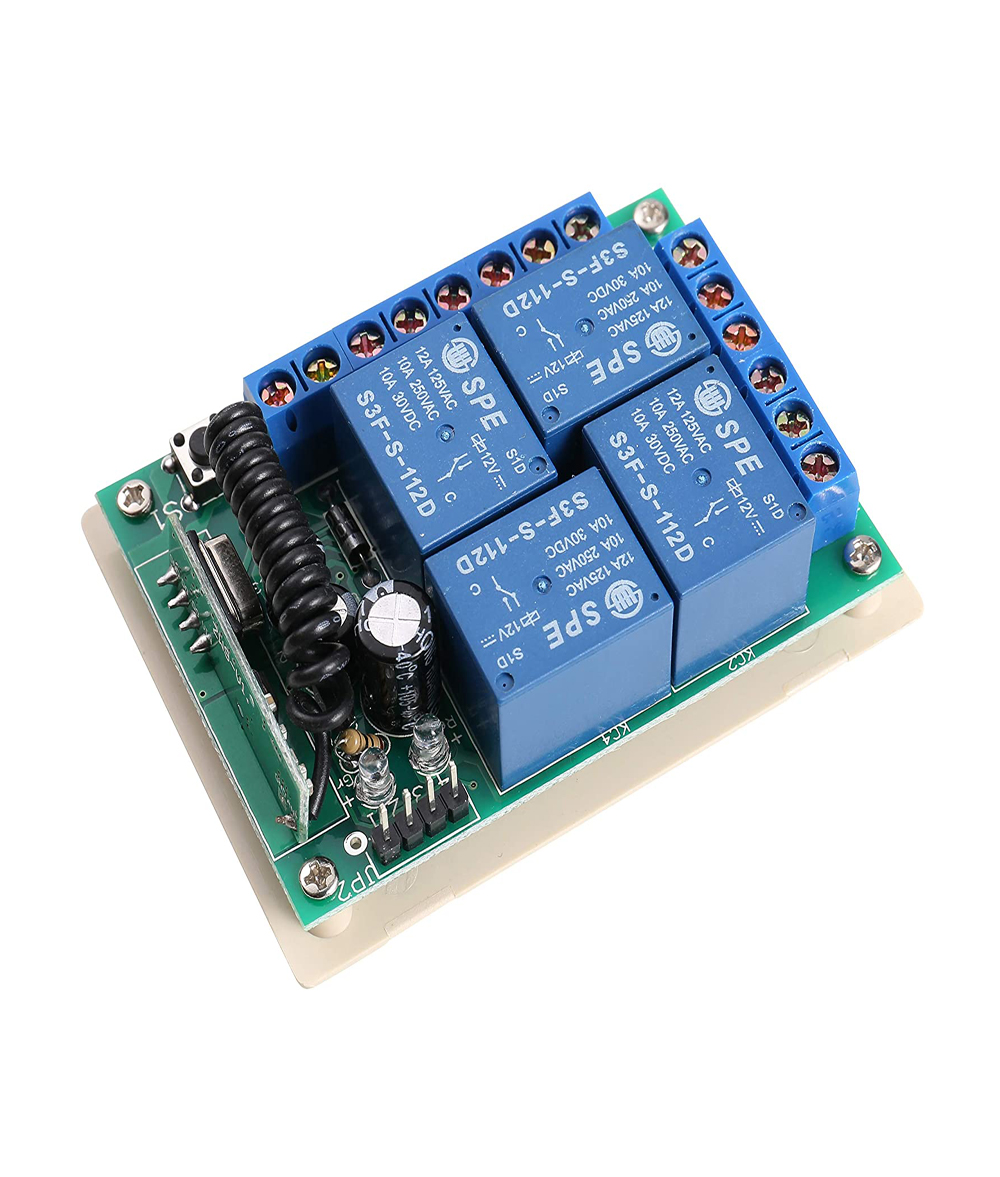

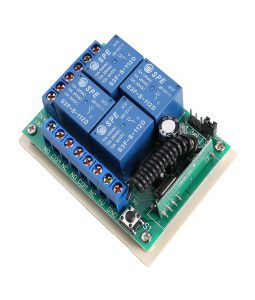

Receiver:

• Rated Voltage: 12V
• Weight: 80g
• Receiver sensitivity: more than -105dBm
• Rated Current: 10mA
• Channel: 4-channel
• Working frequency: 433mhz
• Output current: Less than 2A
• Max load current: 10A

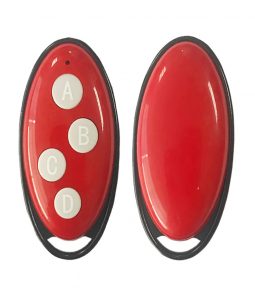

Transmitter:

• Button: 4 buttons
• Weight: 28g
• Rated Voltage: 6V
• Rated Current: 10mA
• Encode: Intelligent learning
• Working Operation: 433MHZ
• Working Current (DC6V): ≤13mA
• Dimensions: 70mm×38mm×15mm/2.76″×1.49″×0.59″
• Light’s showing status: being pressed(blue light is on)
• Color: Red

Instructions:

Learning method:

• Press learning key on receiver, when you hear “Bi” from buzzer, immediately press the specified key on remote to learn, after the receiver receives the signal, you will hear “Bi” from buzzer, means learn successfully.

Clear saved information:

• Long press learning key on receiver about 10 seconds until you hear “Bi” from buzzer ,means saved information has been clear successfully.

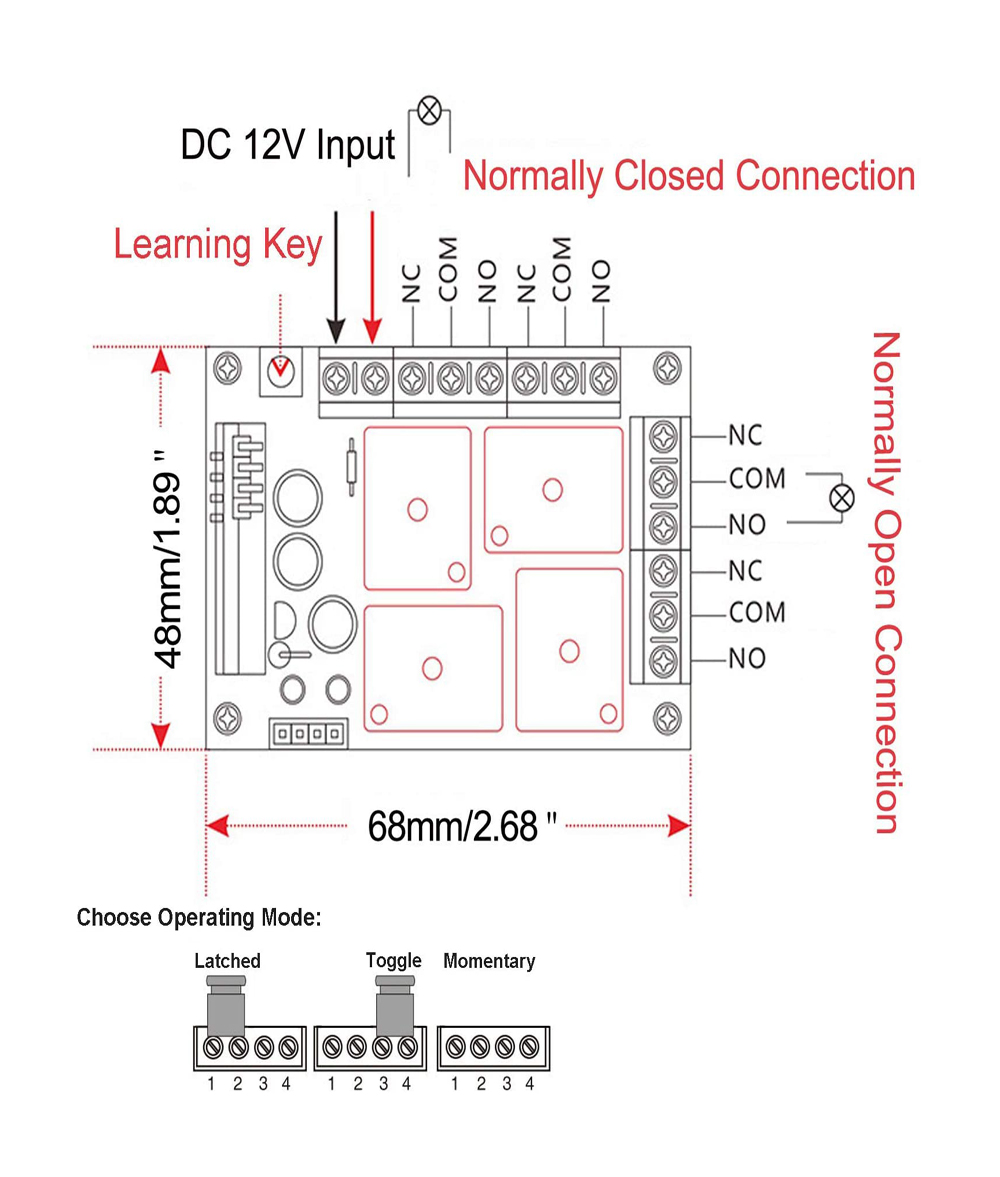

Working Mode:

• Momentary: Don’t connect jumper with any Pins
• Latched: Connect jumper with Pin1 and Pin2
• Toggle: Connect jumper with Pin3 and Pin4

Package:

• 1 × Switch (receiver)
• 2 × Transmitters
• 1 x English Manual
