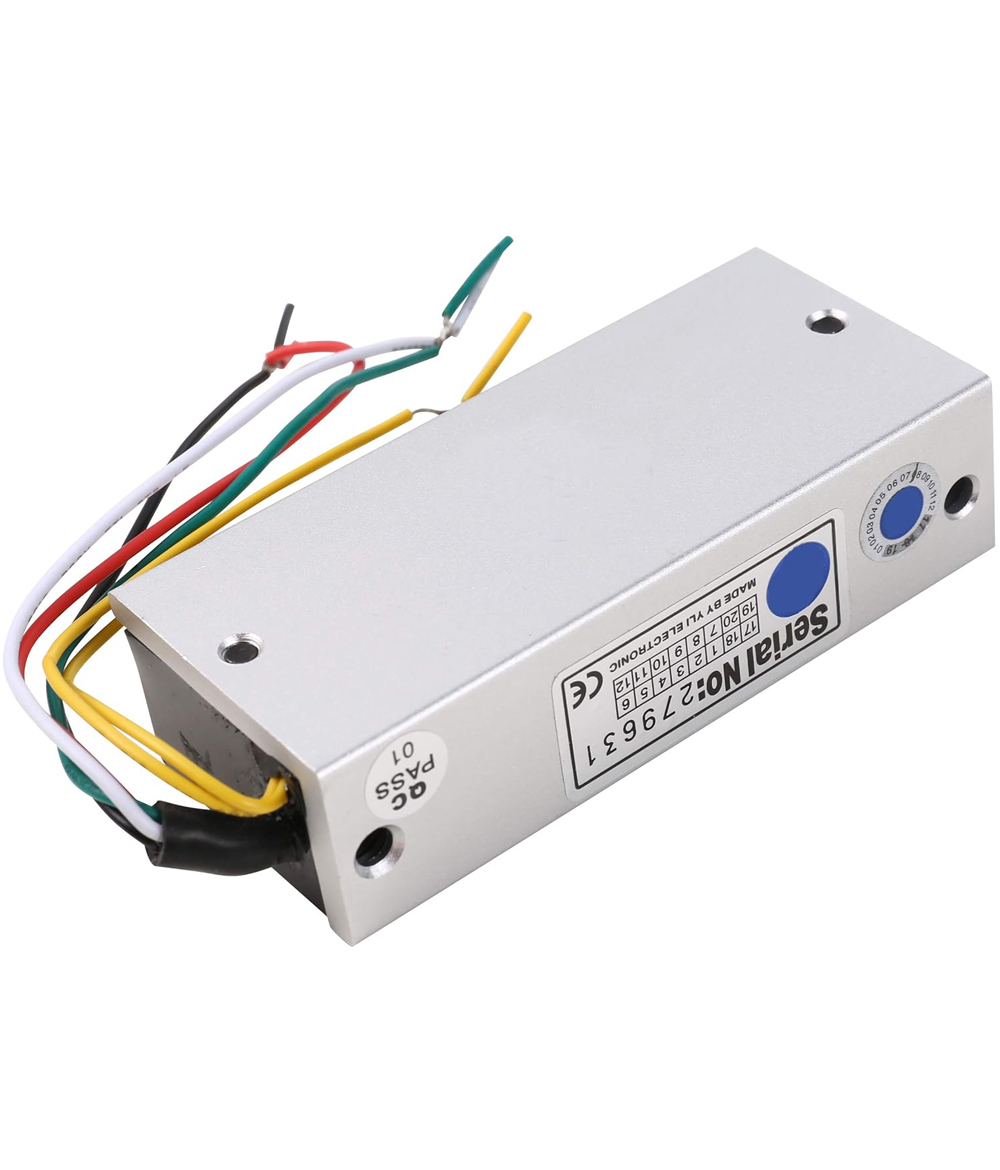

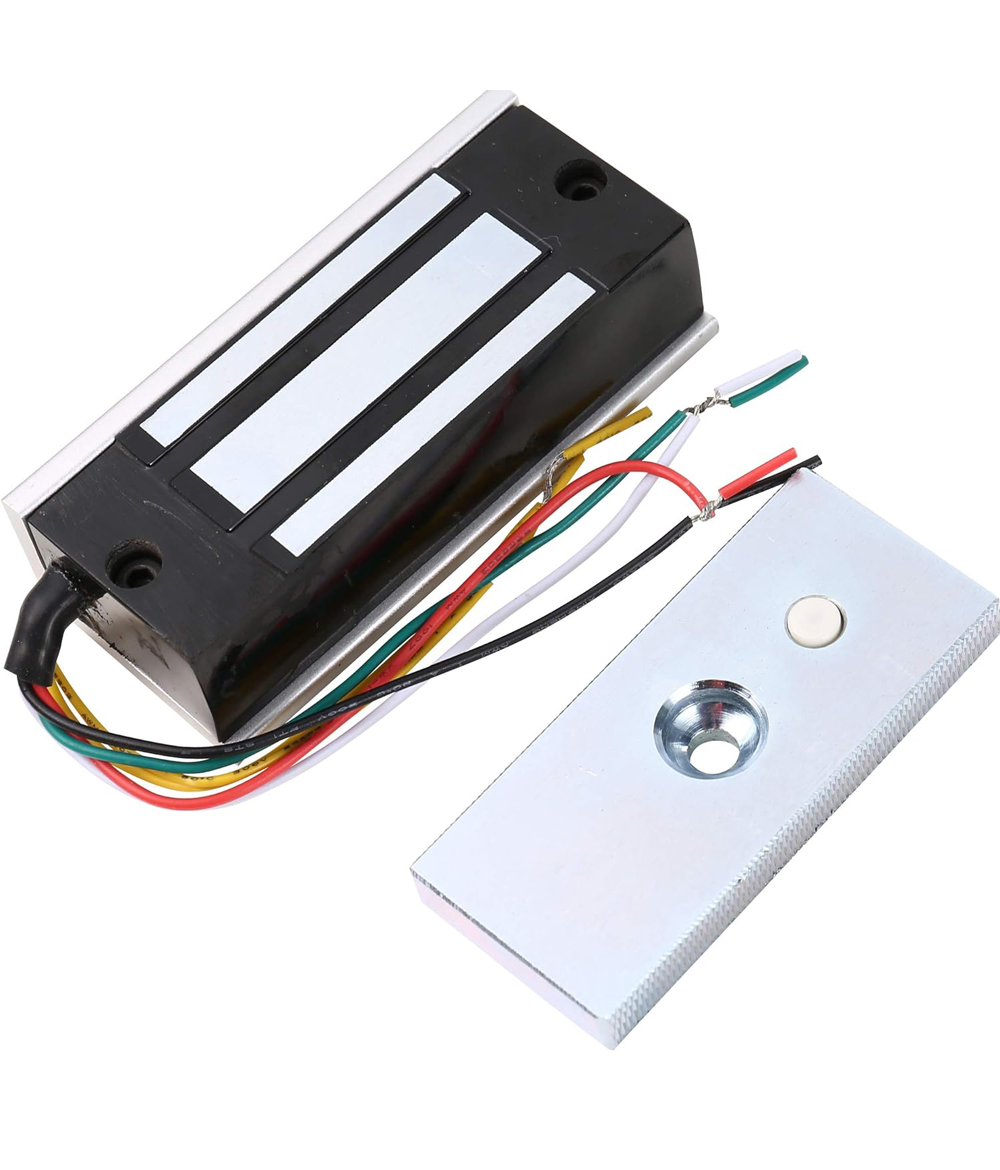

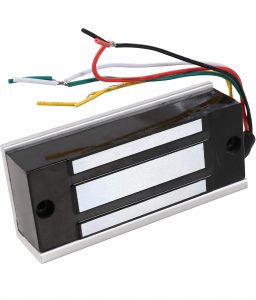

Single Door Mini 70Kg Holding Force Electric Magnetic Lock with Signal Output

$46.00

  • Fail safe – (locked while supplied with power)
  • Increase the holding Force, Dual Insulative Hosing
  • Collinear Load Test 70kg / 140pounds
  • High Strength Material, Anodized Aluminum Housing
  • MOV Provides Reverse Current Protection
SKU: UT-YM-70 Categories: ,

Single Door Mini 70Kg Holding Force Electric Magnetic Lock with Signal Output

Features:
  • Fail safe – (locked while supplied with power)
  • Collinear Load Test 70kg,140pounds
  • MOV Provides Reverse Current Protection
  • Anti-Residual Magneism Designed
  • High Strength Material,Anodized Aluminum Housing
  • Design with no Mechanical Bolt
  • Increase the holding Force,Dual Insulative Hosing
  • CE Certificate by European Union,MA Certificate by China Public Security Office
Specifications:

YM 70 2

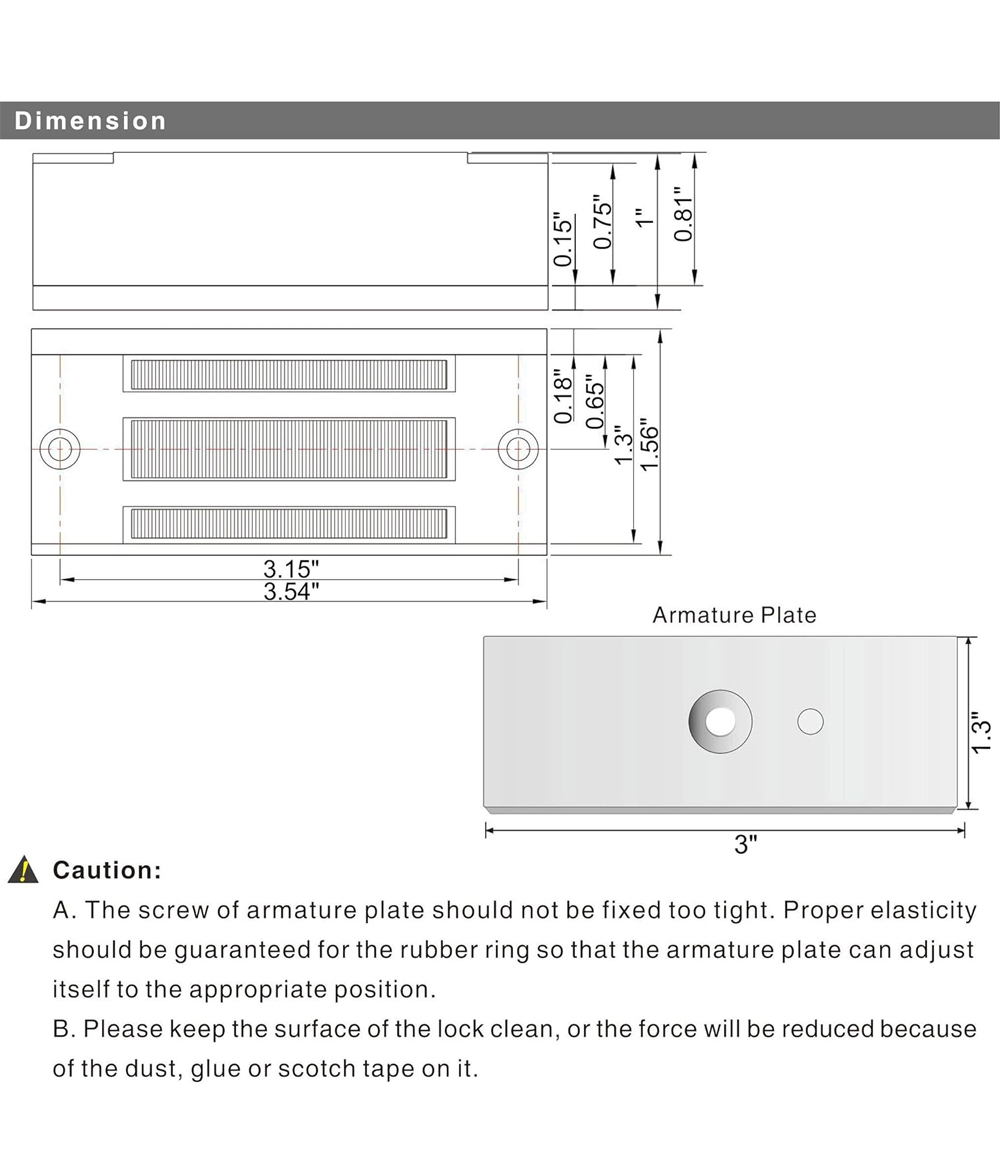

  • Size: 90Lx39Wx24.5H(mm) / 3.54Lx1.54Wx0.96H(inch)
  • Armature Plate Dimension: 90Lx33Wx9.8H(mm) / 3.54Lx1.3Wx0.39H(inch)
  • Holding Force: 70kg(140Lbs)
  • Input Voltage: 12 or 24VDC
  • Current: 12V/240mA or 24V/120mA
  • Suitable: File Cabinet ,Display Cabinet
  • Surface Temp: Less than +20C
  • Operating Temp: -10~+55C(14-131F), Humidity: 0~90%(non-condensing)
  • Cover Finish: Anodized aluminum
  • Lock Finish: Zinc; Armature Plate Finish: Zinc
  • Weight: 0.7KG / 1.54lb
Package:
  • 1 x Electric Magnetic Lock
  • 1 x User manual
  • 1 x Installation Kit

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.7 kg
