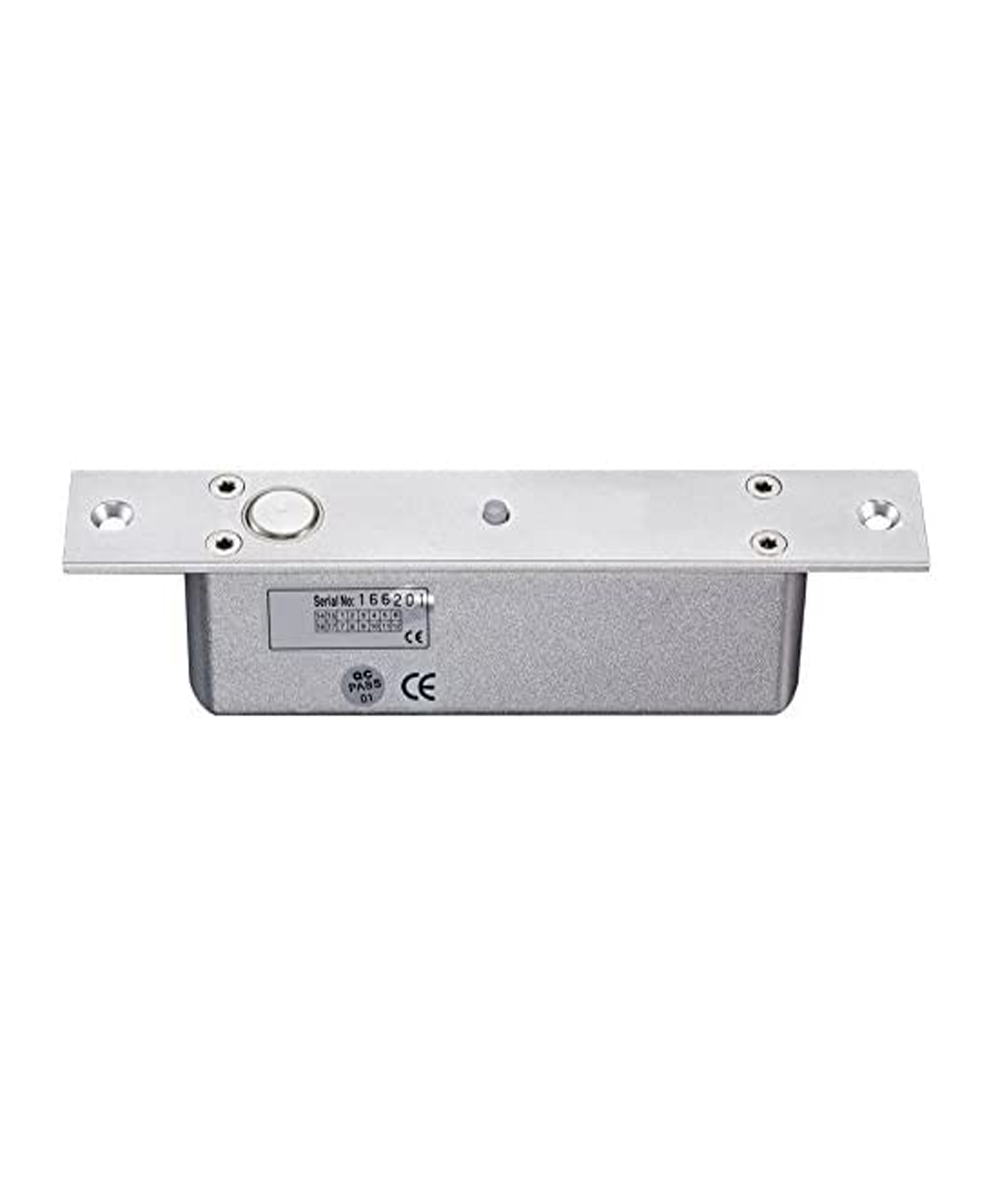

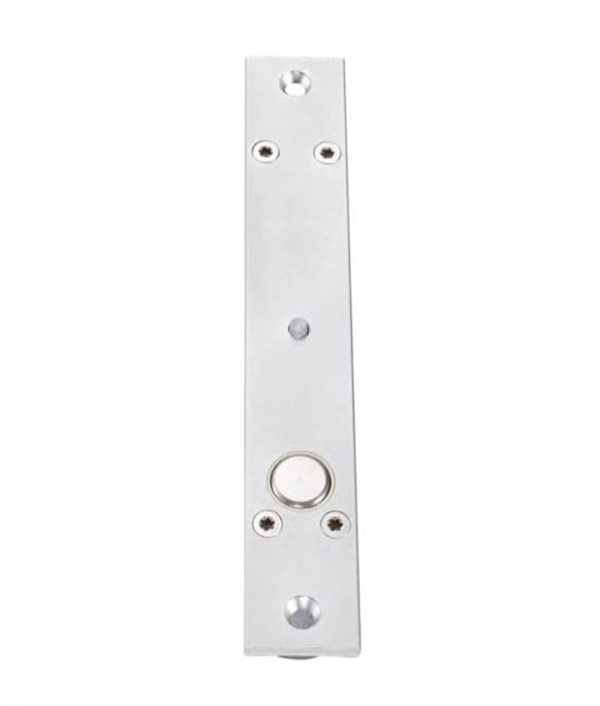

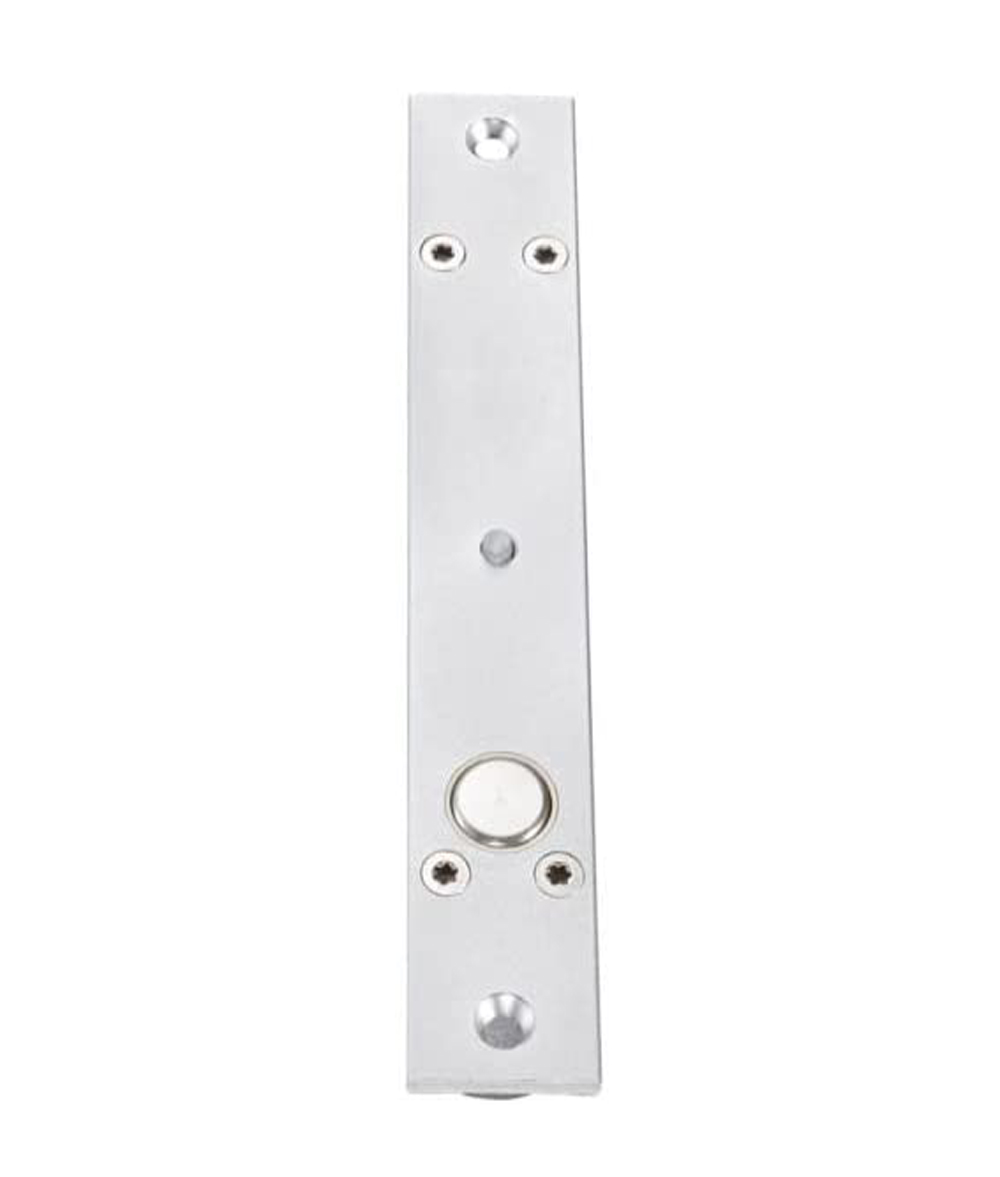

Fail Safe Electric Bolt Lock with NO/COM Signal Time & LED Low Temperature

Features:

• Low Temperature, safe & Durable.
• Low Power, Environmental Protection.
• Special photoelectricity control,three steps current application.
• Long Life with 500000 cycles.
• MOV Provides Reverse Current Protection.
• Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
• Autolock Time Delay: 0/3/6/9sec.
• Door statue signal output contact(NC.COM).
• Double protection for loading current.
• Certificate: CE&MA.
• Photoelectricity Control,Low Temperature.
• A:The Low Current is Changed immediately.
  B:When door frame doesn’t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
  C:The Photoelectricity Control Technology,prevent the machanical defect.

Specifications:

• Fail Safe: Unlocked when power is removed

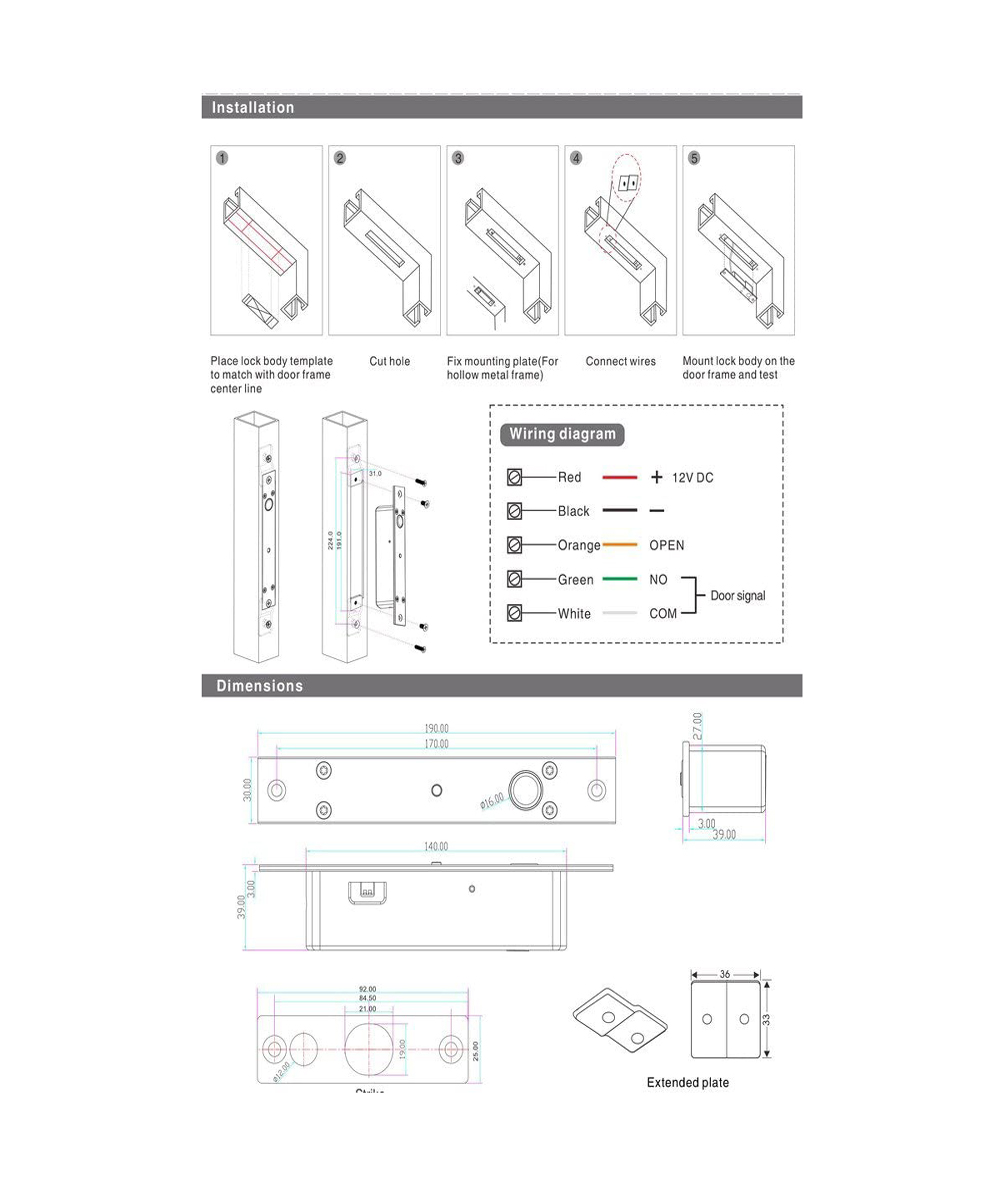

• Lock Body: 190Lx30Wx39H(mm)
• Magnetic Plate: 92Lx25Wx3H(mm)
• Decorative Panel: 95Lx35Wx0.7H(mm)
• Bolt: 16mmDIA, stainless steel 16mm throw
• Voltage: DC12V
• Start Current: 850mA
• Standby Current: 480mA
• Solid Bolt: Polishing housing, 800Kg Holding Force
• Suitable For: Wooden Door,Glass Door,Metal Door
• Autolock Time Delay: 0/3/6/9sec

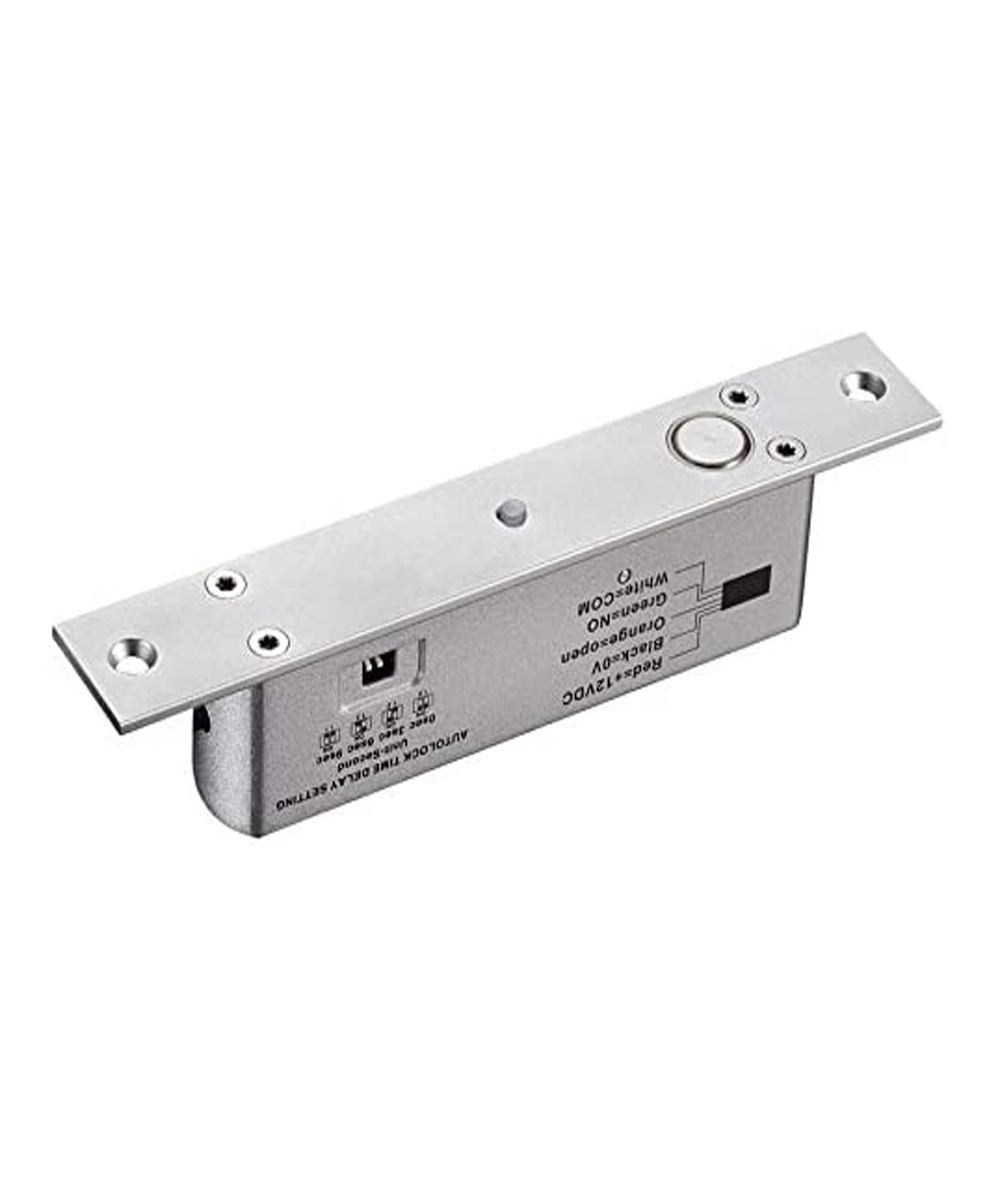

• Signal Output: Door status Output,NO/COM
• LED: Light on when locked; Light off when unlocked
• Surface Temp: Low Temperature
• Induction Distance: 8mm
• Operating temp: -10~+55C(14~131F)
• Operating Humidity: 0~90%(non-condensing)
• Special Designed: Tested to 500000 operations
• Face place material: High Aluminum
• Weight: 0.6kg

Package:

• 1 x Electric Bolt Lock
• 1 x Panel cover
• 1 x Induction lock
• 1 x Screw kit
