Piezoelectric Door Release Touch Exit Button with LED Light for Access Control
Features:
- Piezoelectric design, no mechanical fault
- LED transformation, advanced fashion& technology, smooth surface with glass, beauty design with high fashion
- Special design for top grade office, best choice for sophisticated group
- Material for Cover Plate: Tempered glass with mirror treatment
- Output Contact: NO/NC/COM
Specifications:

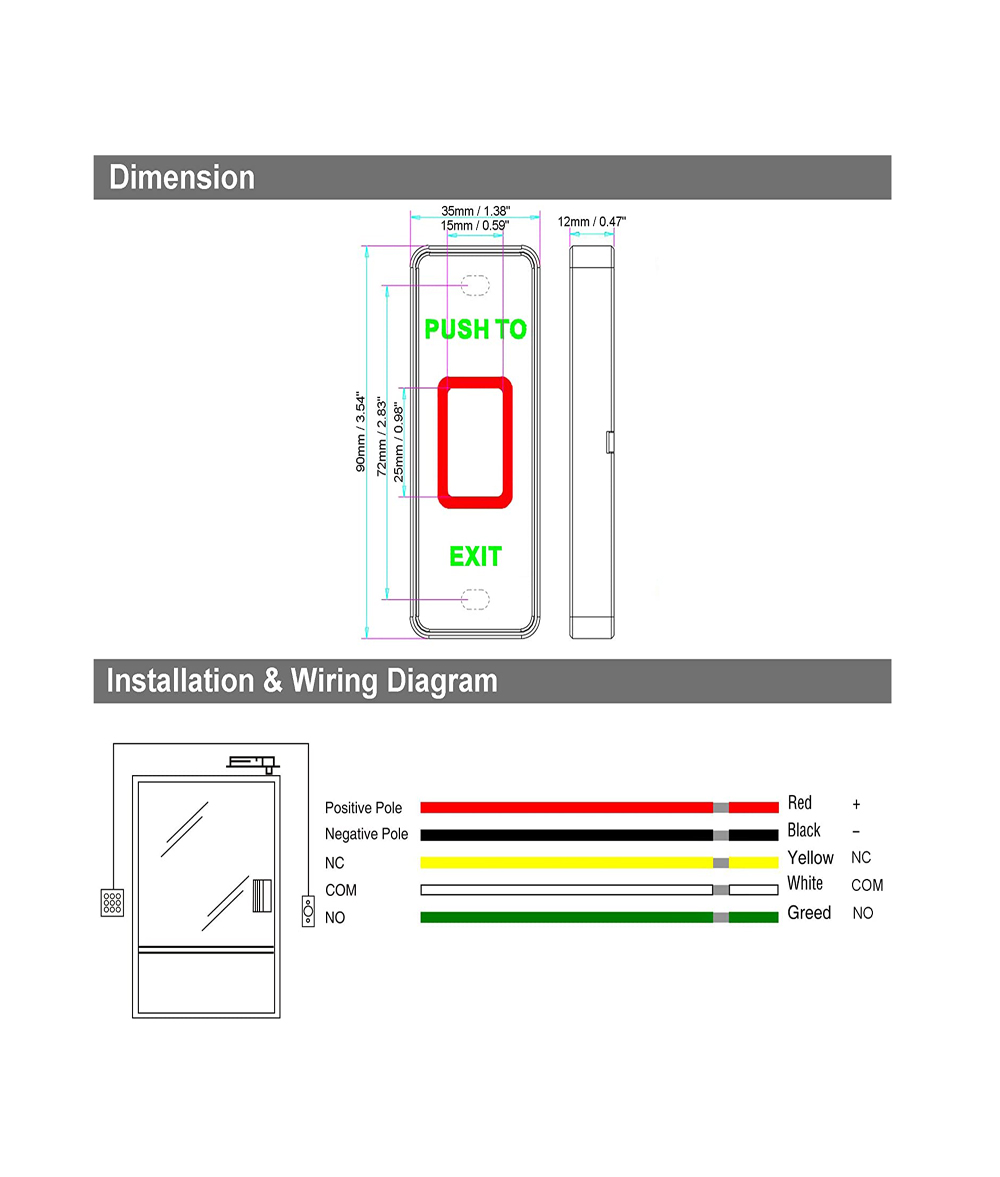

- Dimensions: 90Lx35Wx12H(mm) / 3.54Lx1.38Wx0.47H(inches)
- Material for Cover Plate: Tempered glass with mirror treatment
- Voltage: 12-24V
- Current: ≤60mA
- Output Contact: NO/NC/COM
- Current Rating: 1A@30VDC
- LED Status: Red(Standby);Green(Operation)
- Wire color: Red–Positive; Black–Negative; Yellow–NC; White–COM; Green–NO
- Weight: 0.18kg / 6.35oz
Package:
- 1 x Touch Exit Button
