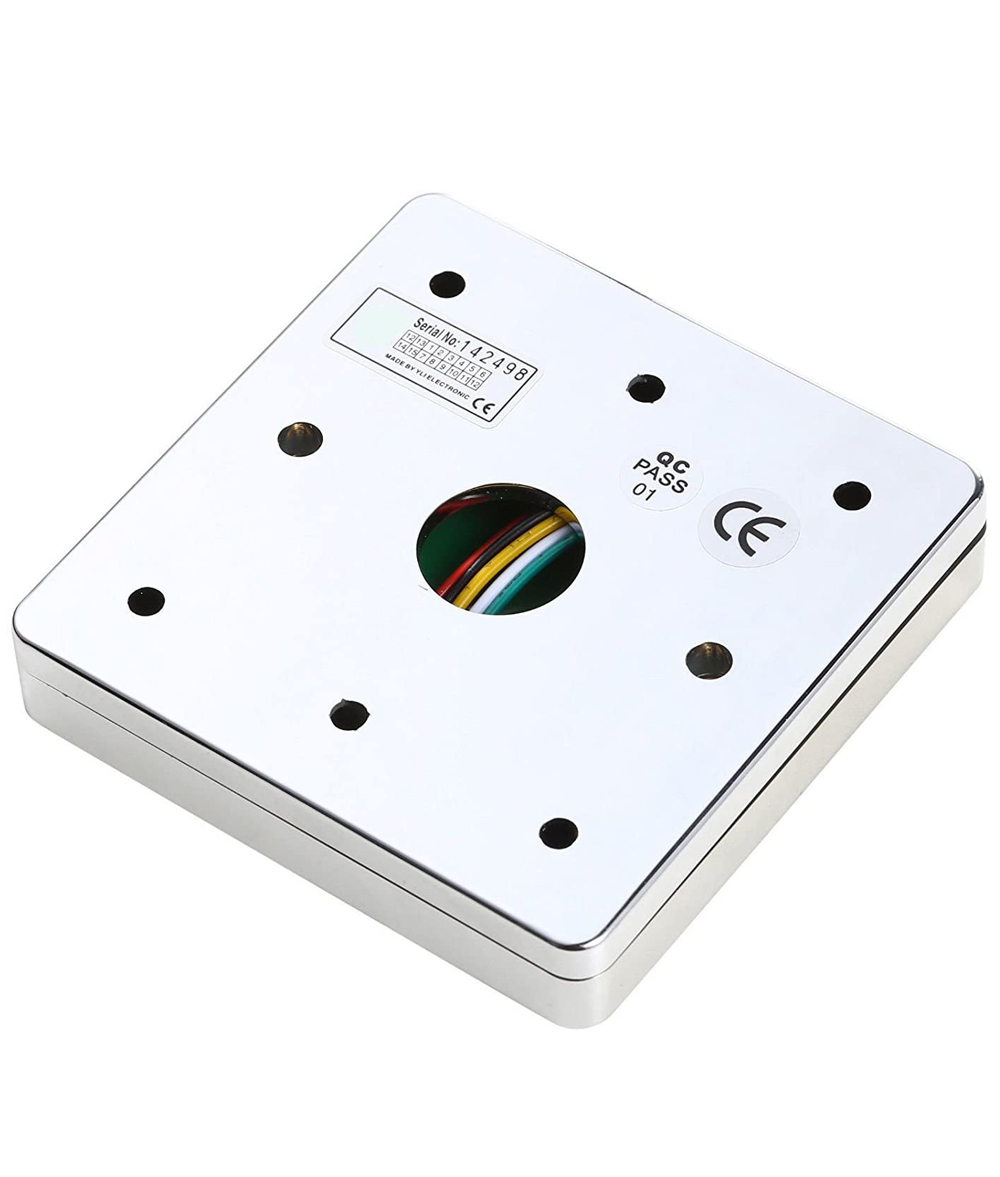

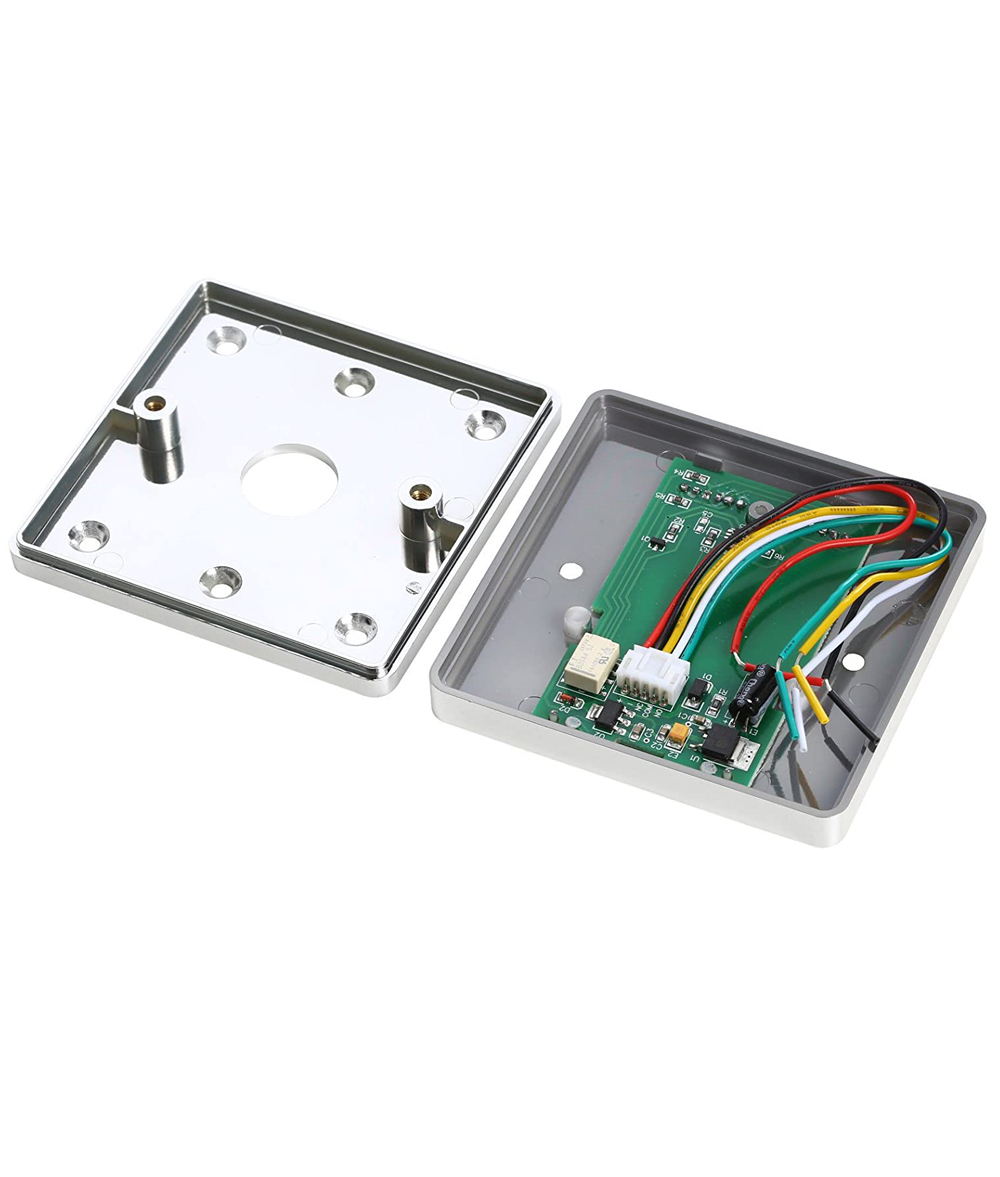

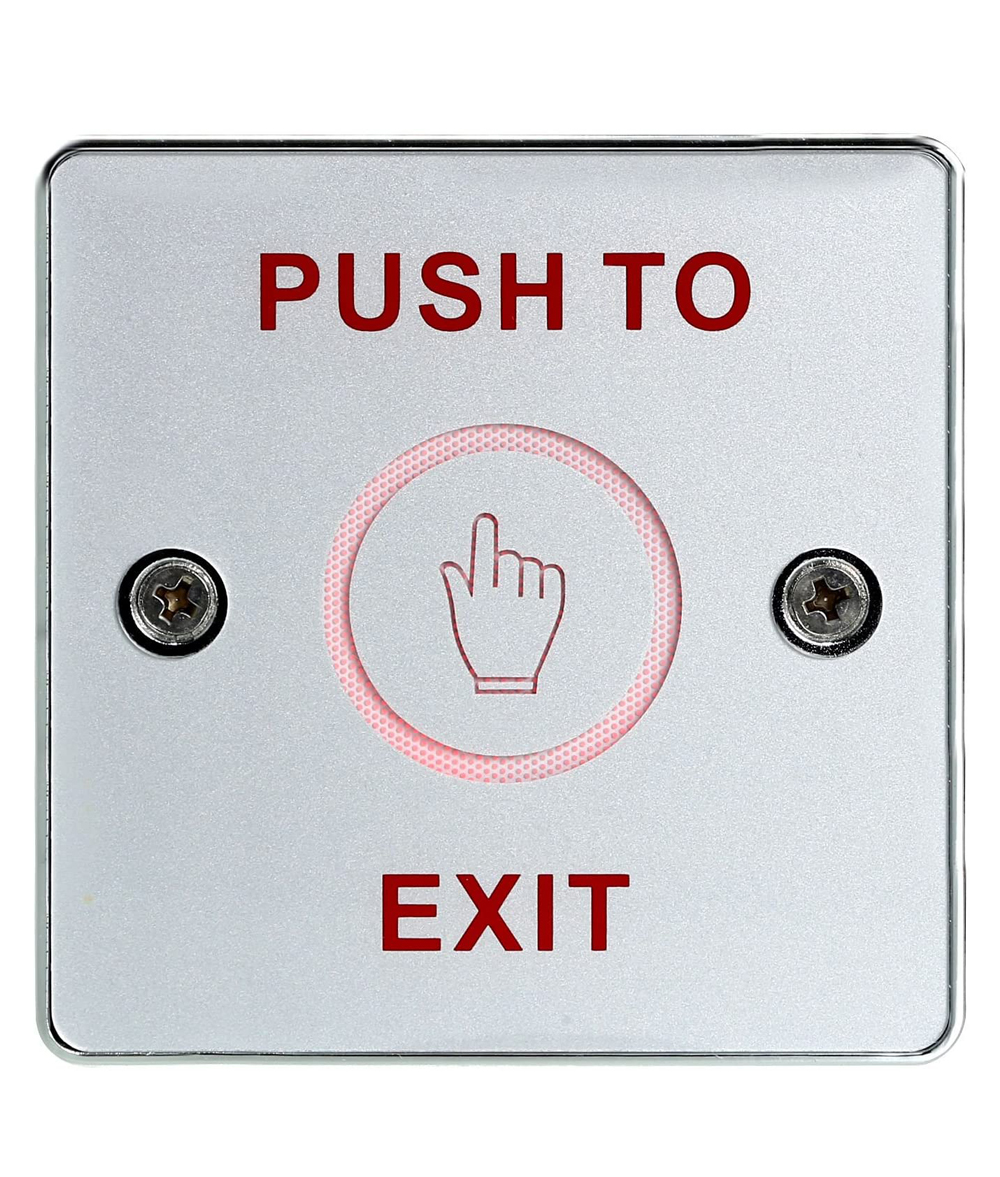

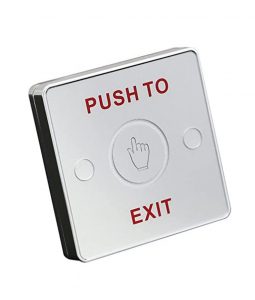

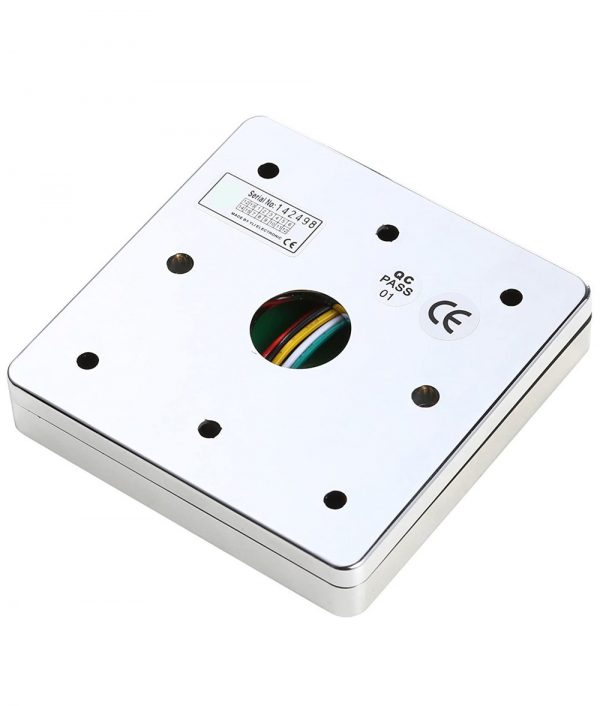

Wall Mount Piezoelectric Door Release Touch Exit Button Panel LED Light Switch

Wall Mount Piezoelectric Door Release Touch Exit Button Panel LED Light Switch

Features:

• Piezoelectric Design, No Mechanical Fault
• 24K Level Shining Silver
• Dimensions: 86Lx86Wx16H(mm) / 3.39″x3.39″x0.63″
• Special Design for Top Grade Office , Best Choice for Sophisticated group
• LED Transformation, Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion

Specifications:

• Dimensions: 86Lx86Wx16H(mm) / 3.39″x3.39″x0.63″
• Voltage: 12-24V
• Current: Standby 20mA,Operation: 60mA
• Output Contact: NO/NC/COM
• Current Rating: 1A@30VDC 0.5A@125VDC
• Waterproof Level: IP-68
• LED Status: Red: Standby, Green : Operation

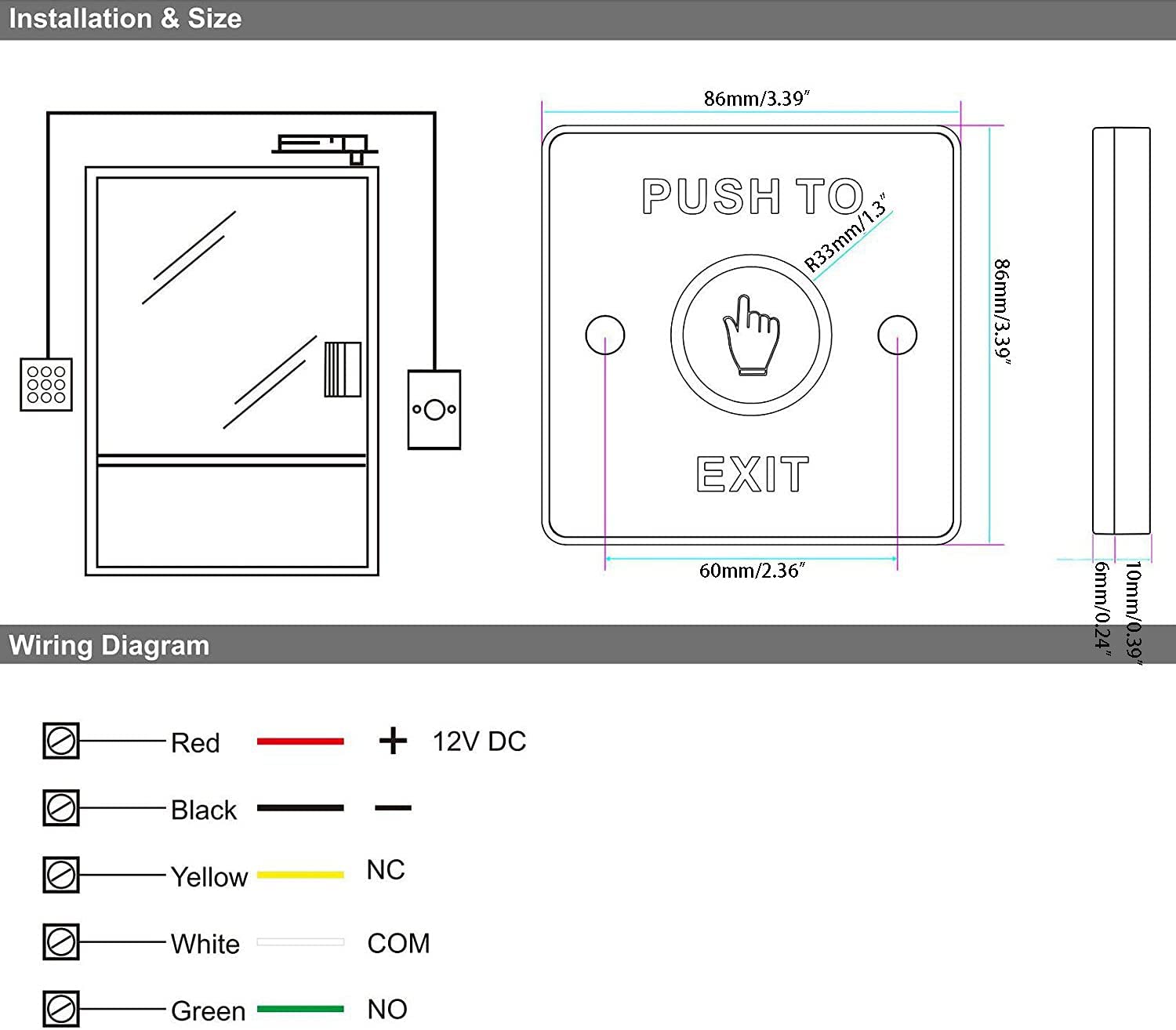

• Wire color: Red: Positive; Black: Negative; Yellow: NC; White: COM; Green: NO
• Color: Silver
• Weight: 0.11kg / 3.88oz

Package:

• 1 x Exit Button
