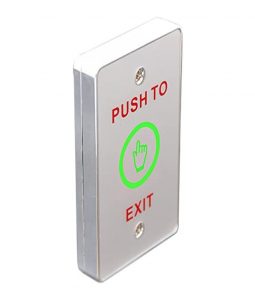

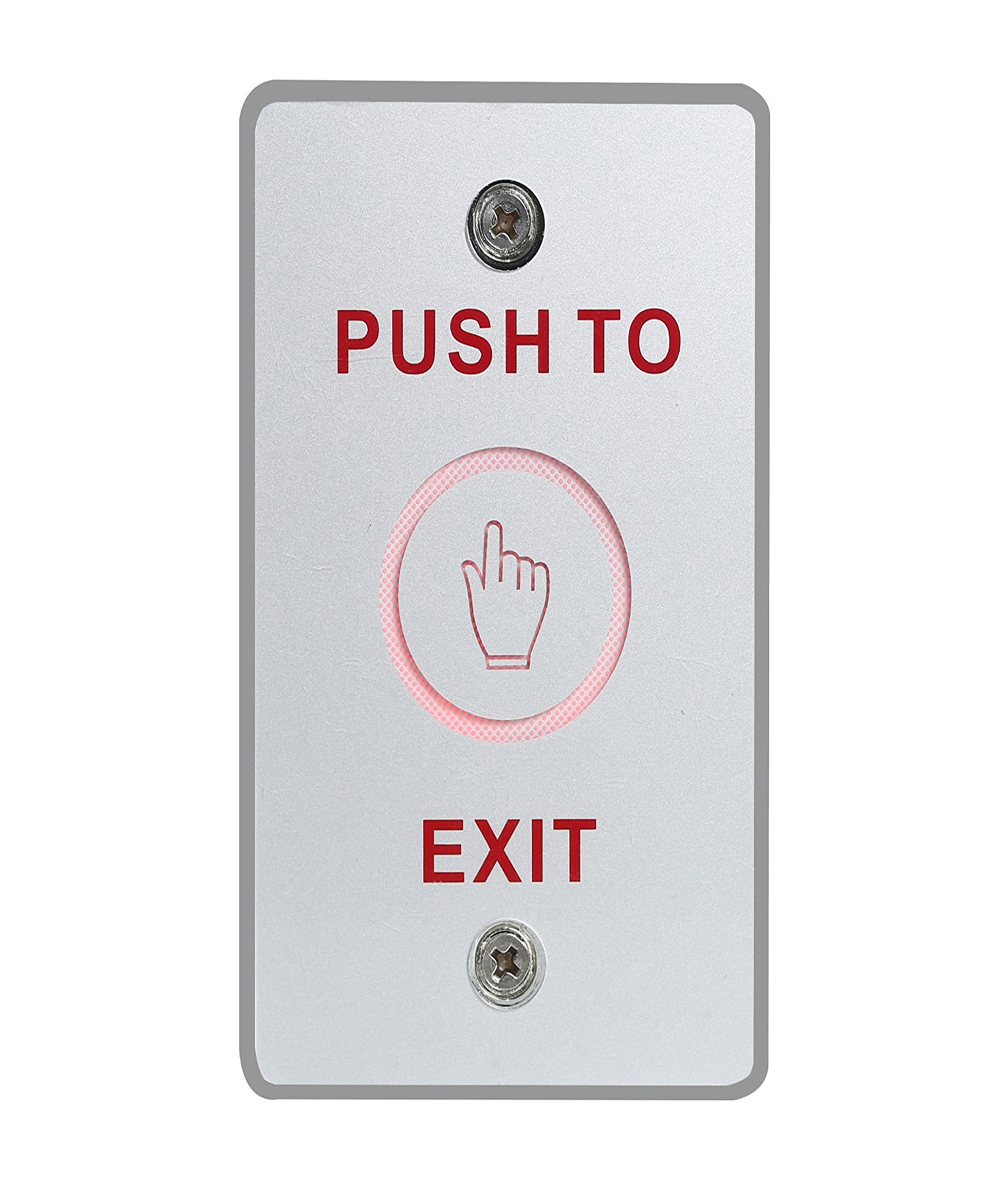

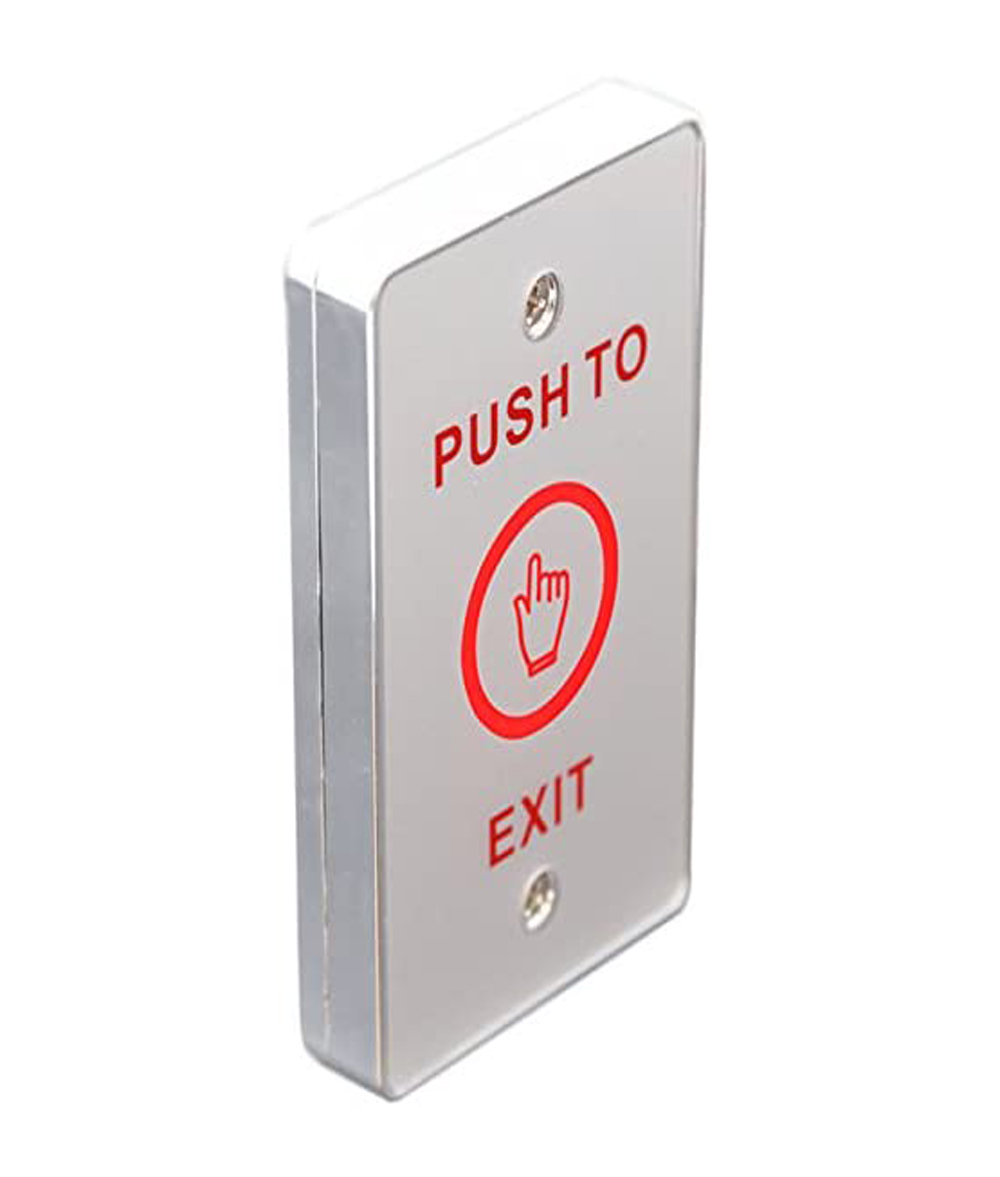

Piezoelectric Touch Exit Button Panel Security With LED Light Release Out Switch

Piezoelectric Touch Exit Button Panel Security With LED Light Release Out Switch

Features：

• Piezoelectric Design, No Mechanical Fault
• 24K Shining Silver Color
• Dimensions: 114Lx70Wx16H(mm) / 4.5″x2.8″x0.63″
• Special Design for Top Grade Office , Best Choice for Sophisticated group
• LED Transformation, Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion

Specifications:

• Dimensions: 114Lx70Wx16H(mm) / 4.5″x2.8″x0.63″
• Voltage: DC12-24V
• Current: Standby 30mA,Operation: 70mA
• Output Contact: NO/NC/COM
• Current Rating: 1A@30VDC 0.5A@125VDC
• Waterproof Level: IP-68
• LED Status: Red: Standby; Green : Operation

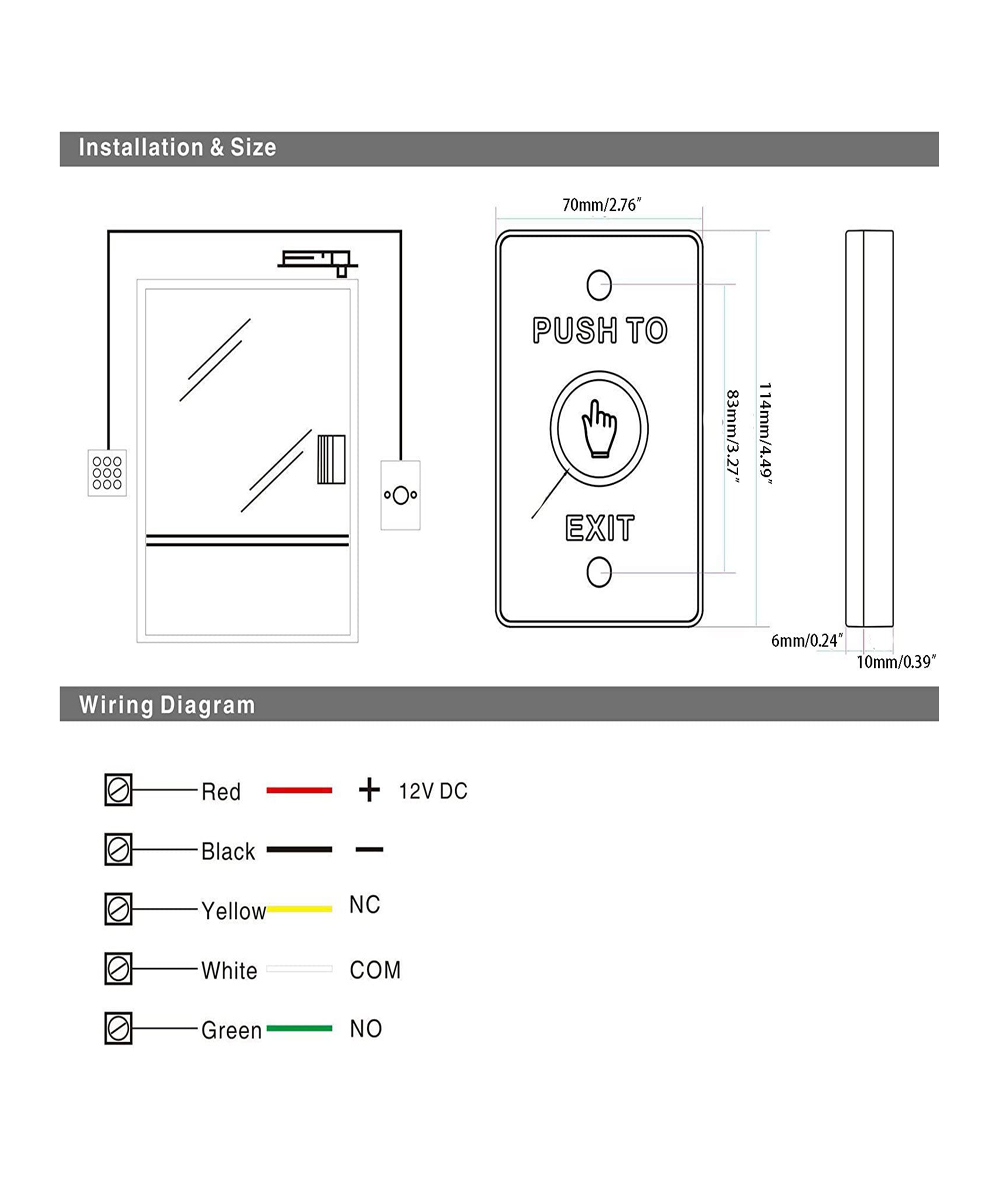

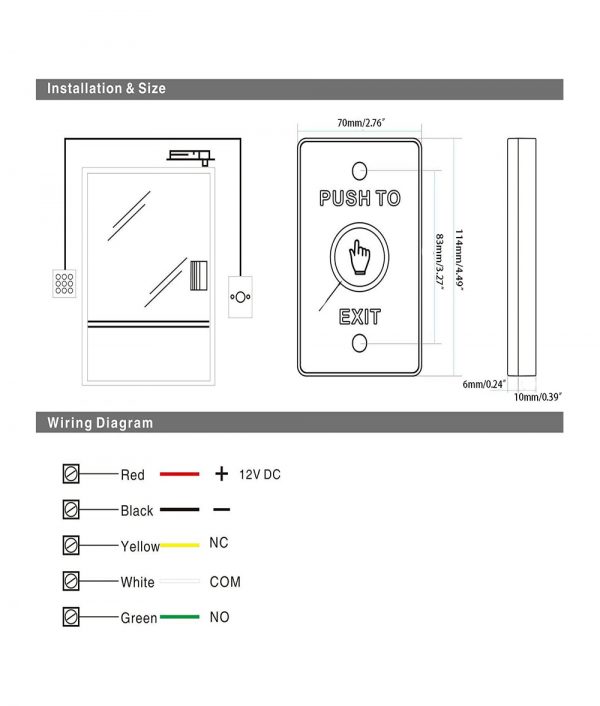

• Wire color; Red:Positive; Black:Negative; Yellow:NC; White:COM; Green: NO
• Color: Silver
• Weight: 0.12kg / 4.23oz

Package:

• 1 x Exit Button
