Normal Closed Wired Screw-Terminal Surface-Mount Magnetic Door Contact for Window Door Security (Pack of 5)

$13.99

This NC type screw-terminal surface-mount magnetic wired door contact works with any access control or burglar alarm system available, great for use in families and factories, etc, for windows and doors. Good sensibility, long lifetime, high quality.



SKU: UT-RZ-40NC Categories: ,

Normal Closed Wired Screw-Terminal Surface-Mount Magnetic Door Contact for Window Door Security (Pack of 5)



Features:

  • Switch Type: NC (Normal closed type)

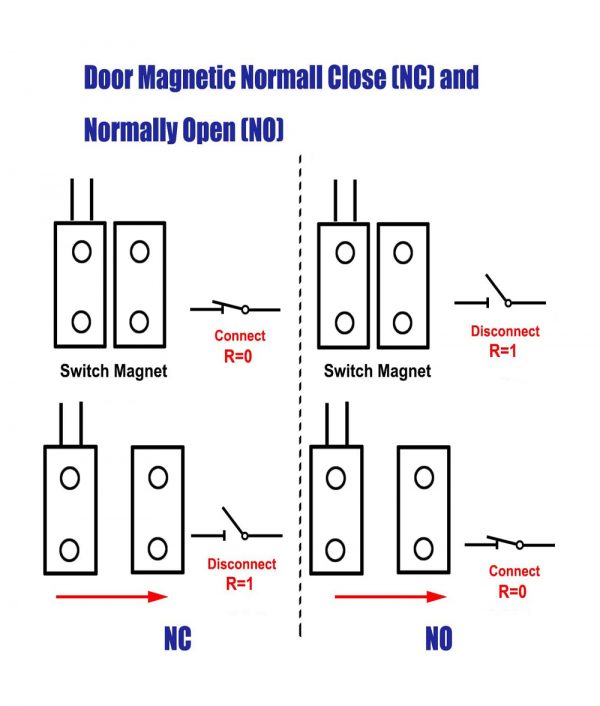

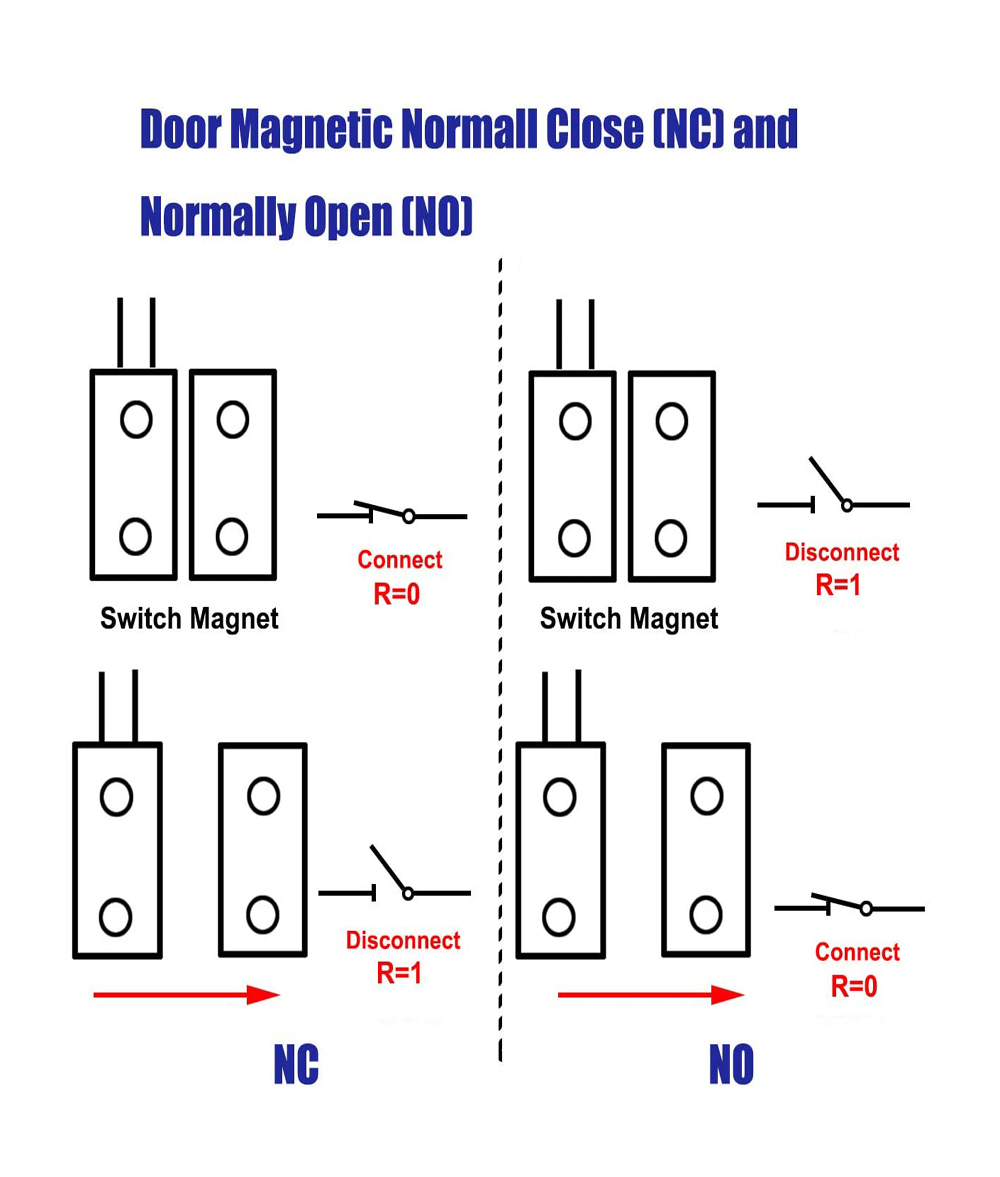

  • NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
  • This Contact Works with Any Access Control or Burglar Alarm System Available
  • This contact can’t connect directly to power, it works with your alarm system provide a switch signal. Working current under 12V
  • Great for use in family and factory window, door. etc.
  • Miniature surface-mount magnetic contacts
  • Gold-plated screw terminals for longer life and reliability
  • Tape to cover screw terminals included
  • Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness, for higher handling power and longer life
  • Mounting screws and double-sided tape included

Specifications:

UT RZ 40NC 2

  • Mounting Tabs: Yes / removable
  • Material – Case: High-impact ABS plastic
  • Contacts: Iridium-plating

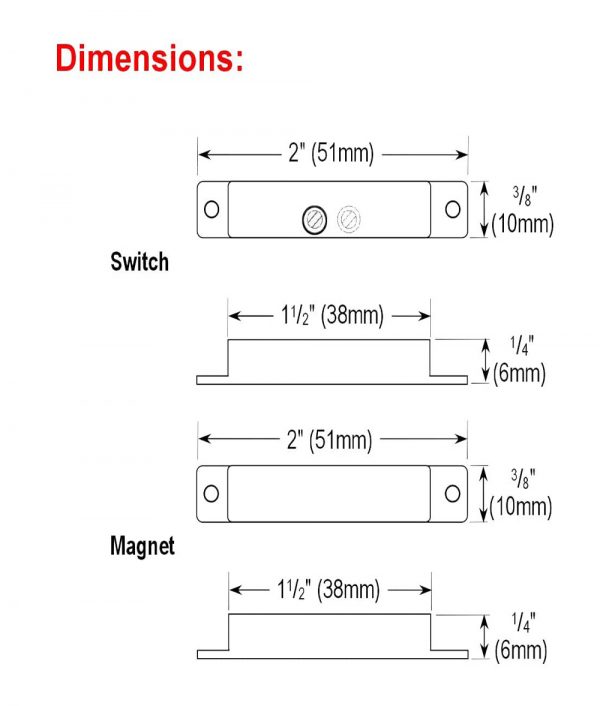

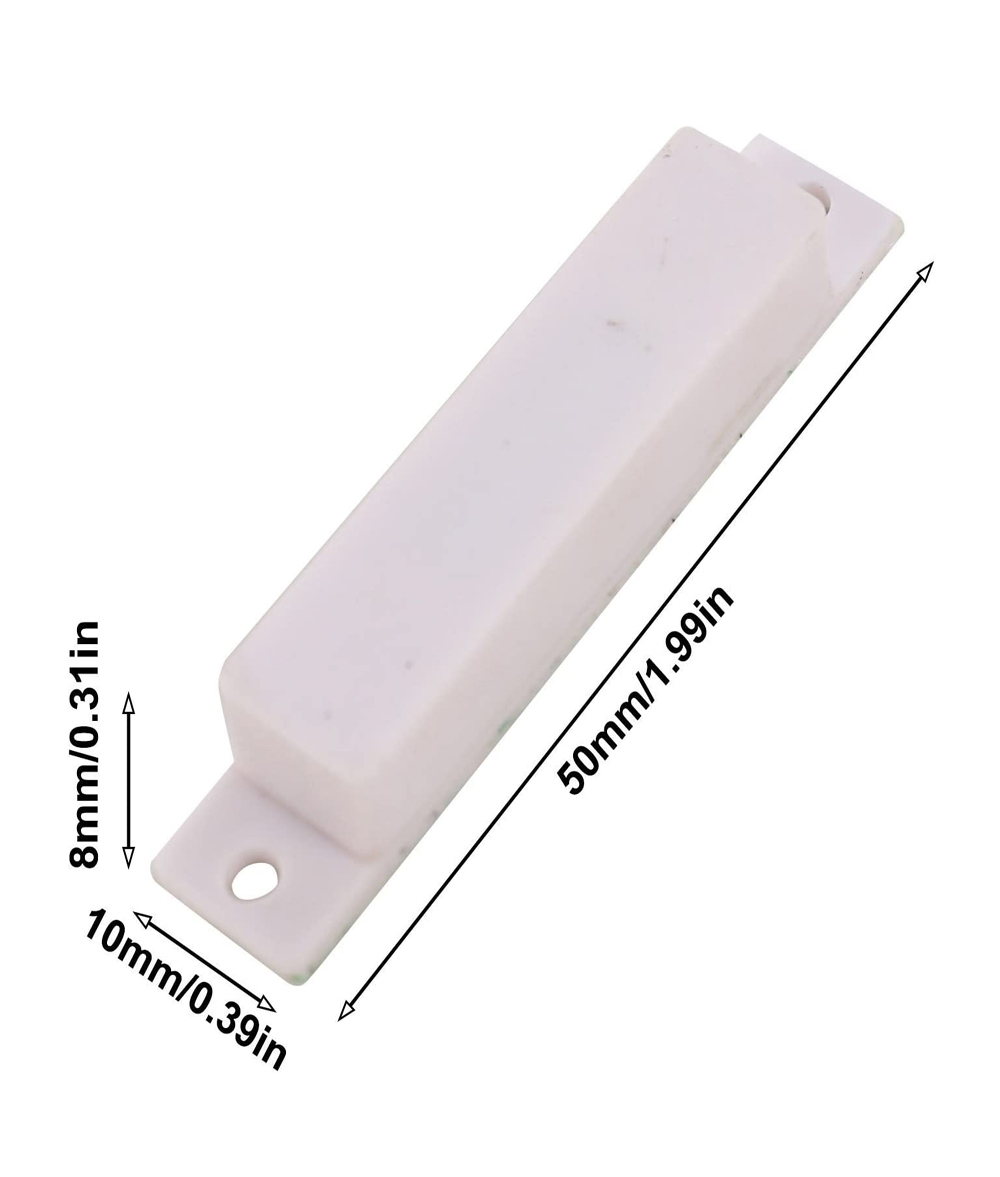

  • Switch Dimensions: 2″x3/8″x1/4″ (51x10x7 mm)
  • Magnet Dimensions: 2″x3/8″x1/4″ (51x10x7 mm)
  • Dry Contact Output: NC (Normal closed)
  • Contact Rating: 10W/100VDC/0.5A in MAX
  • Operating Temperature: -15°~160°F (-25°~70°C)
  • Switch Cycles: 50 Million (0.1mA@5VDC)
  • Magnet Type: Rare-earth neodymium
  • Color: White
  • Housing Material: Plastic
  • Cable material: 1007UL #24AWG
  • Product: 9g / 0.32oz

Package:

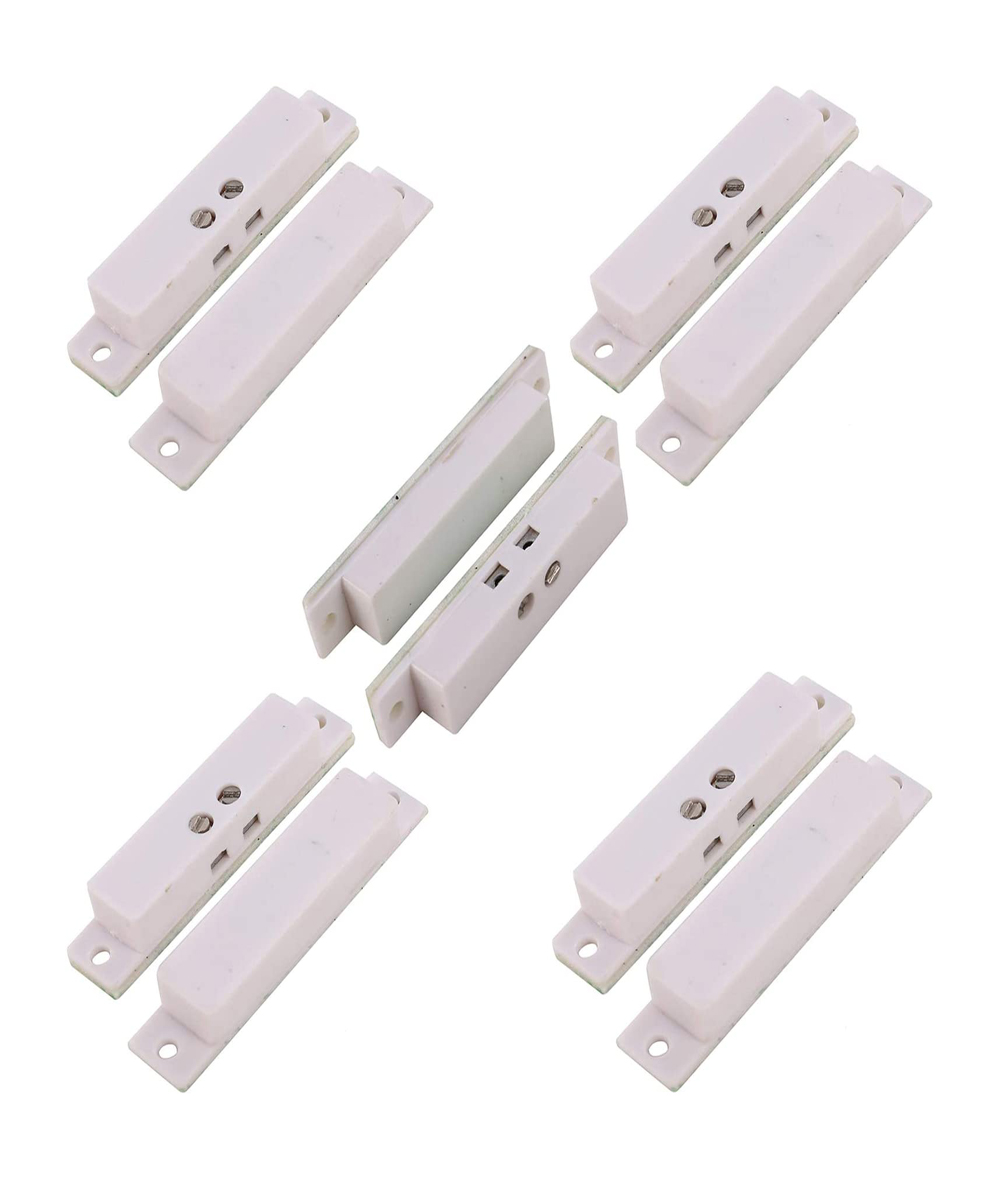

  • 5 x Wired contacts

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.



Weight 0.045 kg
