Wired NC Normally Closed Type Magnetic Alarm Window Door Contact Sensor Detector Reed Switch (Pack of 5)

Wired NC Normally Closed Type Magnetic Alarm Window Door Contact Sensor Detector Reed Switch (Pack of 5)

Features:

• Screw surface mount contact
• This Contact Works with Any Access Control or Burglar Alarm System Available
• Switch Type: NC (normal closed type)
• Great for use in family and factory window, door. etc.

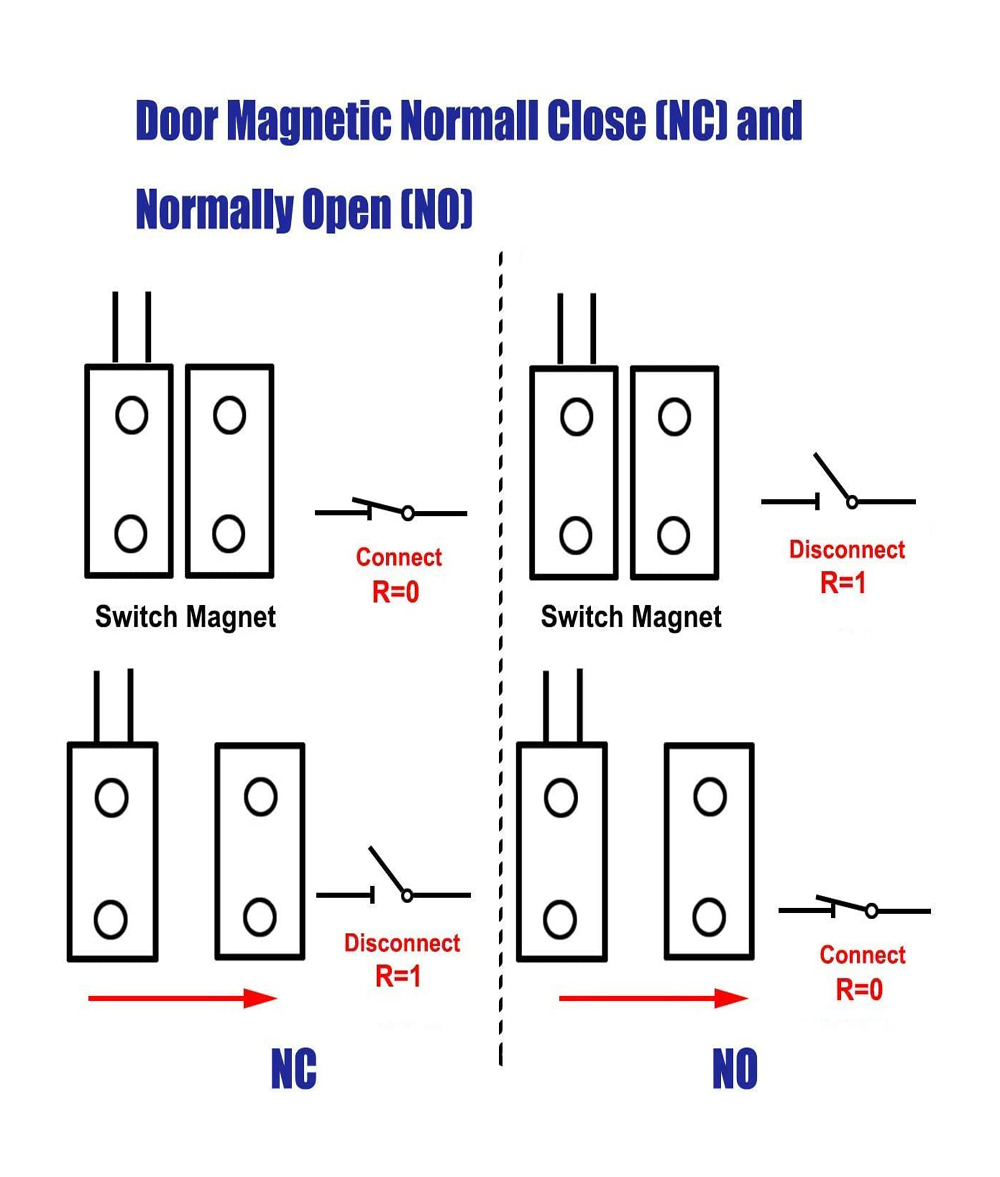

• NC means Normally Closed: When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).

Specifications:

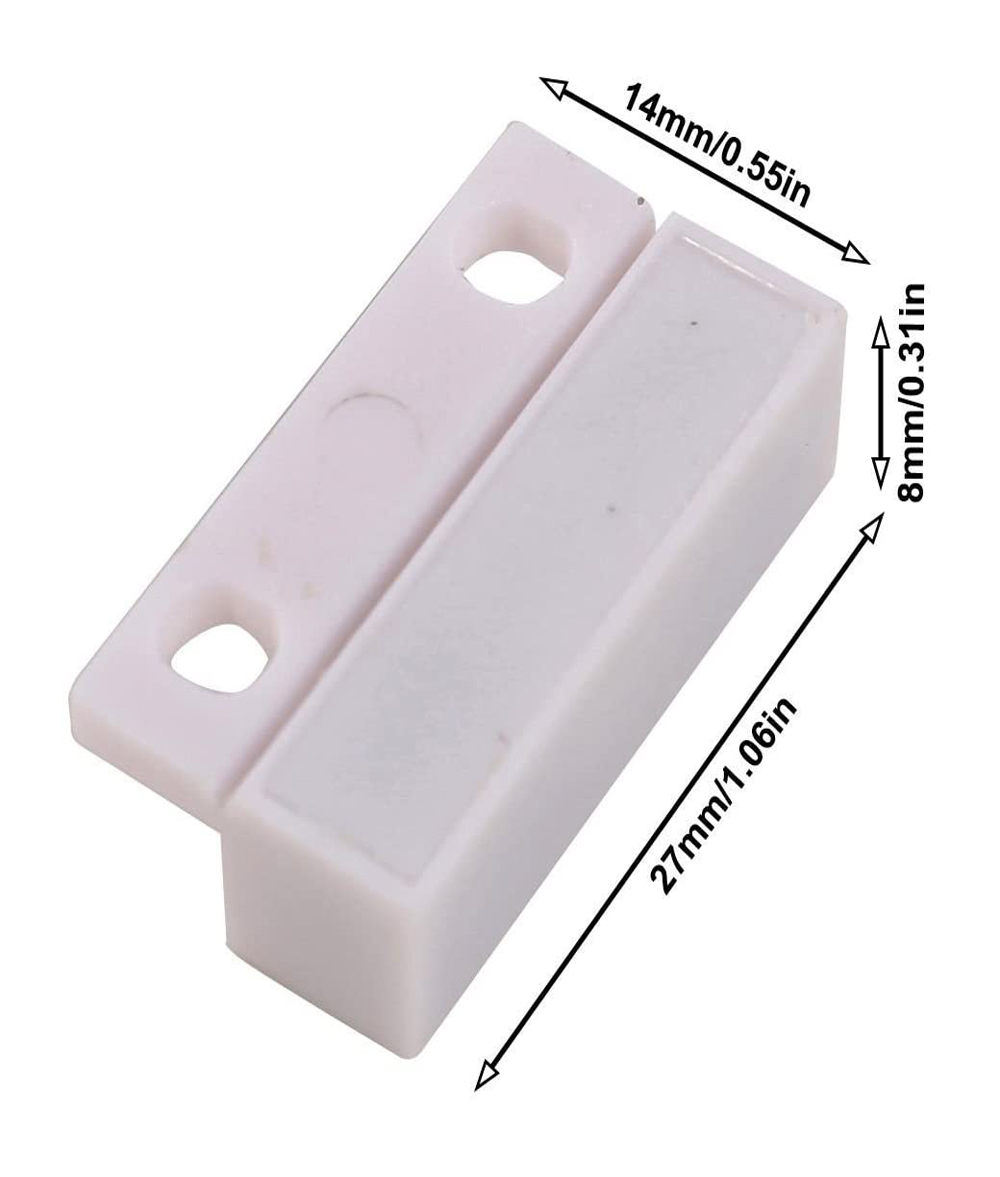

• Dimensions: 27x14x8mm / 1.06″x0.55″x0.31″
• Working distance: 15-25mm / 0.59″-1″
• Dry Contact Output: NC (Normal closed)
• 10W/100VDC/0.5A in MAX
• Color: White
• Housing Material: Plastic
• Cable material: 1007UL #24AWG
• Cable length: 250mm / 9.84in
• Product: 8g / 0.28oz

Package:

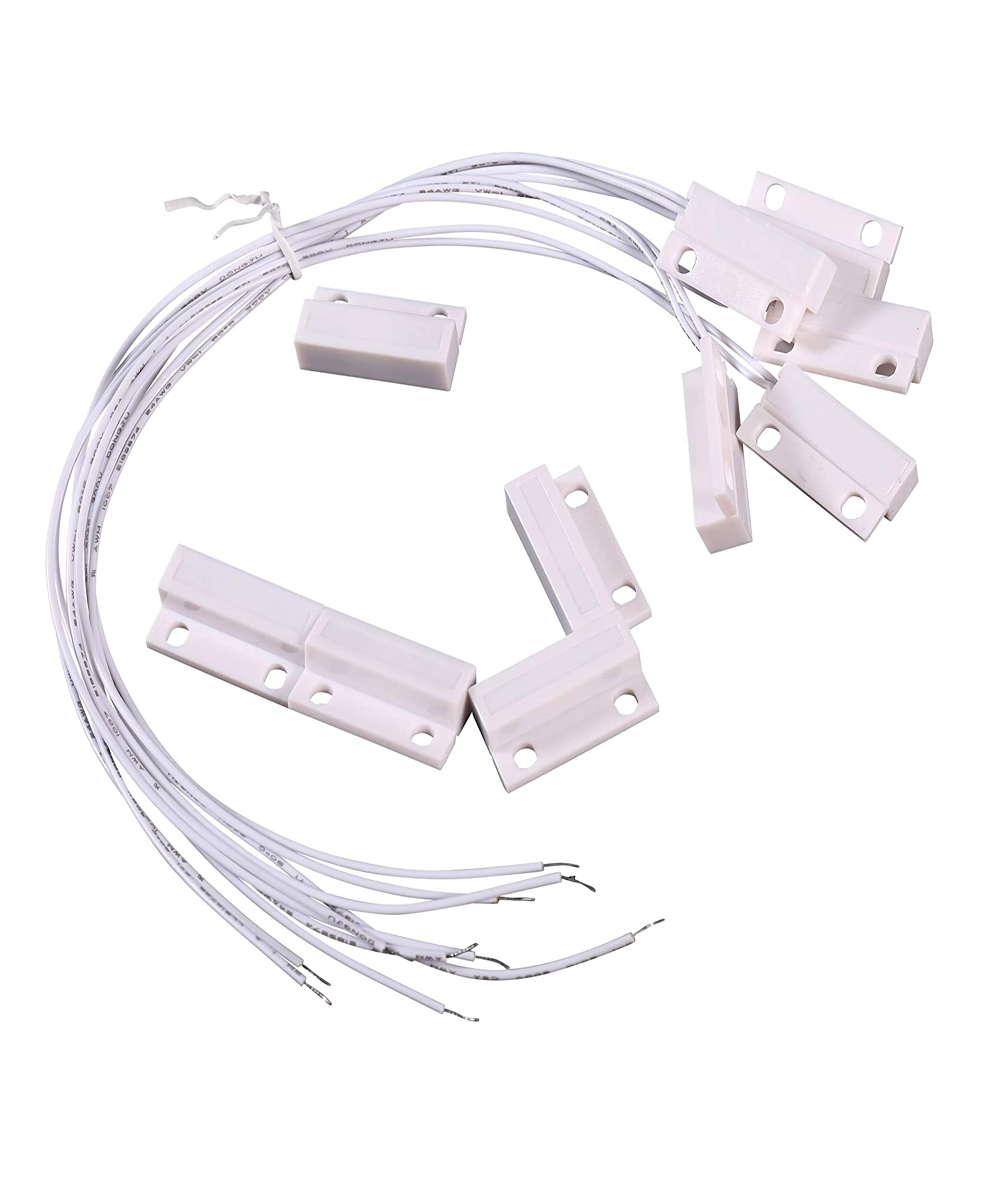

• 5 x Wired contact (Screws included)
