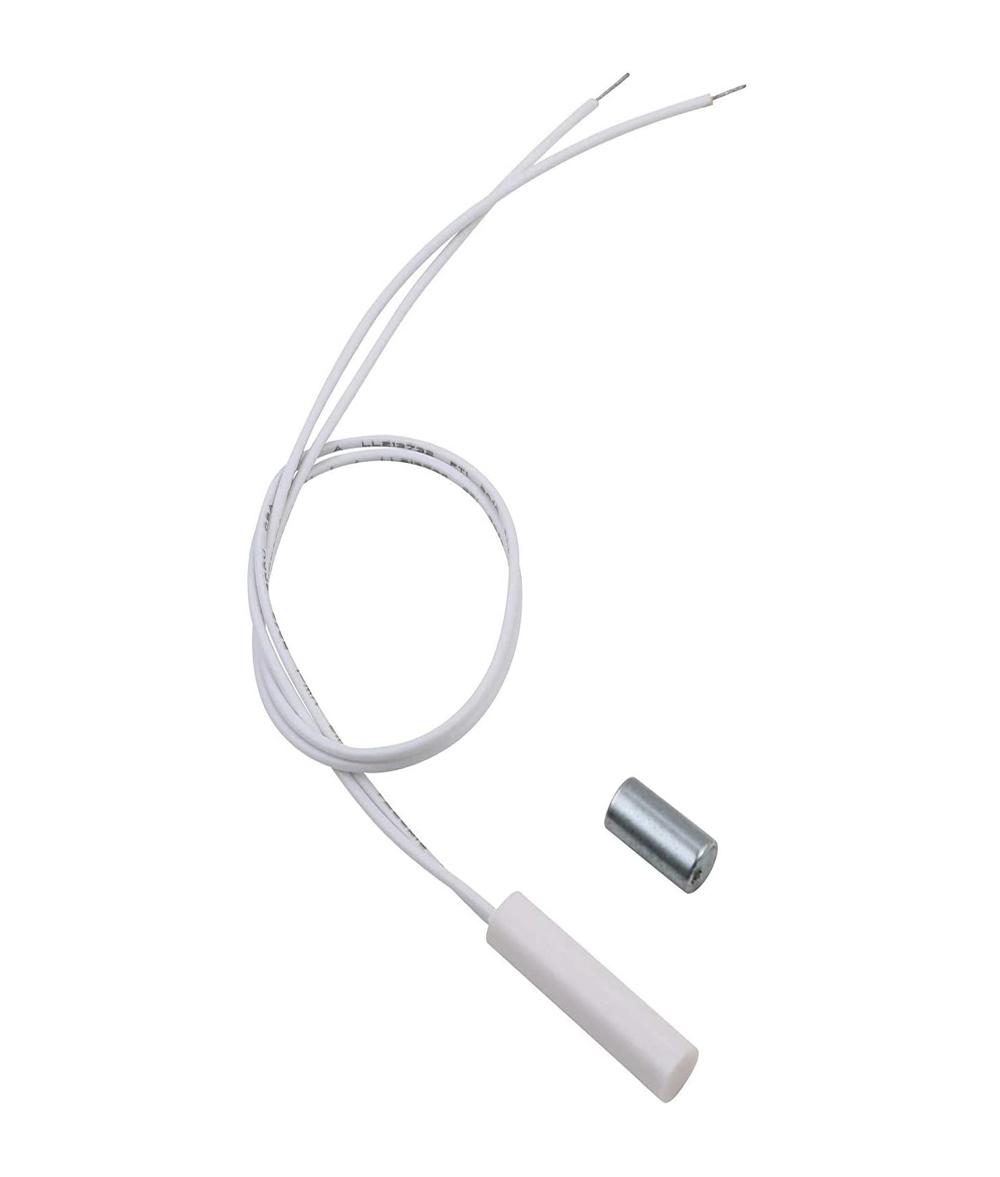

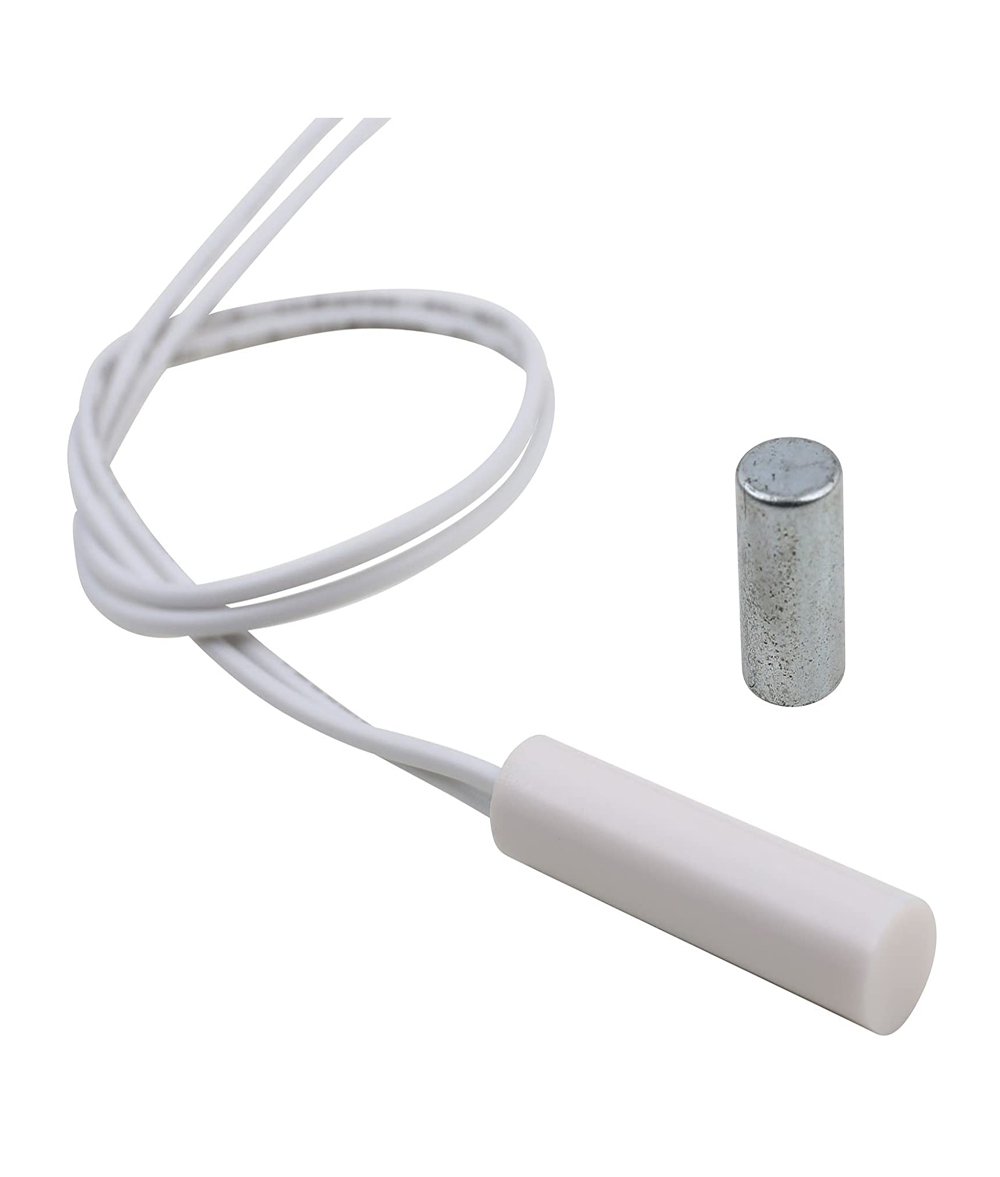

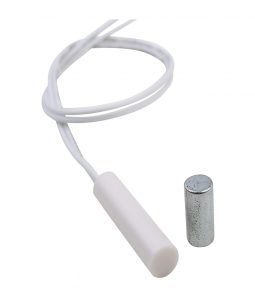

Concealed Mounted Magnetic Wired Wooden Door Contact Sensor Detector Switch (Pack of 5)

$14.25

This concealed mounted magnetic wired door contact is used to detect door if it is opened or moved, idea for wooden door or window. It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility.

SKU: UT-RZ-34B Categories: ,

Concealed Mounted Magnetic Wired Wooden Door Contact Sensor Detector Switch (Pack of 5)



Features:

  • Wired wooden door sensor
  • Idea for wooden door or window
  • Detecting door gap by opening, Be used to detect door if it is opened or moved.
  • It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility
  • Leads with 1007UL #24AWG 260mm

Specifications:

UT RZ 34B 2

  • Housing material: ABS

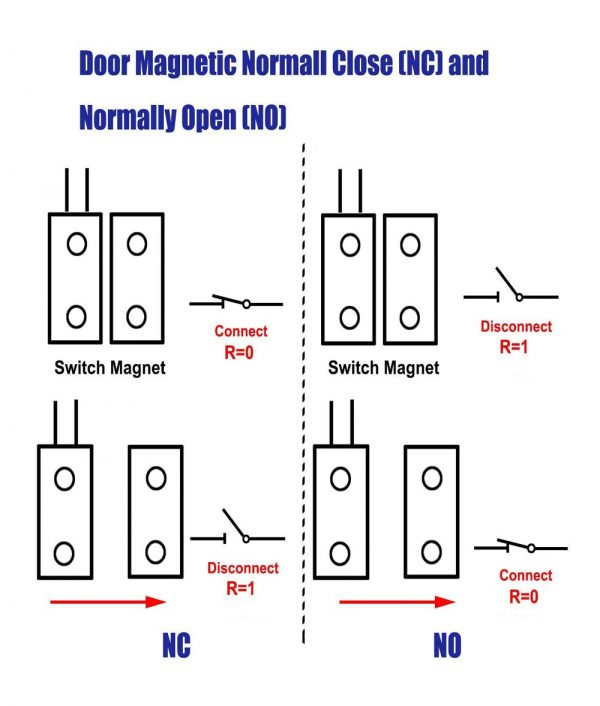

  • NC,COM (NORMALLY CLOSED):When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
  • Leads with 1007UL #24AWG 260mm
  • Max. Curent: 0.5A
  • Max. Voltage: 100VDC
  • Max. Power: 10W
  • Operating Distance: 15-25mm / 0.59-0.98in
  • Switch size (Ø x H): 6.8-27mm / 0.27-1.06in

Note:

  • Please allow slight size differences due to manual measurement

Package:

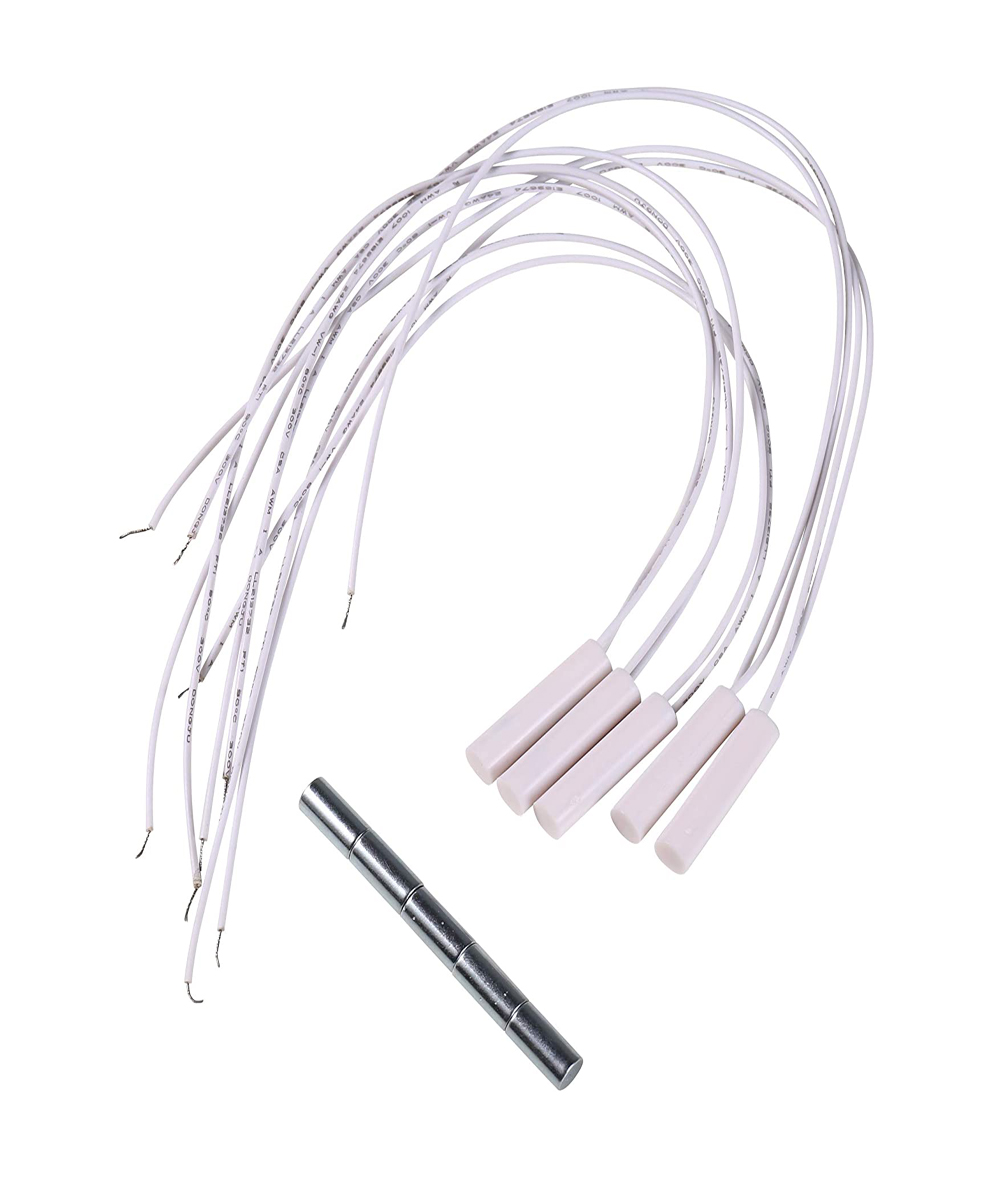

  • 5 x Wired Door Contact
