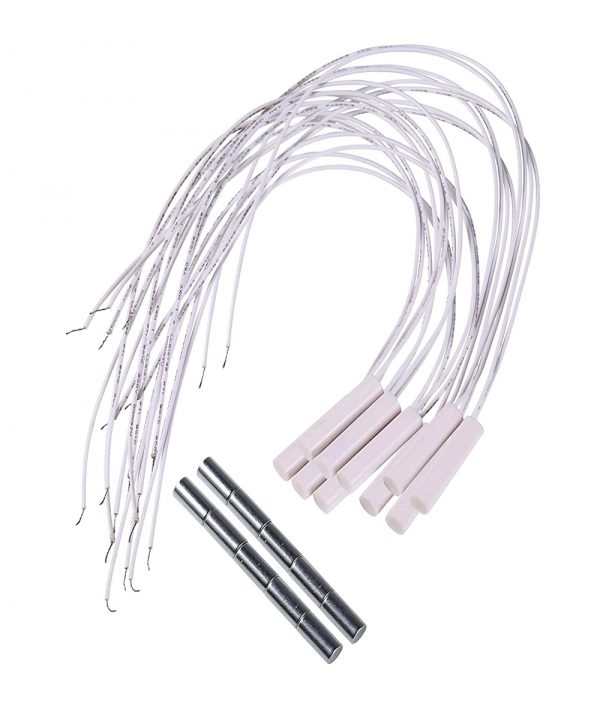

Concealed Mounted Magnetic Wired Wooden Door Contact Sensor Detector Switch (Pack of 10)

$22.00

This concealed mounted magnetic wired wooden door contact is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibilit. Detecting door gap by opening, it is used to detect door if it is opened or moved.

SKU: UT-RZ-34B-10Pack Categories: ,

Concealed Mounted Magnetic Wired Wooden Door Contact Sensor Detector Switch (Pack of 10)



Features:

  • Wired wooden door sensor
  • Idea for wooden door or window
  • Detecting door gap by opening, Be used to detect door if it is opened or moved.
  • It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility
  • Leads with 1007UL #24AWG 260mm

Specifications:

UT RZ 34B 20Pack 2

  • Wired wooden door sensor
  • Housing material: ABS
  • NC,COM (NORMALLY CLOSED):When the magnet together, the circuit is conductive (light on); When the magnet separate, the circuit is not conductive (light off).
  • Leads with 1007UL #24AWG 260mm
  • Max. Curent: 0.5A
  • Max. Voltage: 100VDC
  • Max. Power: 10W
  • Operating Distance: 15-25mm / 0.59-0.98in
  • Switch size (Ø x H): 6.8-27mm / 0.27-1.06in
  • Idea for wooden door or window
  • Detecting door gap by opening, Be used to detect door if it is opened or moved.
  • It is widely used for monitoring and security system, with high reliability, small size, easy installation and strong flexibility

Note:

  • Please allow slight size differences due to manual measurement.

Package:

  • 10 x Wired Door Contact
