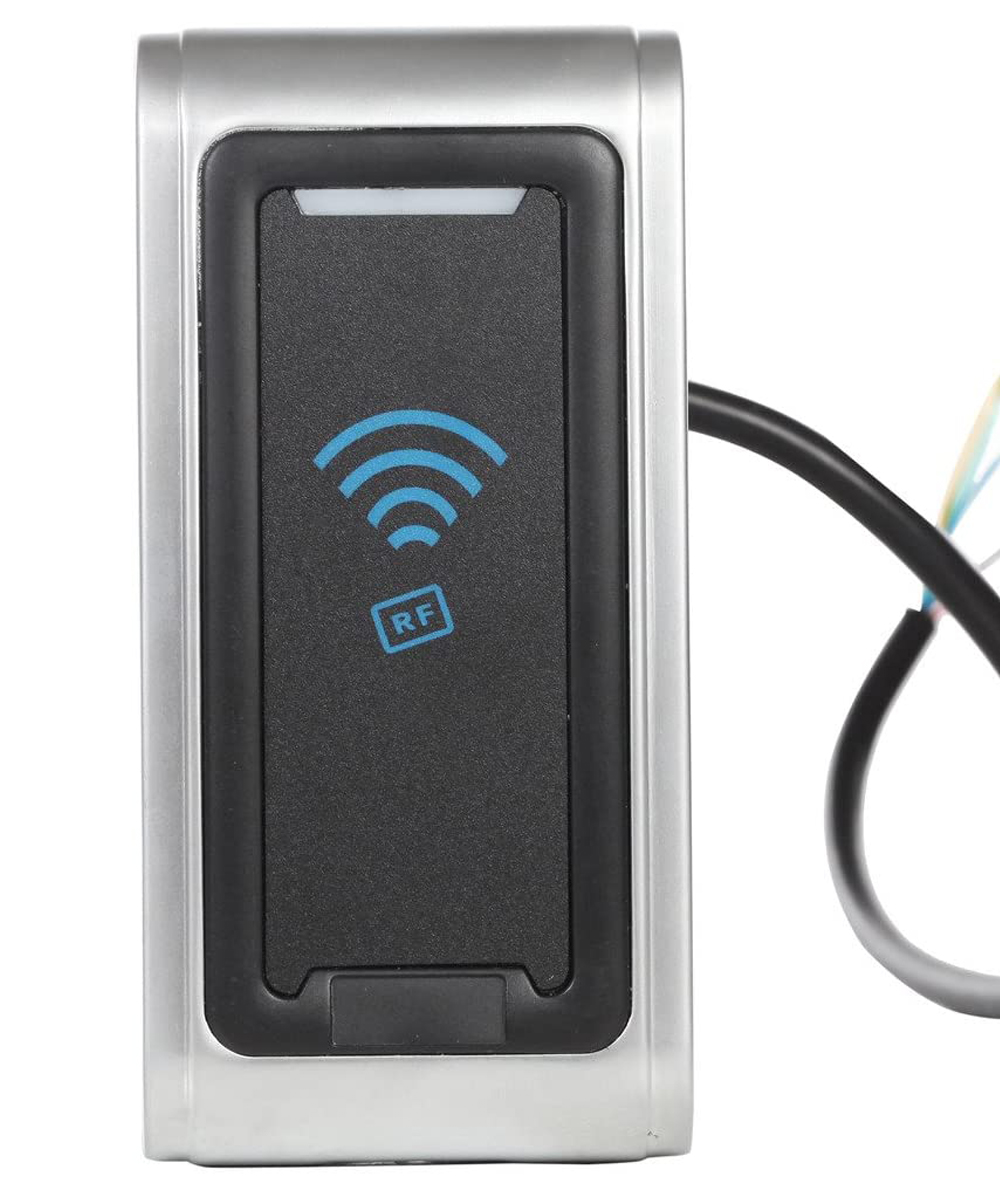

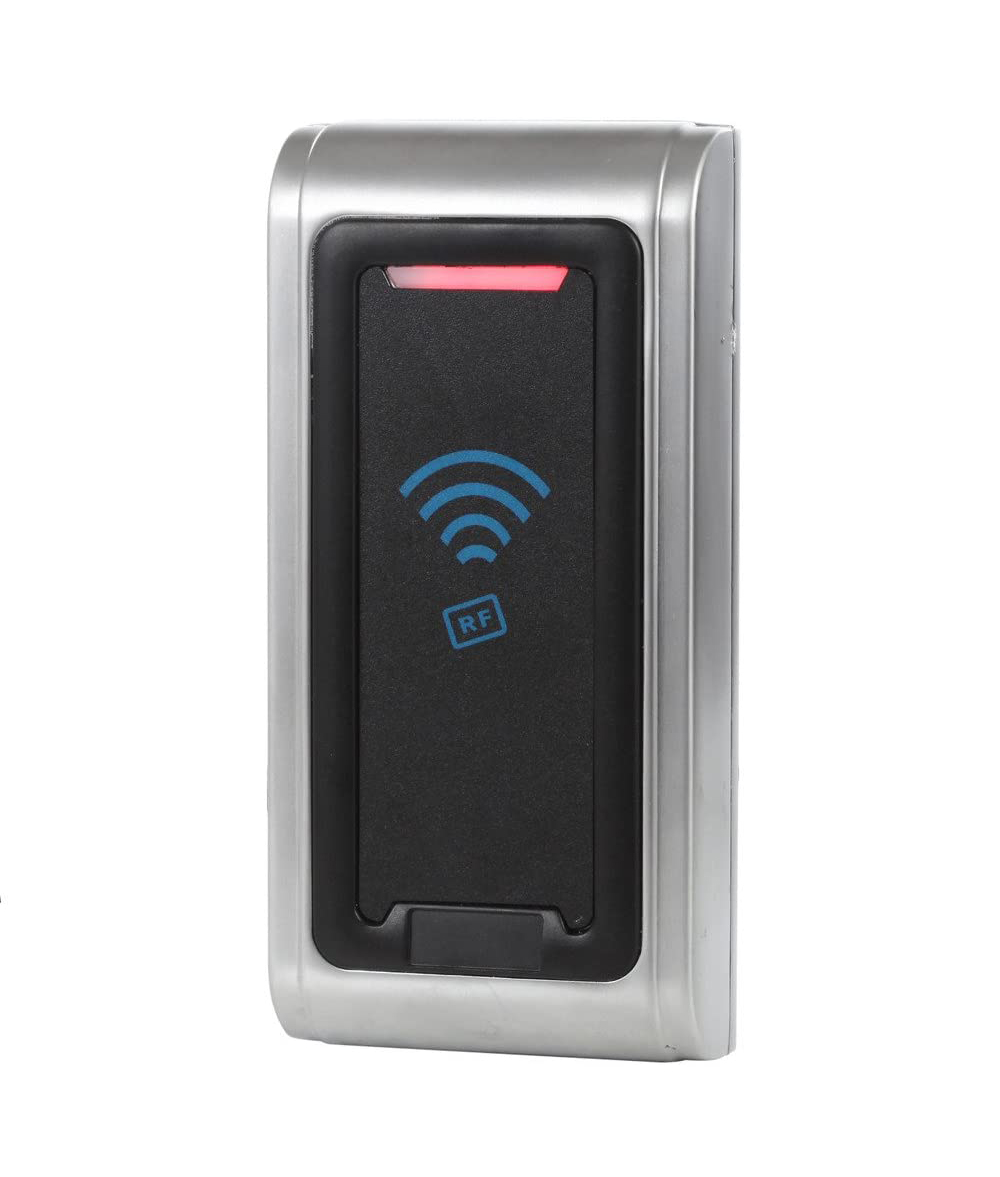

Waterproof IP65 Wiegand 26 bit 125KHz RFID EM ID Metal Shell Card Reader for Access Control System
- Type: Wiegand 26-Bit
- Card Type: EM-ID Card (Can’t support HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell, etc)
- Frequency: 125Khz
- Input Voltage: DC 9-16V
- Appearance: metal structure,safe,anti-vandal
- Protective Performance: IP65 (fully-potted), tamper alarm

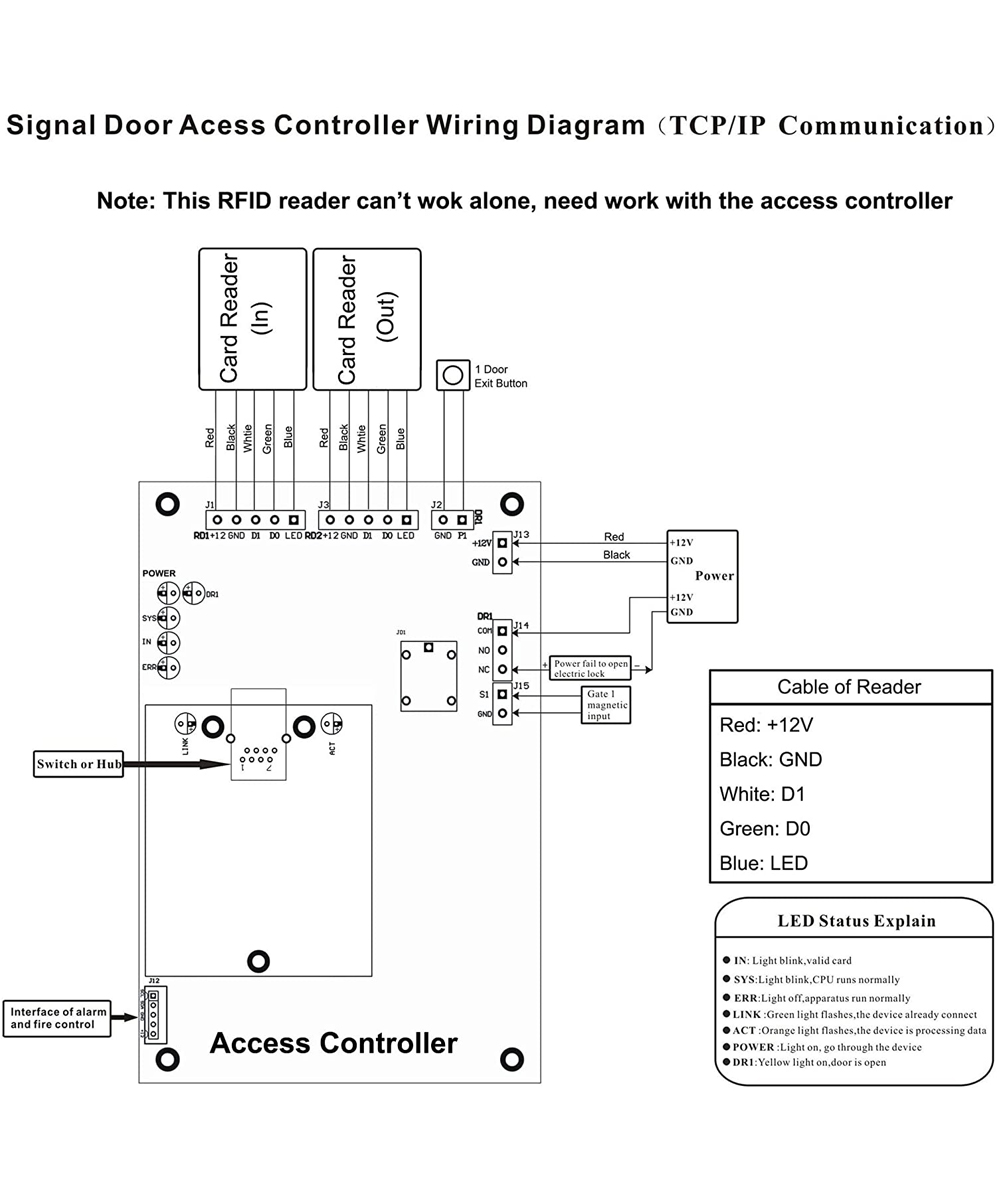

- This RFID card reader needs to work with Wiegand protocol access controller, such as control board, fingerprint device or master controller and it can’t work alone.
- Supply Voltage: DC9-16V
- Standby Current: <80mA
- Support Cards: Stand EM card
- Response time: 0.1s (typical)
- Card Reading Range: 3-6cm / 1.18-2.36in
- Operating Temperature: -40℃~60℃ / -40℉~140℉
- Operating Humidity: 10-90%
- Level of Protection: IP65
- Transmit Distance: 100m / 328ft
- Dimension: L120xW80xH25(mm) / L4.72xW3.15xH0.98(in)
- Please notice that our wiegand 26 reader can’t be compatible with some encrypted cards, such as HID, Indala,Cobra, APCiK ,Paradox,Radio,Honeywell, etc
- Can’t work alone, need work with access control panel.
- 1 x Card Reader
- 1 x User Manual
- 2 x Rubber Bungs
- 2 x Self Tapping Screws
