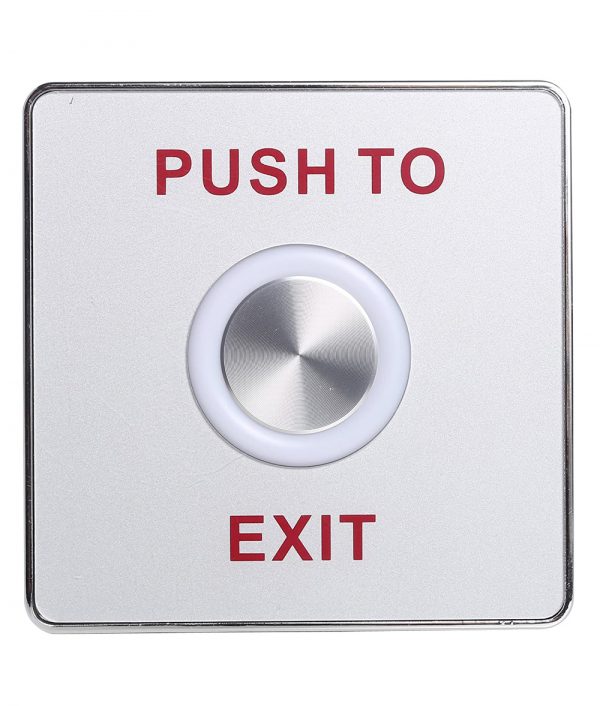

Piezoelectric Push Release Out Unlock Exit Button Switch Sensor W/LED Light

$25.00

  • Piezoelectric Design, No Mechanical Fault
  • LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
  • Special Design for Top Grade Office , Best Choice for Sophisticated group
  • Output Contact: NO/COM
  • Waterproof Level: IP-68
SKU: UT-PBS-821B(LED) Categories: ,

Piezoelectric Push Release Out Unlock Exit Button Switch Sensor W/LED Light



Features:

  • Piezoelectric Design, No Mechanical Fault
  • LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
  • Special Design for Top Grade Office , Best Choice for Sophisticated group
  • Output Contact: NO/COM
  • Waterproof Level: IP-68
  • 24K Level Golden Color, Shining Silver Color Optional

Specifications:

  • Dimensions: 86Lx86Wx16H(mm) / 3.39Lx3.39Wx0.63H(in)
  • Voltage: 12-24V
  • Current: Standby 20mA,Operation: 60mA
  • Output Contact: NO/COM
  • Current Rating: 1A@30VDC, 0.5A@125VDC
  • Waterproof Level: IP-68

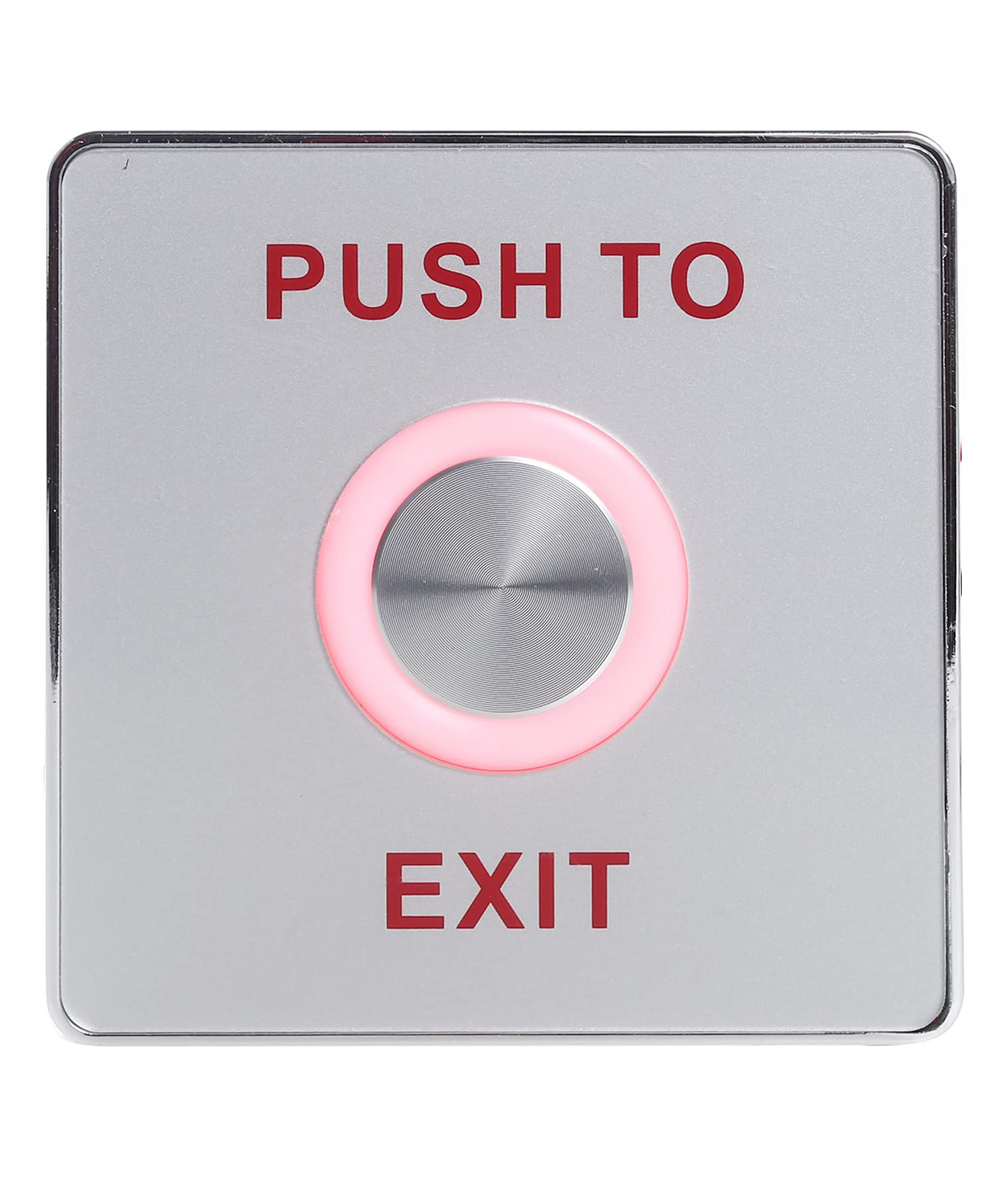

  • LED Status: Red(Standby), Green(Operation),

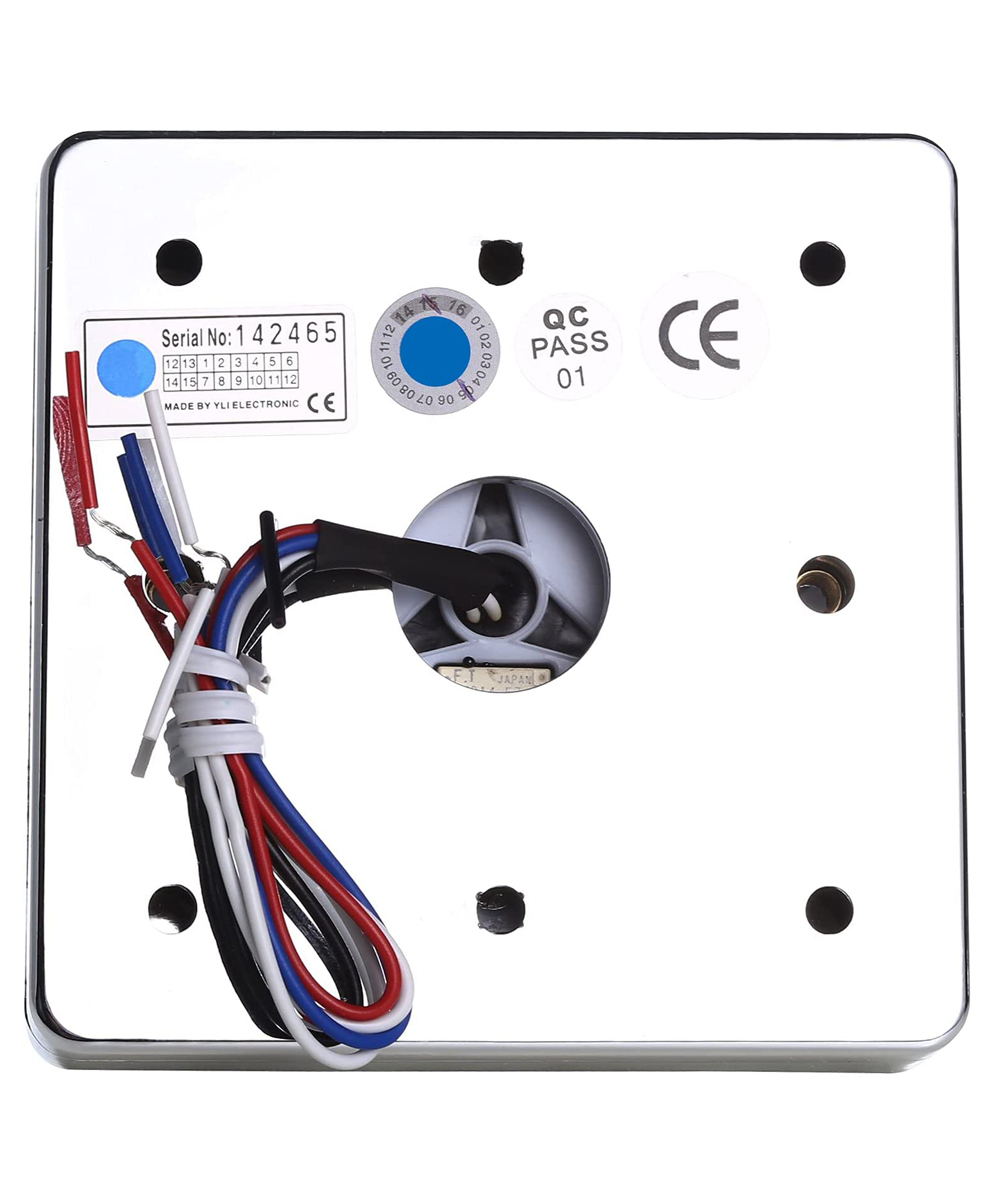

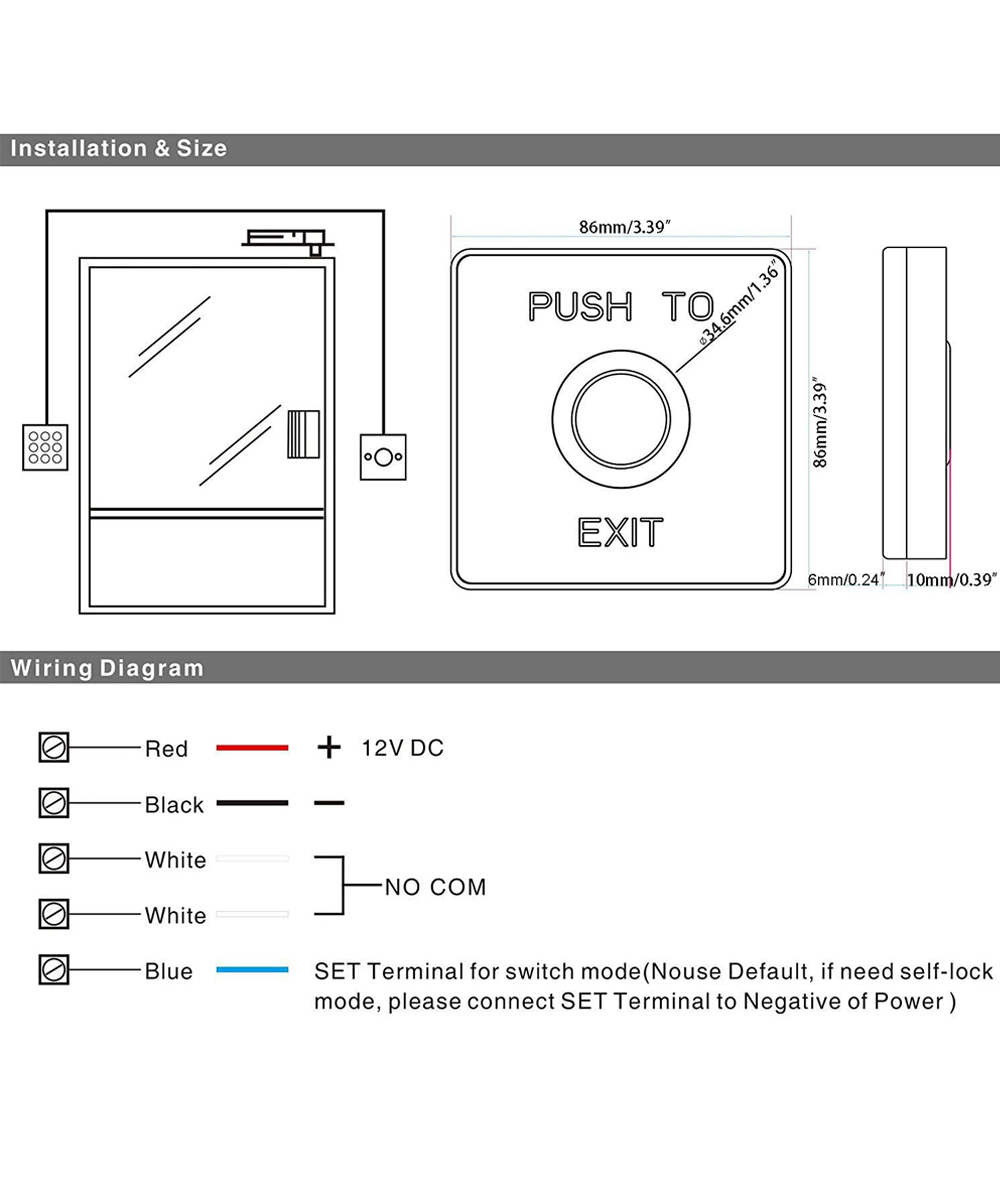

  • Wire color: Red(Positive), Black-Negative, White-NO/COM, Blue-SET
  • Terminal for switch mode (Nouse Default, if need self-lock mode, please connect SET Terminal to Negative of Power )
  • Weight: 0.09kg / 0.2lb

Package:

  • 1 x Exit Button

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.



Weight 0.09 kg
Dimensions 8.6 × 8.6 × 1.6 cm
