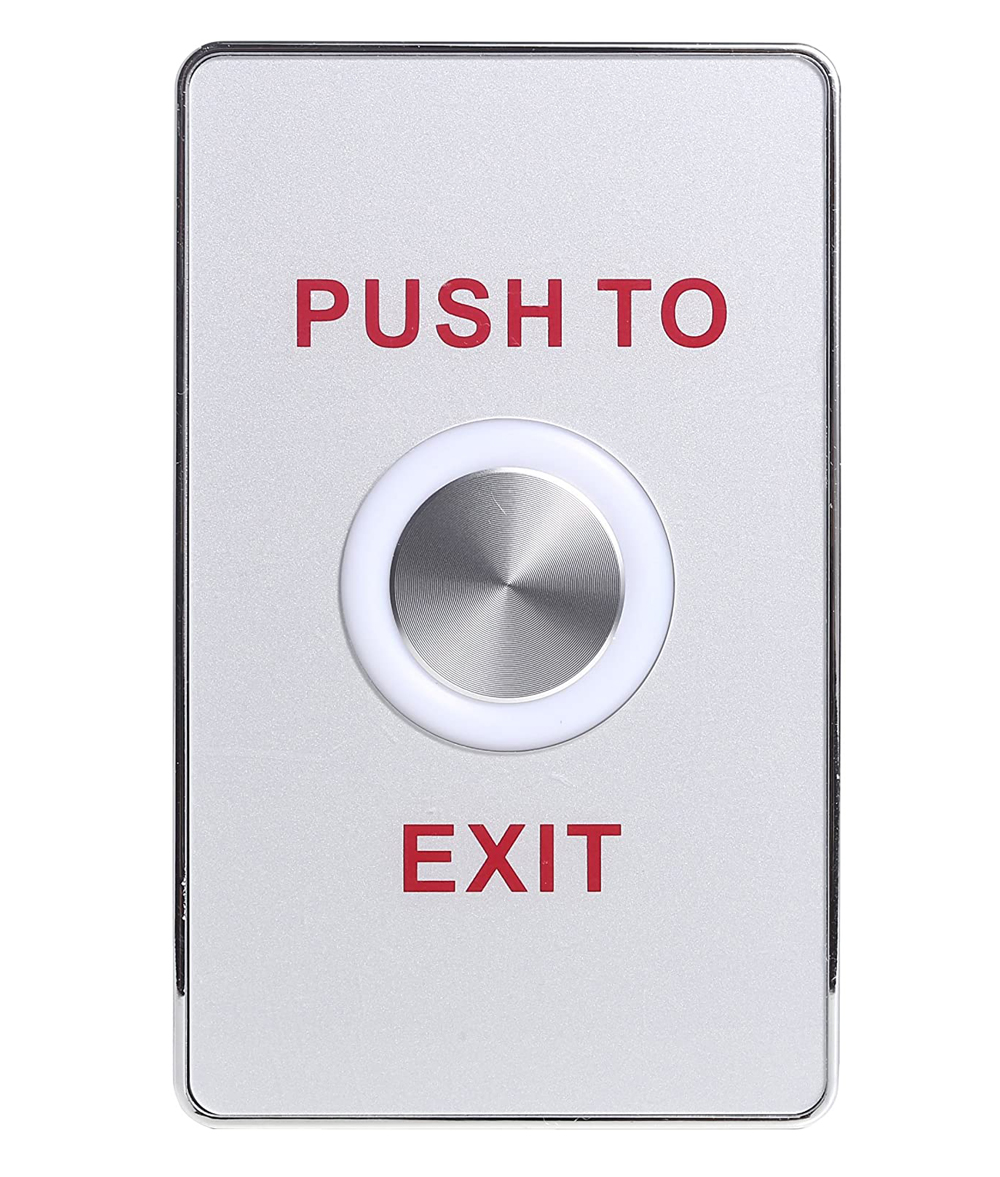

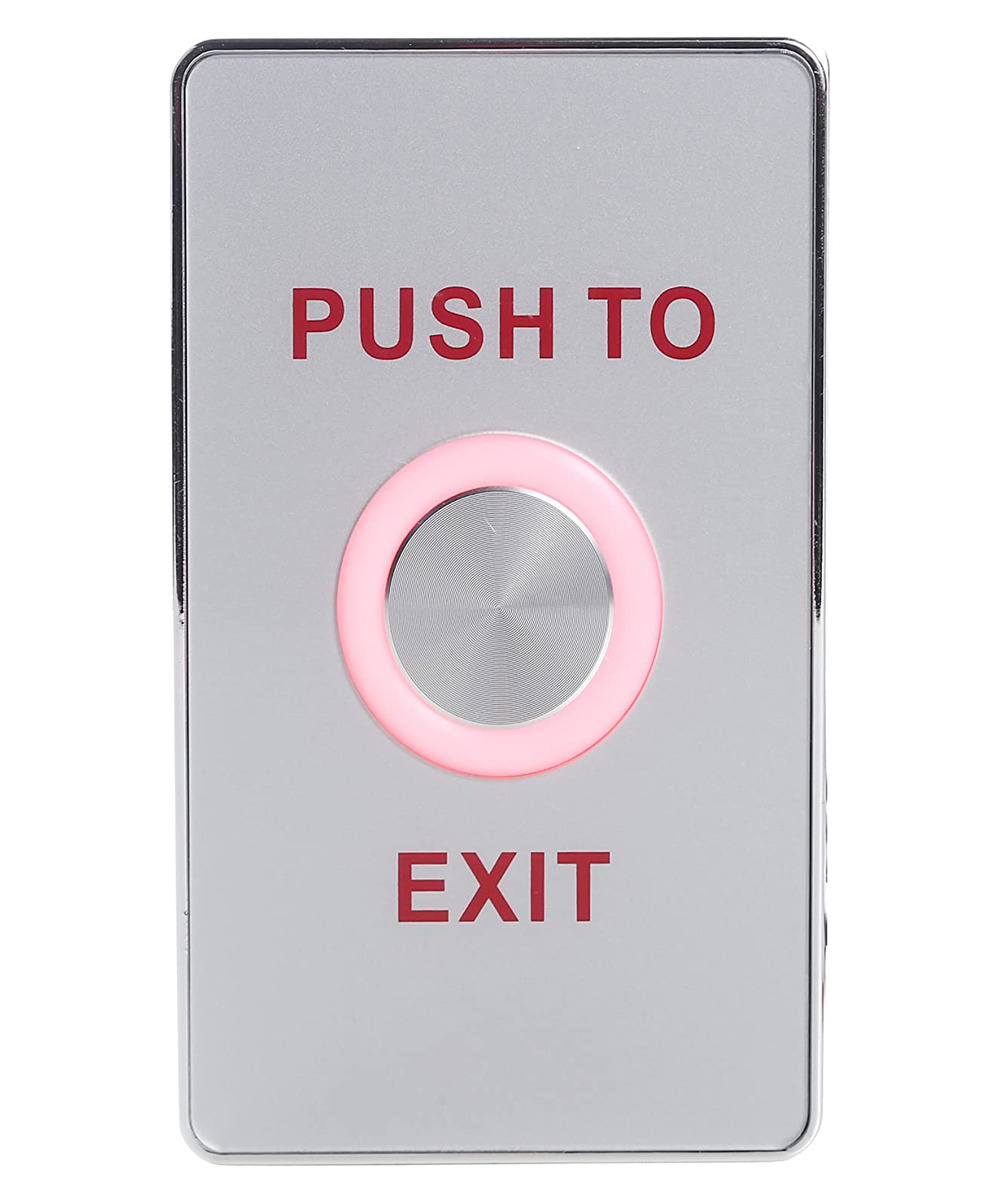

Piezoelectric Release Out Unlock Push to Exit Button Switch Sensor with LED Light

$26.99

  • Piezoelectric Design, No Mechanical Fault
  • LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
  • Special Design for Top Grade Office , Best Choice for Sophisticated group
  • Output Contact: NO/COM
  • Waterproof Level: IP-68
SKU: UT-PBS-821A(LED) Categories: ,

Piezoelectric Release Out Unlock Push to Exit Button Switch Sensor with LED Light



Features:

  • Piezoelectric Design, No Mechanical Fault
  • LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
  • Special Design for Top Grade Office , Best Choice for Sophisticated group
  • Output Contact: NO/COM
  • Waterproof Level: IP-68

Specifications:

  • Dimensions: 114Lx70Wx16H(mm) / 4.49Lx2.76Wx0.63H(in)
  • Voltage: 12-24V
  • Current: Standby 20mA,Operation: 60mA
  • Output Contact: NO/COM
  • Current Rating: 1A@30VDC, 0.5A@125VDC
  • Waterproof Level: IP-68

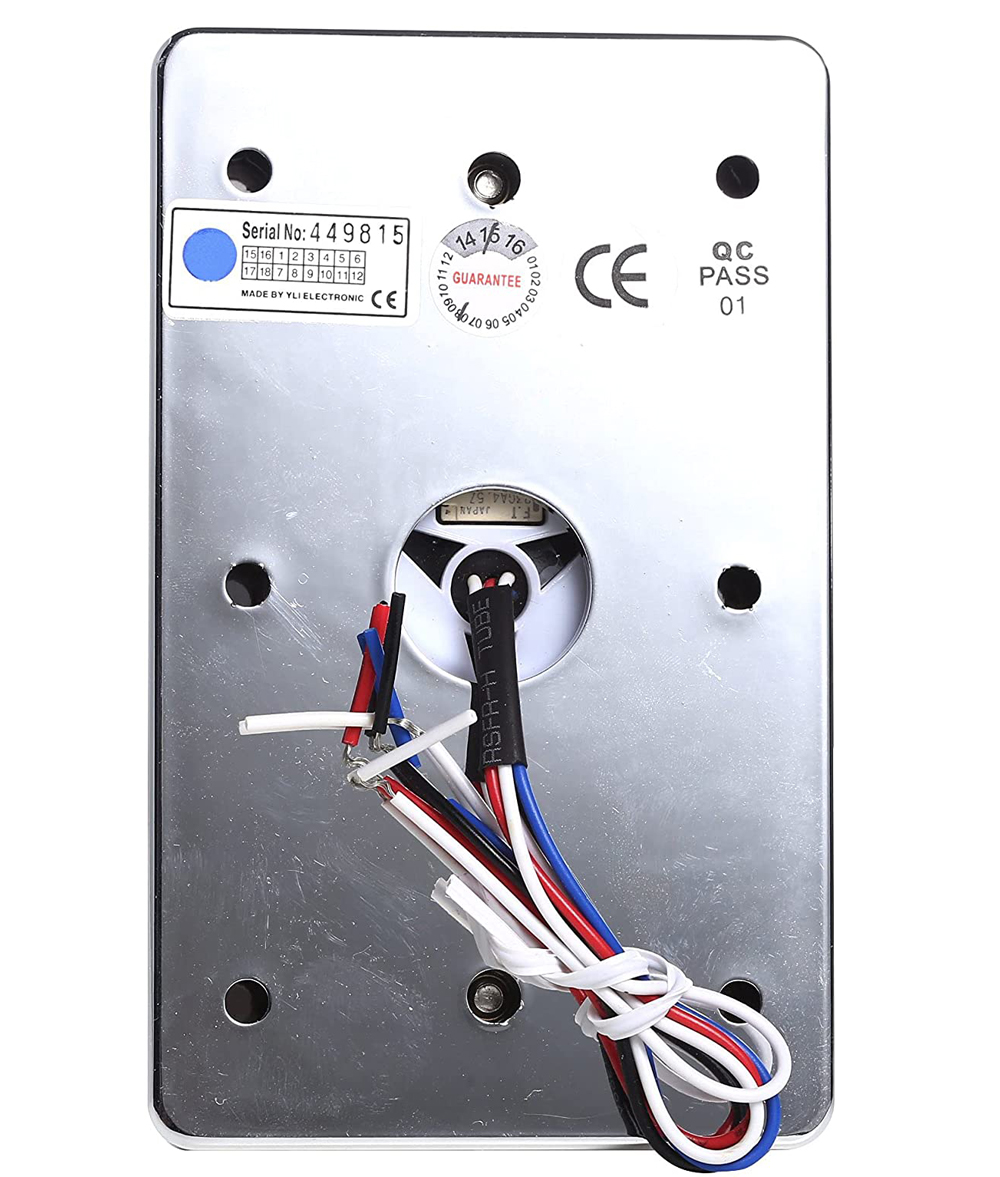

  • LED Status: Red(Standby),Green(Operation) Wire color: Red(Positive),Black-Negative,White-NO/COM,Blue-SET
  • Terminal for switch mode (Nouse Default, if need self-lock mode, please connect SET Terminal to Negative of Power)
  • Weight: 0.1kg / 0.22lb

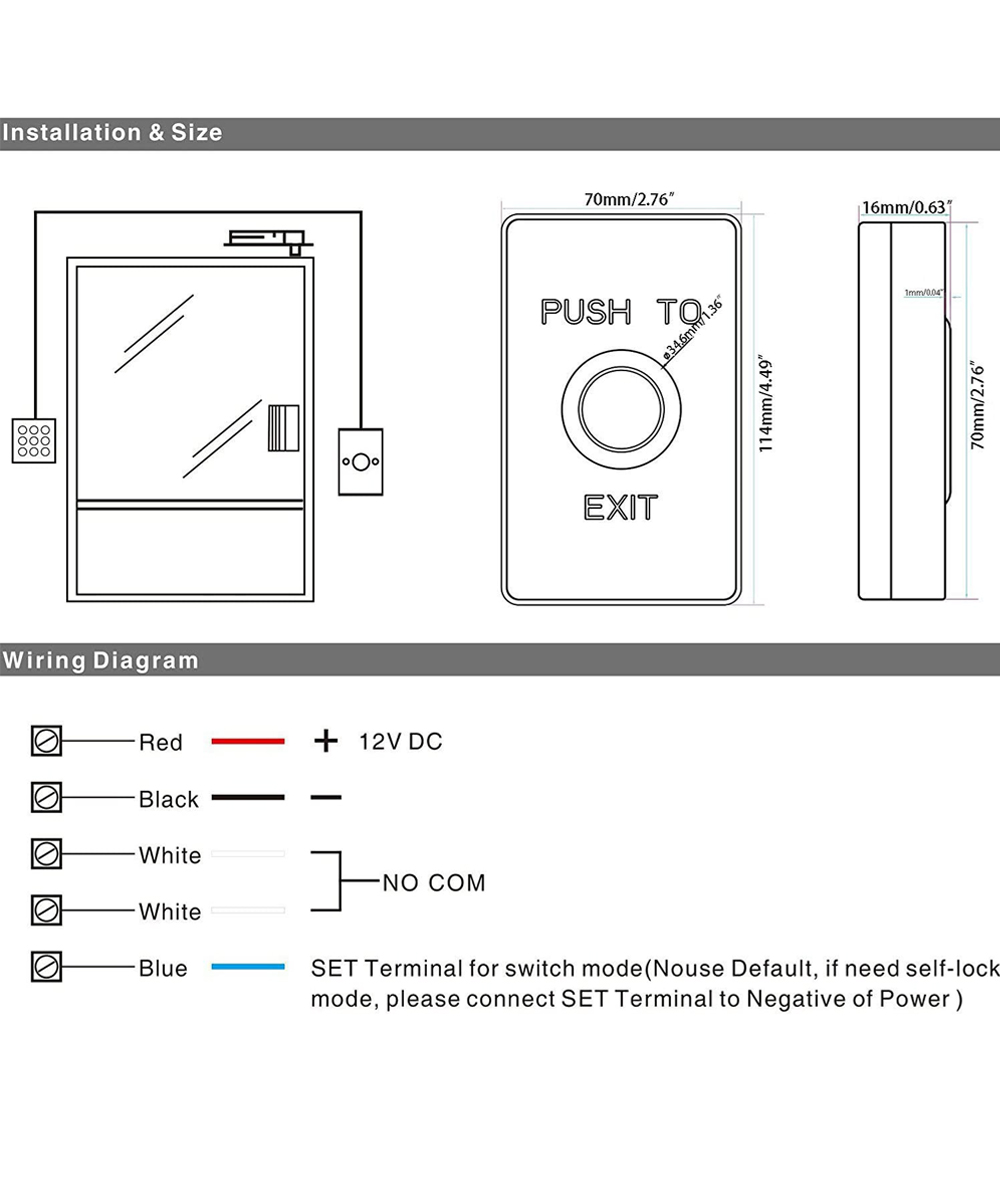

Installation:

Package:

  • 1 x Exit Button

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.

Weight 0.1 kg
Dimensions 11.4 × 7.0 × 1.6 cm
