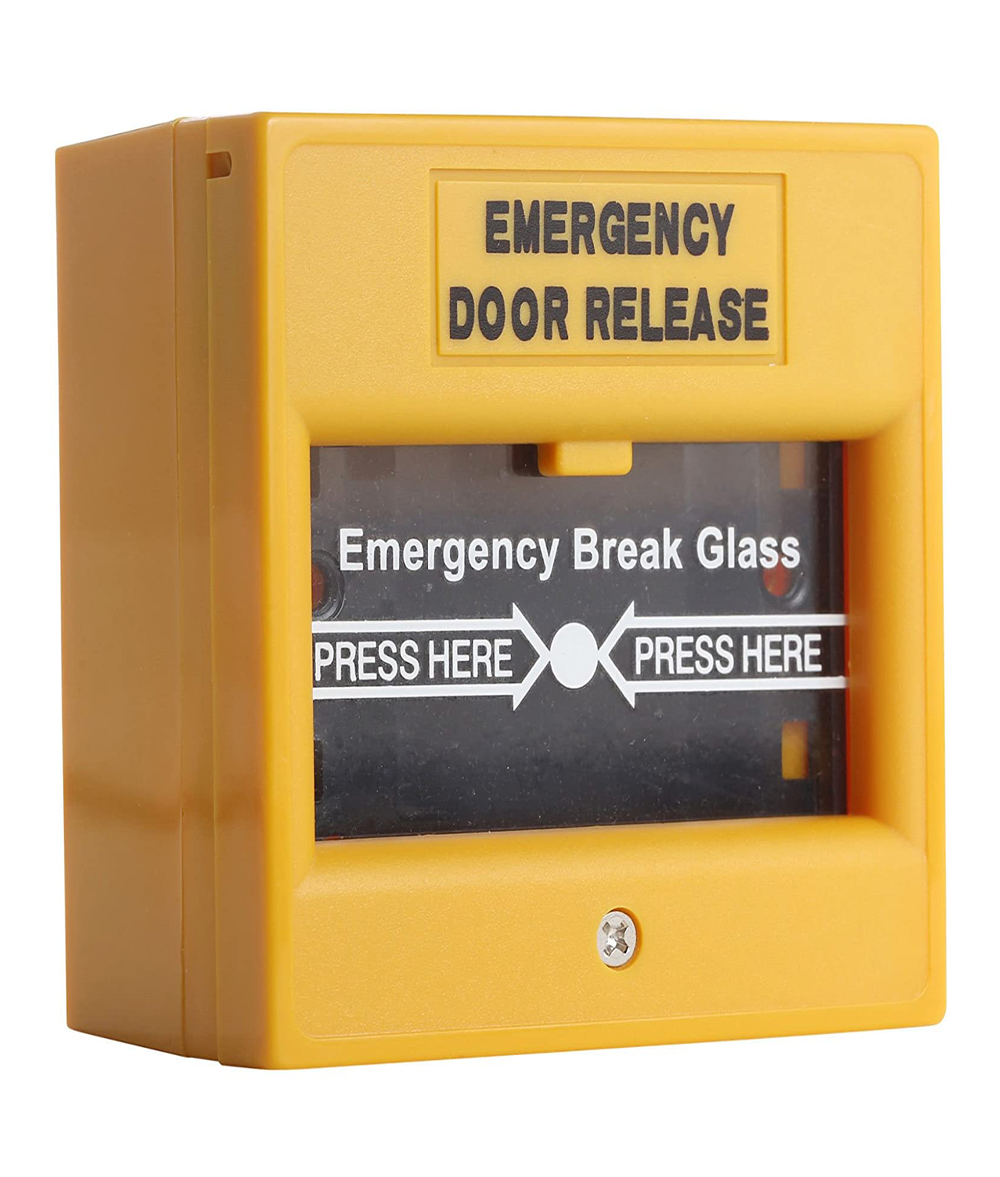

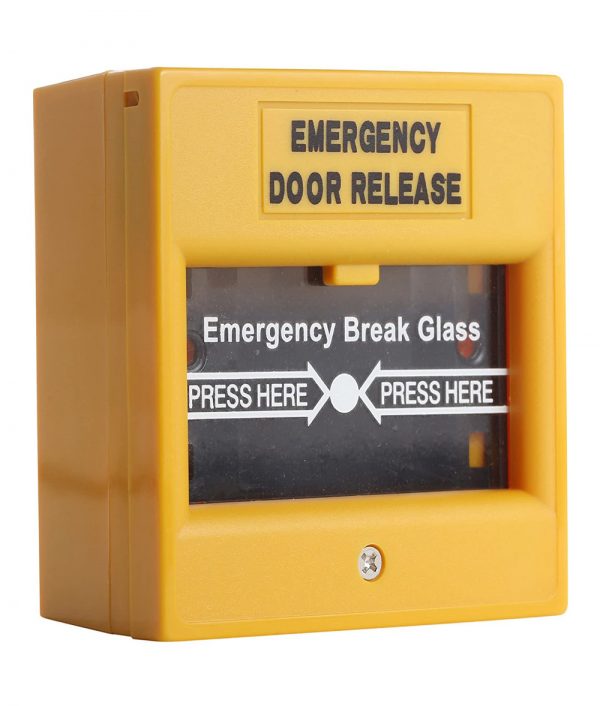

Wired Security Button with Hands Break Glass for Emergency Fire Alarm Release-Orange

Wired Security Button with Hands Break Glass for Emergency Fire Alarm Release-Orange

Features:

• Standard Structure: Fireproof Material, Easy to install
• Current Rating: 3A@36VDC Max
• Output contact: NO/NC/COM
• Sandblast Panel with Elegant Style
• Suitable for door: Exit Door, Emergence Door
• Use the Fireproof Material, Accord with the Safe Request
• Different colours options for different occasions
• This button is a kind of specialism conflagration set used for artificial start in the system of self-motion conflagration, Eyewitness only need to broke face-plate glass of conflagration button in strength. Then can make conflagration signal sending to the controller and give out the part of conflagration. At one time,can use to start conflagration equipment of message indicator,alarm bells straightly,etc.

Specifications:

• Dimensions: 86Lx86Wx50H(mm) / 3.39″x3.39″x1.97″
• Standard Structure: Fireproof Material, Easy to install
• Current Rating: 3A@36VDC Max
• Output contact: NO/NC/COM
• Mechanical Lifespan: 100000 tested
• Suitable for door: Exit Door, Emergence Door
• Optional Accessories: Glass, Cover
• Operating temp: -10℃~+55℃(14℉-131℉)
• Operating humidity: 0-95%(relative humidity)
• Material Selection: Fireproof Material, Sandblast Finished
• Color: Orange
• Weight: 0.16kg / 0.35lb

Package:

• 1 x Button
