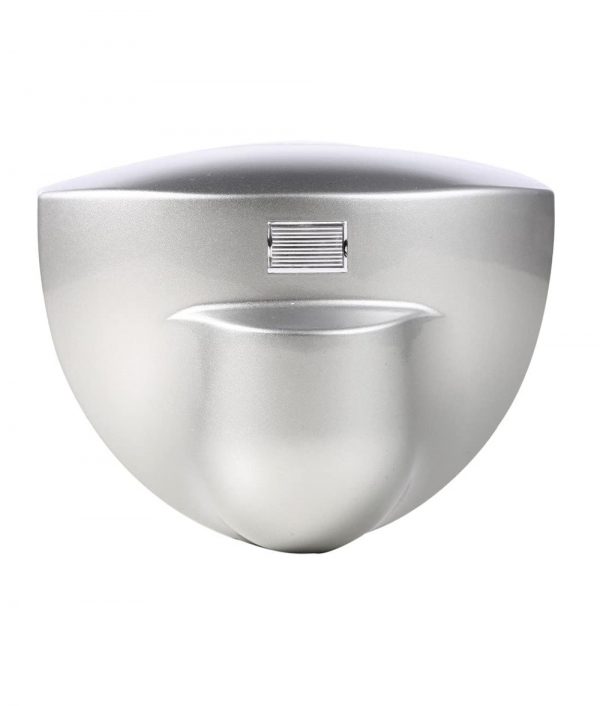

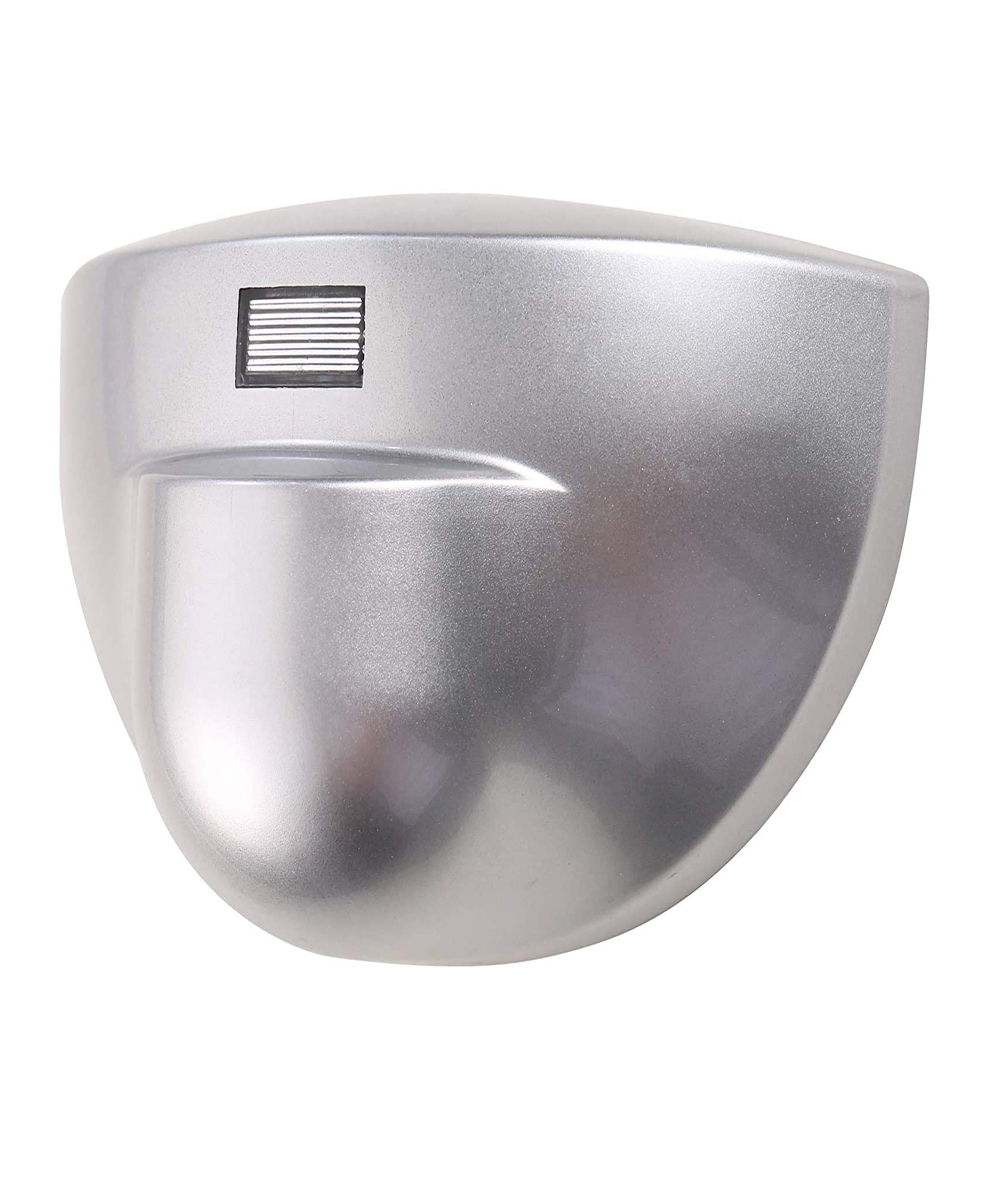

Request to Exit Microwave Sensor Motion Detector for Automatic Door Control System

Request to Exit Microwave Sensor Motion Detector for Automatic Door Control System

Features:

• Technology: Microwave & Microwave Disposer
• Frequency: 24.125Ghz
• Installation Height: Max. 4m / 13.1ft
• Detection Mode: Motion
• Min Detection Speed: 5cm/s(1.97in/s)

Specifications:

• Technology: Microwave & Microwave Disposer
• Frequency: 24.125Ghz
• Transmitting Power: 20dBm EIRP
• Launch Frequency Density: 5mW/cm2
• Installation Height: Max. 4m/13.1ft
• Installation Angle: 0~90 degree(Lengthways), -30~+30 degree(Lateral)
• Detection Mode: Motion
• Min Detection Speed: 5cm(1.97in)/s
• Power: 2W(VA)
• Detection Range: 4(Width)x2(Depth)m / 13.1(Width)x6.6(Depth)ft (Installation Height: 2m/6.6ft)
• Maximum Voltage: 42AC/60V DC
• Maximum Current: 1A
• Maximum Switching Power: 30W(DC)/60VA(AC)
• Retention Time: 0.5S
• Guide Line: 2.5m / 8.2ft
• Working Temperature: -20℃~+55℃ / -4℉~131℉
• Protection Class: IP54
• Sheel Material: ABS plastic
• Color: Silver
• Anti-interference Performance: R&TTE1995/5/EC, EMC 89/366/EEC
• Power Voltage: 12-24V AC/DC
• Size: 120Wx80Hx50D(mm) / 4.72″Wx3.15″Hx1.97″D

Installation:

• Please do the installation in the proper position, installation height within 3.5m.
• Please connect the signal cable with the terminal of automatic door. Brown and Yellow cable: AC/DC 12V-24V
• Green and White cable: Signal output COM/NO

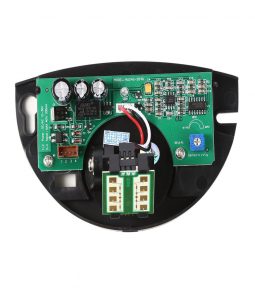

• Take the outer cover off, and fix the screws
• Finish the cable connection and get on power
• Please set the detection range and disjunct or accordingly
• Cover with the lid

Safety Instruction:

• Related part should be operated under low voltage condition. All installation process and maintenance be carried out by the supplier.

Package:

• 1 x Micro Wave Sensor
• 1 x Connection Cable
• 1 x English Manual
