Auto-Door Wireless Remote Control Receive Controller & Hand Pressure Switch Language Japanese Visit the UHPPOTE Store

$58.00

  • ADOPT uniformity ferquency, high stability of wireless signal receiving and sending
  • Siludification of PU varnished shell, dapper apperence with anti-off screw
  • Three point of trigger pressing design to ensure the effective action
  • With lagre capacity output, available to be used with autodoor, electric lock and access controller
  • Function switch with voice indicatior, power indicatior turns green to confirm the validity of operation.
SKU: UT-CNB-202G + CNB-202F Categories: ,

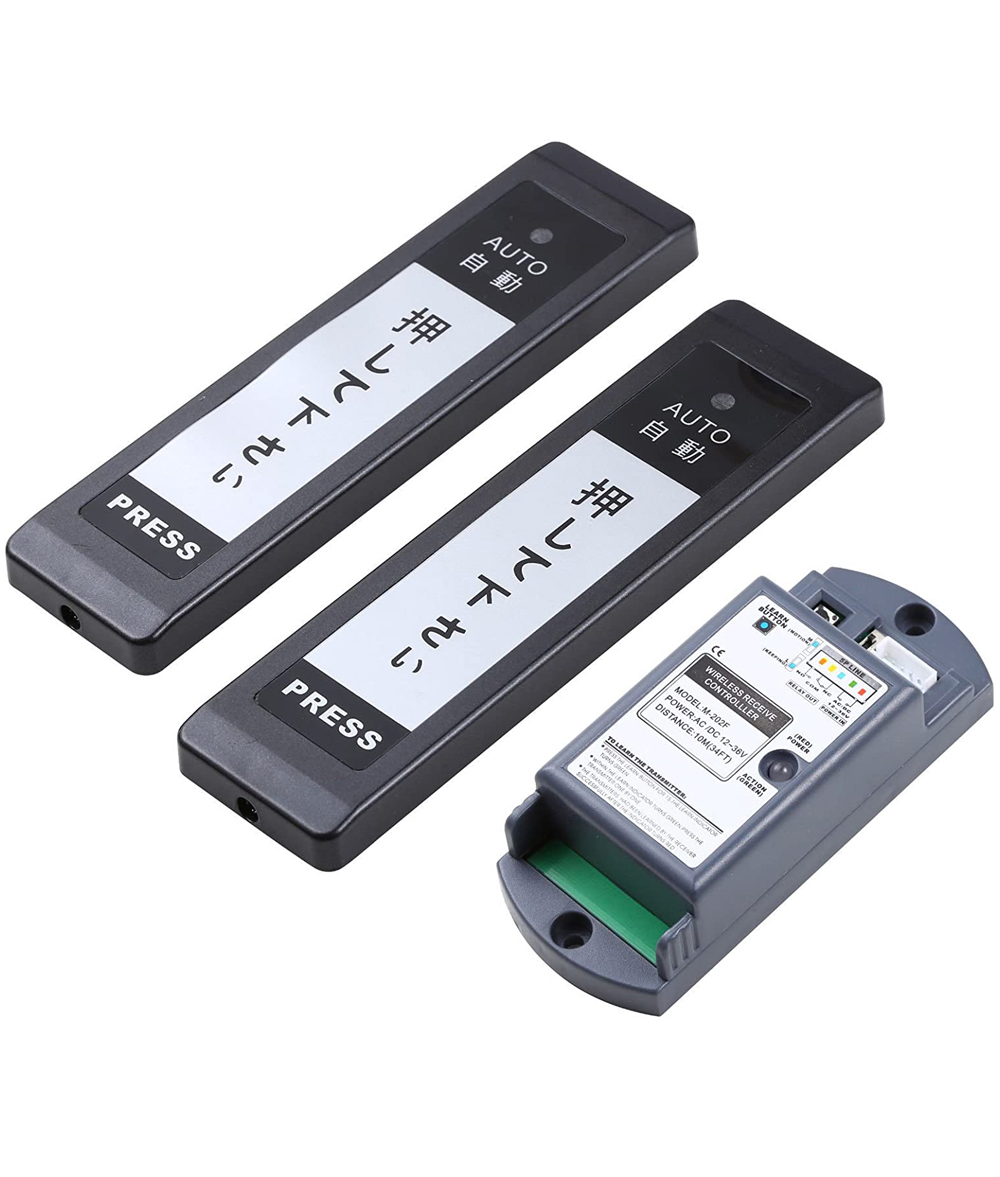

Auto-Door Wireless Remote Control Receive Controller & Hand Pressure Switch Language Japanese



Features:

  • ADOPT uniformity frequency, high stability of wireless signal receiving and sending
  • Siludification of PU varnished shell, dapper apperence with anti-off screw
  • Three point of trigger pressing design to ensure the effective action
  • With lagre capacity output, available to be used with autodoor, electric lock and access controller
  • Function switch with voice indicatior, power indicatior turns green to confirm the validity of operation.

Specifications:

UT CNB 202G CNB 202F 5

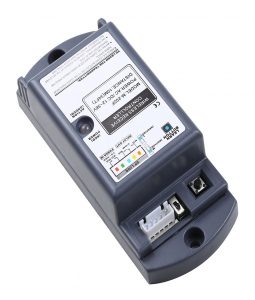

  • Power: AC/DC12-36V (Wireless receiver controller)
  • Current: 15mA(Standby); 80mA(Working)
  • Main contact capacity: 20A 14VDC (Wireless receiver controller), Secondary contact capacity: 1A 24VDC (Wireless receiver controller)
  • Contact pull hold time: 2S (Wireless receiver controller)
  • Battery: 6V (Wireless hand pressure switch)
  • Emission current: 3.9mA (Wireless hand pressure switch)
  • Battery life: approx. 300 days if press 500 times everday (Wireless hand pressure switch)
  • Distance: 10m (34ft)
  • Working temperature: -42℃~45℃ / -43.6℉~113℉, Working humidity: 10~90%RH
  • Hand pressure switch size: 203x40x13mm / 7.99″x1.57″x0.51″(LxWxH), Receiver controller size: 123x50x32mm / 4.84″x1.97″x1.26″ (LxWxH)
  • Package weight: 340g / 0.75lb

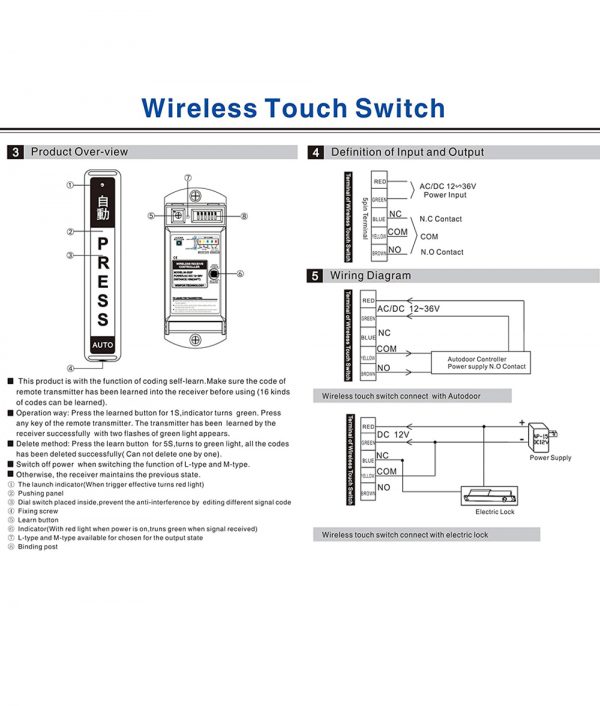

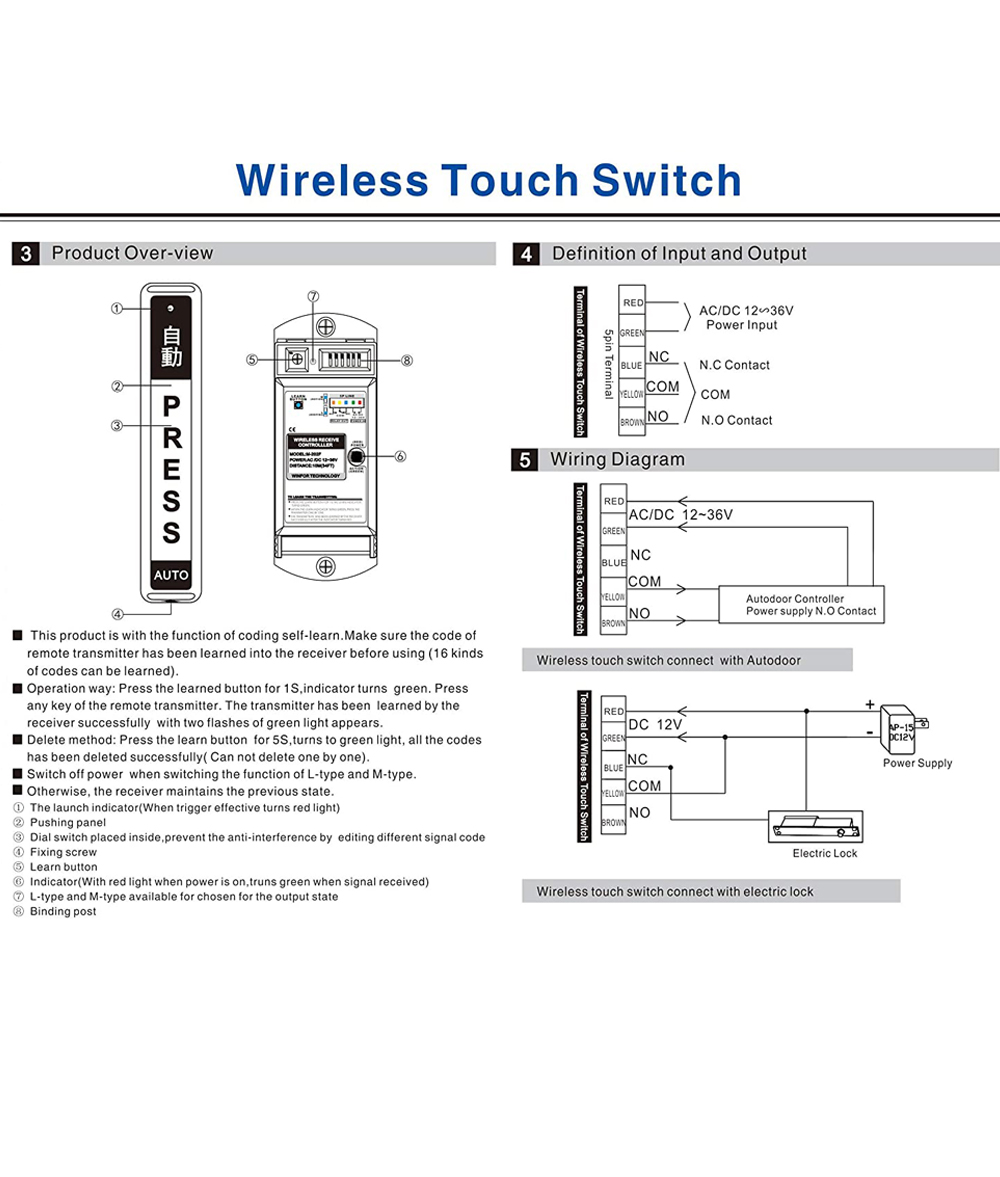

To learn the transmitter:

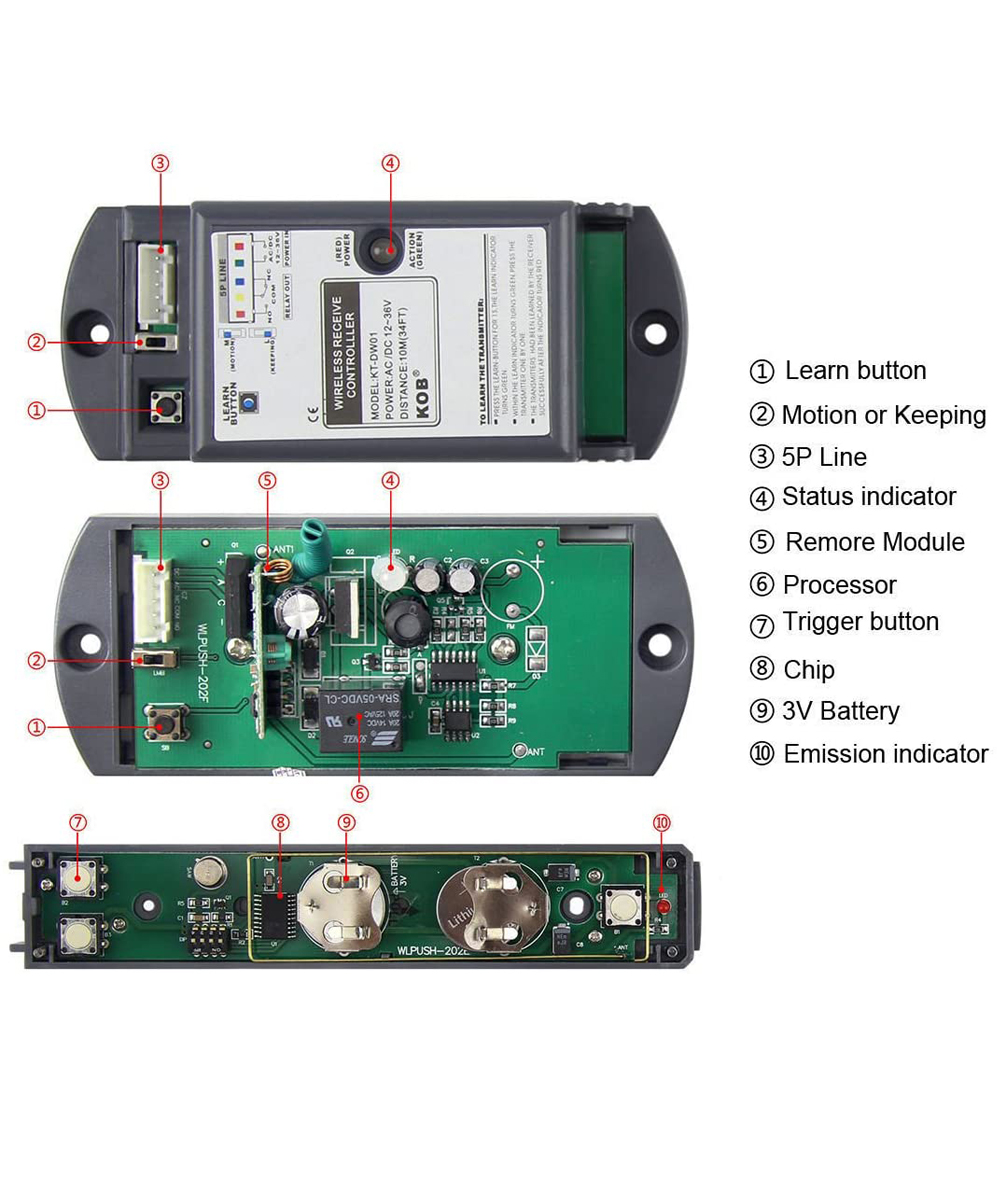

  • Press the LEARN-BUTTON for 1S, the leare indicator turns green
  • Within the learn indicator turns green, press the transmitter one by one
  • The transmitters had been learned by the receiver successful after the indicator turns red

Package:

  • 2 x Wireless hand pressure switch
  • 1 x Wireless receive controller

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.



Weight 0.34 kg
