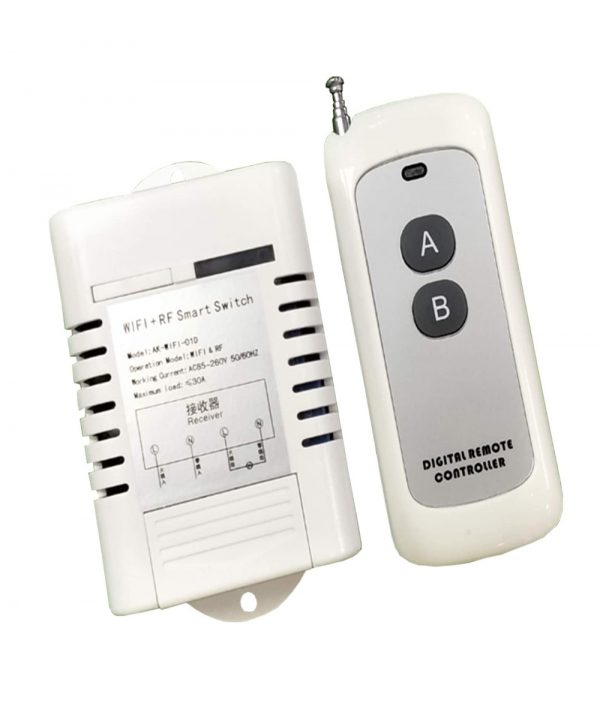

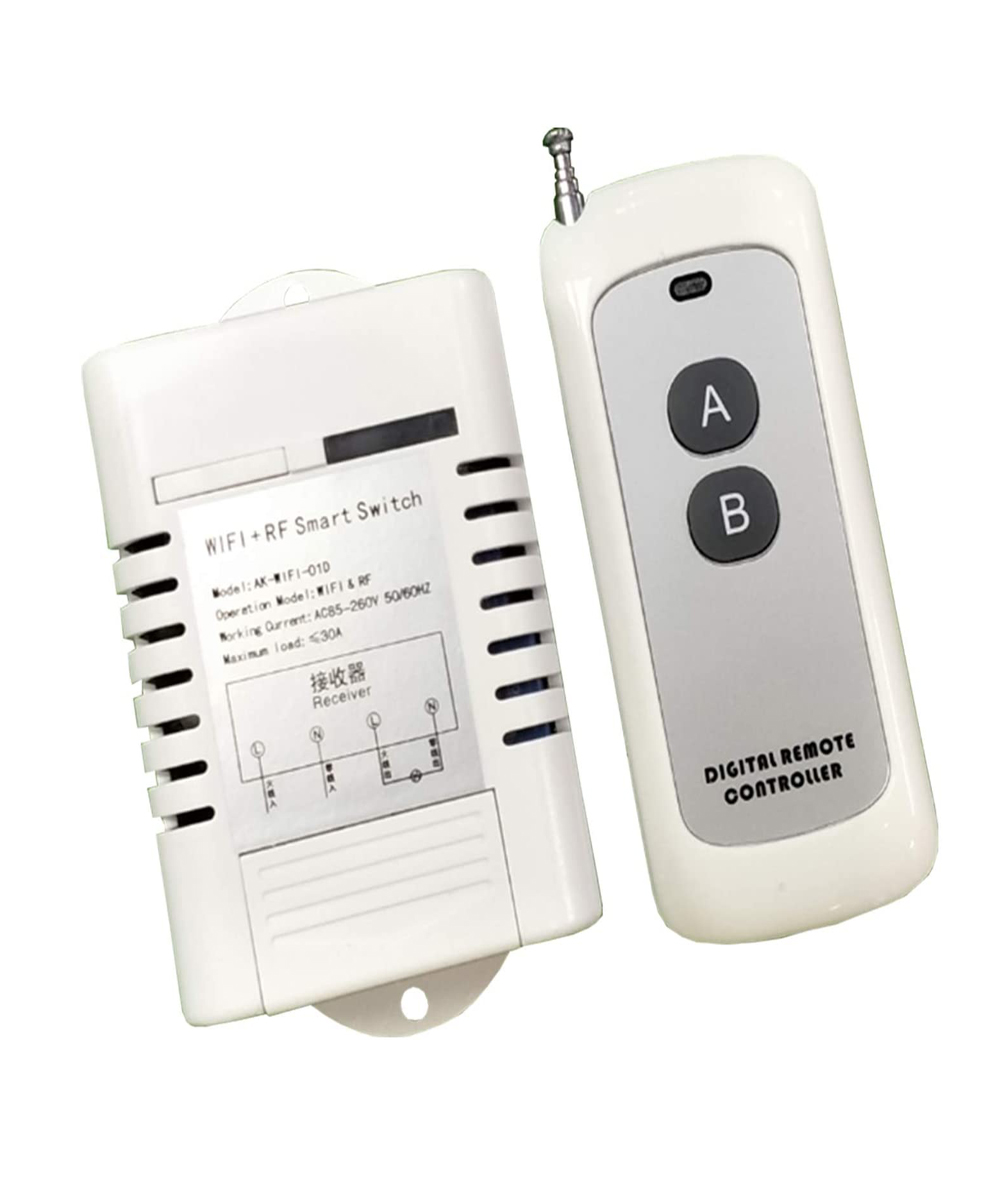

WiFi RF Single Channel Remote Control Smart Switch Receiver with Transmitter High Power 30A
- Smart scenes, control share, delay timing, group management, status feedback are available.

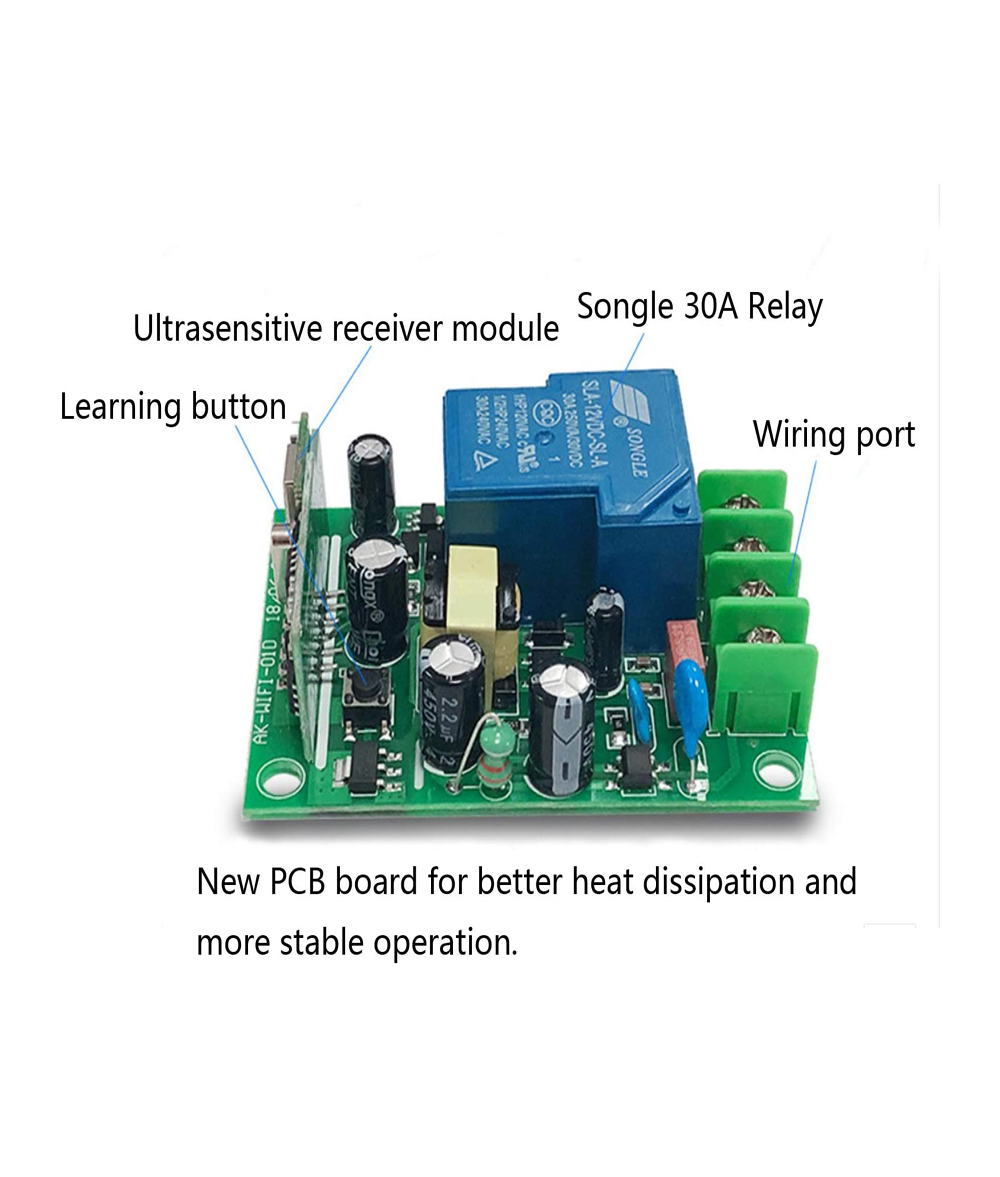

- Adopts newest electric board and US LNK304PN power supply management chip, great heat dispersion, low consumption, more stable operation, lasting long.
- Wireless encoding technology used ,no direction, high receiving sensitivity, the switches do not interfere with each other.
- Adopts microprocessor intelligent control, widely used in remote control modification of household appliances, industrial controller, access control system. remote control , garage door wireless , car rear box remote control, various power switch remote control modification.
- Small in size, easy to use and install.
- Dimensions: 95mm×55mm×30mm/3.74″×2.17″×1.18″
- WiFi: IEEE 802.11 b/g/n; 2.4Ghz
- Operation Frequency: 433MHZ
- Control Methods: app, remote Control
- Operating Voltage: AC85V -250V
- Load Power: ≤3000W
- Working Mode: manual, jog, self-locking, interlock
Receiver Pair Transmitter:
- 1: Long Press learning key on receiver about 3 seconds ,the light becomes off .At this time, release your finger. press any key on transmitter to start learning .
- 2: Wifi set up: Long Press learning key on receiver for 3 seconds ,not release your finger until the learning indicator light become off .Then ,press learning key until the learning indicator become on, entering the eWelink to set up .
- Note: The receiver could learn fixed code(PT2262,SC2260 chip etc)/learning code (Ev1527,HS2240etc)for 20 different coding by pressing any key of receiver. if exceeded, the earliest learned one will be cleared in turn.
- 1 × Receiver
- 1 × Transmitter
