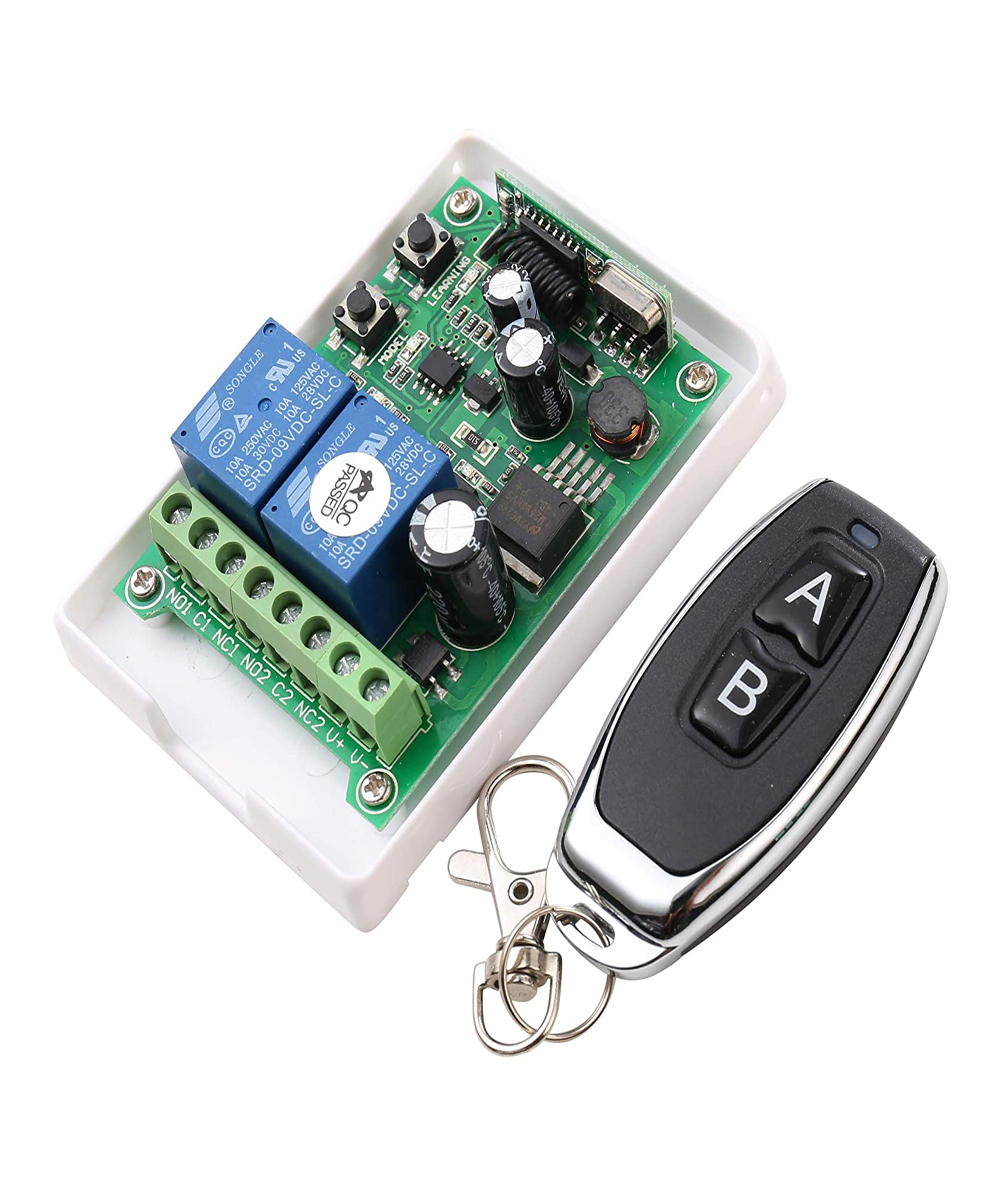

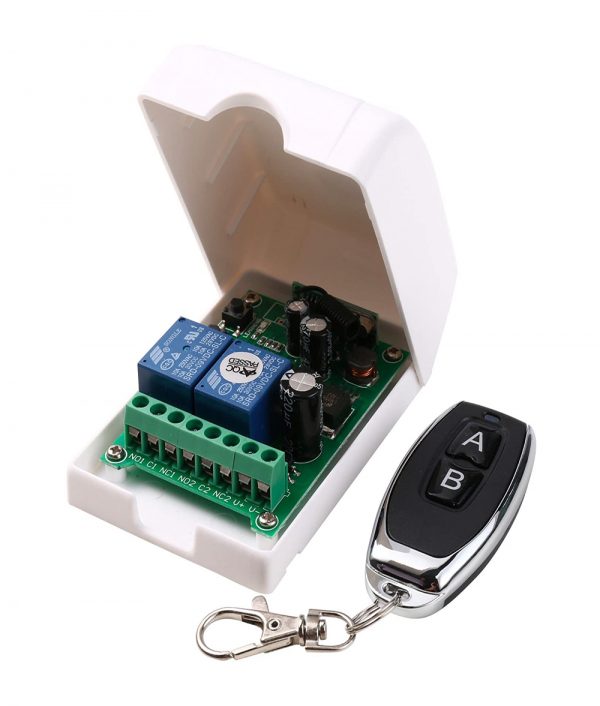

AC/DC12-48V 2-Channel 433Mhz RF Wireless Remote Control Switch

AC/DC12-48V 2-Channel 433Mhz RF Wireless Remote Control Switch

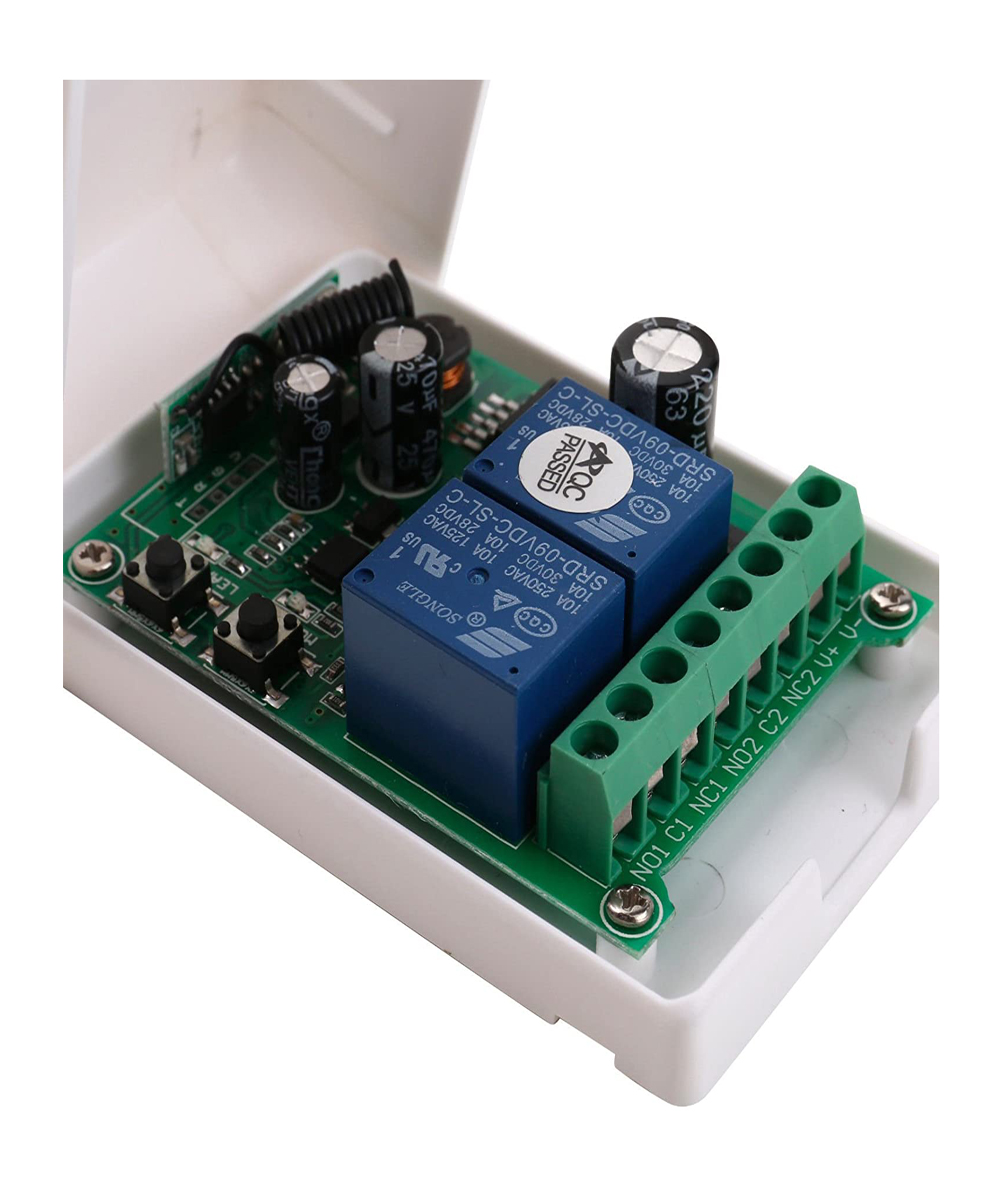

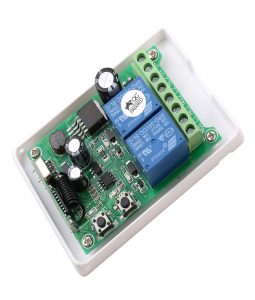

Features:

• Accepts wide power input range 12-48V AC or DC that is available at many places
• The wireless signal can pass through walls, floors and doors
• You can turn on or turn off the receiver with transmitter(remote control) from any place within a reliable distance
• It is a learning code wireless remote control switch (receiver), the output way /working way can be changed as you like, it is easy to match the transmitter
• Widely Used: Home appliances switch, lighting switch, wireless control products, switches, intelligent switches and other electronic equipment

Specifications:

• Working Voltage: AC/DC12-48V
• Standby Curent: 10mA
• Working Current: 30mA-90mA
• Working Temperature: -20℃~80℃ / -4℉~176℉
• Receive sensitivity: -103dBm
• Frequency: 433Mhz
• Load Range: <10A
• Code Type: Learning Code
• Remote Control: Approx. 6.2 x 3 x 1.3cm/2.4 x 1.2 x 0.5 inch
• Remote Switch: Approx. 8.9 x 6 x 2.8cm/3.5 x 2.4 x 1.1 inch
• Output Mode: Switch signal contact output
• Working Mode: Self-locking, jog, interlock, delay
• Weight: 0.17kg

Instructions:

Operation Method:

• Press the Learning button once and the indicator flashes. Press the any one button on the transmitter, and the indicator flashes 3 times quickly. It indicates the code learning of the first relay is successful.
• Press the learning button twice and the indicator flashes. Press the any one button on the transmitter, and the indicator flashes 3 times quickly. It indicates the code learning of the second relay is successful.
• Clear Code: Press the “Learning” button until the indicator is long bright.

Working Mode:

• JOG: Press the “Model” button once, the indicator turns off after flashes one time, indicating the working mode is “JOG”.
• Interlock: Press the “Model” button twice, the indicator turns off after flashes two times, indicating the working mode is “Interlock”.
• Self-locking: Press the “Model” button thrice, the indicator turns off after flashes three times, indicating the working mode is “Self-locking”.
• Delay: Press the “Model” button four times, the indicator turns off after flashes four times, indicating the working mode is “Delay”.(This mode will delay time for 5 seconds.)

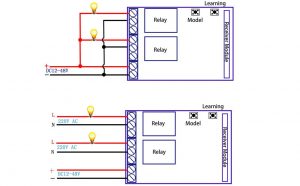

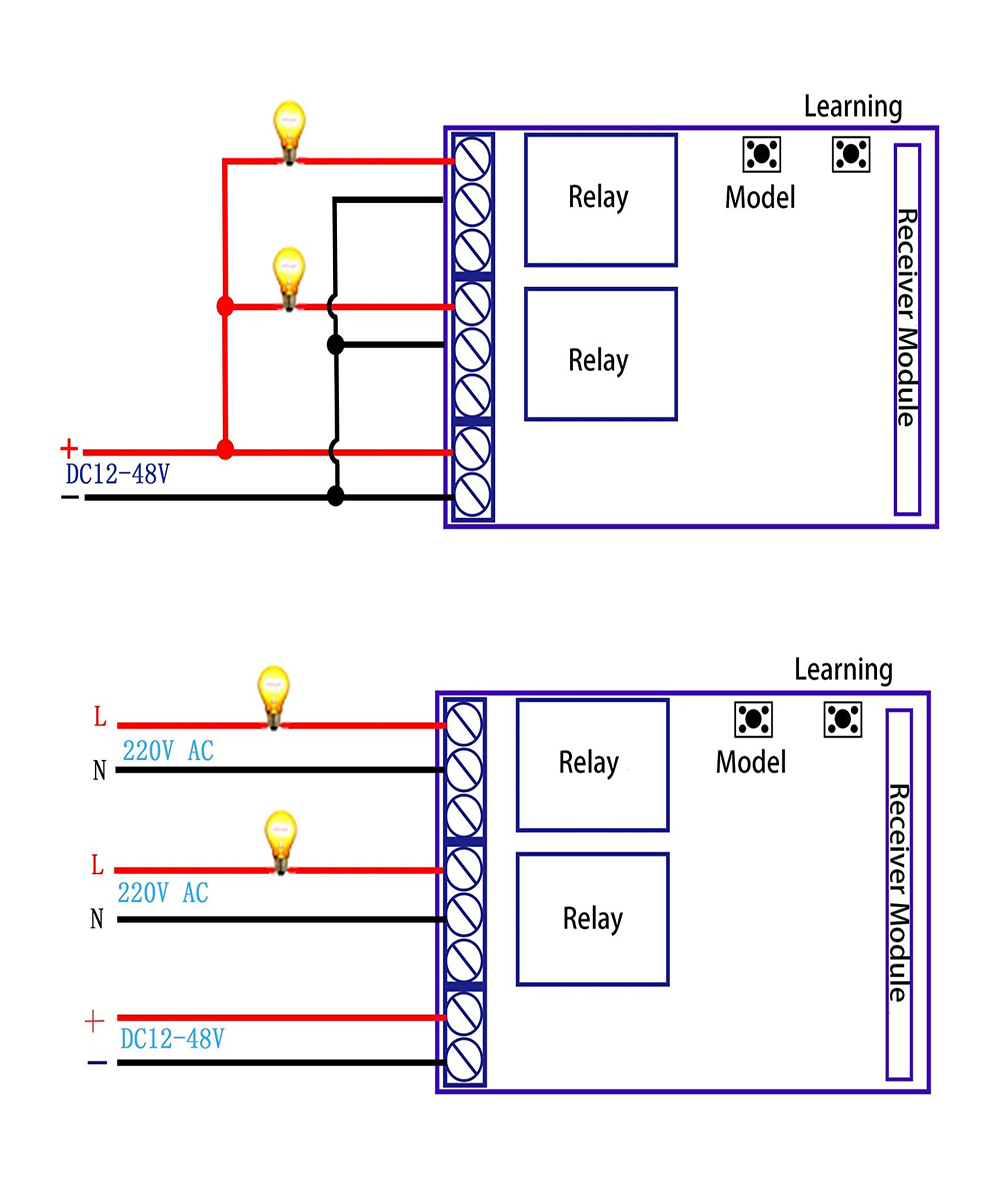

Wiring Diagram:

Package:
