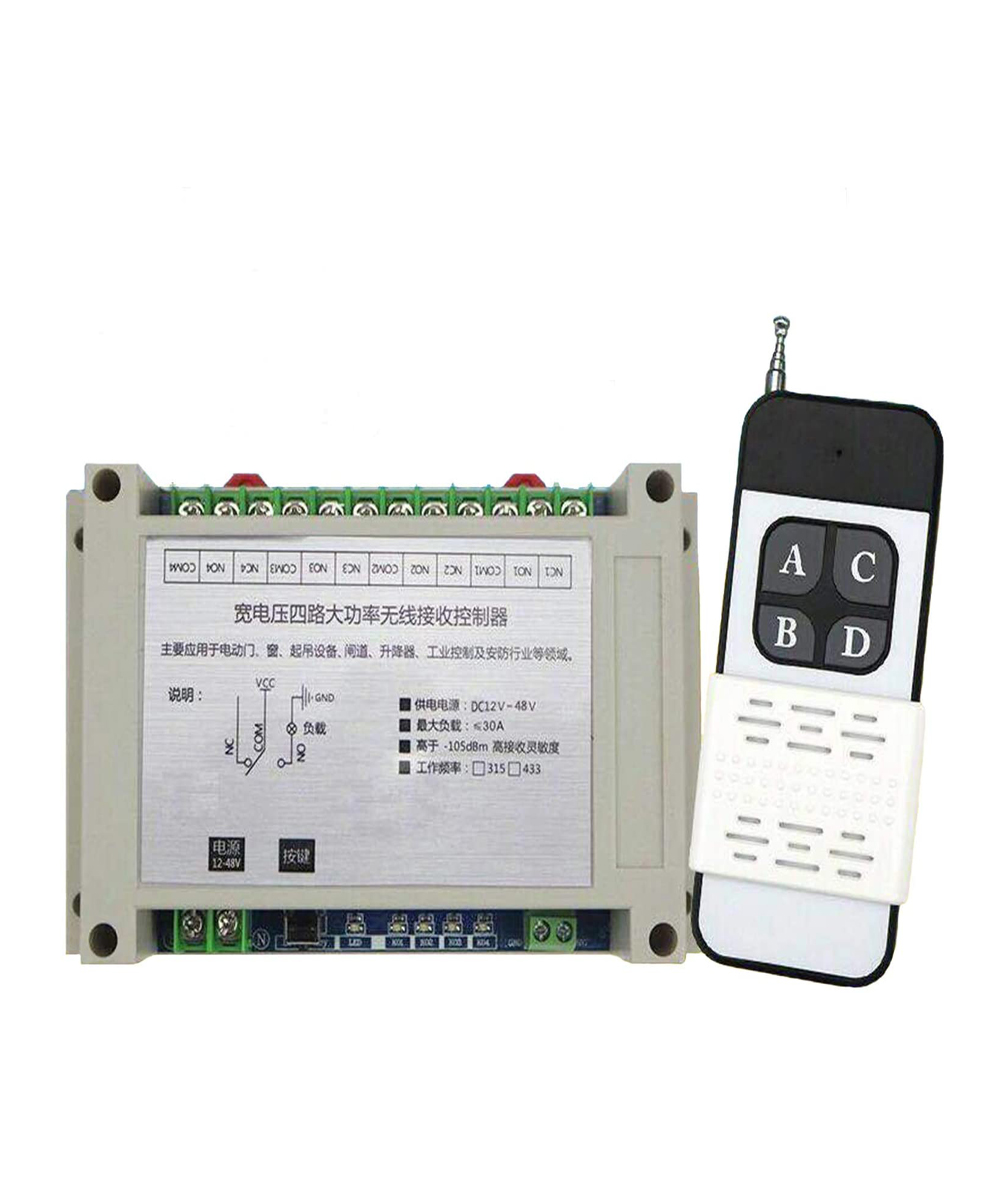

4 Channels Wireless Remote Control Smart Switch Receiver High Power DC12V~48V for Industry Security Fields and Home Appliances

$38.90

This kit allows users to remote control home appliances, industrial, security industry at anywhere anytime, managing conveniently. High power, stable, apply for electric doors, windows, lifting equipments, gates, lifter, industrial control and security industries. The receiver adopts the latest power module ,supporting 12V-50V voltage output, buit-in Overheat off , output short circuit, Over current protection, far better than similar products on market.

SKU: UT-AK-DCL380-4CH Categories: ,

4 Channels Wireless Remote Control Smart Switch Receiver High Power DC12V~48V for Industry Security Fields and Home Appliances

UT AK DCL380 4CH 2

Features:

  • It allows users to remote control home appliances, industrial, security industry at anywhere anytime, managing conveniently.
  • High power, stable, apply for electric doors, windows, lifting equipments, gates, lifter, industrial control and security industries.
  • The receiver adopts the latest power module ,supporting 12V-50V voltage output, buit-in Overheat off , output short circuit, Over current protection, far better than similar products on market.
  • 4 channels all use the relay of 30A, higher load power, more stable performance.
  • Suitable for storage battery, 12V motor, lamp, electric curtain, rolling door, projection screen.

Specifications:

UT AK DCL380 4CH 4

  • Output Voltage: DC12V~48V
  • Input Voltage: DC12V~48V
  • Load Current: 30A
  • Operation Frequency: 433MHZ
  • Receive Sensitivity: -105dbm
  • Coding Method: Learning type
  • Working Mode: Jog, self-locking, interlocking
  • Operating Environment: -30℃~ +75 ℃(-22°F~+167°F), less than 95% relative humidity
  • PCBA Size: 70mm×50mm×28mm/3.74″×1.97″×1.10″
  • Product Shell Size: 95mm×55mm×33mm/2.76″×2.17″×1.30″
  • Application: smart home, remote control switch, large pump

Package List:

  • 1 × Remote Control Receiver (Transmitter not included)
  • 1 × Instruction Manual

Download “eWeLink” APP:

  • Search “eWeLink” download in each major application market/App Store,and follow the software installation instructions to install.

Add Device:

  • 1. Connect the device and power it on.
  • 2. Press and hold the WIFI pairing button for 5 seconds until the wifi signal indicator blinks three times. And then flash three times.
  • 3. Click the “+” device icon in the APP and click Next.
  • 4. You are prompted to select a wifi that can access the Internet and enter the password. Confirm the password and click Next.
  • 5. The APP starts searching and automatically switches to connect to the device hotspot. After completing the registration, it automatically jumps to the next step.
  • 6. Rename the device. After completing the device addition process.

More latest product information of HOBK, please follow our official Twitter Account: @HOBK89016273.
