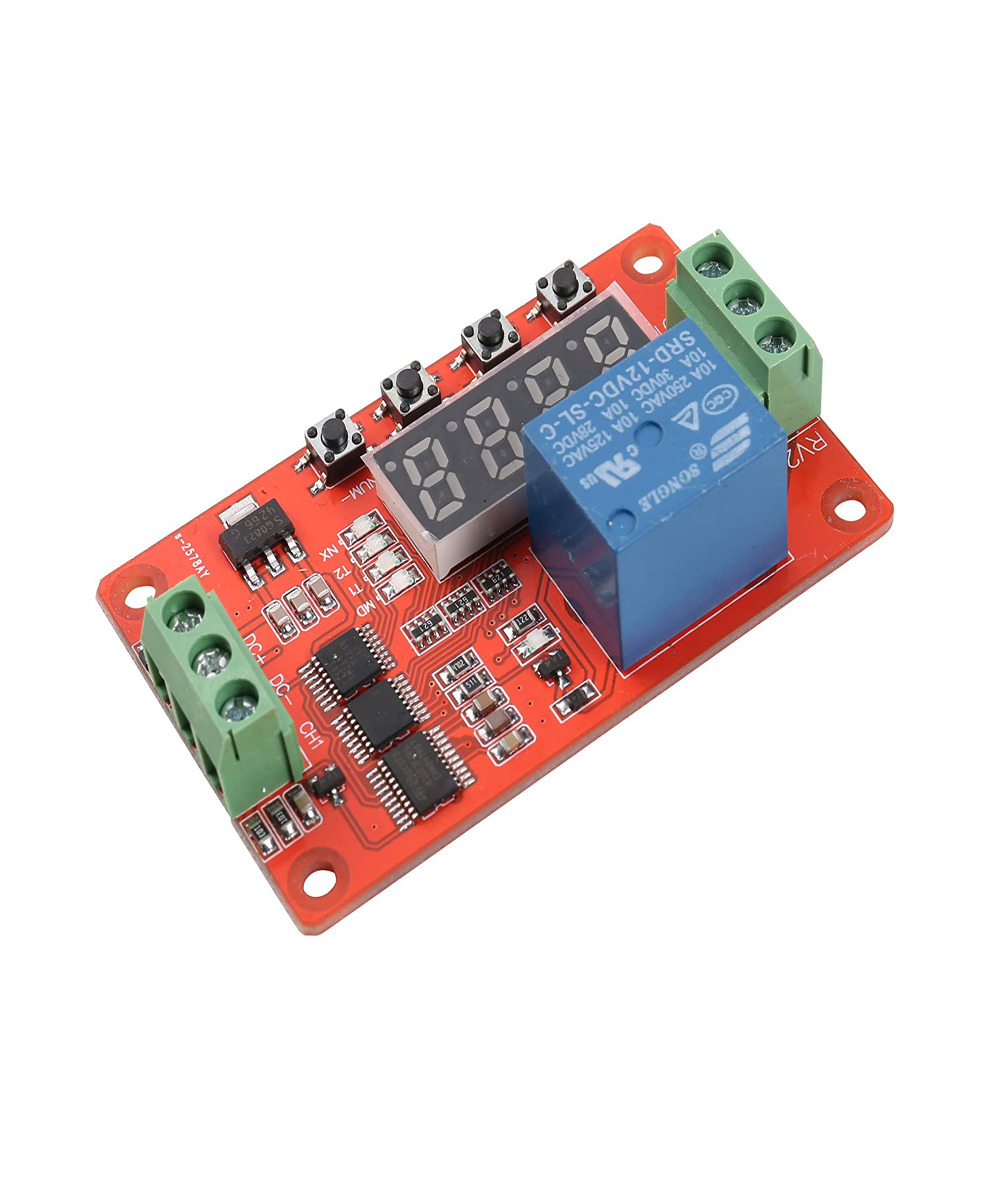

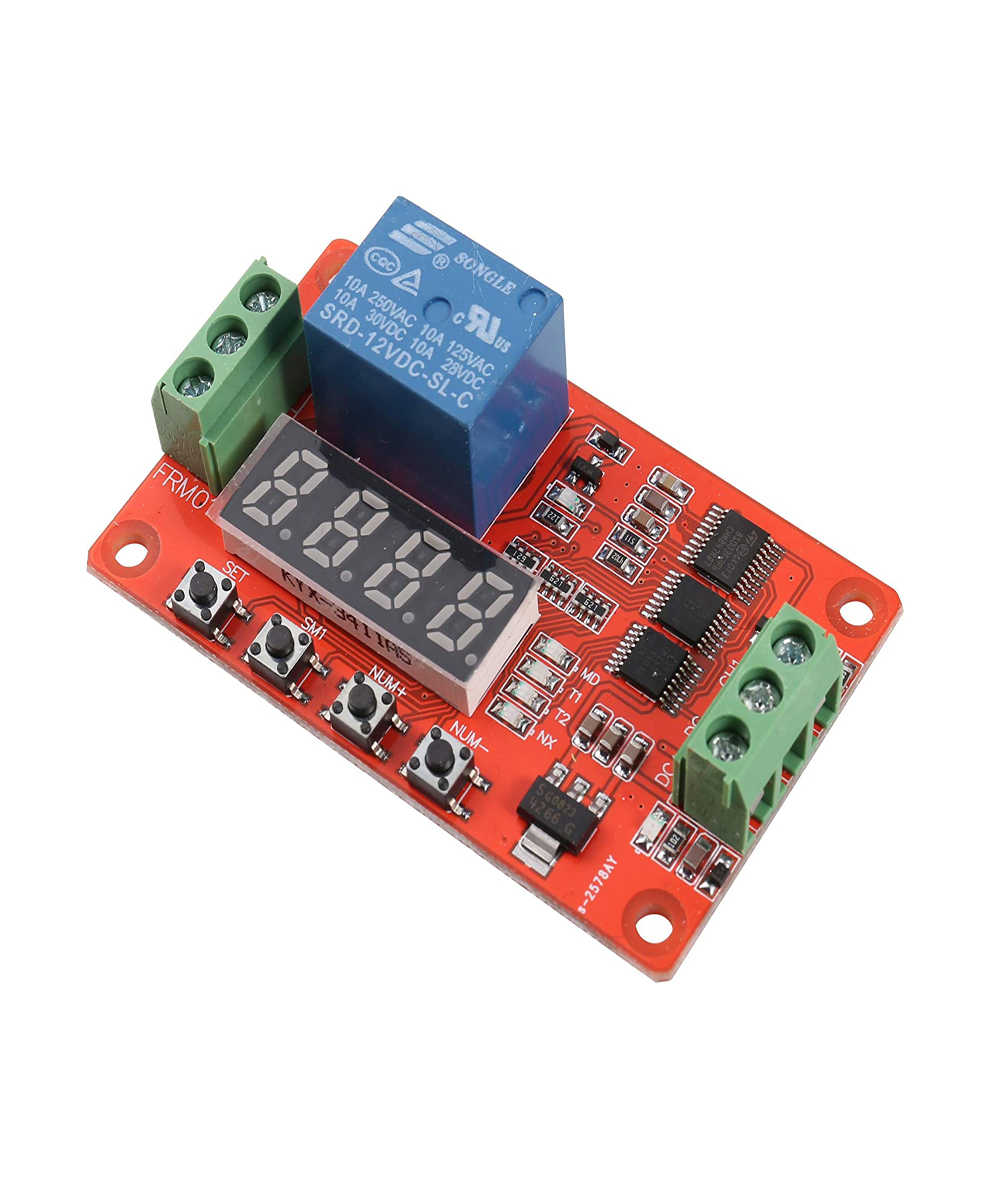

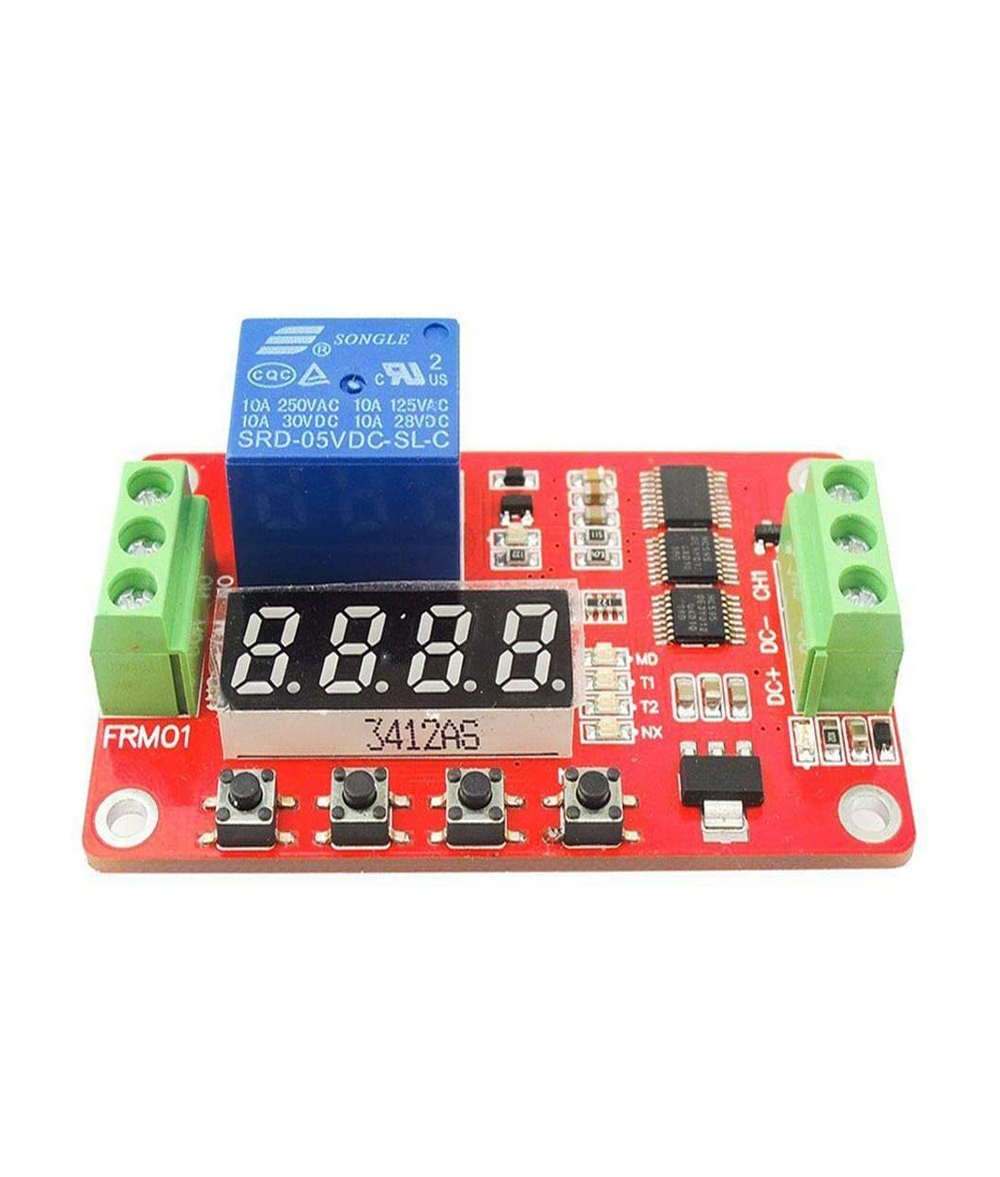

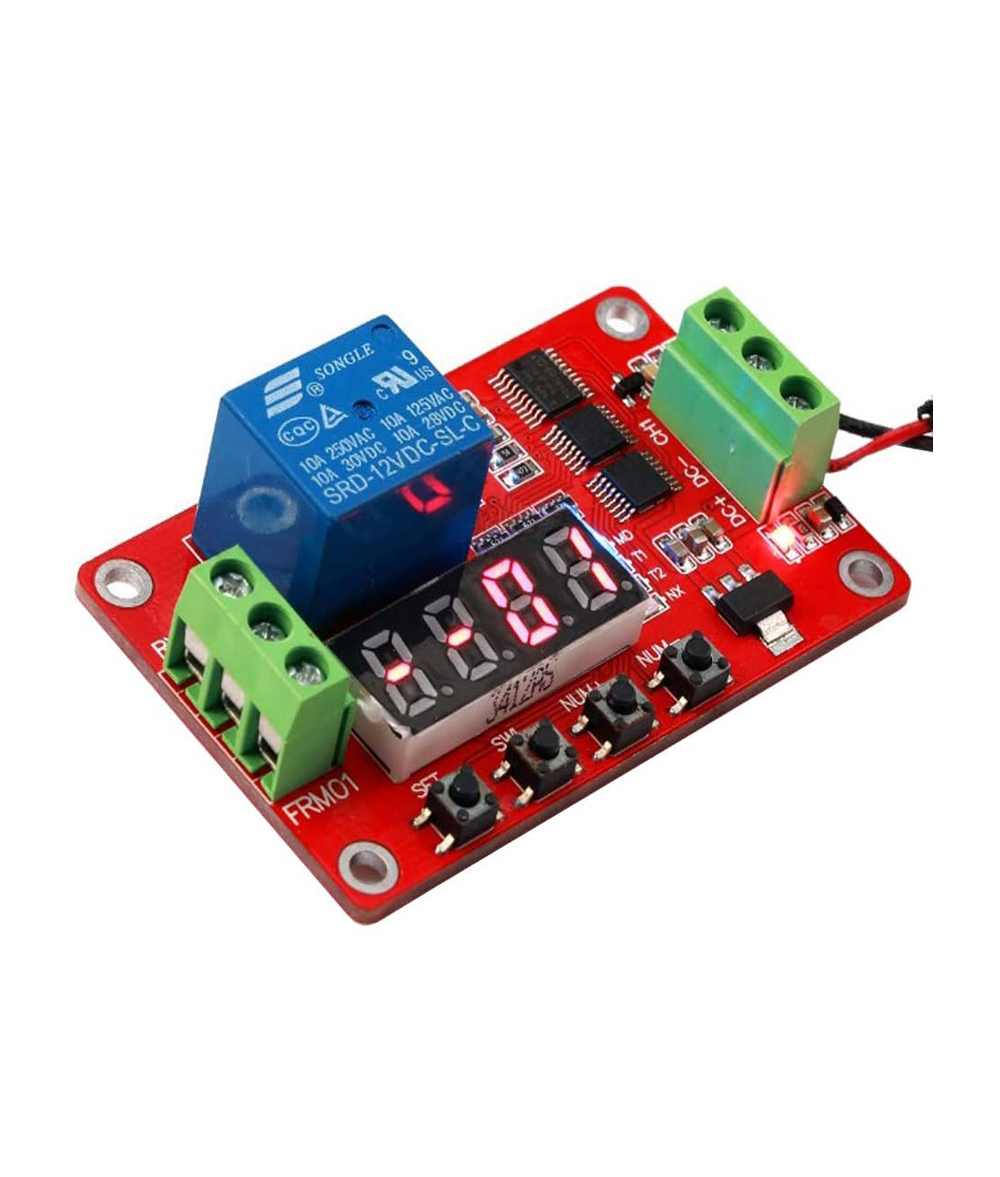

DC12V 1 Channel Loop Delay Timer Switch Self-Locking Multifunction Relay Module

$14.80

This relay module adopt top quality high voltage power supply modules, more stable and reliable. With automatic power saving function, users can set up according to their needs.

SKU: UT-12VFRM01 Categories: ,

DC12V 1 Channel Loop Delay Timer Switch Self-Locking Multifunction Relay Module



Features:

  • The module function has been increased from 8 to 18 to meet more application requirements.
  • Add the anti-reverse function of the power supply. It will not damage the module even if wiring is wrong.
  • Adopt top quality high voltage power supply modules, more stable and reliable.
  • Add 0.1 second timing function, timing accuracy from the previous 0.1 seconds, upgrade to 0.01 seconds.
  • Automatic power saving function, users can set up according to their needs.

Relay Module Functions:

1.Timing pull in
2.Timing disconnected
3.Timing pull in and disconnected
4.Timing off then pull in
5.Infinite loop timing mode 1
6.Infinite loop timing mode 2
7.Finite loop timing mode 1
8.Finite loop timing mode 2
9.Self-lock relay mode
10.Trigger relay mode
11.Trigger timing pull in
12.Trigger timing disconnected
13.Trigger timing pull in and disconnected
14.Trigger timing disconnected and pull in
15.Infinite loop timing mode 1
16.Infinite loop timing mode 2
17.Finite loop timing mode 1
18.Finite loop timing mode 2
Note: Function 1-8 is started automatically when power is on, function 9-18 needs high level pulse signal (high level duration is not shorter than 20ms) trigger start.

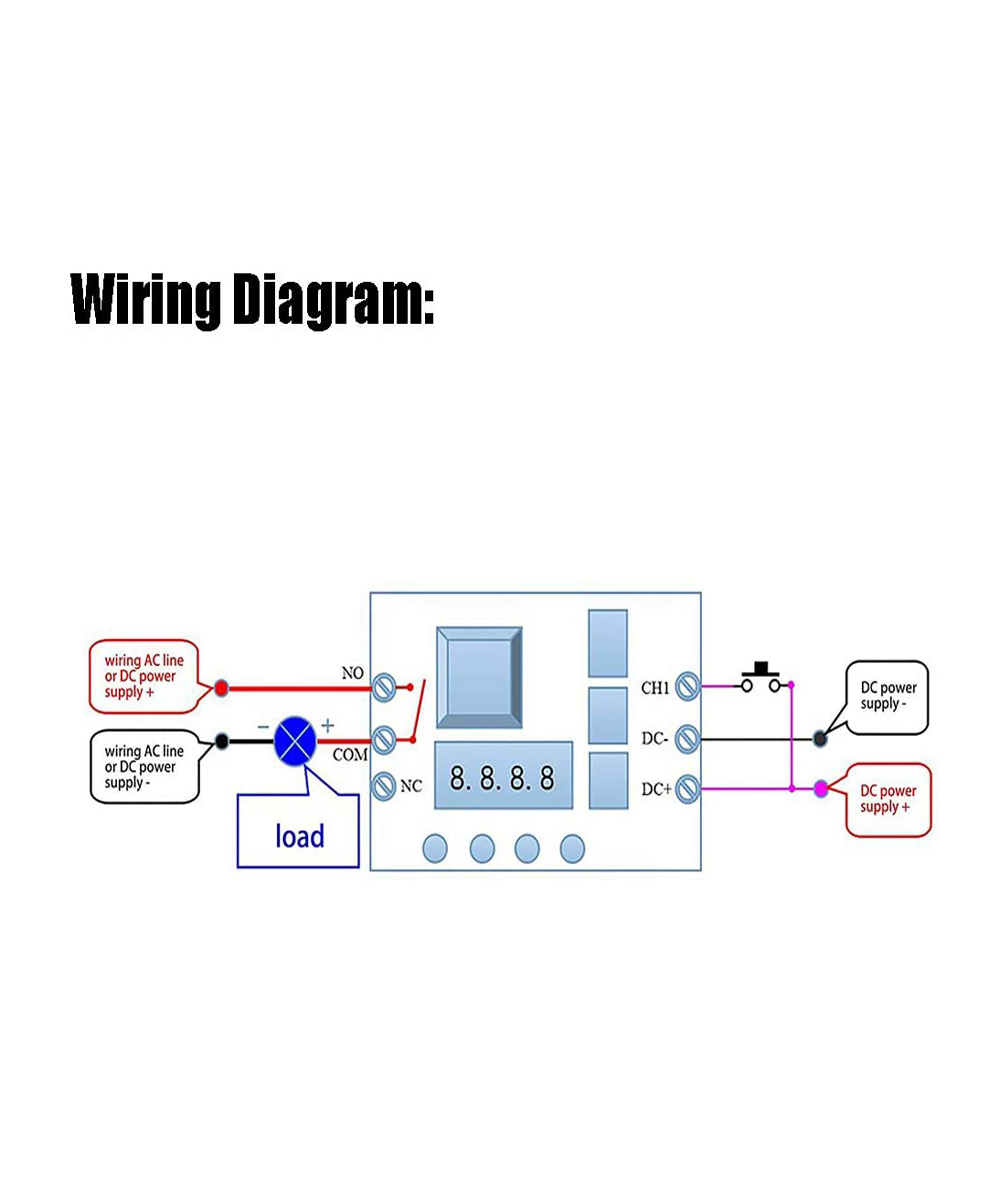

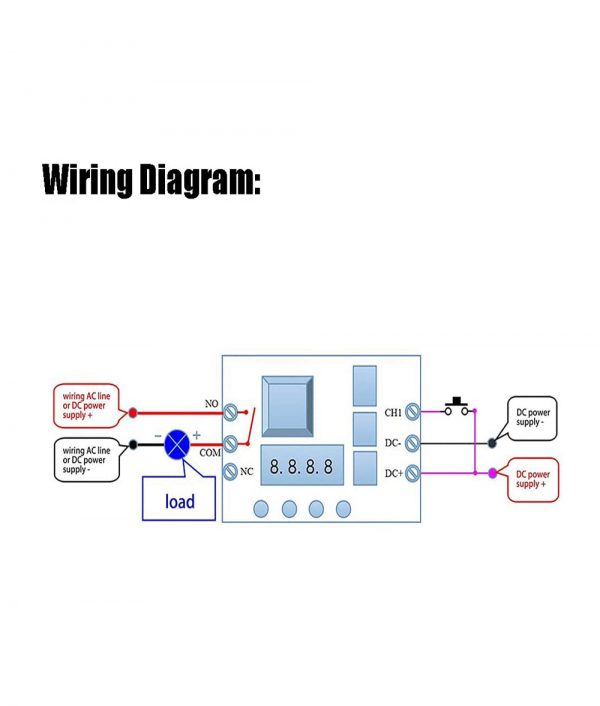

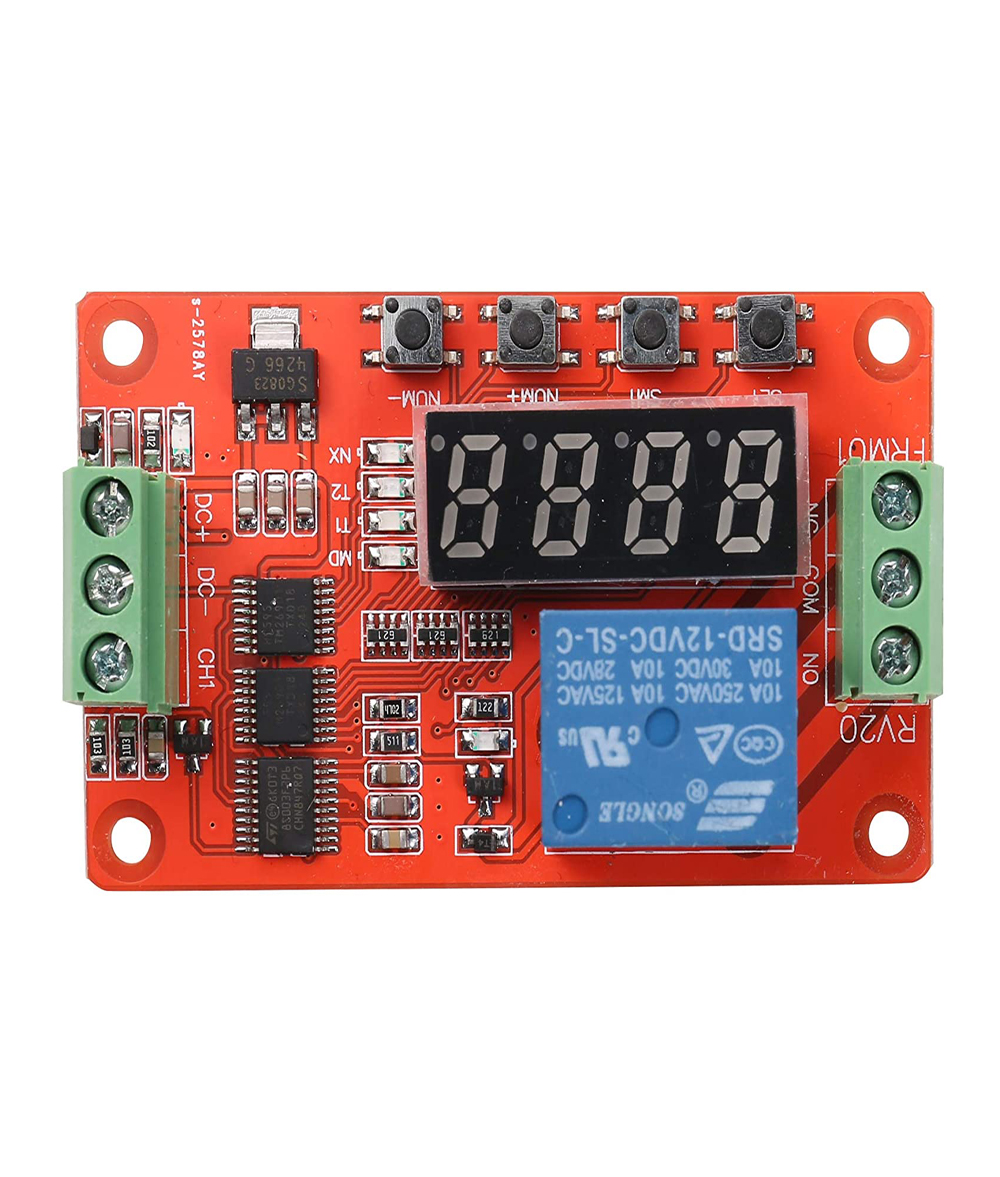

Module Interface:

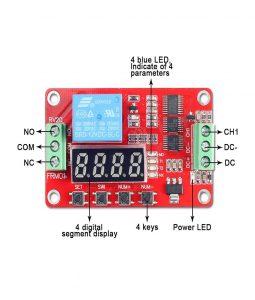

UT 12VFRM01 5

Module Control Terminal:

DC+: DC positive power (DC12V)
DC-: DC negative power
CH1: input detected port, high level effective.

Relay Outputs:

NO: relay normally open port, relay pull in before as the vacant,after pull in with the COM1 short connection.
COM: relay common port.
NC: relay normally closed port,relay with COM1 short connection before pull in, vacant after pull in.

Load Capacity:

NO port: maximum load capacity — DC 0-30V/10A, AC 0-250V/10A
NC port: maximum load capacity — DC 0-28V/10A, AC 0-125V/10A



Package:

1 x Relay Module
