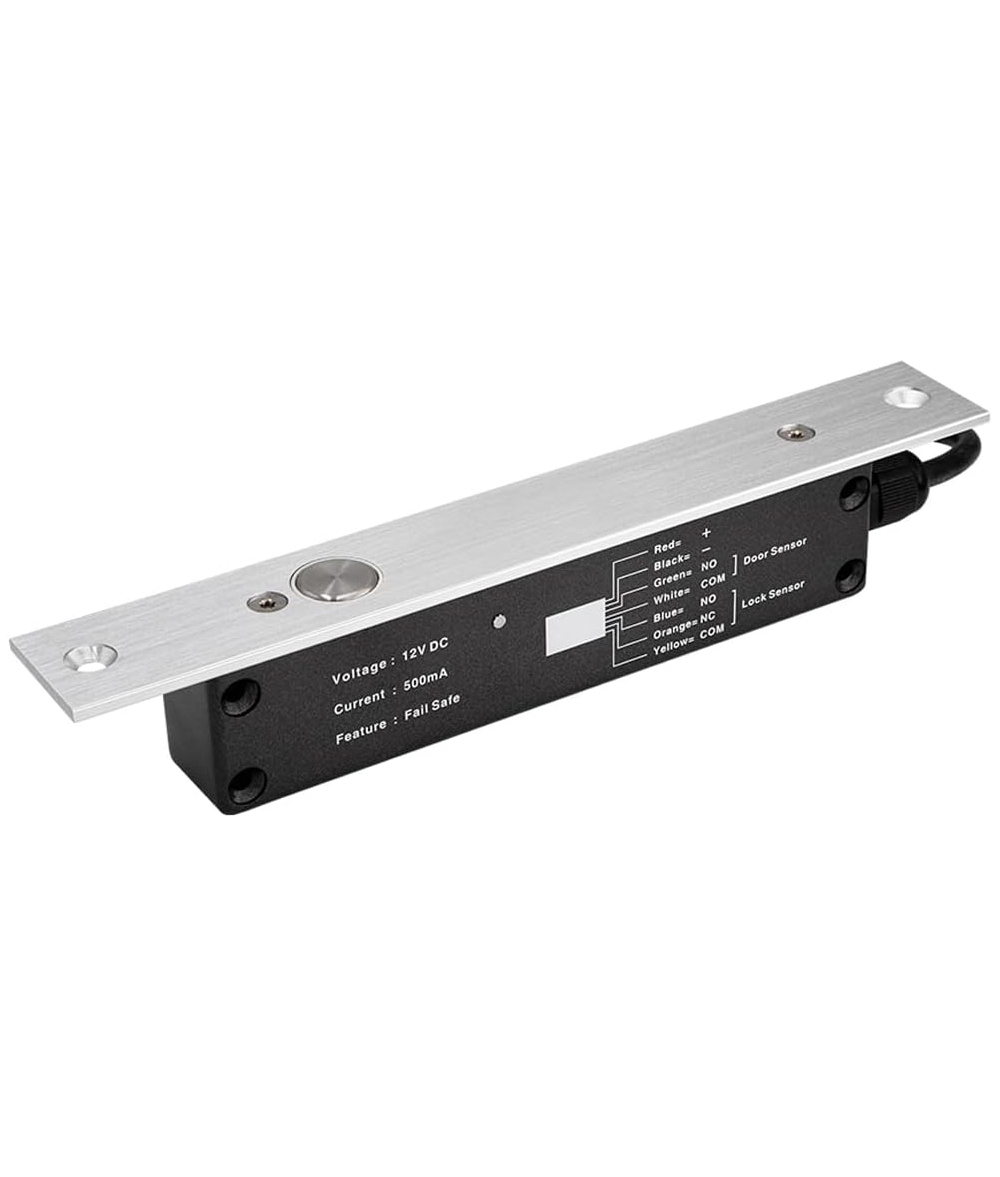

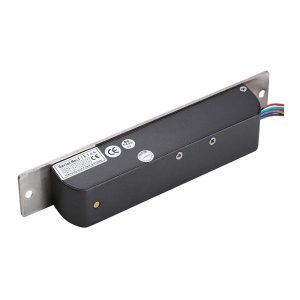

IP66 Waterproof 12VDC Electric Drop Bolt Lock Fail Safe NC Mode

IP66 Waterproof 12VDC Electric Drop Bolt Lock Fail Safe NC Mode

Features:

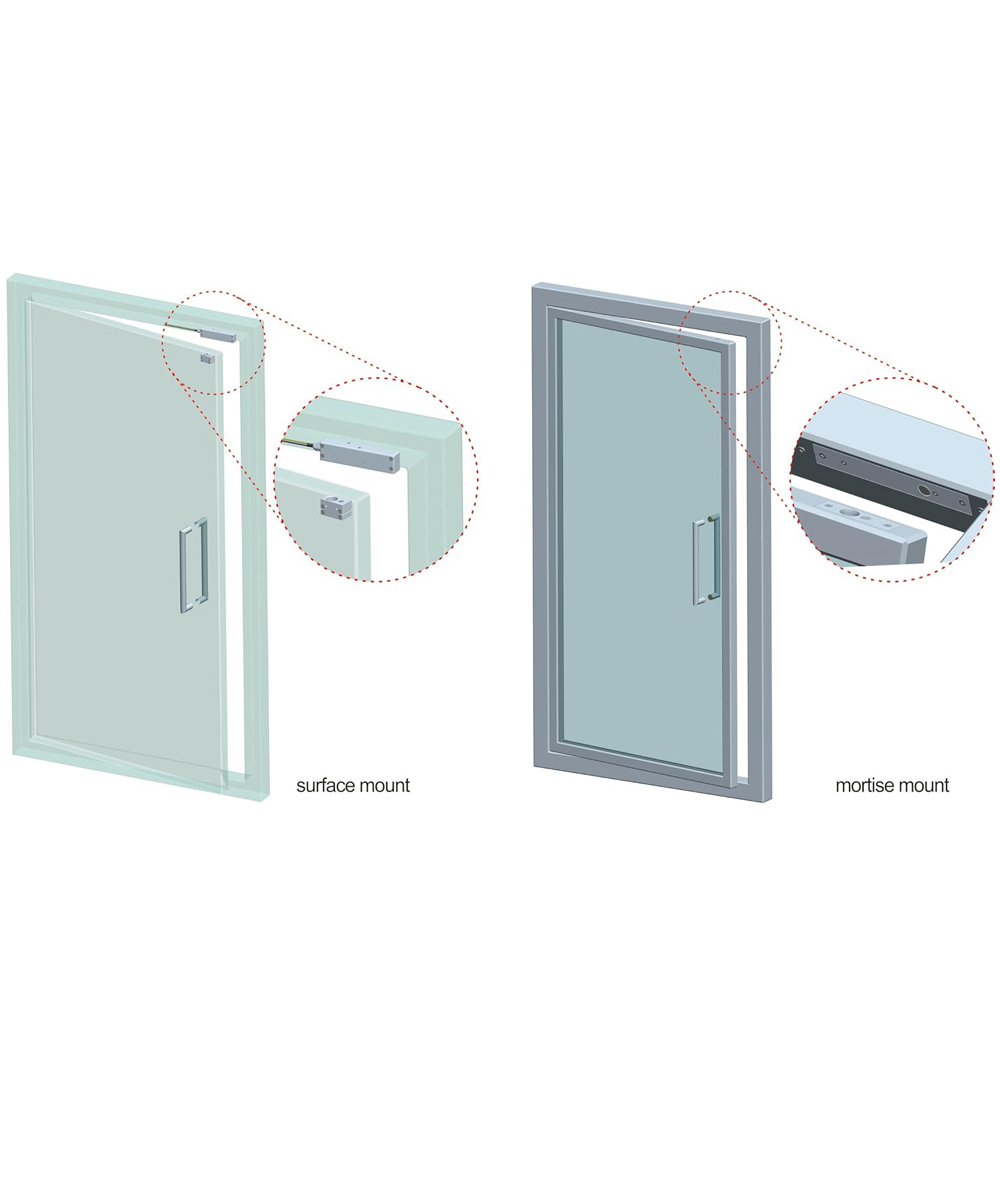

• Electric drop bolt lock is designed for 180 degree two-way door. And it can be installed both doors that open inward or outward.
• Photoelectric control with low-temperature in the bolt lock quickly functions up to 850mA.
• The bolt is made of 304 stainless steel solid bar with 800kg holding force.
• IP66 waterproof level, can be used indoors or outdoors.

Specifications:

• Fail Safe: Unlocked when power is removed

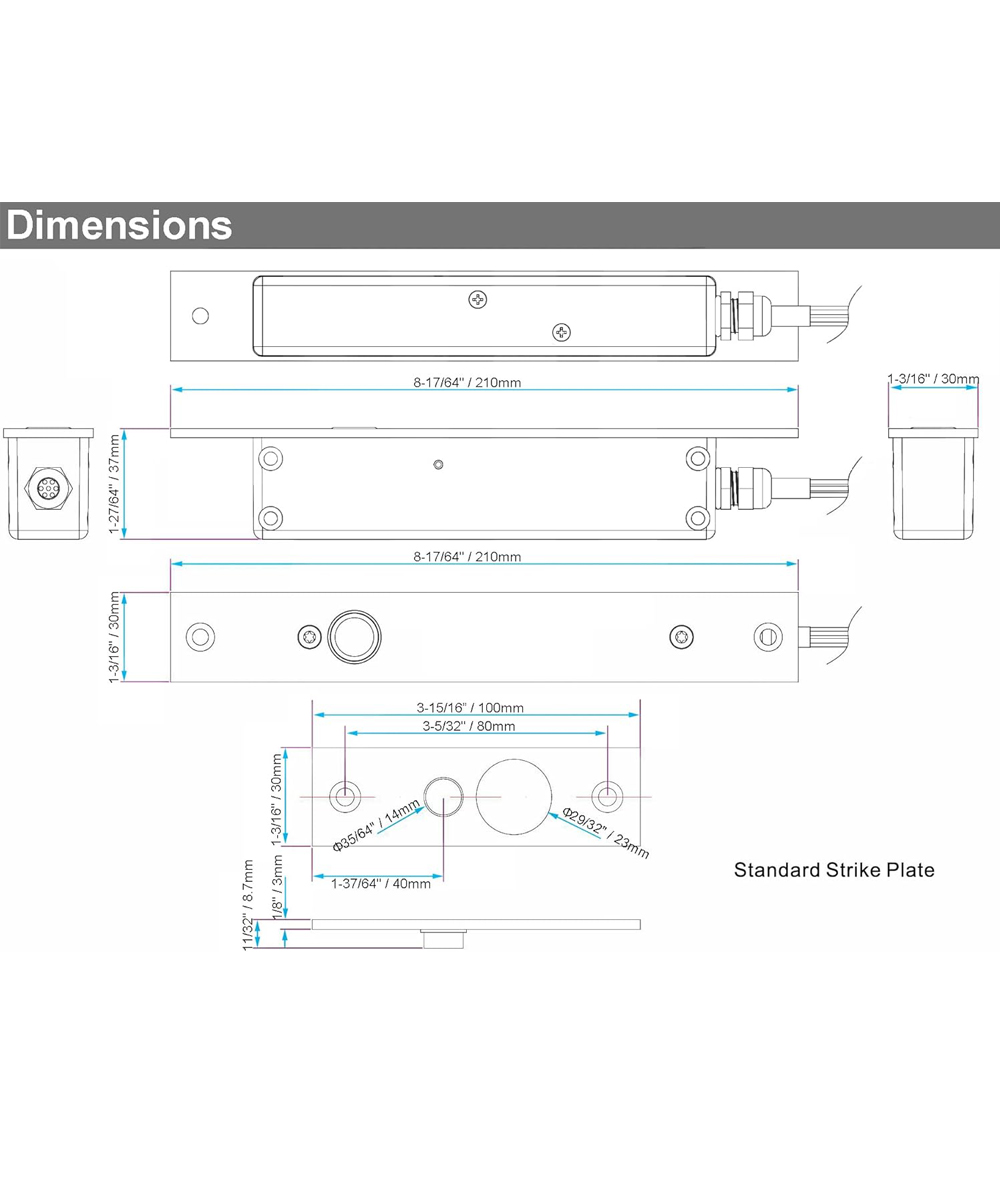

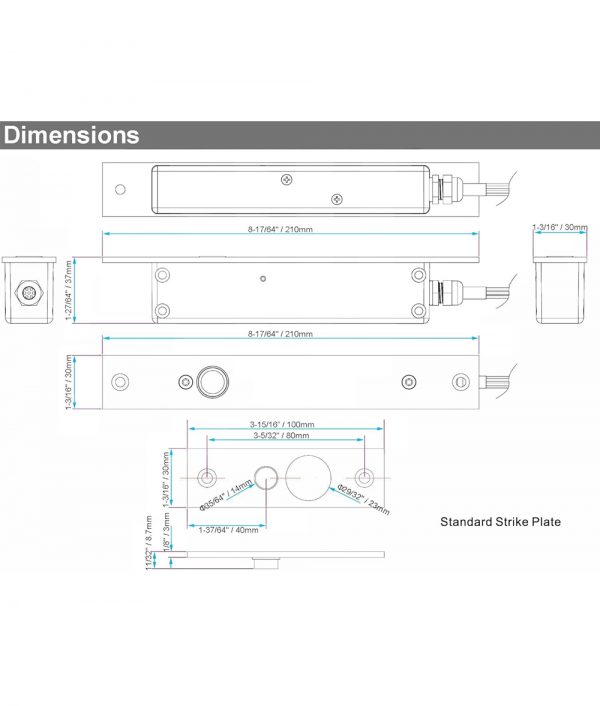

• Face Plate Size (LxWxH): 8-21/3″x1-3/16″x1-1/16″ (220x30x27mm)
• Strike Size (LxWxH): 4-21/64″x1-3/16″x1/8″ (110x30x3mm)
  Decorative Panel (LxWxH): 8-21/64″x1-3/8″x1/32″ (220x35x0.7mm)
• Bolt: 5/8″ (16mm) DIA, stainless steel 5/8″ (16mm) throw
• Working Voltage: DC12V
• Working Current: 200mA
• Solid Bolt: Polishing housing, 800kg holding force
• Suitable For: Wooden door, glass door, metal door

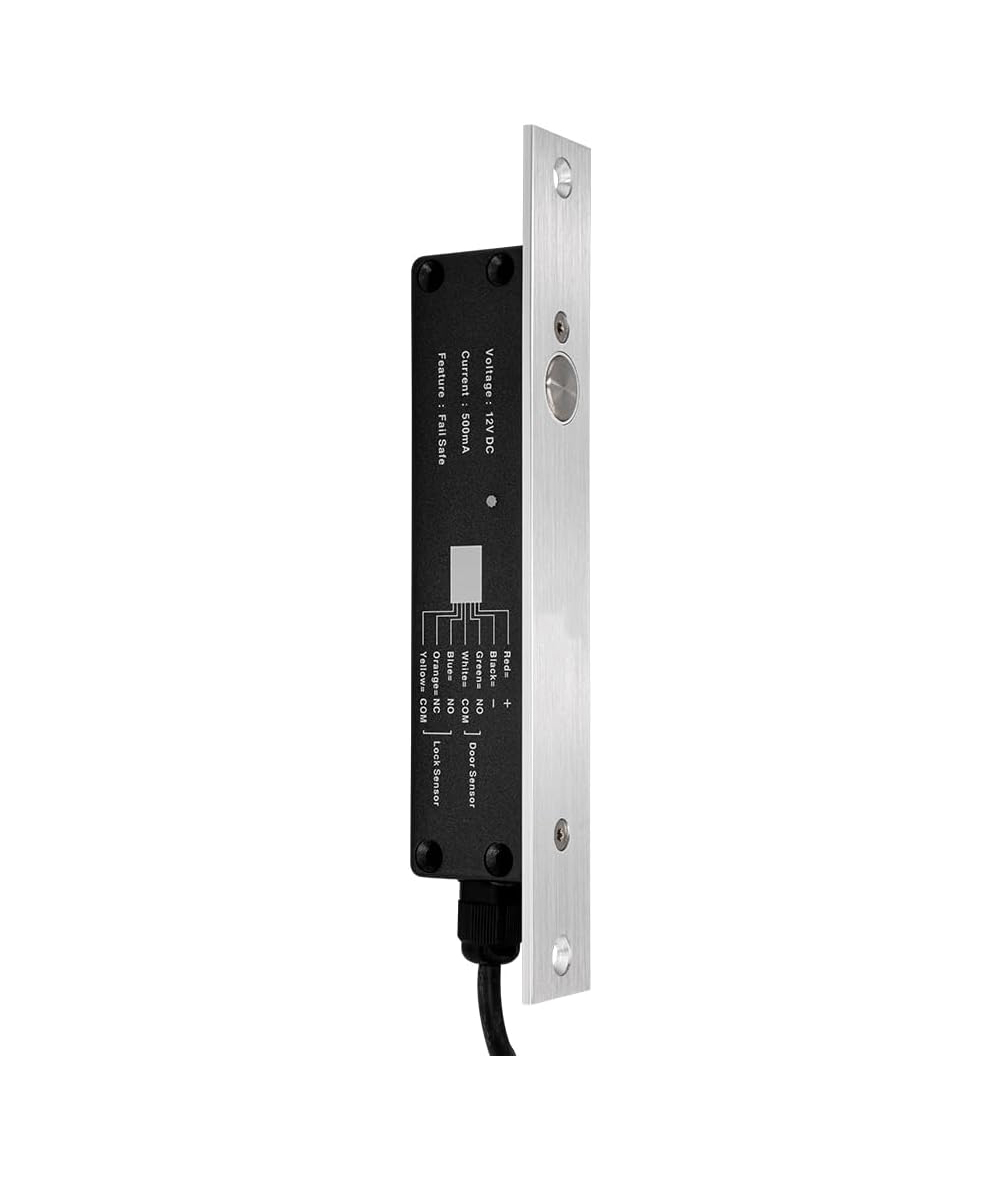

• Signal Output: Door signal (NO/COM); Lock signal (NO/NC/COM)
• Waterproof Level: IP66
• Induction Distance: 5/16″ (8mm)
• Face Plate Material: High strength aluminum alloy
• Weight: 0.6kg

Packaging List:

• 1 x Electric Bolt Lock
• 1 x User Manual
