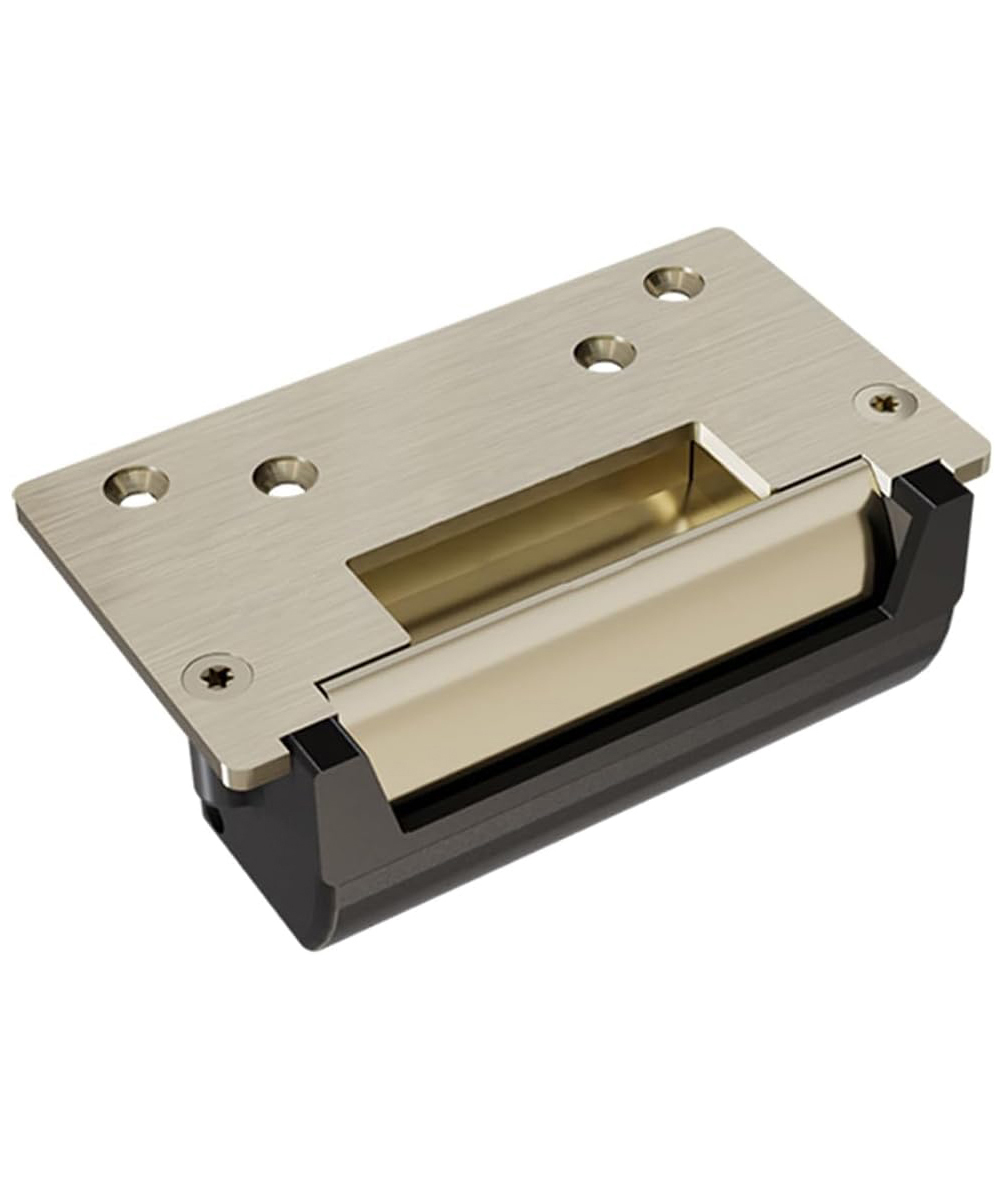

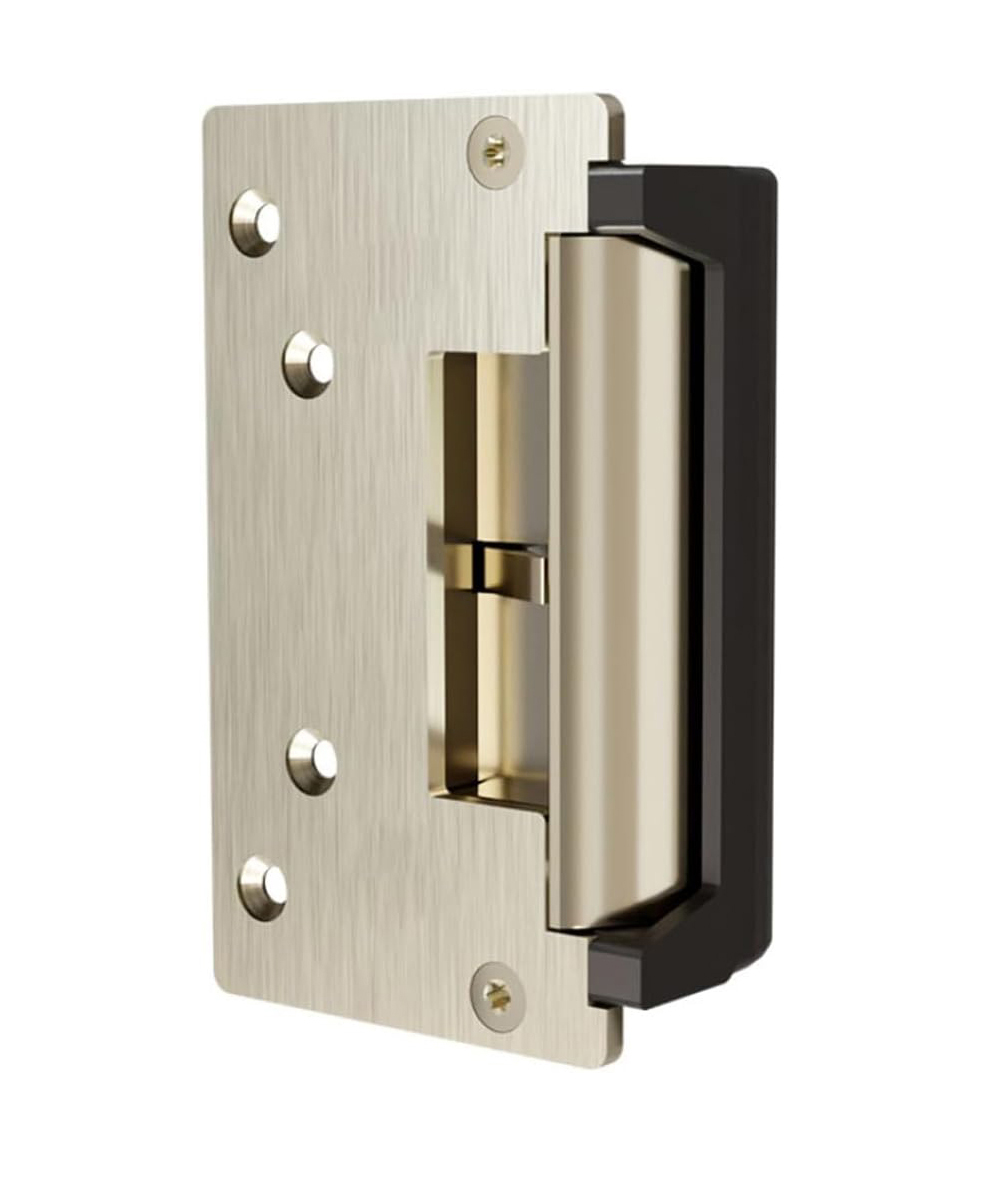

American Standard Electric Strike Lock Surface Mount Fail-Secure or Fail-Safe Adjustable Use with Mechanical Lock

American Standard Electric Strike Lock Surface Mount Fail-Secure or Fail-Safe Adjustable Use with Mechanical Lock

Features:

• Surface mounted electric strike lock, no need to slot on door frame, easy to install.
• Static strength rating of 1000 pounds-force (4448N).
• Dynamic strength rating of 50 footpounds-force (68J).
• Solenoid valve has been tested 250,000 times (UL laboratory).
• More than 500,000 times aging test.
• NC/NO adjsutable, factory default is NC mode (Fail Safe).
• SUS304 stainless steel faceplate, precision cast SUS304 high-strength strike keeper.

Specifications:

• Operating Voltage: DC12V
• Current: 280mA

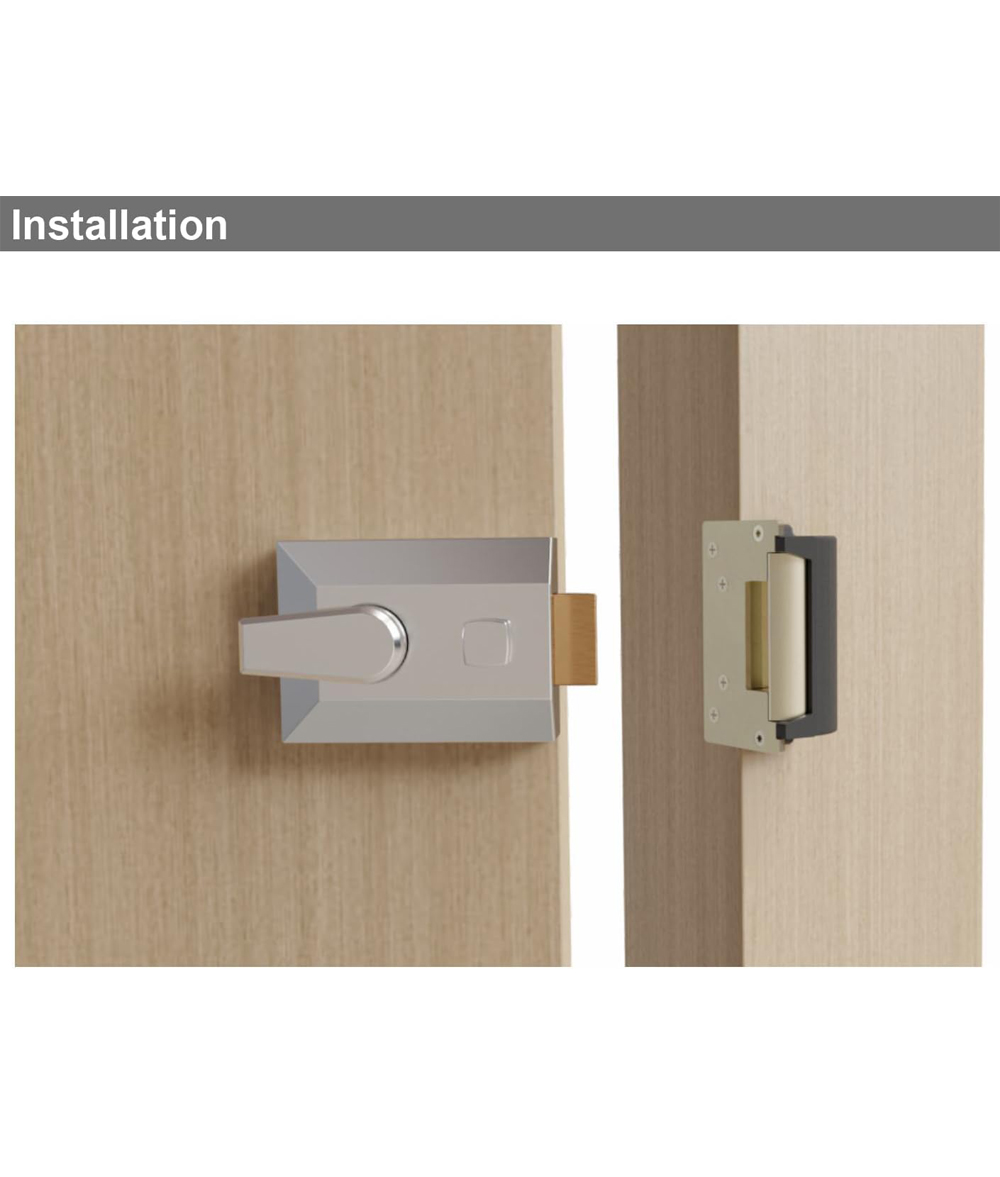

• Intallation Method: Surface mounted (User with mechanical locks)
• Application: Wooden door, metal door, fire door
• Surface Temperature: Below ambient temperature 68℉ (20℃)
• Applicable Temperature: -4℉~131℉ (-20℃~55℃ )
• Applicable Humidity: 0-95% relative humidity
• Material of Housing: Zinc alloy (high temperature painted)
• Material of Faceplate: SUS304 stainless steel (surface brushed)

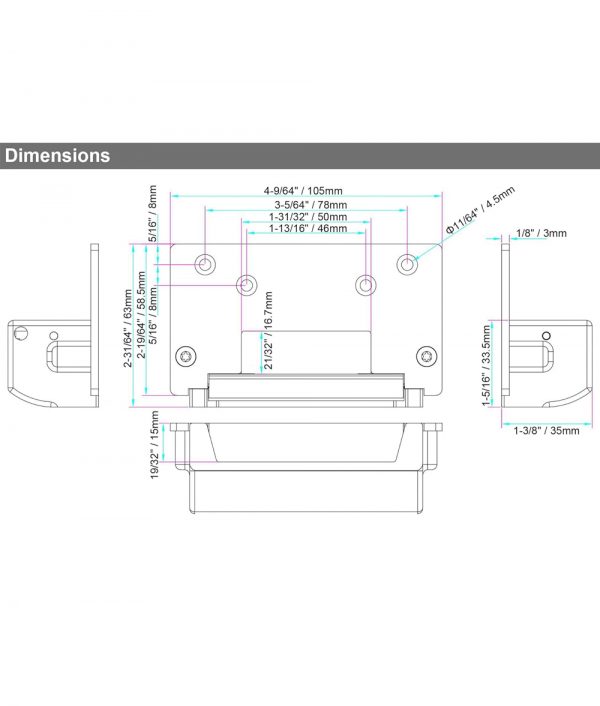

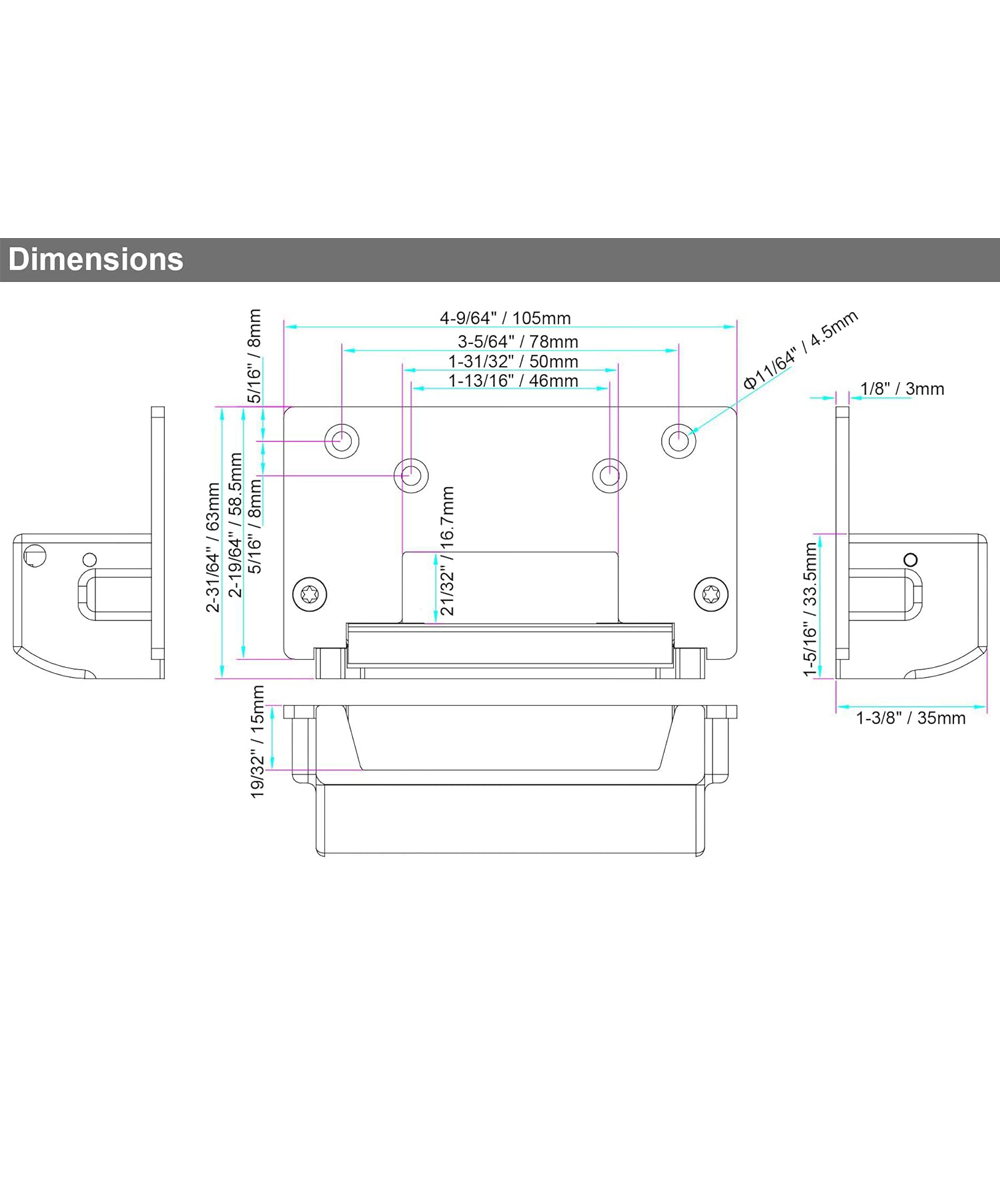

• Keeper Depth: 15/32″ (12mm)
• Keeper Width: 1-31/32″ (50mm)
• Dimensions (LxWxH): 4-9/64″x2-31/64″x1-3/8″ (105x63x35mm)
• Weight: 14.11oz (0.4kg)

Package Includes:

• 1 x Electric Strike Lock
• 1 x User Manual
